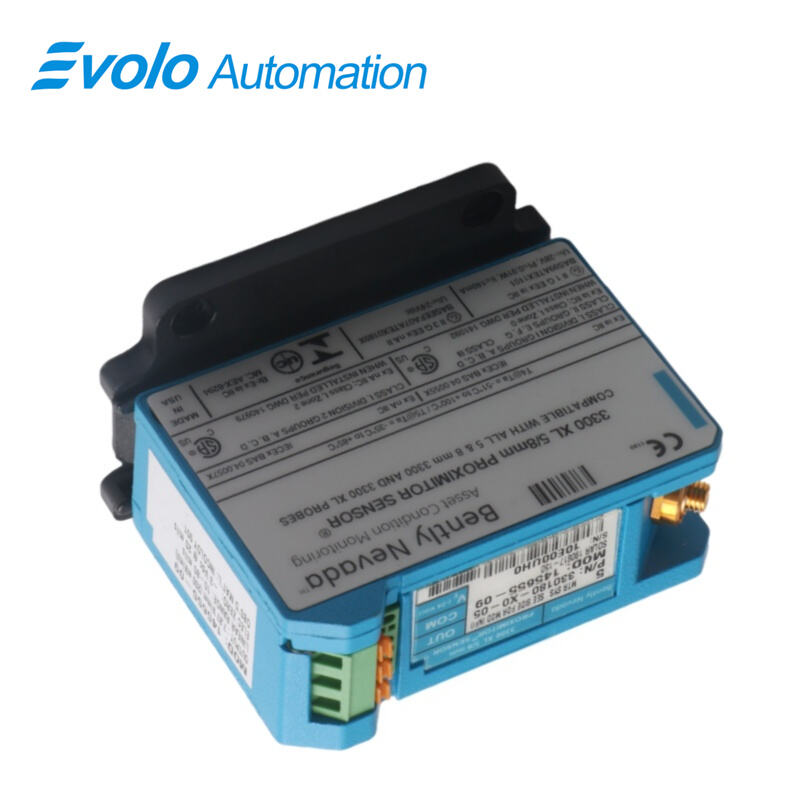

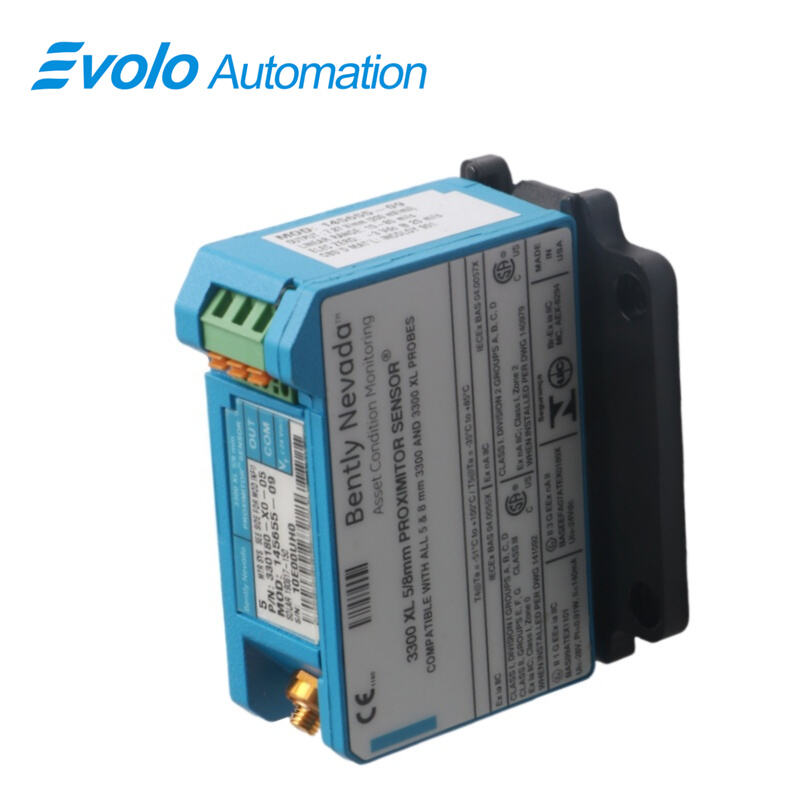

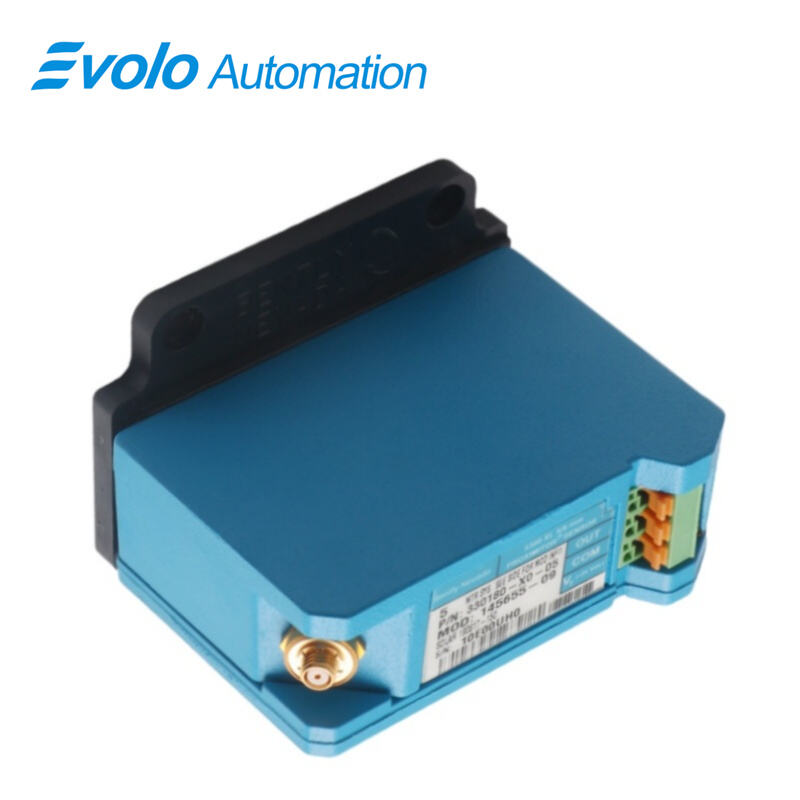

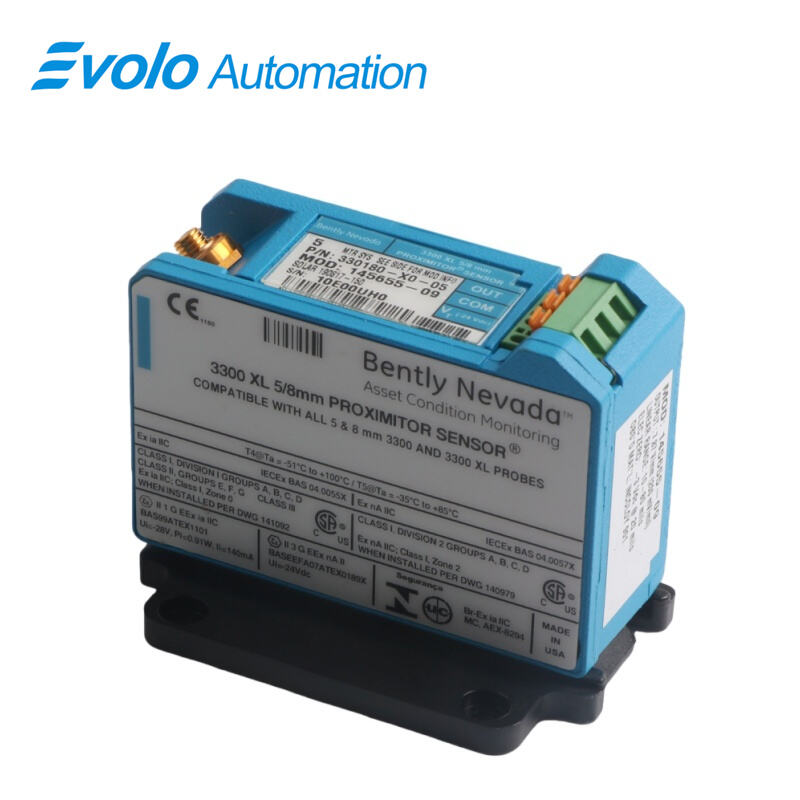

330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X0-CN MOD 145004-83
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor integrates a single non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe with an extension cable. Designed with a 1.0-meter system length and no additional mounting hardware, the 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor operates at –17.5 Vdc to –26 Vdc, maintaining less than 2 mV output variation per volt of input. Field wiring supports 0.2–1.5 mm² (16–24 AWG) up to 305 meters, with 50 Ω output resistance. The sensor detects flat targets as small as 15.2 mm and provides output voltages from 0.0247 to 0.0348 mV pp/Gauss across 10–90 mil gaps. Frequency response ranges from 0–10 kHz, enabling precise measurement of static position and dynamic vibration. Operating temperatures span –52°C to +100°C, and storage reaches –52°C to +105°C. CSA, ATEX, and IECEx approvals allow deployment in industrial automation systems. SpringLoc terminal strips enable fast, secure wiring while eliminating screw-type clamping errors. The 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor ensures accurate signal transmission for control loops, Keyphasor references, and rotor position monitoring in fluid-film bearing machines.

Applications

Monitor Rotor Vibration
The 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor measures dynamic shaft vibration using a 3300 XL 8 mm Proximity Probe, converting displacement within a 2 mm linear range into precise output voltage (0.0247–0.0348 mV pp/Gauss). This allows automated systems to detect rotor oscillations in fluid-film bearing machines and trigger corrective control actions.

Measure Shaft Position
Use the 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor to monitor rotor position with output resistance of 50 Ω and minimal target size of 15.2 mm, providing accurate position feedback for control loops in automated machinery.

Generate Keyphasor Signals
The 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor produces Keyphasor pulses at a frequency response of 0–10 kHz, ensuring precise speed measurements for synchronized operations in industrial automation systems.

Enable Remote Monitoring
Field wiring up to 305 meters allows the 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor to transmit reliable signals to SCADA or control systems, supporting remote monitoring and automated alerts in complex plant layouts.

Specifications

Competitive Advantage

Fast and Secure Field Wiring
SpringLoc terminals on the 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor support 16–24 AWG wiring without tools, reducing installation errors and saving labor in automation projects.

Wide Temperature Range Operation
Operating from –52°C to +100°C, the 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor functions reliably in extreme environments while maintaining consistent voltage output across varying input (less than 2 mV change per volt).

Flexible Mounting Configurations
The 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor supports DIN-rail or panel mount options, simplifying integration into automated system layouts and reducing installation complexity.

Long-Distance Signal Integrity
Maintaining 0–10 kHz frequency response over 305 meters of wiring, the 330180-X0-CN MOD 145004-83 3300 XL Proximitor Sensor ensures precise signal delivery for automated monitoring and control in large industrial installations.
