Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330173-00-05-10-12-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 mm |
|
Overall Case Length Option |
0 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
Probe Case Thread: |
M8 x 1 thread |
|
Maximum Length of Thread Engagement: |
Maximum Rated:7.3 N•m (65 in•lb);Recommended:5.1 N•m (45 in•lb) |
|
Dimension: |
1.3x1.1x120cm |
|
Weight: |
0.04kg |
Description

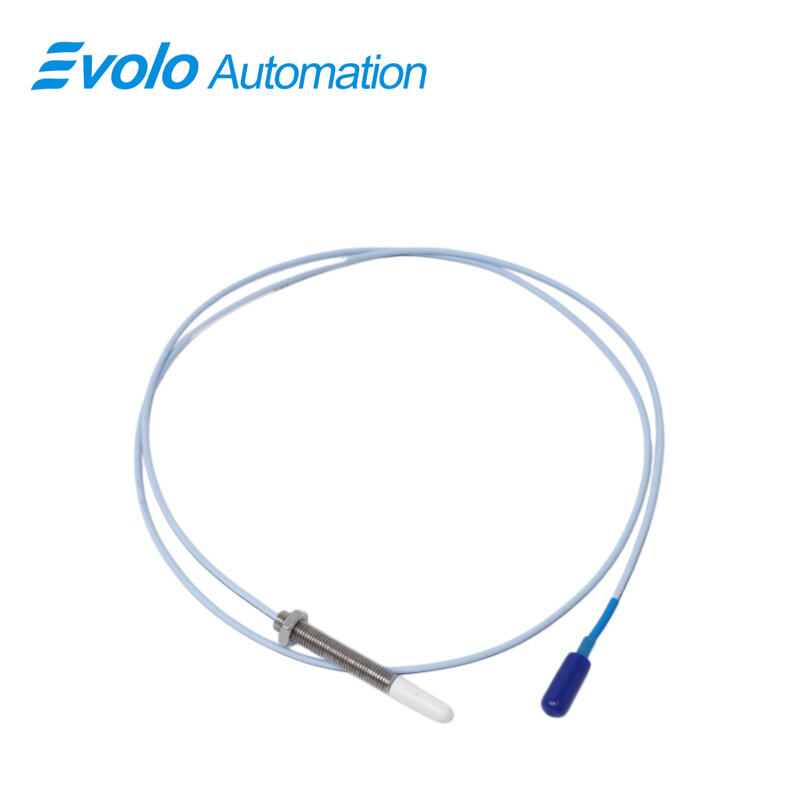

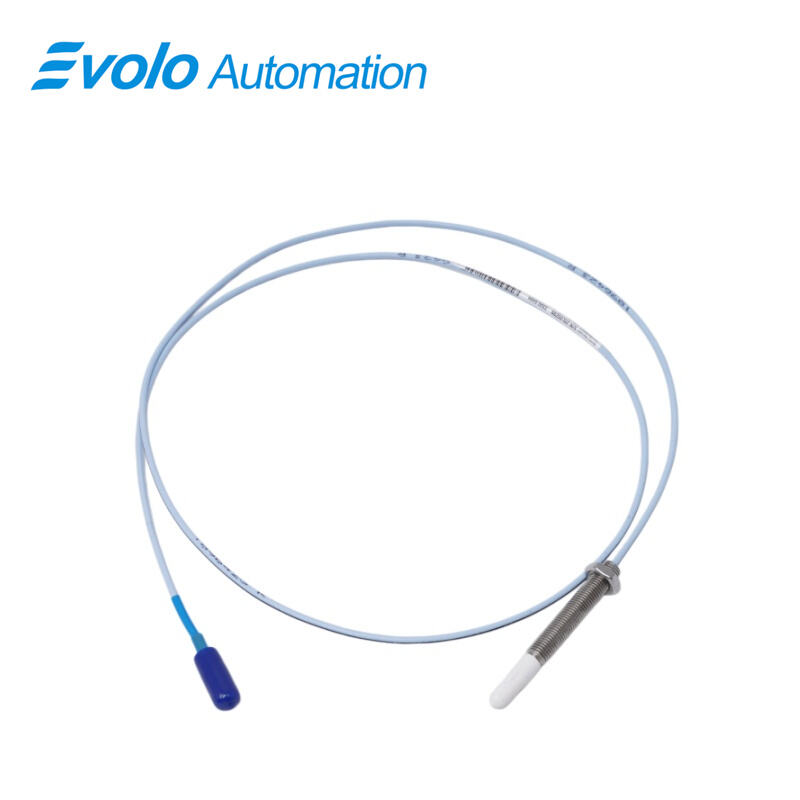

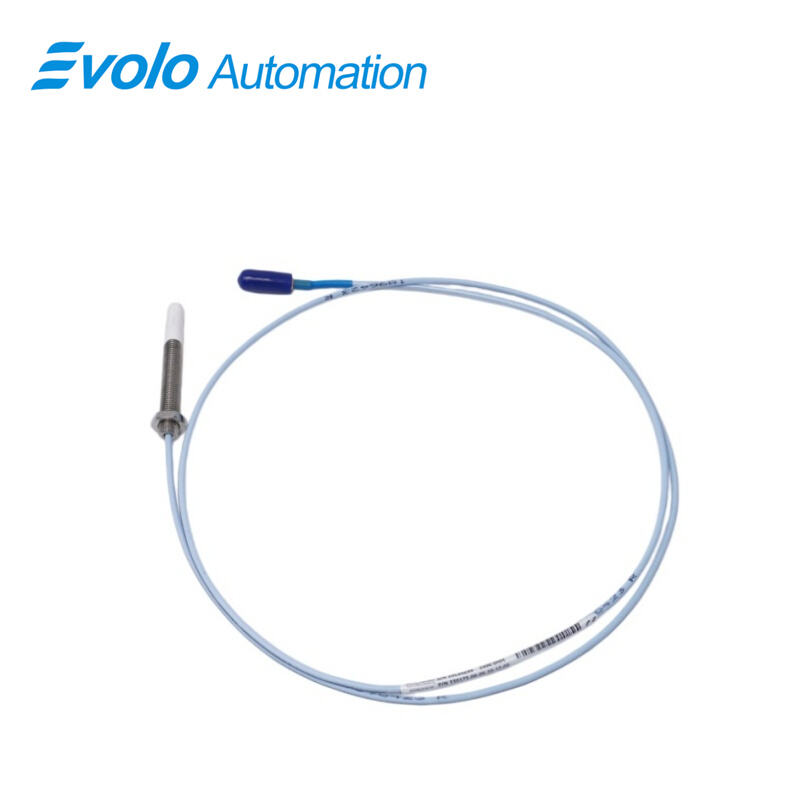

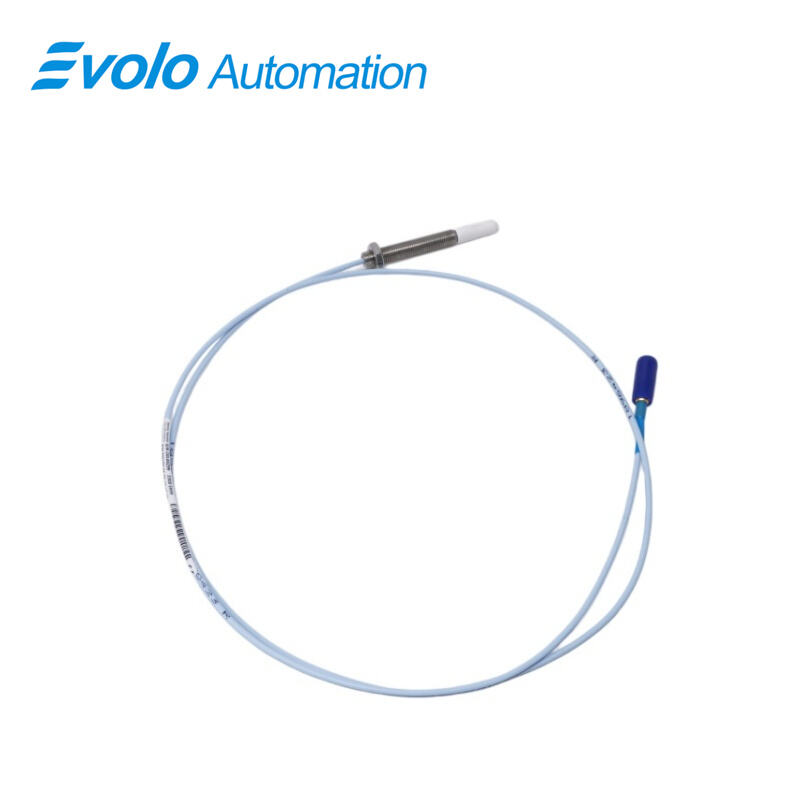

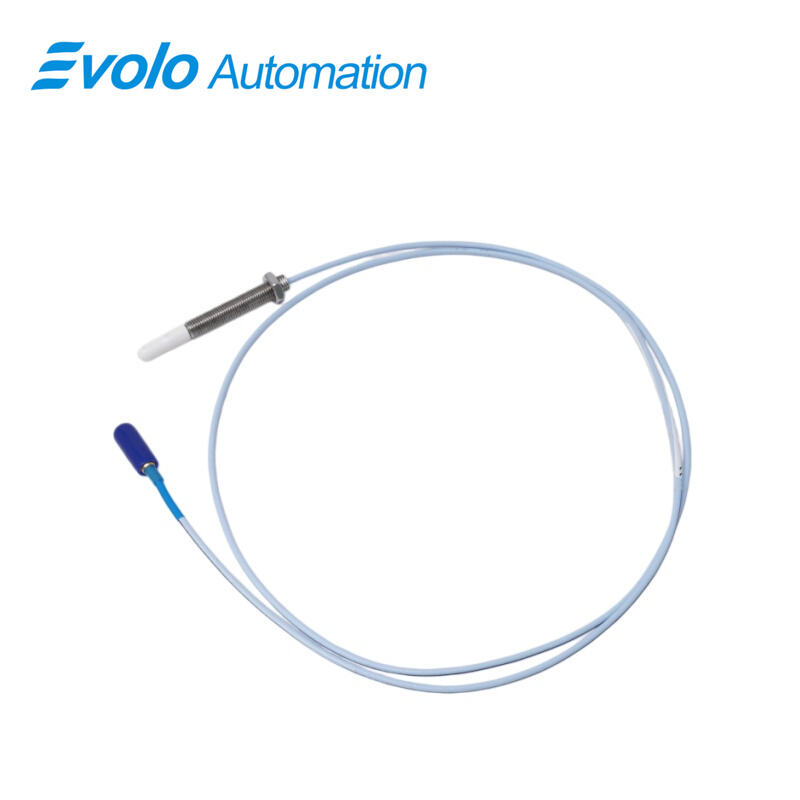

330173-00-05-10-12-00 is a 1.0 m 3.3 ft 5 mm proximity probe designed for industrial automation and vibration or position monitoring. The 330173-00-05-10-12-00 features an M8 x 1 threaded case with maximum torque of 7.3 N·m and recommended torque 5.1 N·m. It includes a miniature coaxial ClickLoc™ connector with standard cable, 50 Ω output resistance, and 69.9 pF/m cable capacitance. Supply sensitivity is less than 2 mV per volt, and the linear range is 2 mm, allowing precise distance measurement. The 330173-00-05-10-12-00 operates from -52°C to +177°C and supports 0.2–1.5 mm² 16–24 AWG field wiring.
Applications
Application for turbine shaft vibration monitoring
Connect 330173-00-05-10-12-00 to a 3300 XL Proximitor sensor to capture radial vibration signals with 2 mm linear range and total cable capacitance of 69.9 pF/m.
Application for compressor axial position measurement
Install 330173-00-05-10-12-00 to transmit axial displacement measurements over 1.0 m cable length with 50 Ω output resistance.
Application for motor bearing position monitoring
Route 330173-00-05-10-12-00 along motor bearing surfaces to detect 15.2 mm diameter targets, maintaining accurate signals through ClickLoc™ connector and 2 mm linear range.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive advantage for compact installation
The 5 mm diameter of 330173-00-05-10-12-00 enables mounting in tight machine spaces where larger probes cannot fit.
Competitive advantage for precise measurement
330173-00-05-10-12-00 maintains 2 mm linear range and less than 2 mV per volt supply sensitivity for accurate static and dynamic readings.
Competitive advantage for extreme temperature operation
The 330173-00-05-10-12-00 operates from -52°C to +177°C for high-temperature turbines, compressors, and motors.
Competitive advantage for secure connector attachment
Miniature ClickLoc™ connector on 330173-00-05-10-12-00 ensures reliable cable-to-probe connection with recommended torque of 5.1 N·m.
