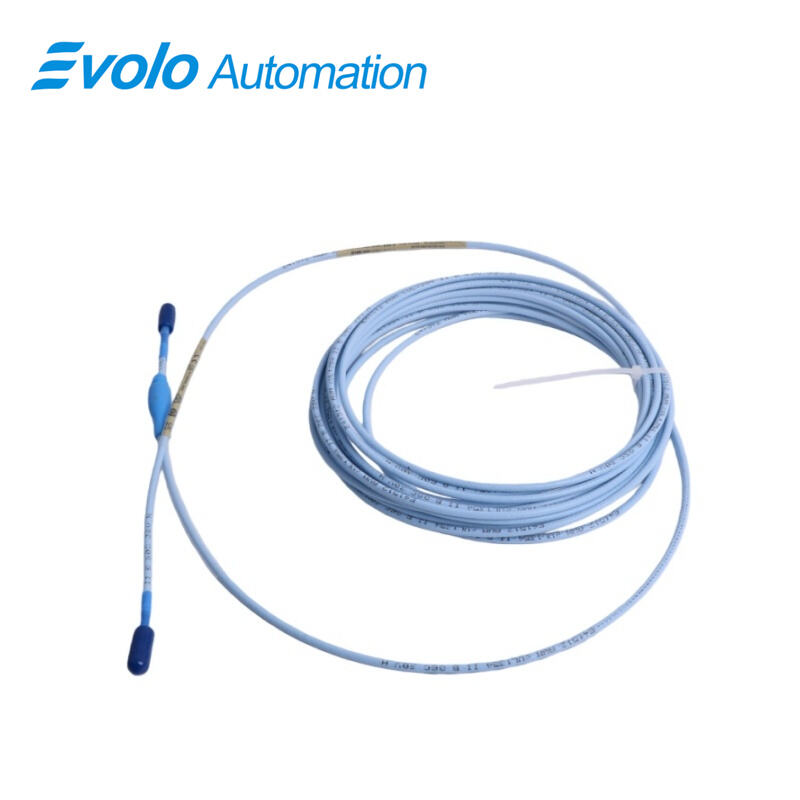

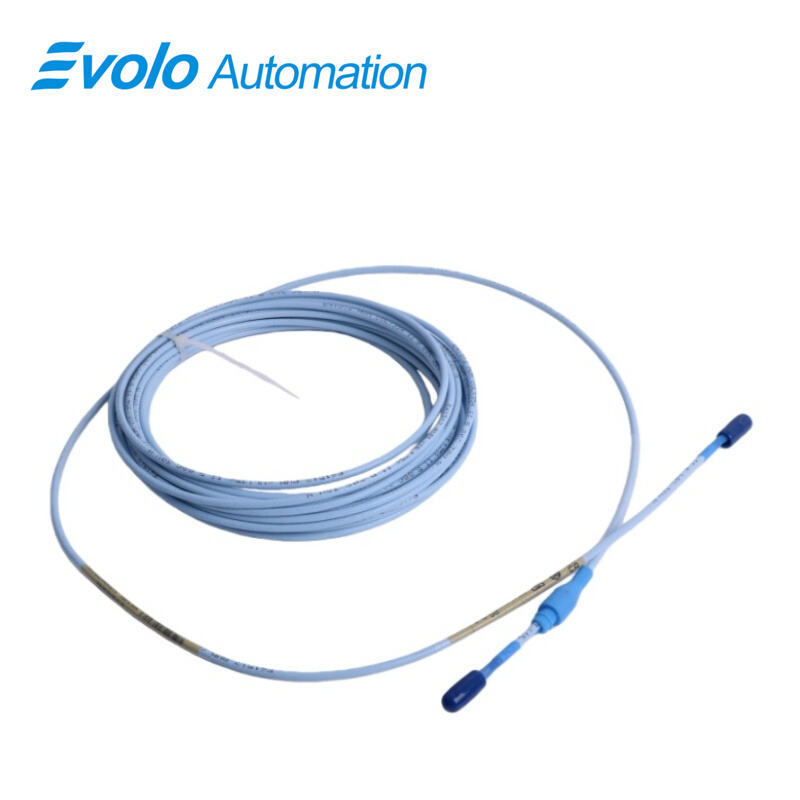

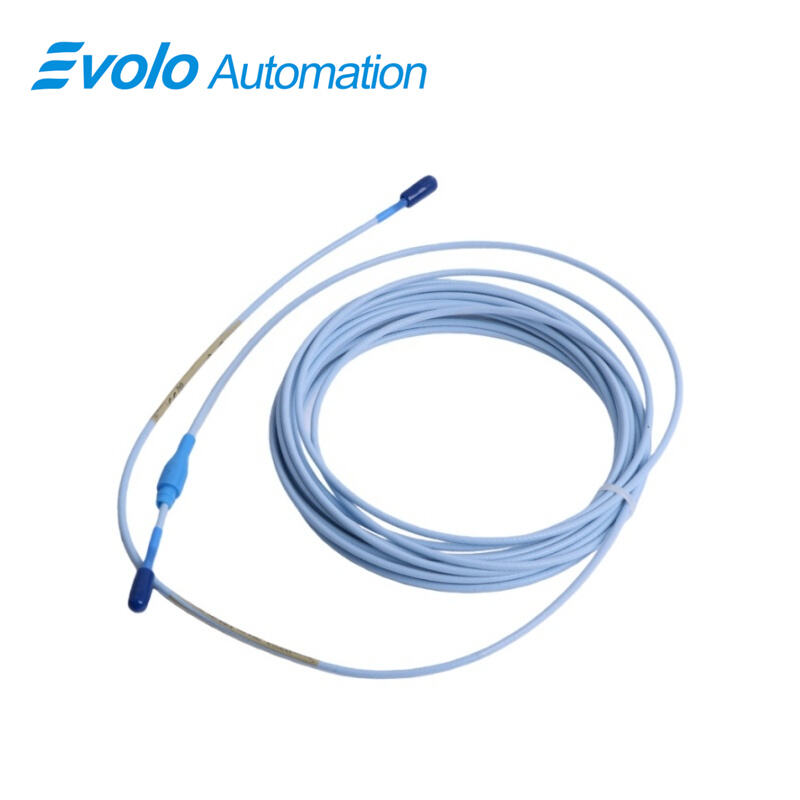

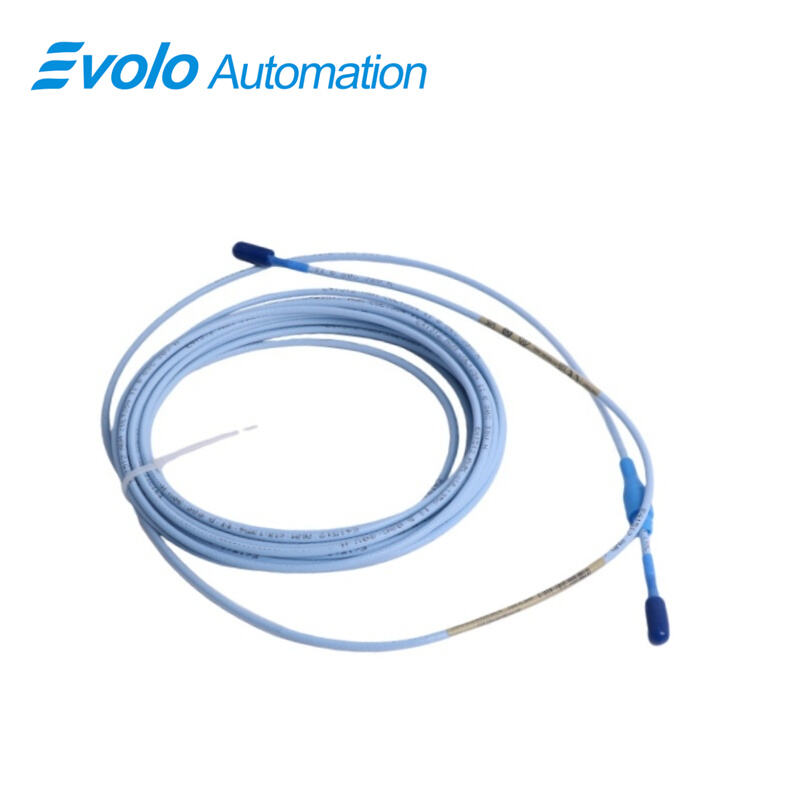

330130-085-02-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-02-CN 3300 XL Standard Extension Cable provides accurate signal transmission for 3300 XL 8 mm Proximity Transducer Systems in automated industrial applications. With an 8.5-meter (27.9 ft) standard cable with connector protector, the 330130-085-02-CN 3300 XL Standard Extension Cable maintains 50 Ω output resistance and 69.9 pF/m (21.3 pF/ft) capacitance. Its 75 Q triaxial FEP insulation keeps supply sensitivity under 2 mV per volt input change. Field wiring supports 0.2–1.5 mm² (16–24 AWG) up to 305 meters (1000 ft) while preserving a 2 mm (80 mils) linear range and 0–10 kHz frequency response. CSA, ATEX, and IECEx approvals allow use in hazardous environments. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength for secure probe attachment. The 330130-085-02-CN 3300 XL Standard Extension Cable enables automated vibration, position, speed, and Keyphasor measurements on fluid-film bearing machines, integrating seamlessly with 3300 XL probes and Proximitor sensors without bench calibration.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330130-085-02-CN 3300 XL Standard Extension Cable connects 3300 XL probes to Proximitor sensors for measuring shaft and rotor vibration with 2 mm linear range and 0–10 kHz frequency response in automated industrial setups.

Position Sensing in Rotating Equipment
Use the 330130-085-02-CN 3300 XL Standard Extension Cable to transmit displacement signals from 3300 XL probes over distances up to 305 meters (1000 ft), maintaining 50 Ω output resistance and 69.9 pF/m capacitance for precise shaft positioning.

Speed and Keyphasor Signal Transmission
The 330130-085-02-CN 3300 XL Standard Extension Cable delivers Keyphasor and rotational speed signals from 3300 XL probes with less than 2 mV per volt supply sensitivity, supporting turbine and generator automation.

Remote Monitoring in Hazardous Areas
CSA, ATEX, and IECEx approvals allow the 330130-085-02-CN 3300 XL Standard Extension Cable to transmit signals safely from 3300 XL probes in explosive or high-risk environments.

Specifications

Competitive Advantage

High-Precision Signal Transfer
The 330130-085-02-CN 3300 XL Standard Extension Cable preserves 2 mm linear range, 0–10 kHz frequency response, and output voltage accuracy across long wiring runs, supporting precise automated vibration and position monitoring.

Durable Probe Connection
Patented TipLoc and CableLoc designs secure probe attachment under 330 N (75 lbf) pull. The 330130-085-02-CN 3300 XL Standard Extension Cable maintains signal connection even in high-vibration environments.

Seamless System Integration
Fully compatible with 3300 XL probes and Proximitor sensors, the 330130-085-02-CN 3300 XL Standard Extension Cable allows plug-and-play installation and rapid replacement without bench calibration.

Extended Automation Reach
Supports field wiring up to 305 meters (1000 ft) while maintaining linear range, frequency response, and capacitance. The 330130-085-02-CN 3300 XL Standard Extension Cable enables flexible layout for long-distance automated monitoring.
