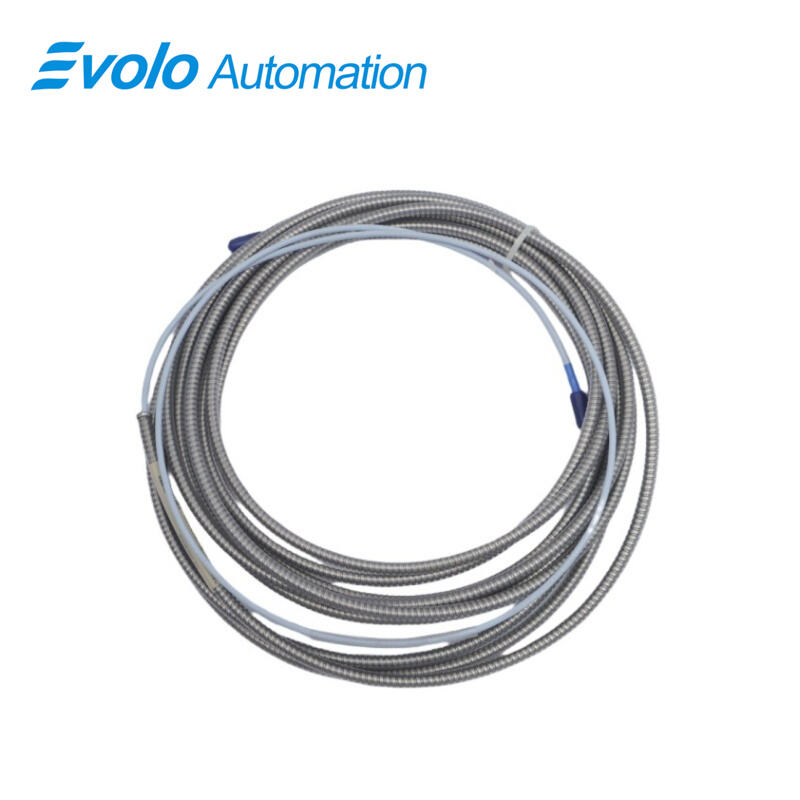

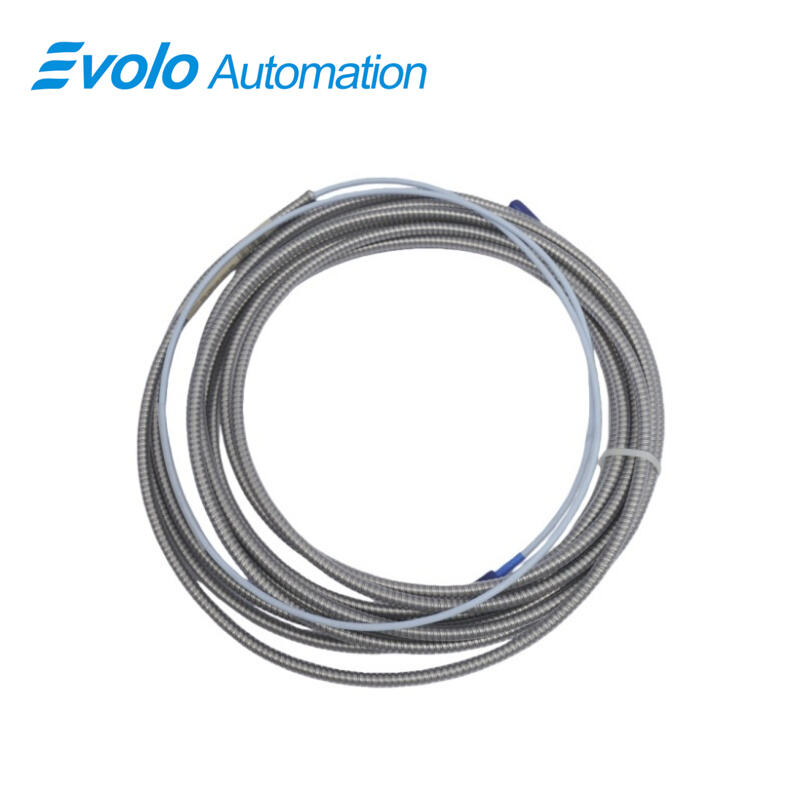

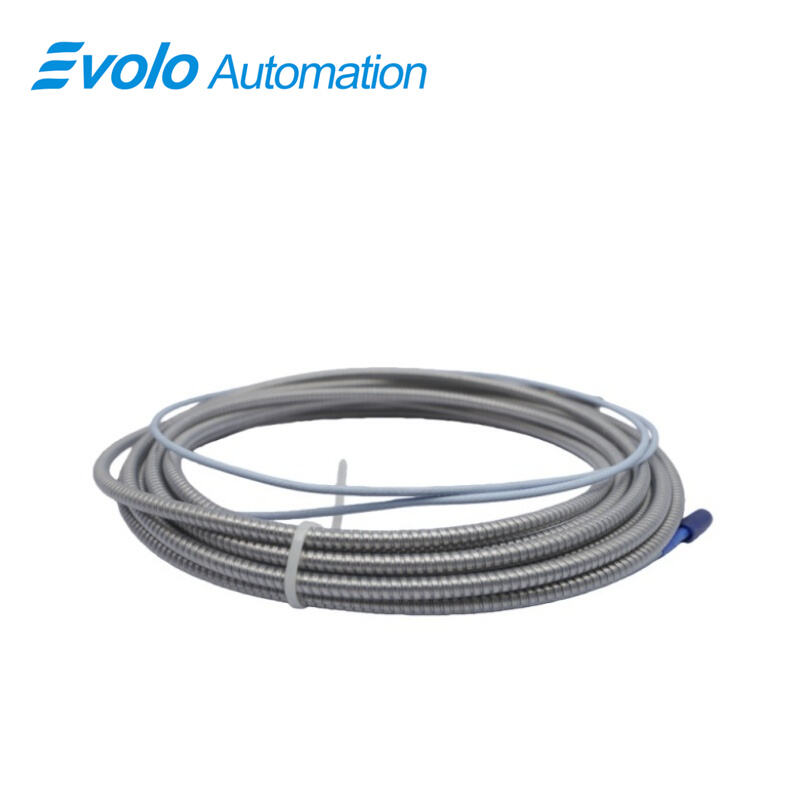

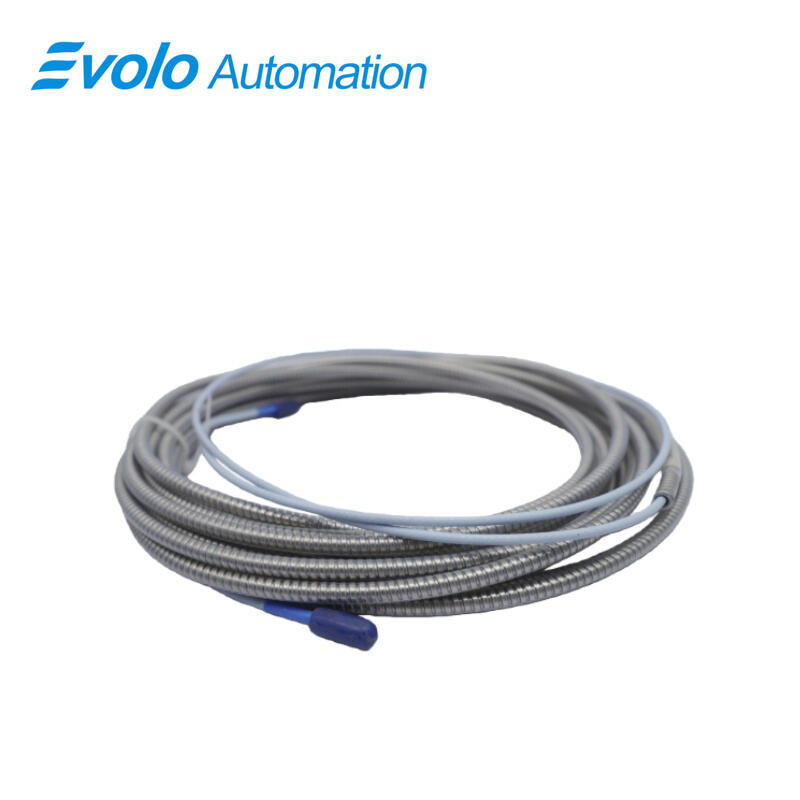

330130-085-01-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-01-00 3300 XL Standard Extension Cable provides precise signal transmission for 3300 XL 8 mm Proximity Transducer Systems in automated industrial applications. With an 8.5-meter (27.9 ft) armored cable, the 330130-085-01-00 3300 XL Standard Extension Cable maintains 50 Ω output resistance and 69.9 pF/m (21.3 pF/ft) capacitance. Its 75 Q triaxial FEP insulation keeps supply sensitivity under 2 mV per volt input change. Field wiring supports 0.2–1.5 mm² (16–24 AWG) up to 305 meters (1000 ft) while preserving a 2 mm (80 mils) linear range and 0–10 kHz frequency response. Patented TipLoc and CableLoc features provide 330 N (75 lbf) pull strength and secure probe attachment. The 330130-085-01-00 3300 XL Standard Extension Cable enables vibration, position, speed, and Keyphasor measurements on fluid-film bearing machines. It integrates seamlessly with 3300 XL probes and Proximitor sensors, supporting automated monitoring without bench calibration.

Applications

Vibration Measurement on Fluid-Film Bearings
The 330130-085-01-00 3300 XL Standard Extension Cable connects 3300 XL probes to Proximitor sensors to measure rotor and shaft vibration with 2 mm linear range and frequency response up to 10 kHz for automated monitoring.

Position Sensing in Rotating Machinery
Use the 330130-085-01-00 3300 XL Standard Extension Cable to transmit shaft displacement signals from 3300 XL probes over distances up to 305 meters (1000 ft), maintaining 50 Ω output resistance and 69.9 pF/m capacitance for precise positioning.

Speed and Keyphasor Signal Transmission
The 330130-085-01-00 3300 XL Standard Extension Cable delivers Keyphasor and rotational speed signals from 3300 XL probes with less than 2 mV per volt supply sensitivity, supporting turbine and generator automation.

Remote Monitoring in Industrial Areas
The 330130-085-01-00 3300 XL Standard Extension Cable allows installation in extended automation layouts while preserving 2 mm linear range, 0–10 kHz frequency response, and output voltage from 3300 XL probes.

Specifications

Competitive Advantage

Accurate Signal Transfer
The 330130-085-01-00 3300 XL Standard Extension Cable preserves linear range, frequency response, and output voltage across long wiring runs, supporting precise automated vibration and position monitoring.

Durable Probe Attachment
Patented TipLoc and CableLoc designs secure probe attachment under 330 N (75 lbf) pull. The 330130-085-01-00 3300 XL Standard Extension Cable maintains signal connection even in high-vibration environments.

Seamless System Integration
Fully compatible with 3300 XL probes and Proximitor sensors, the 330130-085-01-00 3300 XL Standard Extension Cable allows plug-and-play installation and replacement without bench calibration.

Extended Automation Reach
Supports field wiring up to 305 meters (1000 ft) while maintaining linear range, frequency response, and capacitance. The 330130-085-01-00 3300 XL Standard Extension Cable enables flexible layout for long-distance automation monitoring.
