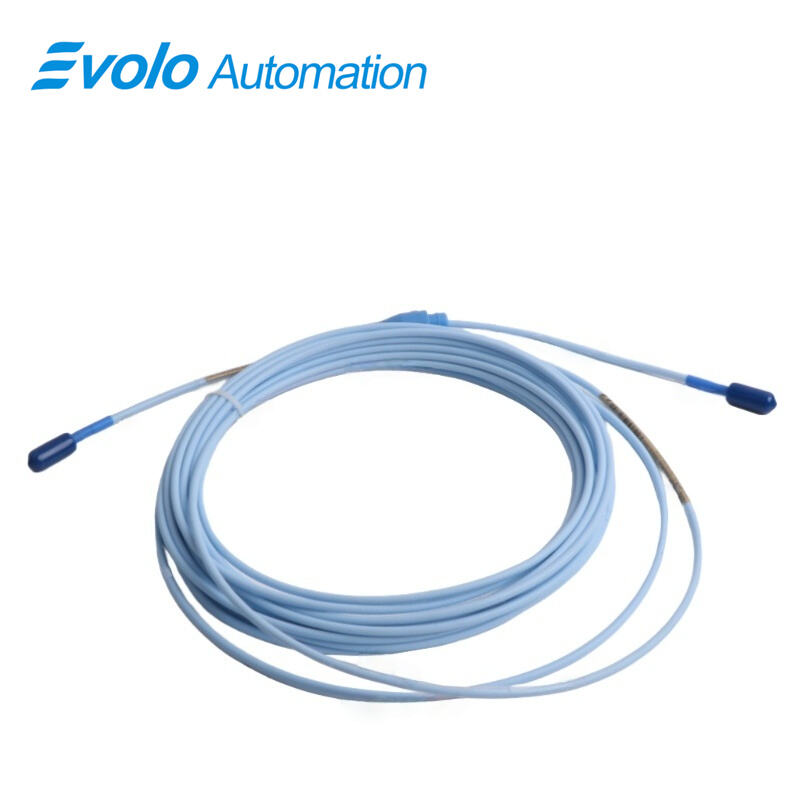

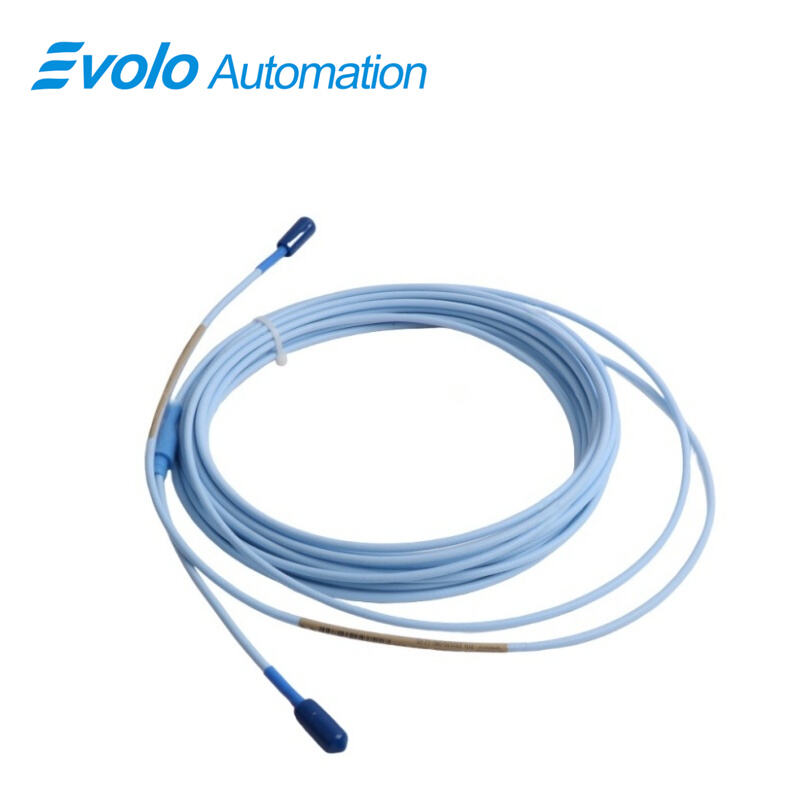

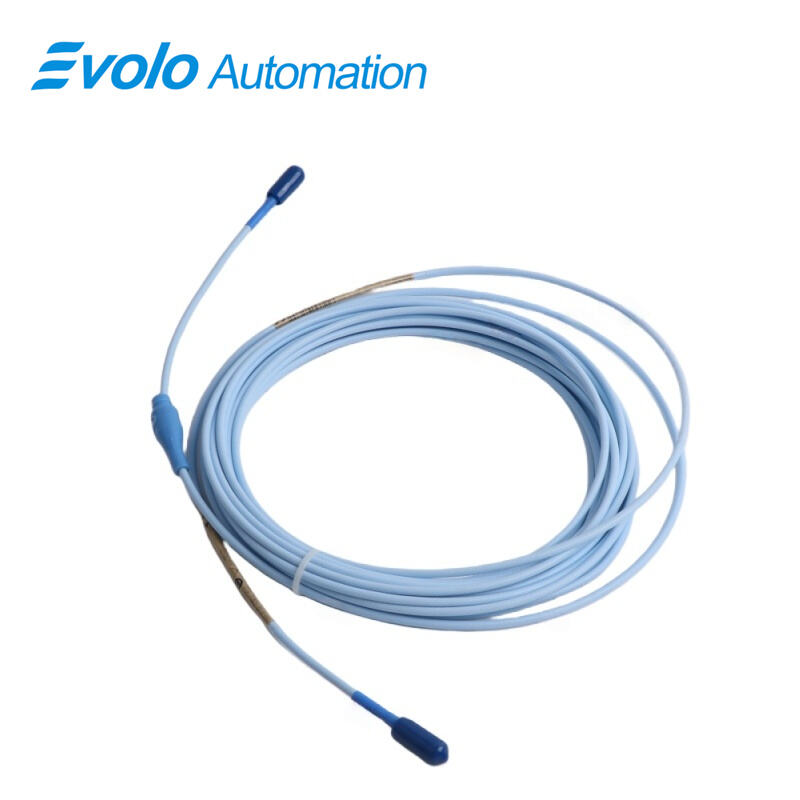

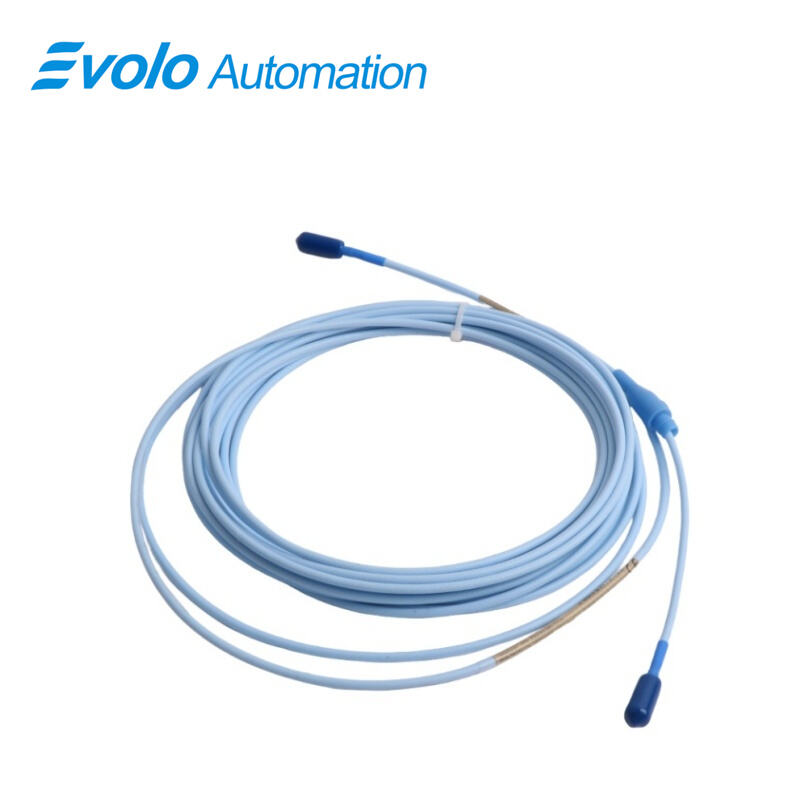

330130-080-11-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-11-00 3300 XL Standard Extension Cable provides reliable signal transmission for 3300 XL 8 mm Proximity Transducer Systems in industrial automation. With an 8.0-meter (26.2 ft) armored FluidLoc cable, it supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and maintains output resistance at 50 Ω. The extension cable’s 75 Q triaxial FEP insulation ensures minimal supply sensitivity, keeping voltage variation under 2 mV per volt of input change. Typical capacitance is 69.9 pF/m (21.3 pF/ft), supporting accurate measurements over distances up to 305 meters (1000 ft). Compatible with 3300 XL probes, the 330130-080-11-00 3300 XL Standard Extension Cable enables vibration, position, speed, and Keyphasor reference measurements on fluid-film bearing machines. Its linear range of 2 mm (80 mils) and minimum target size of 15.2 mm (0.6 in) deliver precise proximity readings. Optional FluidLoc design prevents fluid leakage through the cable, while TipLoc and CableLoc features secure probe attachment under 330 N (75 lbf) tension. The 330130-080-11-00 3300 XL Standard Extension Cable integrates seamlessly into existing 3300 XL systems, supporting automated monitoring and control without bench calibration.

Applications

Probe Extension for Vibration Measurement
The 330130-080-11-00 3300 XL Standard Extension Cable connects 3300 XL 8 mm probes to Proximitor sensors, enabling precise vibration readings on fluid-film bearing machines. With a linear range of 2 mm (80 mils) and frequency response up to 10 kHz, the 330130-080-11-00 3300 XL Standard Extension Cable maintains accurate signal transmission even for high-speed rotating components.

Position Sensing in Rotating Equipment
Use the 330130-080-11-00 3300 XL Standard Extension Cable to transmit displacement data from 3300 XL probes to monitoring systems. Its 75 Q triaxial FEP insulation and output resistance of 50 Ω ensure minimal signal loss for precise shaft and rotor position measurements.

Speed and Keyphasor Signal Transmission
The 330130-080-11-00 3300 XL Standard Extension Cable delivers high-quality Keyphasor and speed signals from 3300 XL probes. Typical capacitance of 69.9 pF/m allows long cable runs without affecting timing accuracy, supporting turbine and generator automation.

Long-Distance Field Wiring
With support for field wiring up to 305 meters (1000 ft) and 0.2–1.5 mm² (16–24 AWG) conductors, the 330130-080-11-00 3300 XL Standard Extension Cable enables remote installation of 3300 XL systems while preserving linearity and output integrity.

Specifications

Competitive Advantage

High-Precision Signal Transfer
The 330130-080-11-00 3300 XL Standard Extension Cable maintains output voltage within 2 mV per volt of input change and linear range of 2 mm, ensuring accurate measurements over long distances and supporting high-frequency signals up to 10 kHz.

Durable Mechanical Design
Armored FluidLoc cable and patented TipLoc/CableLoc features provide 330 N (75 lbf) pull strength. The 330130-080-11-00 3300 XL Standard Extension Cable resists fluid ingress and mechanical stress, protecting the probe connection during automation operations.

Seamless System Integration
The 330130-080-11-00 3300 XL Standard Extension Cable is fully compatible with 3300 XL probes and Proximitor sensors. Plug-and-play operation eliminates bench calibration, enabling fast installation and maintenance in industrial automation systems.

Extended Automation Reach
Supports long-distance wiring up to 305 meters (1000 ft) without compromising linearity or frequency response. The 330130-080-11-00 3300 XL Standard Extension Cable allows flexible plant layouts and precise monitoring in automated processes.
