330130-080-10-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-10-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

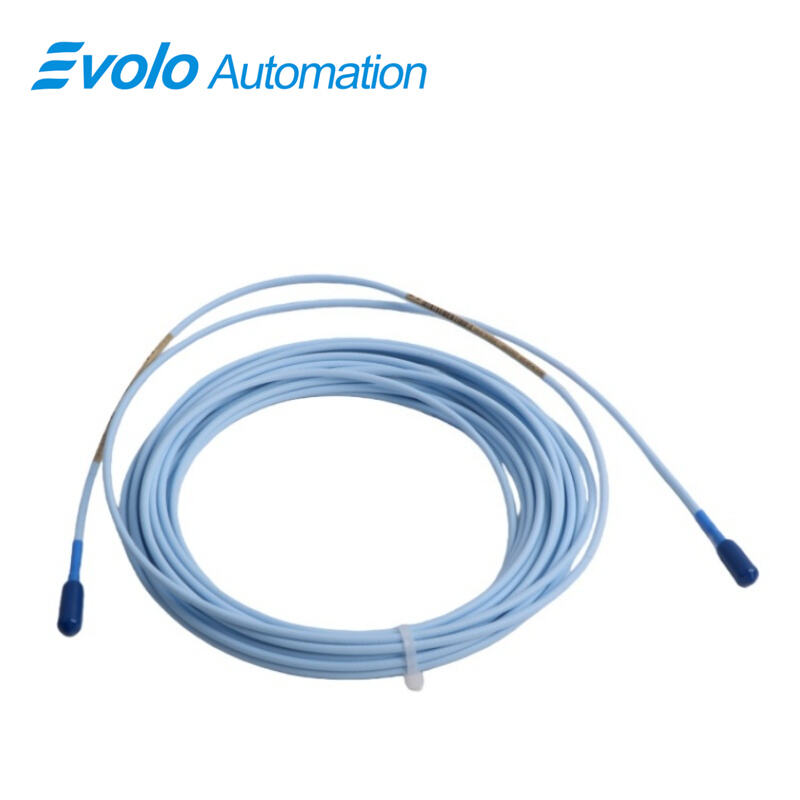

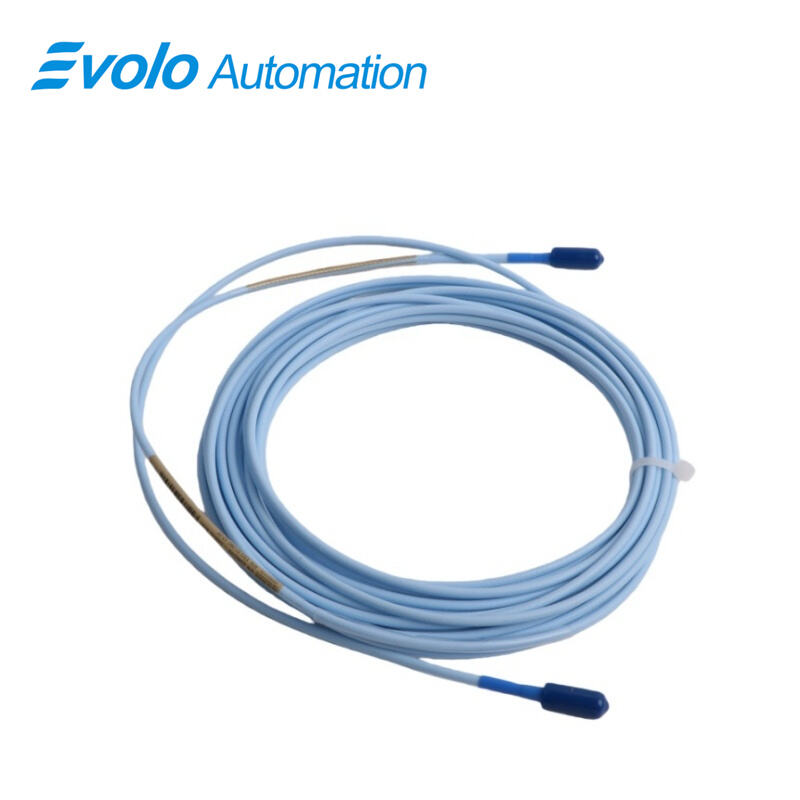

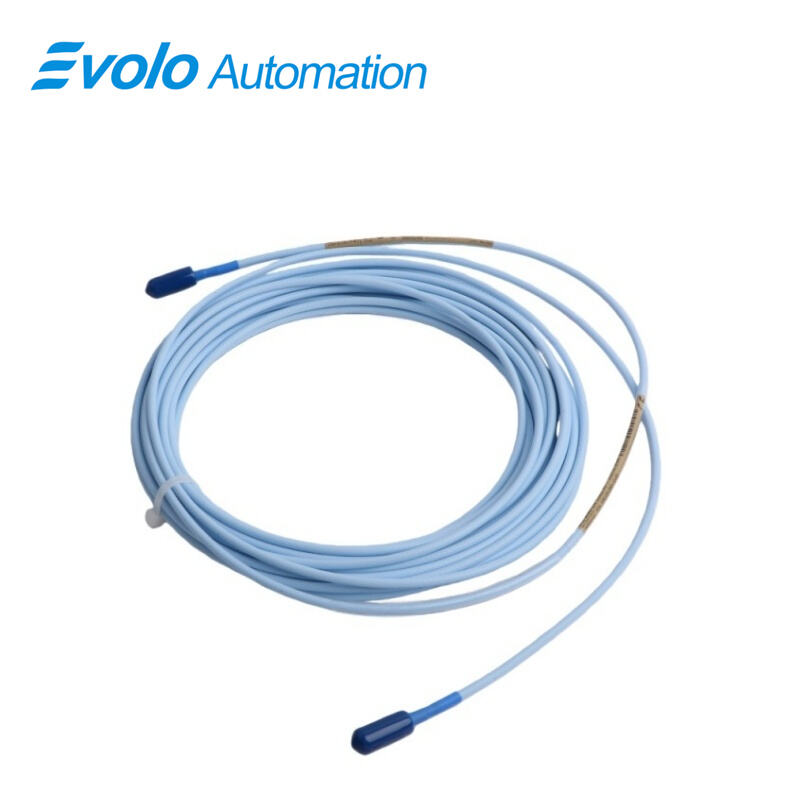

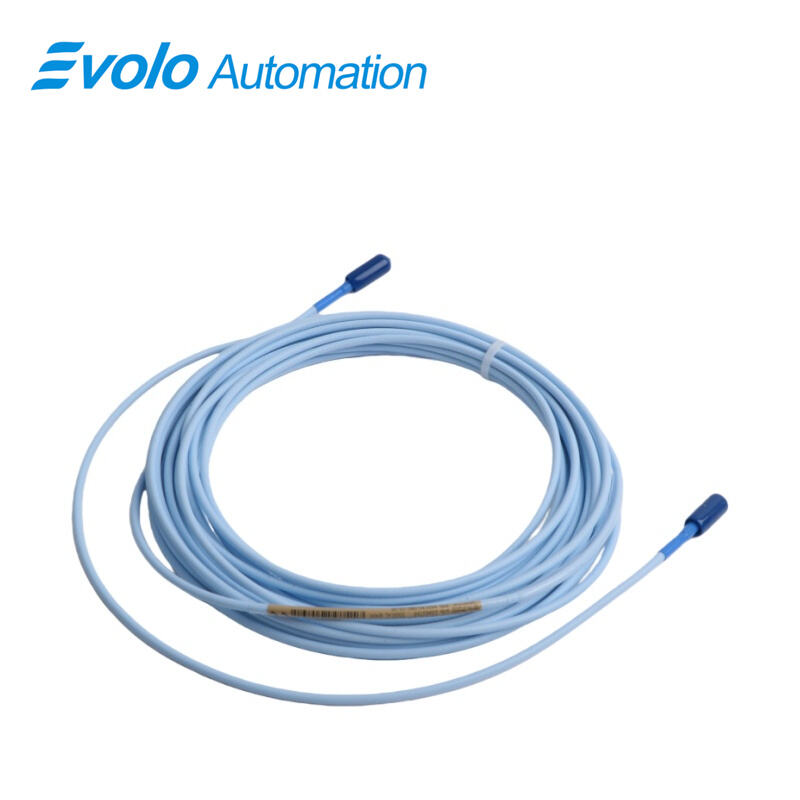

The 330130-080-10-CN 3300 XL Standard Extension Cable is an 8.0-meter FluidLoc extension cable designed for 8 mm 3300 XL proximity probes. It features 75 Q triaxial FEP insulation, 50 Ω output resistance, and a typical capacitance of 69.9 pF/m, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). The cable maintains voltage changes under 2 mV per volt input variation and delivers a linear range of 2 mm with frequency response from 0 to 10 kHz over distances up to 305 meters. Paired with 330130-080-10-CN 3300 XL Standard Extension Cable, probes provide accurate vibration and position measurements on fluid-film bearings, speed monitoring via Keyphasor signals, and long-distance signal transmission in automated systems. The FluidLoc design prevents fluid ingress, ensuring consistent probe output in industrial environments.

Applications

Measure Bearing Vibration
Use 330130-080-10-CN 3300 XL Standard Extension Cable with 8 mm 3300 XL probes to monitor vibration in fluid-film bearing machines. The cable’s 75 Q FEP triaxial insulation and 50 Ω output resistance ensure precise signal transmission for automated vibration diagnostics.

Track Rotor Position in Automation Systems
Deploy 330130-080-10-CN 3300 XL Standard Extension Cable to extend the linear range of 2 mm and capture accurate shaft position data, supporting Keyphasor reference and speed measurements.

Transmit Signals Over Long Distances
Connect multiple 8 mm 3300 XL probes via 330130-080-10-CN 3300 XL Standard Extension Cable to maintain ±2 mV output sensitivity over field wiring distances up to 305 meters, ensuring reliable automated feedback.

Specifications

Competitive Advantage

Consistent Signal Quality
330130-080-10-CN 3300 XL Standard Extension Cable maintains the 0–10 kHz frequency response across long cable runs, enabling precise automated measurement of static and dynamic probe signals.

Robust Mechanical Protection
The armored and FluidLoc design of 330130-080-10-CN 3300 XL Standard Extension Cable secures probe connections and prevents fluid intrusion, protecting both signal and equipment.

Flexible Installation Options
330130-080-10-CN 3300 XL Standard Extension Cable supports 0.2–1.5 mm² (16–24 AWG) field wiring, allowing deployment in varied industrial layouts without affecting output voltage.

Optimized for Automation Feedback
Paired with 8 mm 3300 XL probes, 330130-080-10-CN 3300 XL Standard Extension Cable provides reliable position and vibration signals for automated control systems.

Seamless Upgrade and Interchangeability
The 330130-080-10-CN 3300 XL Standard Extension Cable works with 5 mm and 8 mm 3300 XL probes and Proximitor sensors, reducing the need for recalibration or system adjustments.
