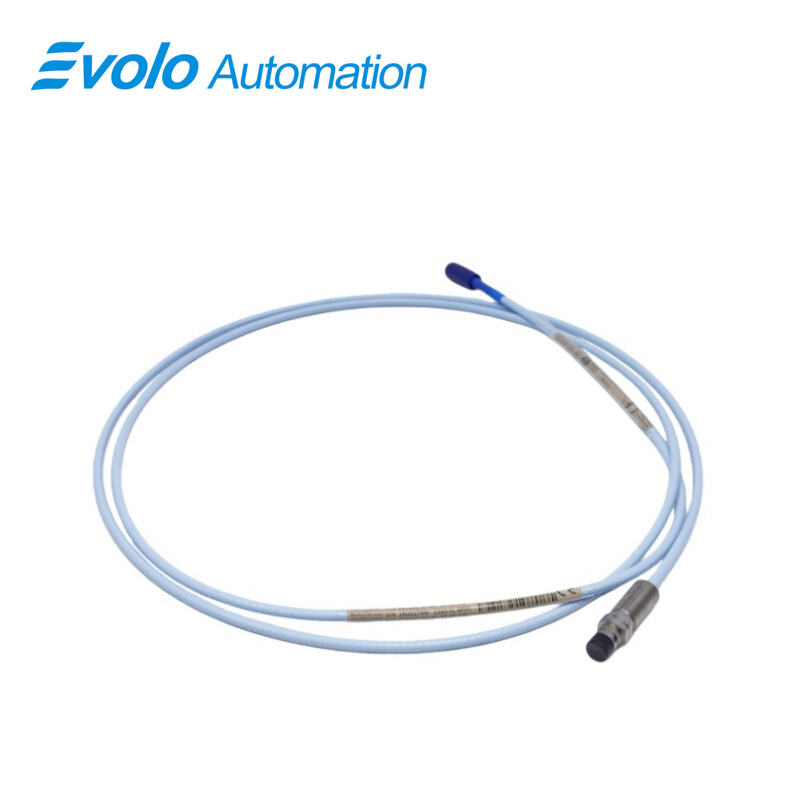

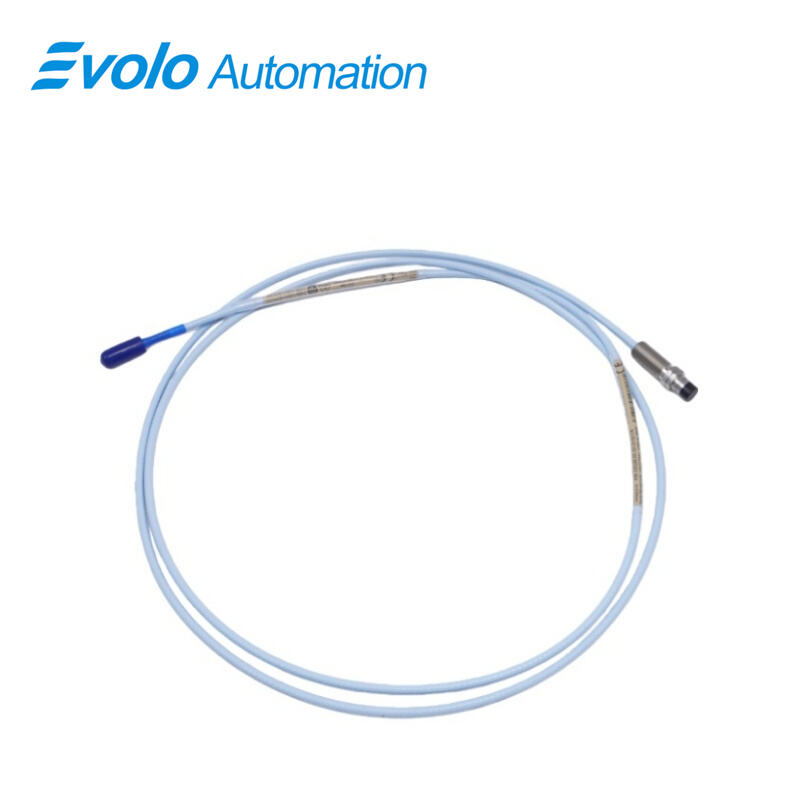

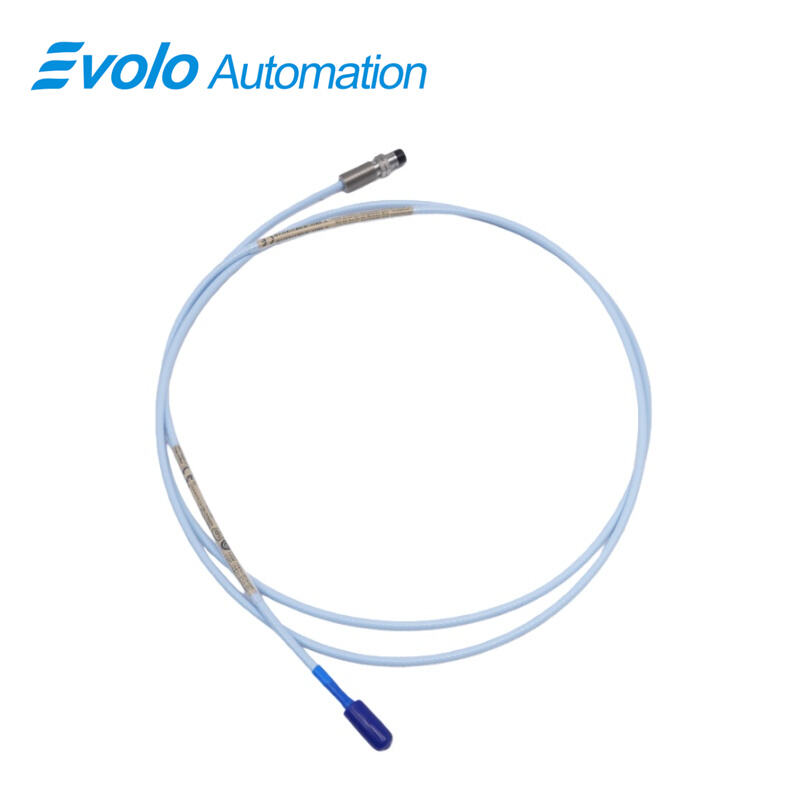

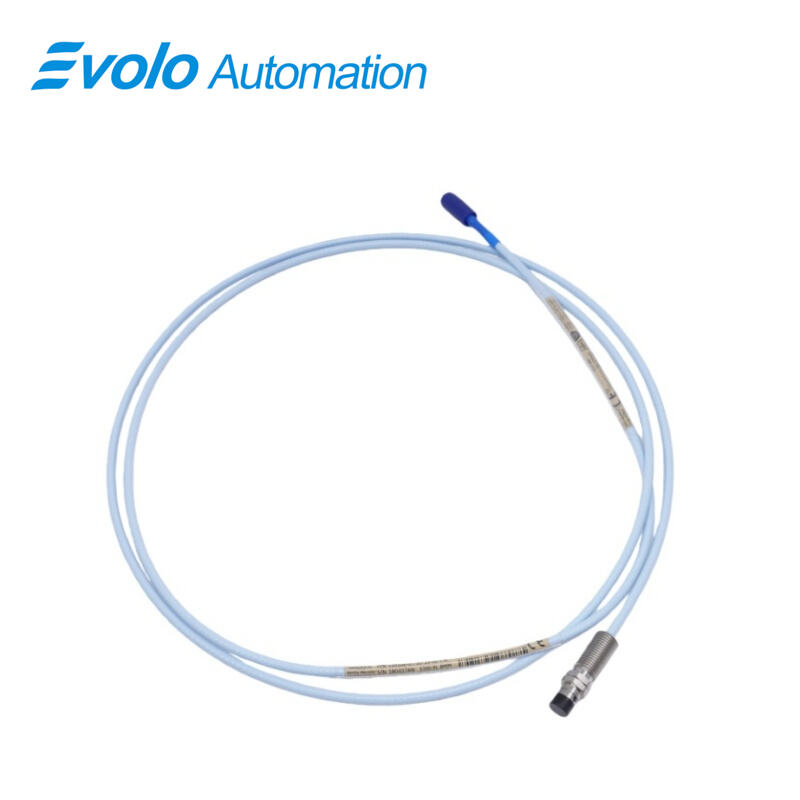

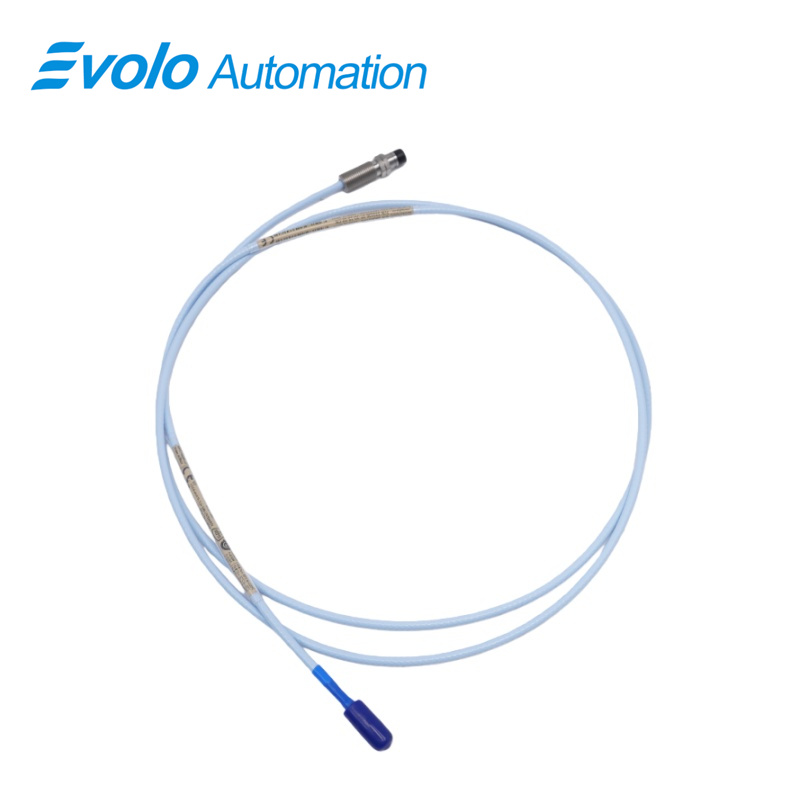

330106-05-30-15-02-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-15-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-15-02-CN 3300 XL 8 mm Reverse Mount Probe delivers precise non-contact measurement of shaft position and vibration for automated rotating machinery. The 330106-05-30-15-02-CN uses eddy current sensing to convert the distance between the Polyphenylene sulfide probe tip and conductive targets into a proportional voltage signal, enabling both static and dynamic measurement.

With a linear range of 2 mm (80 mils), the 330106-05-30-15-02-CN captures micrometer-level radial and axial shaft movement. Its M10 × 1 stainless steel threaded case allows up to 15 mm of thread engagement for reverse mounting in compact bearing housings. The 330106-05-30-15-02-CN has a total length of 1.5 meters, supporting direct cable routing to signal conditioning modules using the Miniature ClickLoc coaxial connector.

Operating from –52°C to +177°C, the 330106-05-30-15-02-CN is suitable for high-temperature compressors, pumps, and turbines. CSA, ATEX, and IECEx approvals allow the 330106-05-30-15-02-CN to be deployed in hazardous-area automation. The 330106-05-30-15-02-CN ensures reliable voltage output for Keyphasor speed references, vibration monitoring, and position tracking in industrial automated systems.

Applications

Radial Vibration Measurement on Pumps

The 330106-05-30-15-02-CN is installed near pump shafts in reverse mount orientation to monitor radial vibration within a 2 mm (80 mils) linear range. The Polyphenylene sulfide probe tip of the 330106-05-30-15-02-CN converts micrometer-level shaft movements into proportional voltage signals for automated control systems. The M10 × 1 stainless steel threaded case supports up to 15 mm of thread engagement, enabling precise placement inside compact pump bearing housings.

Axial Shaft Displacement Tracking on Compressors

In centrifugal and axial compressors, the 330106-05-30-15-02-CN measures axial shaft movement caused by thrust loads. Operating from –52°C to +177°C, the 330106-05-30-15-02-CN can be installed close to hot thrust bearings. The 1.5 meter probe length allows direct connection to Proximitor modules, reducing signal loss in automation systems.

Keyphasor Speed Reference Signal Generation

The 330106-05-30-15-02-CN detects shaft surface features to generate reference pulses for speed measurement in PLC and DCS platforms. The Miniature ClickLoc coaxial connector on the 330106-05-30-15-02-CN ensures secure signal transmission under continuous vibration conditions.

Specifications

Competitive Advantage

Reverse Mount Installation for Confined Bearings

The 330106-05-30-15-02-CN reverse mount structure allows installation where front-mounted probes cannot fit due to coupling guards or housing geometry. The 15 mm maximum thread engagement ensures controlled insertion depth for accurate automated monitoring.

Extended Operating Temperature for Hot Machinery

The 330106-05-30-15-02-CN operates across –52°C to +177°C, allowing installation near hot pumps, turbines, or compressors. This temperature range supports continuous shaft position and vibration measurement during startup and high-temperature operation.

Direct Signal Routing with Long Probe Cable

The 1.5 meter integrated cable of the 330106-05-30-15-02-CN enables direct routing to signal conditioning modules, minimizing connector interfaces and maintaining voltage signal integrity in automation systems.

Controlled Probe Tip Material for Close Clearance

The Polyphenylene sulfide tip on the 330106-05-30-15-02-CN maintains consistent probe-to-shaft spacing within the 2 mm linear range, supporting accurate voltage output near rotating shafts in oil-lubricated machinery.
