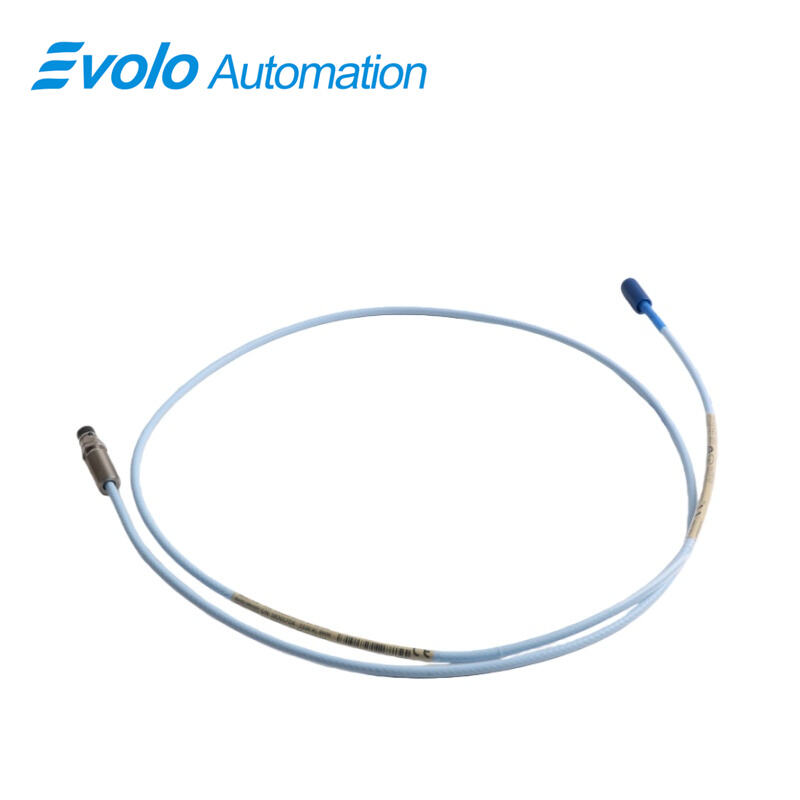

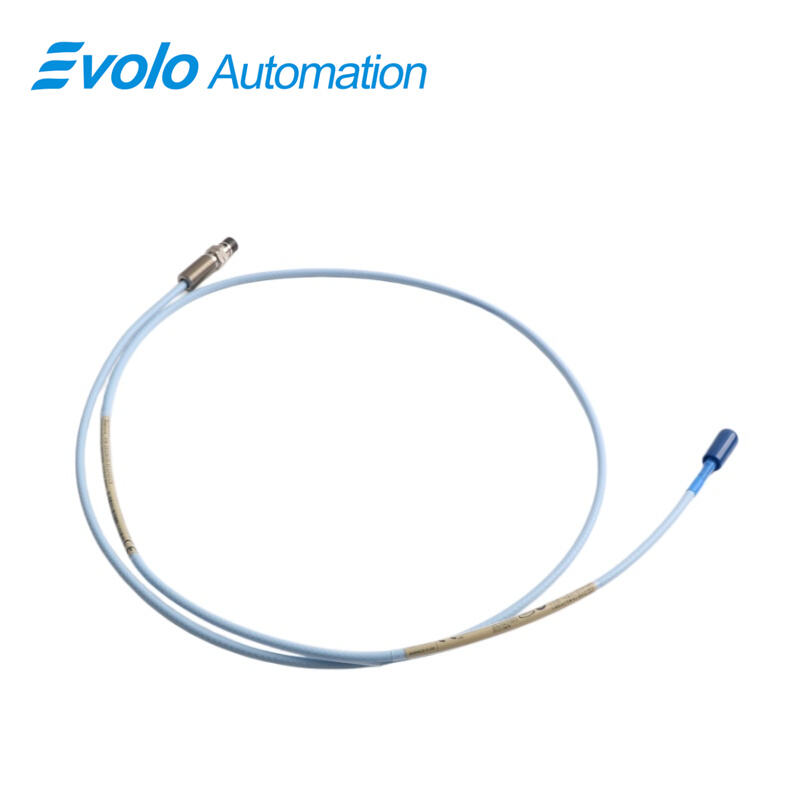

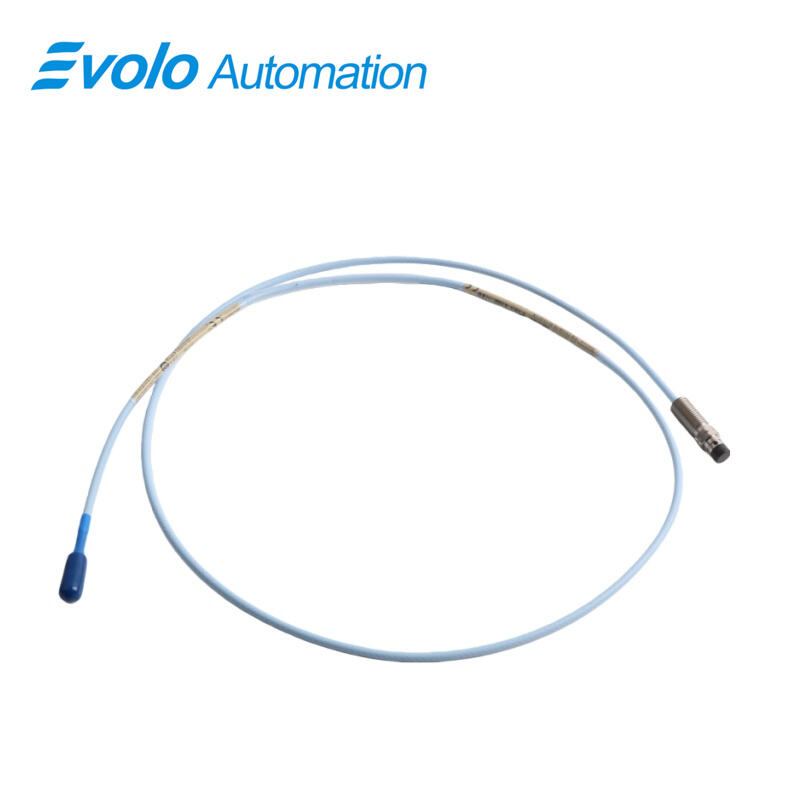

330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe provides a voltage output directly proportional to the distance between the probe tip and a conductive surface, accurately measuring both static (position) and dynamic (vibration) signals. It features a total length of 1.0 meter, M10 x 1 threaded case, and 15 mm maximum thread engagement. Field wiring supports 0.2–1.5 mm² (16–24 AWG), while the linear range is 2 mm (80 mils). Constructed with a polyphenylene sulfide tip and AISI 303/304 stainless steel case, the 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe operates in temperatures from –52°C to +177°C (–62°F to +350°F). Certified to CSA, ATEX, and IECEx standards, it integrates into automated systems for fluid-film bearings, Keyphasor reference, and shaft speed monitoring. The probe supports optional FluidLoc cables to prevent oil or liquid leakage and uses a patented TipLoc molding and CableLoc design for secure 330 N pull strength, ensuring precise, uninterrupted signal delivery in industrial automation applications.

Applications

Vibration Measurement on Fluid-Film Bearings
Use the 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe to monitor shaft vibration in fluid-film bearing machines. The 2 mm linear range and –52°C to +177°C operating temperature ensure accurate detection of rotor movement.

Position Monitoring in Automated Machinery
The 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe provides precise shaft and rotor position feedback. Field wiring from 0.2 to 1.5 mm² enables direct connection to automation controllers for real-time position tracking.

Keyphasor Reference and Speed Detection
Deploy the 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe to generate Keyphasor signals for measuring shaft speed. Its AISI 303/304 stainless steel case supports long-term operation in harsh industrial environments.

Long-Distance Signal Transmission
Use optional FluidLoc cables with the 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe to transmit signals up to 1.0 meter. This prevents fluid ingress and maintains signal quality for automated monitoring systems.

Specifications

Competitive Advantage

High Pull Strength Probe-Cable Connection
The 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe features a patented CableLoc design providing 330 N (75 lbf) pull strength, securing the probe cable and tip for precise 2 mm linear range measurements under high vibration in automated systems.

Robust Probe Tip Bonding
The 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe uses TipLoc molding to ensure a strong bond between the polyphenylene sulfide tip and the AISI 303/304 stainless steel body, maintaining accurate static and dynamic readings over –52°C to +177°C operation.

Extended Operating Temperature and Range
With an operating range from –52°C to +177°C and a linear range of 2 mm, the 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe performs reliably in harsh industrial environments, supporting direct connection via 0.2 to 1.5 mm² (16–24 AWG) field wiring to automation controllers.

Interchangeable Components
The 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe is fully compatible with other 3300 XL 8 mm probes, extension cables, and Proximitor sensors, enabling seamless replacement or expansion in automated monitoring systems without the need for recalibration.

Leak-Proof Cable Option
Optional FluidLoc cables on the 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Probe prevent oil and other liquid ingress through 1.0 meter cable runs, protecting signal quality and reducing maintenance in fluid-film bearing monitoring applications.
