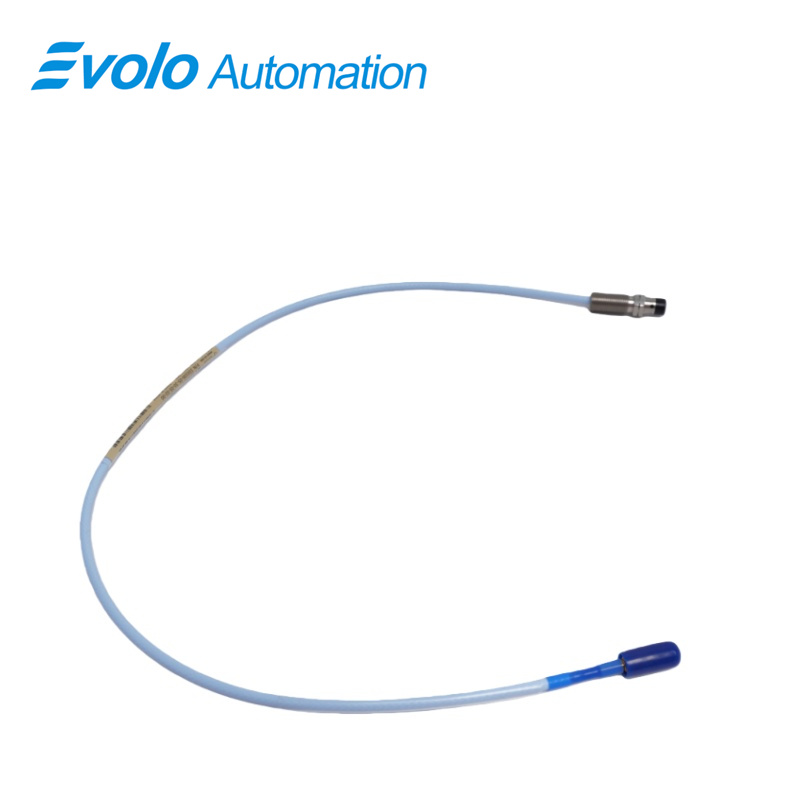

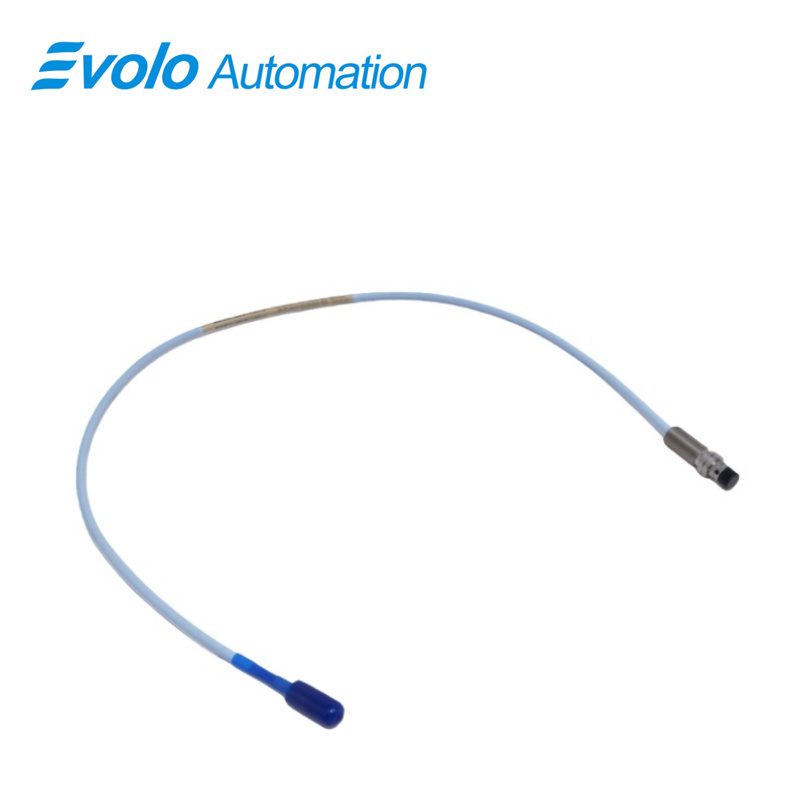

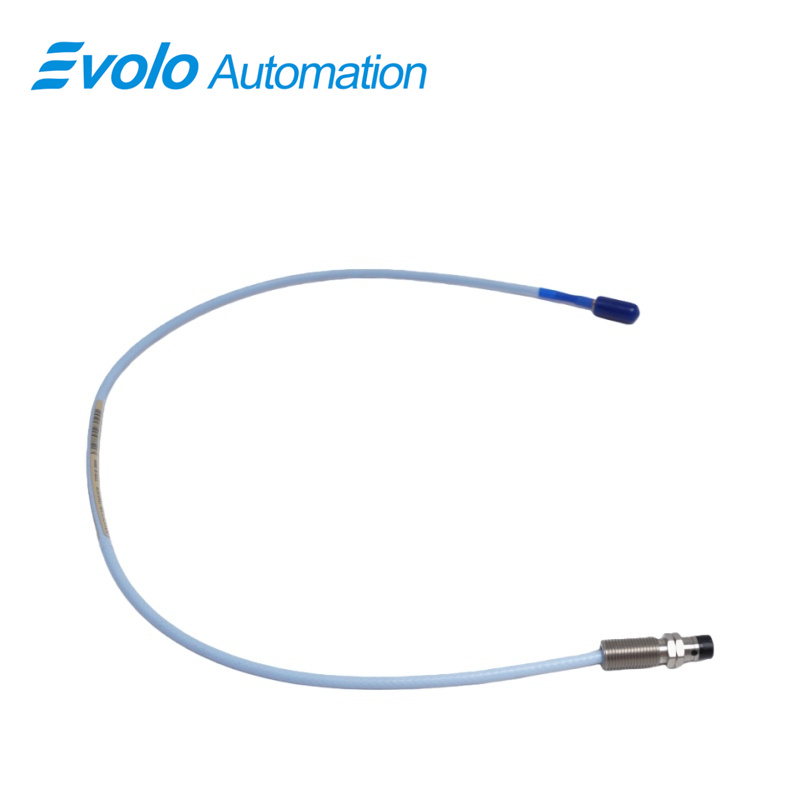

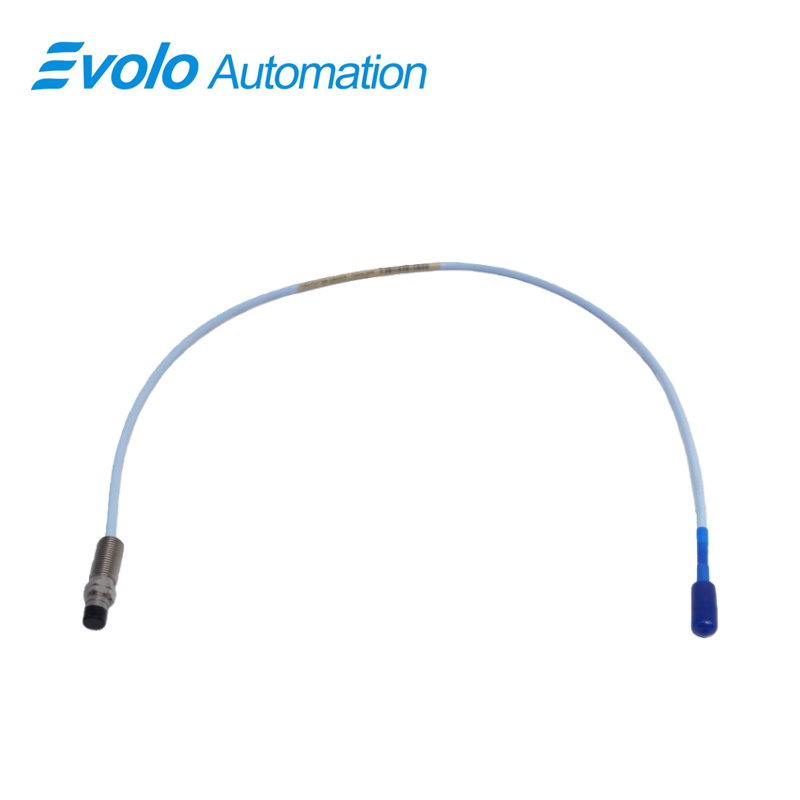

330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-05-02-BR
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe delivers precise output voltage directly proportional to the distance between the probe tip and the conductive surface, supporting both static (position) and dynamic (vibration) measurements. With a 2 mm (80 mils) linear range, M10 x 1 threaded case, and 15 mm maximum thread engagement, the 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe fits compact installations in automated fluid-film bearing machines. The 0.5-meter (1.6 feet) total length and miniature ClickLoc coaxial connector enable secure signal transmission through 0.2–1.5 mm² (16–24 AWG) field wiring. Operating temperatures from –52°C to +177°C (–62°F to +350°F) allow the 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe to monitor rotating machinery in extreme environments. Polyphenylene sulfide tip and AISI 303/304 stainless steel case ensure consistent readings under vibration and heat. Optional FluidLoc cables prevent oil leakage along the probe path. Fully compliant with CSA, ATEX, and IECEx approvals, the 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe integrates seamlessly into PLCs, DCS, and Keyphasor speed monitoring systems for precise automated control and long-term machine protection.

Applications

Vibration Measurement on Fluid-Film Bearings
Use 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe to measure shaft vibration on bearings, detecting displacement within a 2 mm linear range and transmitting signals via 0.5-meter coaxial cabling.

Position Monitoring for Rotating Shafts
Install 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe to track static shaft position, using its M10 x 1 thread engagement and polyphenylene sulfide tip for precise readings under temperatures from –52°C to +177°C.

Speed Measurement with Keyphasor Output
Connect the 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe to Keyphasor systems to detect rotational speed, leveraging its miniature ClickLoc connector and 0.2–1.5 mm² field wiring for accurate data capture.

Integration into Automated DCS/PLC Systems
The 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe outputs directly to DCS or PLC platforms, enabling real-time monitoring and automated response in industrial processes.

Specifications

Competitive Advantage

Extended Temperature Range Operation
The 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe operates from –52°C to +177°C, ensuring measurement integrity in extreme environmental conditions.

High-Strength Thread and Cable Connection
M10 x 1 probe case thread and patented CableLoc design deliver 330 N pull strength, preventing probe movement or cable disconnection in high-vibration machinery.

Optional FluidLoc Cable for Oil Control
The 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe with FluidLoc prevents oil leakage along the probe path, maintaining clean signal transmission and extending machine uptime.

Compact Reverse Mount Design
The short 0.5-meter length and reverse mount configuration of 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe allow installation in tight spaces where conventional probes cannot fit.

Compliance with International Approvals
CSA, ATEX, and IECEx certifications enable global deployment of the 330106-05-30-05-02-BR 3300 XL 8 mm Reverse Mount Probe in hazardous locations and industrial automation applications.
