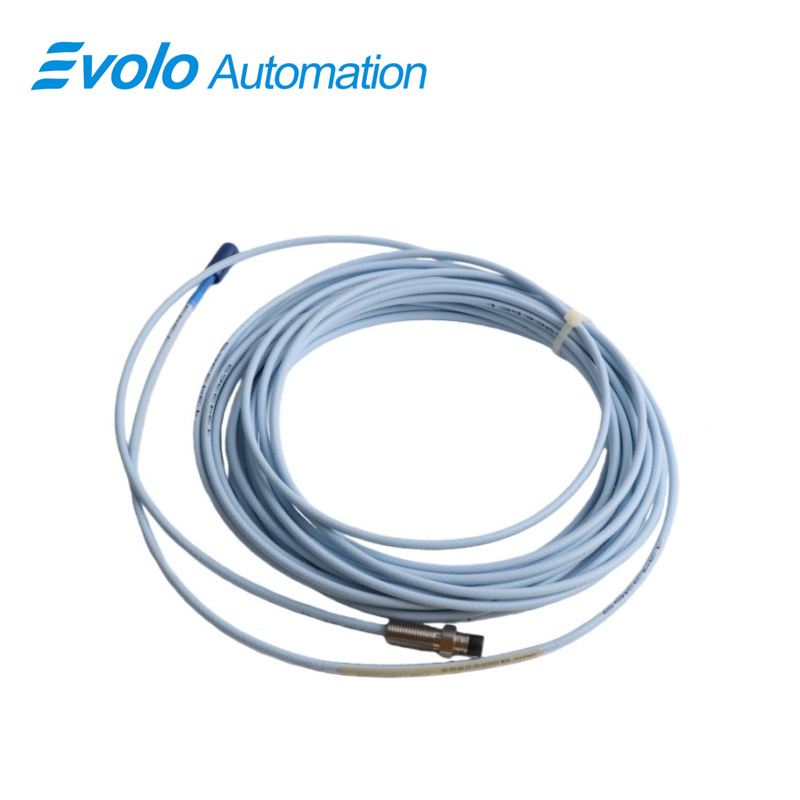

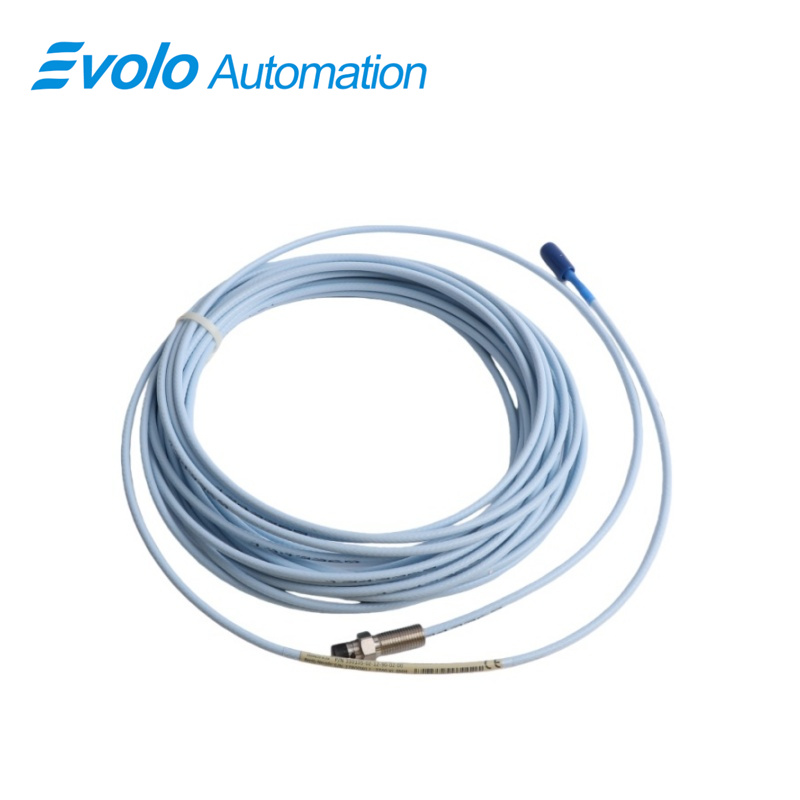

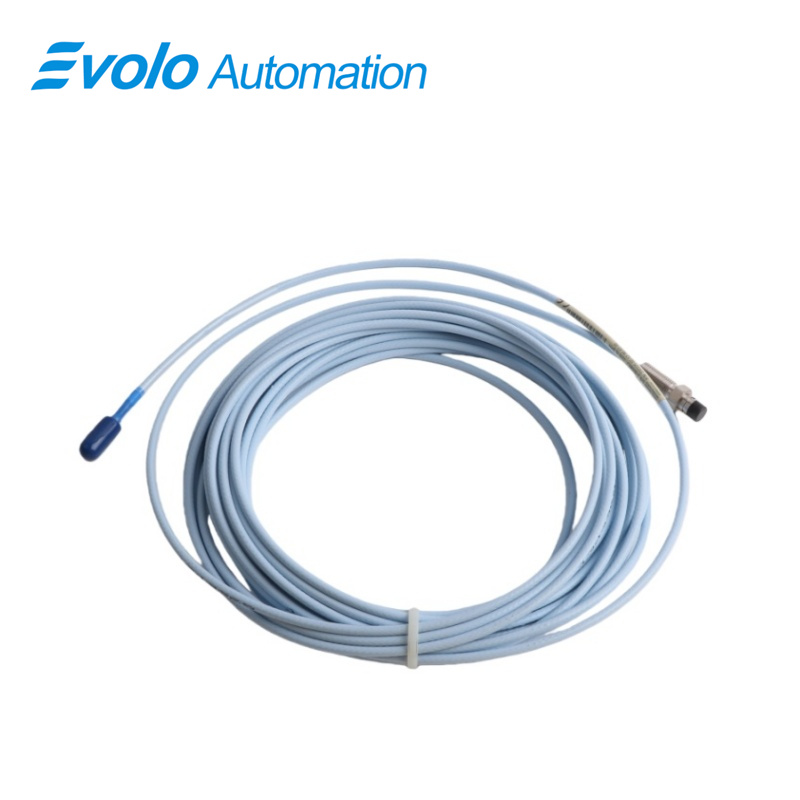

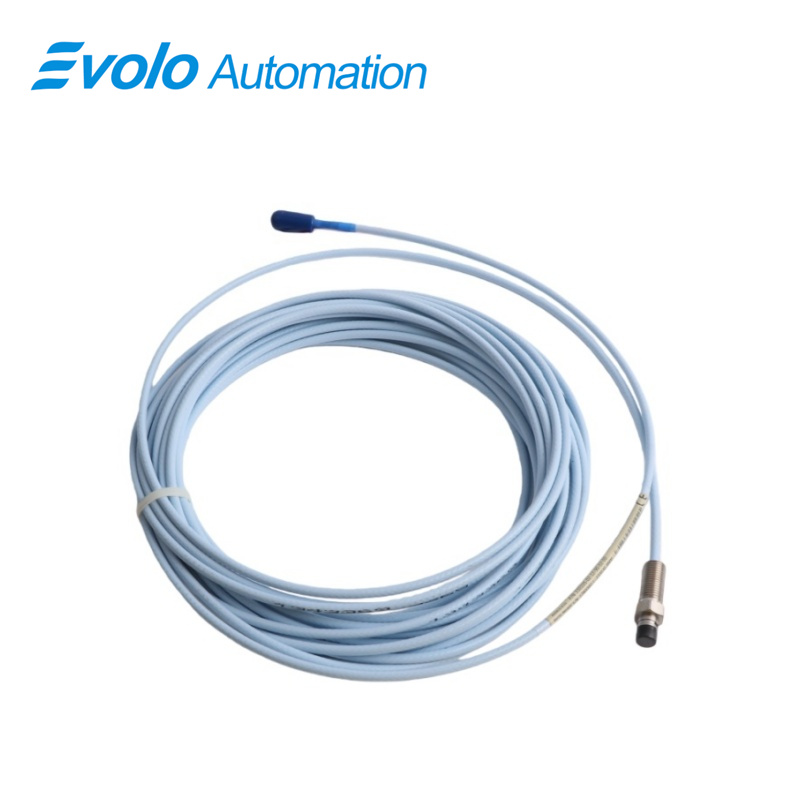

330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-90-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe delivers precise distance-to-voltage output over a 2 mm linear range (80 mils), enabling accurate measurement of both static position and dynamic vibration. With a total length of 9.0 meters (29.5 feet), the 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe supports long-reach installations in automated fluid-film bearing machinery. Its Miniature ClickLoc coaxial connector and 0.2–1.5 mm² (16–24 AWG) field wiring provide secure integration with control systems, while the 3/8-24 UNF threaded probe case and maximum thread engagement of 0.563 in allow reliable mounting. The probe operates in temperatures from –52°C to +177°C (–62°F to +350°F), with a polyphenylene sulfide tip and AISI 303/304 stainless steel case for robust performance under industrial conditions. Designed for Keyphasor reference generation, rotor speed monitoring, and vibration analysis, the 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe integrates easily with PLC and DCS systems. Optional FluidLoc cable configuration prevents oil or fluid leakage, ensuring continuous automated operation. Full interchangeability with other 3300 XL 8 mm components reduces maintenance downtime, while patented TipLoc and CableLoc designs provide 330 N pull strength, securing probe tip and cable connections in high-vibration environments.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe measures dynamic vibration with a 2 mm (80 mils) linear range, enabling accurate detection of rotor imbalance or misalignment in turbines, pumps, and compressors. Its polyphenylene sulfide tip and AISI 303/304 stainless steel case ensure consistent output from –52°C to +177°C (–62°F to +350°F).

Position Measurement for Rotating Machinery
With a maximum thread engagement of 0.563 in on the 3/8-24 UNF threaded case, the 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe accurately tracks shaft position for automation control systems, supporting PLC and DCS integration over long runs up to 9.0 meters (29.5 feet).

Keyphasor Reference and Speed Sensing
The 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe provides precise Keyphasor output for rotor speed monitoring. The miniature ClickLoc coaxial connector allows secure signal transmission over 0.2–1.5 mm² (16–24 AWG) field wiring, ensuring reliable automated control feedback.

Fluid Leak Prevention in High-Vibration Environments
Optional FluidLoc cable configuration prevents oil or other fluid leakage along the 9.0-meter extension cable of the 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe, enabling continuous operation in lubricated systems without maintenance interruptions.

Specifications

Competitive Advantage

Extended Reach for Remote Installations
The 9.0-meter total length of the 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe allows placement in hard-to-access or remote areas while maintaining full signal accuracy.

High Mechanical Strength Connections
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, securing the probe tip and cable during high-vibration operation, reducing risk of disconnection in automated machinery.

Interchangeable Component System
All 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe components are compatible with other 3300 XL 8 mm probes and extension cables, simplifying maintenance and eliminating the need for bench calibration.

Wide Temperature Operation
The 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe operates across –52°C to +177°C (–62°F to +350°F), enabling deployment in extreme industrial environments without performance loss.

Integration with Automation Systems
Miniature ClickLoc coaxial connectors and standard field wiring of 0.2–1.5 mm² (16–24 AWG) allow the 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe to seamlessly feed signals into PLCs, DCS, and Keyphasor systems for automated monitoring and control.
