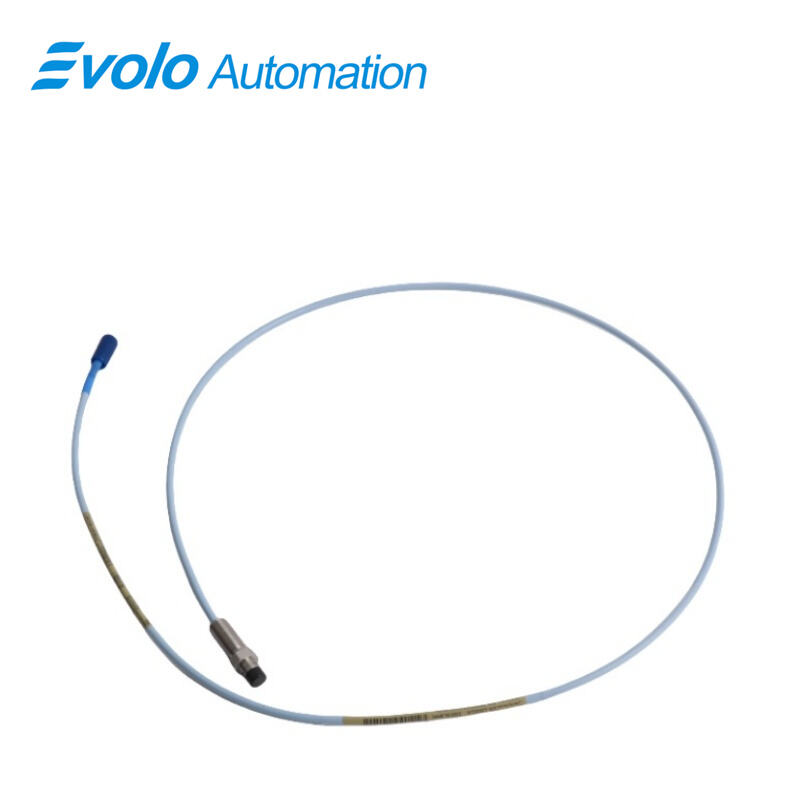

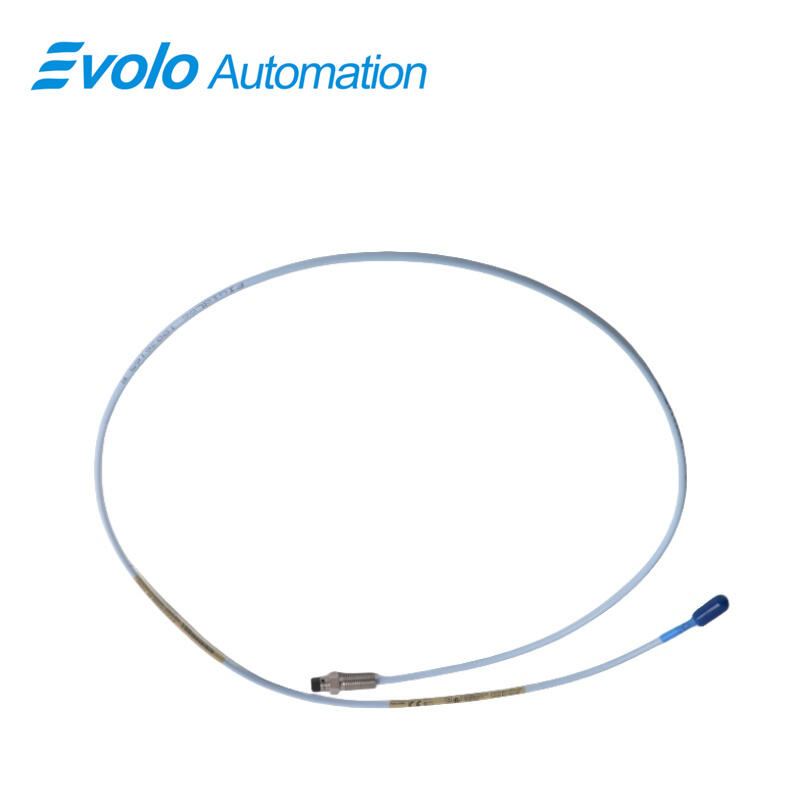

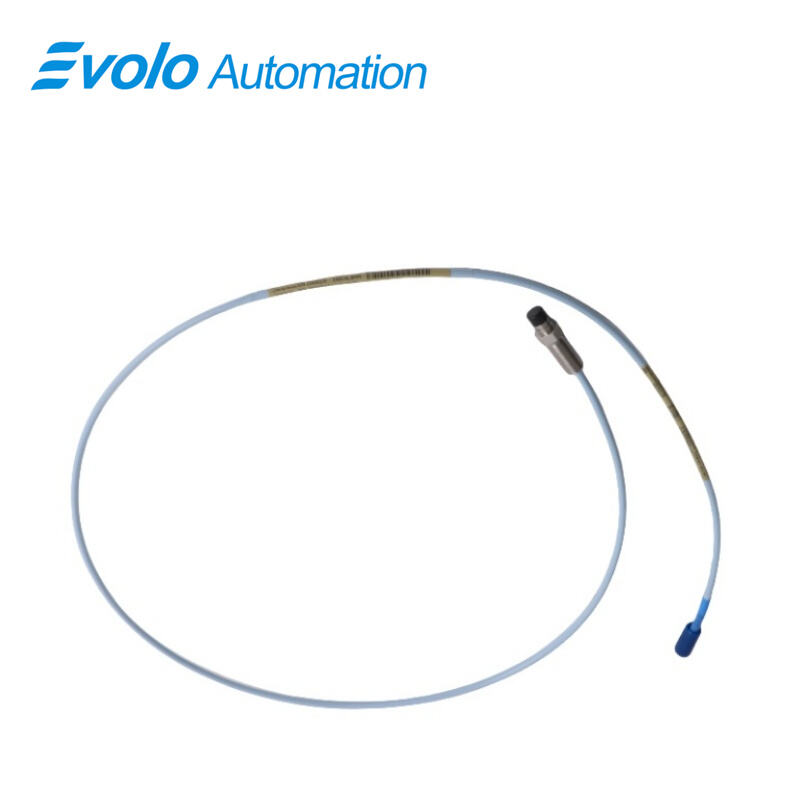

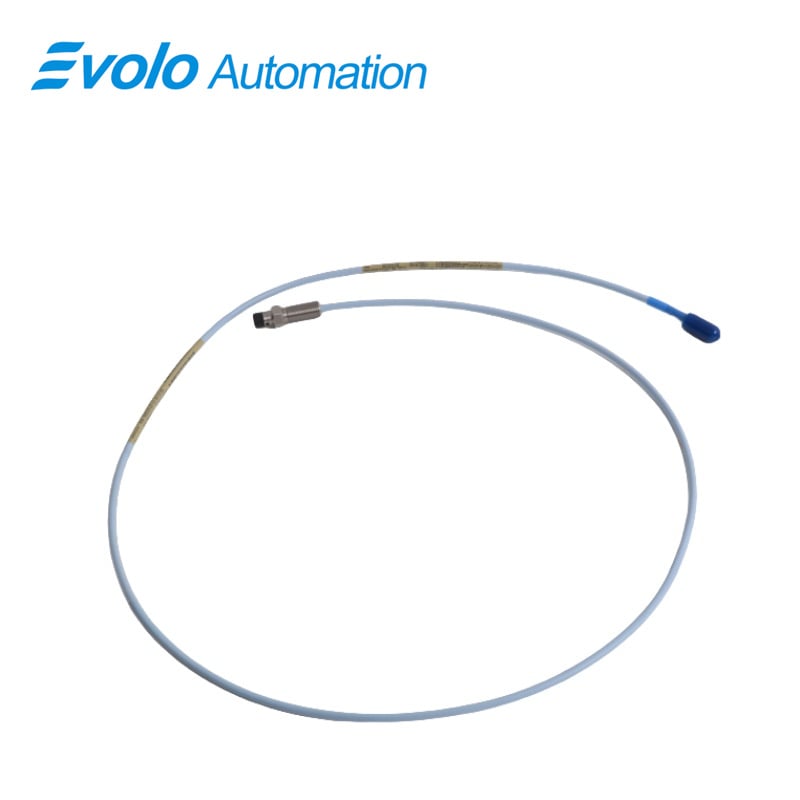

330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-10-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe delivers an output voltage proportional to the distance between the polyphenylene sulfide probe tip and conductive surfaces, enabling precise static (position) and dynamic (vibration) measurements. With a 2 mm linear range (80 mils), 3/8-24 UNF reverse mount thread, and 0.563 in maximum thread engagement, this probe supports accurate shaft position and vibration monitoring. The Miniature ClickLoc coaxial connector with 1.0-meter FluidLoc cable ensures secure signal transmission and prevents oil ingress in automated fluid-film bearing machines. Operating from –52°C to +177°C and compatible with 0.2–1.5 mm² field wiring, the 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe integrates seamlessly with PLCs, DCS, and vibration monitoring systems. Its AISI 303/304 stainless steel case maintains mechanical integrity under industrial conditions, and the optional FluidLoc cable maintains signal consistency while preventing contamination. This probe fully complies with API 670 standards for mechanical configuration, linear range, and accuracy, providing interchangeable performance across 3300 XL 8 mm systems. The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe is ideal for rotor speed monitoring, Keyphasor signal generation, and automated position control in complex machinery.

Applications

Rotor Position Measurement
The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe provides a 2 mm linear range (80 mils), directly translating probe tip movement into voltage output. Use it to monitor rotor positions in fluid-film bearing machines, supporting automated control systems with precision ±0.5% of full scale.

Vibration Analysis on High-Speed Shafts
With an operating range of –52°C to +177°C and maximum thread engagement of 0.563 in, the 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe measures shaft vibrations dynamically. Its Miniature ClickLoc coaxial connector with 1.0-meter FluidLoc cable ensures secure data transmission for predictive maintenance and real-time monitoring.

Keyphasor Signal Generation
Use the 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe to generate accurate Keyphasor reference pulses for rotor speed detection, leveraging its polyphenylene sulfide probe tip and AISI 303/304 stainless steel case for robust mechanical engagement in automated systems.

Automated Shaft Speed Control
The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe supports field wiring of 0.2–1.5 mm² (16–24 AWG) and provides high-signal integrity over a 1.0-meter cable, enabling integration with PLCs and DCS for automated speed adjustments in industrial equipment.

Specifications

Competitive Advantage

Direct Voltage Output for Position and Vibration
The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe converts mechanical displacement to a voltage signal with less than 2 mV change per volt of supply variation, eliminating the need for additional signal conditioning in automated monitoring systems.

High-Temperature and Chemical Resistance
Operating across –52°C to +177°C, the 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe performs in extreme environments, while the stainless steel case and FluidLoc cable prevent contamination and maintain performance in lubricated machinery.

Interchangeable Components
The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe is fully compatible with other 3300 XL 8 mm system components, enabling quick replacement of probes or cables without recalibration. This reduces downtime and supports automated system maintenance.

Secure Mechanical and Electrical Connection
Patented TipLoc and CableLoc designs of the 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe provide 330 N pull strength, ensuring the probe tip and cable remain firmly attached under mechanical vibration and automated operation.

Compliance with API 670 Standard
The 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe meets API 670 specifications for linear range, mechanical configuration, and accuracy, allowing seamless integration into automated machinery monitoring and safety systems
