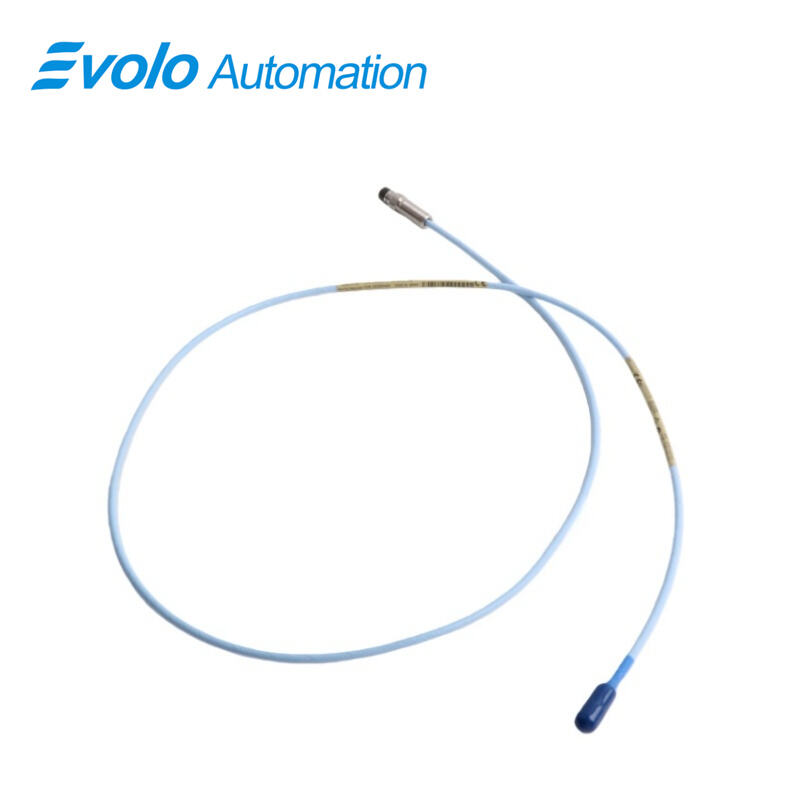

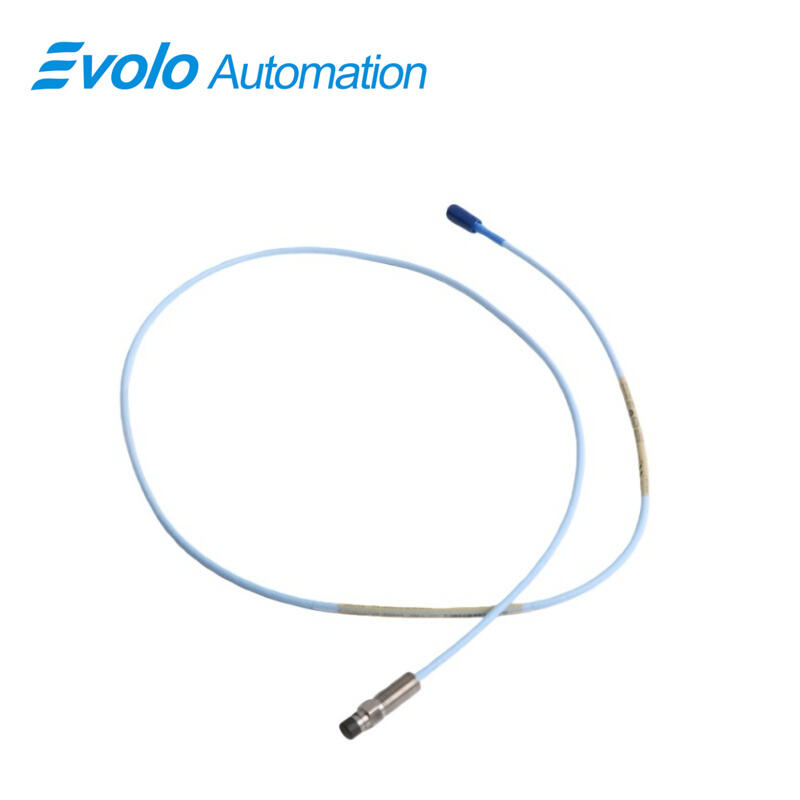

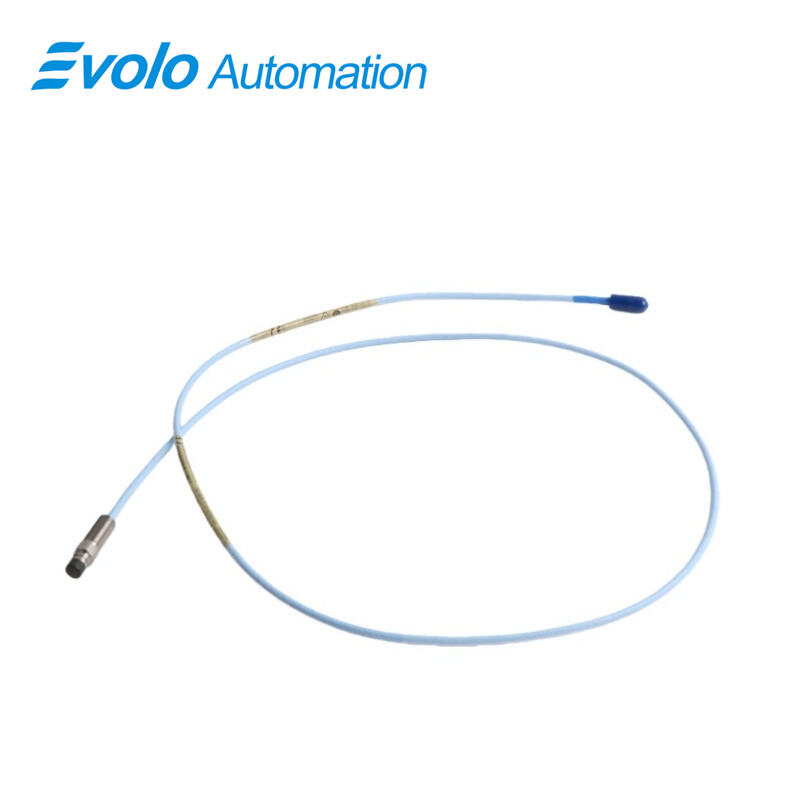

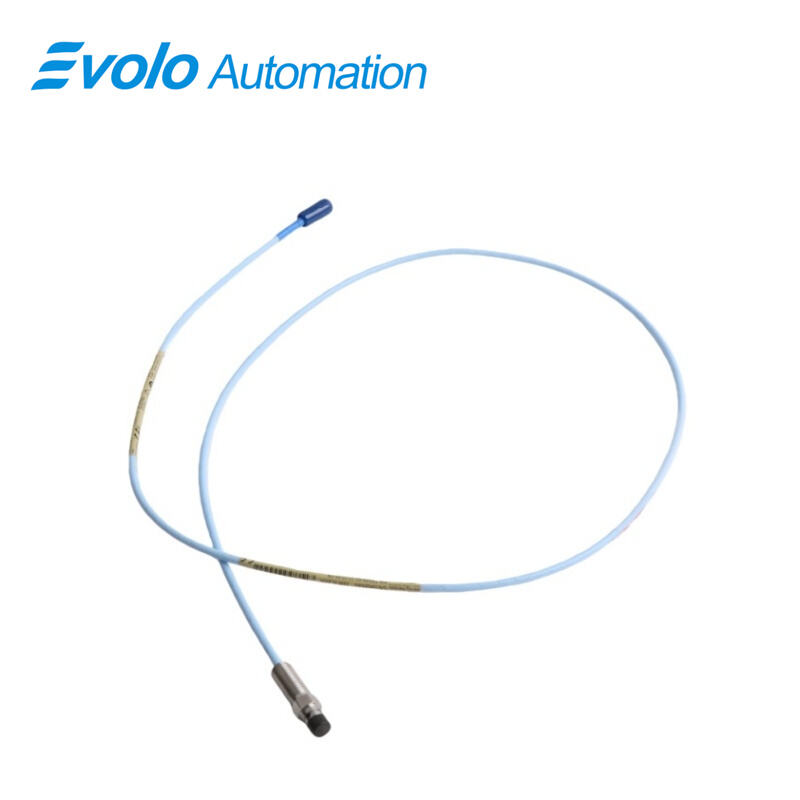

330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe delivers an output voltage proportional to the distance between its polyphenylene sulfide tip and the conductive surface, enabling precise position and vibration measurement in automated machinery. With a 2 mm linear range and 50 Ω output resistance, the 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe converts mechanical motion into electrical signals for real-time monitoring in fluid-film bearings, turbines, and compressors. The 1.0-meter Miniature ClickLoc coaxial cable supports direct connection to PLCs and DCS systems, while 0.2–1.5 mm² field wiring simplifies integration. Its 3/8-24 UNF thread with 0.563 in maximum engagement allows secure reverse mounting, and the AISI 303/304 stainless steel case ensures durability under –52°C to +177°C operation. Approved under CSA, ATEX, IECEx, the 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe supports automated vibration analysis, Keyphasor reference signal generation, and real-time shaft positioning for advanced control loops. Optional FluidLoc cable prevents oil leakage, maintaining clean signal transmission. All components are interchangeable with other 3300 XL series probes and extension cables, ensuring fast deployment in automated systems.

Applications

Vibration Measurement on Fluid-Film Bearings
The 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe provides precise vibration data with its 2 mm linear range and 50 Ω output resistance, allowing real-time detection of bearing displacement up to ±80 mils. The probe’s polyphenylene sulfide tip and AISI 303/304 stainless steel case ensure accurate signal transmission even at –52°C to +177°C, making it ideal for continuous monitoring of turbines, pumps, and compressors.

Position Measurement for Rotating Shafts
With 3/8-24 UNF reverse mount thread and maximum 0.563 in engagement, the 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe precisely detects shaft axial displacement. The Miniature ClickLoc 1.0-meter coaxial cable integrates with automation systems such as DCS and PLCs for direct feedback to control loops, ensuring fast position data acquisition.

Keyphasor Reference Signal Generation
The 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe generates Keyphasor signals for speed measurement and rotor phase detection. Its field wiring 0.2–1.5 mm² supports high-quality analog signal transmission, enabling automated rotor speed analysis and predictive maintenance in real-time control systems.

Specifications

Competitive Advantage

Enhanced Signal Accuracy
The 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe maintains less than 2 mV change in output per volt of input variation, providing consistent output for vibration and position sensing under fluctuating supply conditions.

Robust Mechanical Design
With AISI 303/304 stainless steel casing, 3/8-24 UNF probe thread, and 0.563 in maximum engagement, the 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe withstands industrial environments, ensuring secure mounting and accurate measurements in automated machinery.

Integration with Automation Systems
The Miniature ClickLoc coaxial cable and 0.2–1.5 mm² field wiring of the 330105-02-12-10-02-CN 3300 XL 8 mm Reverse Mount Probe allows seamless integration with PLCs, DCS, and vibration monitoring modules, reducing installation time and facilitating automated process control.
