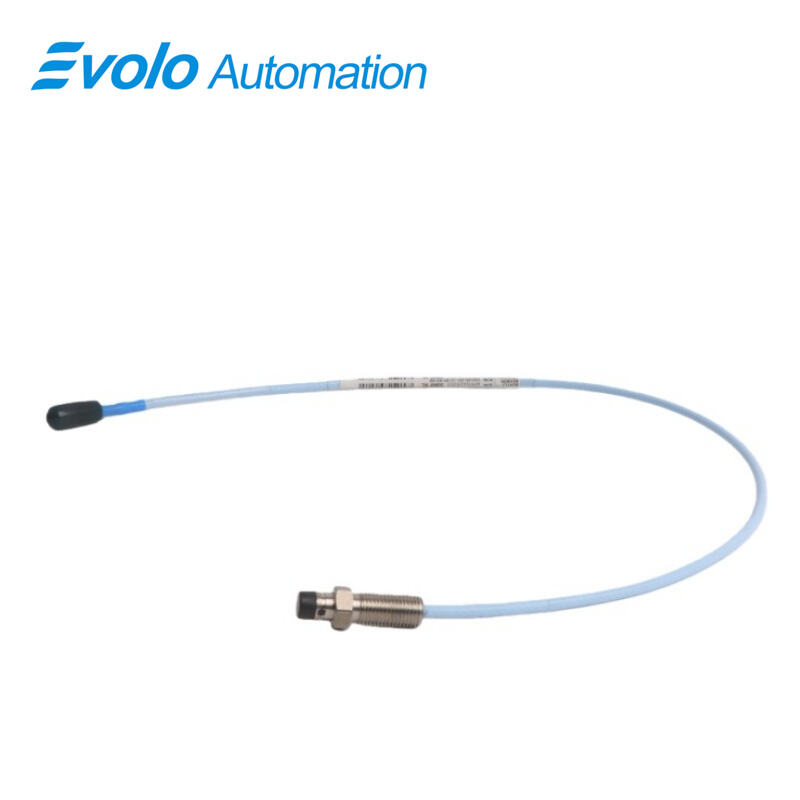

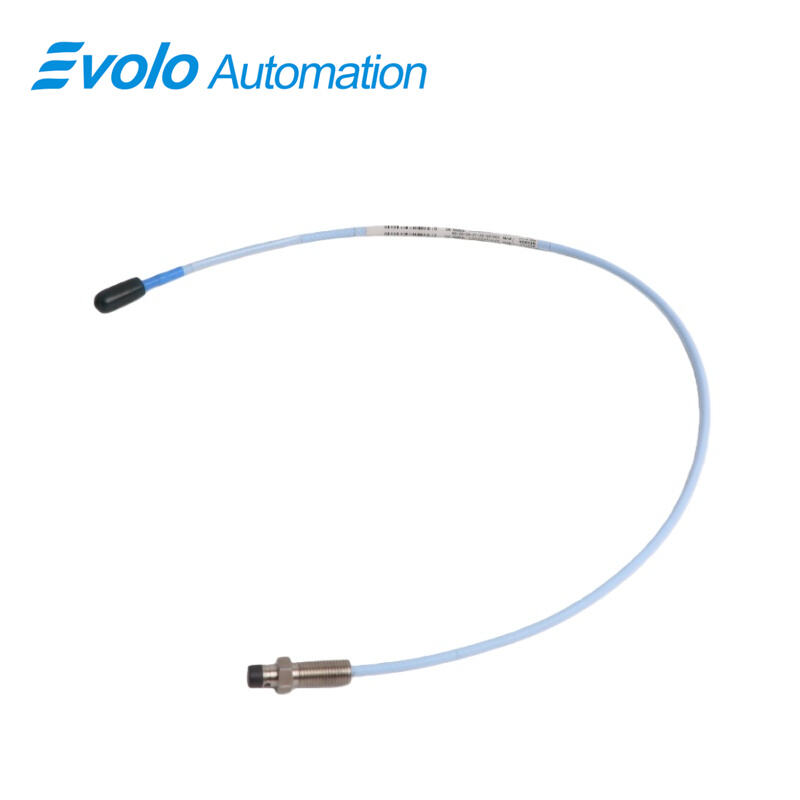

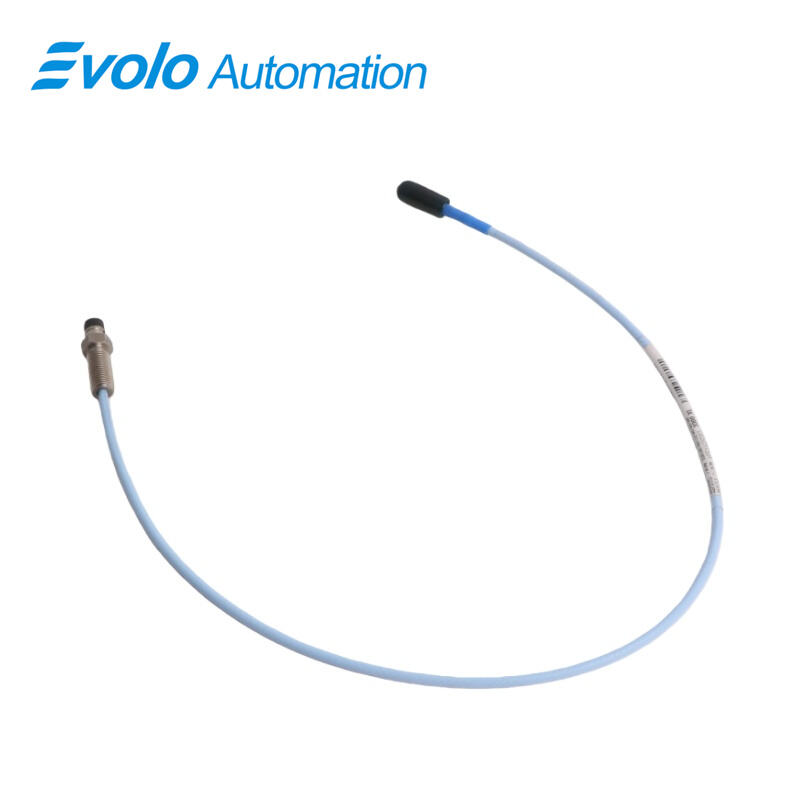

330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe provides precise output voltage proportional to the distance between its polyphenylene sulfide tip and the conductive surface, measuring both static (position) and dynamic (vibration) signals. The 2 mm linear range, 0.5-meter total length, and 3/8-24 UNF thread with 0.563 in maximum engagement make the 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe ideal for compact mounting in automation systems. The probe supports field wiring of 0.2–1.5 mm² (16–24 AWG) and operates in temperatures from –52°C to +177°C, ensuring accurate Keyphasor reference and speed measurements on fluid-film bearing machinery. Constructed with AISI 303/304 stainless steel and Miniature ClickLoc coaxial connector, the 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe integrates seamlessly into industrial control networks, allowing automated monitoring, diagnostics, and data acquisition without the need for bench calibration.

Applications

Vibration Monitoring in Fluid-Film Bearings
The 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe measures high-frequency shaft vibration. Its 2 mm linear range and 50 Ω output resistance allow precise detection of bearing displacement, supporting automated predictive maintenance.

Position Tracking in Tight Spaces
Using its 0.5-meter cable and reverse-mount design, the 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe can monitor rotor shaft displacement in compact automation setups without interfering with surrounding machinery.

Keyphasor Signal Generation for Speed Control
The 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe provides high-fidelity Keyphasor outputs, enabling speed measurement and synchronization in industrial automation systems.

Integration into Automated Monitoring Systems
The probe’s 0.2–1.5 mm² wiring compatibility and 69.9 pF/m cable capacitance allow reliable integration into DCS or SCADA networks, transmitting accurate position and vibration data for automated process control.

Specifications

Competitive Advantage

High Temperature Operation
The 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe operates consistently from –52°C to +177°C, allowing installation in high-temperature industrial environments while maintaining linear accuracy.

Compact Reverse Mount for Confined Installations
With a 0.5-meter cable and 3/8-24 UNF thread, the 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe can be installed in restricted spaces where standard probes cannot reach.

Robust Materials and Construction
Its AISI 303/304 stainless steel case and polyphenylene sulfide tip resist chemical exposure and mechanical stress, extending operational life in automated industrial environments.

Low Signal Loss and Accurate Data Transmission
The 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probe benefits from 69.9 pF/m cable capacitance and 50 Ω output resistance, minimizing voltage drop and ensuring reliable real-time monitoring in automation systems.
