Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-15-25-10-01-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
150 mm |
|
Overall Case Length Option(Minimum case length): |
250 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
26.5x28x2cm |
|
Weight: |
0.62kg |
Description

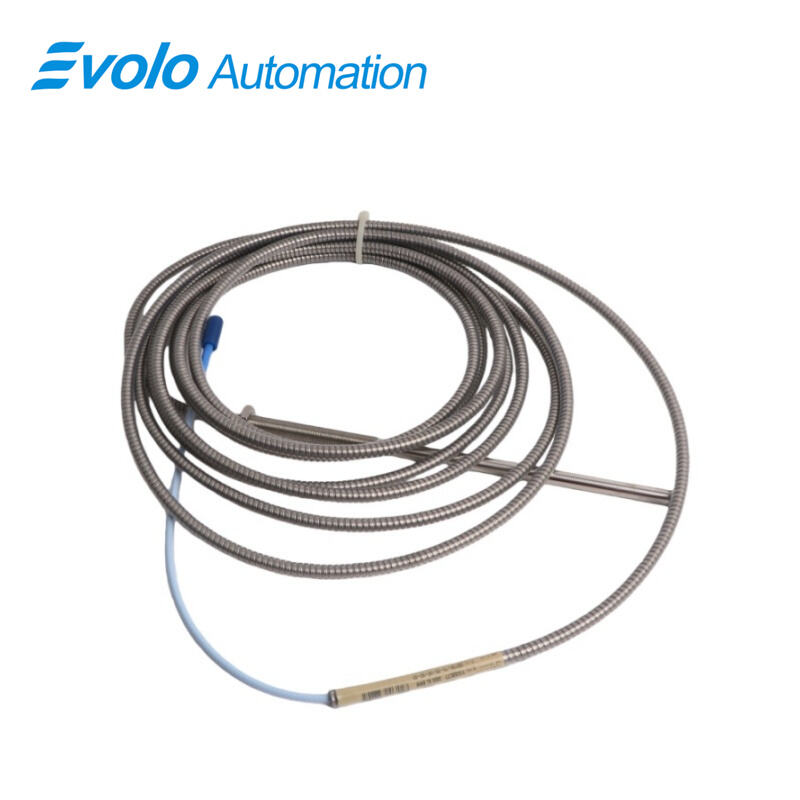

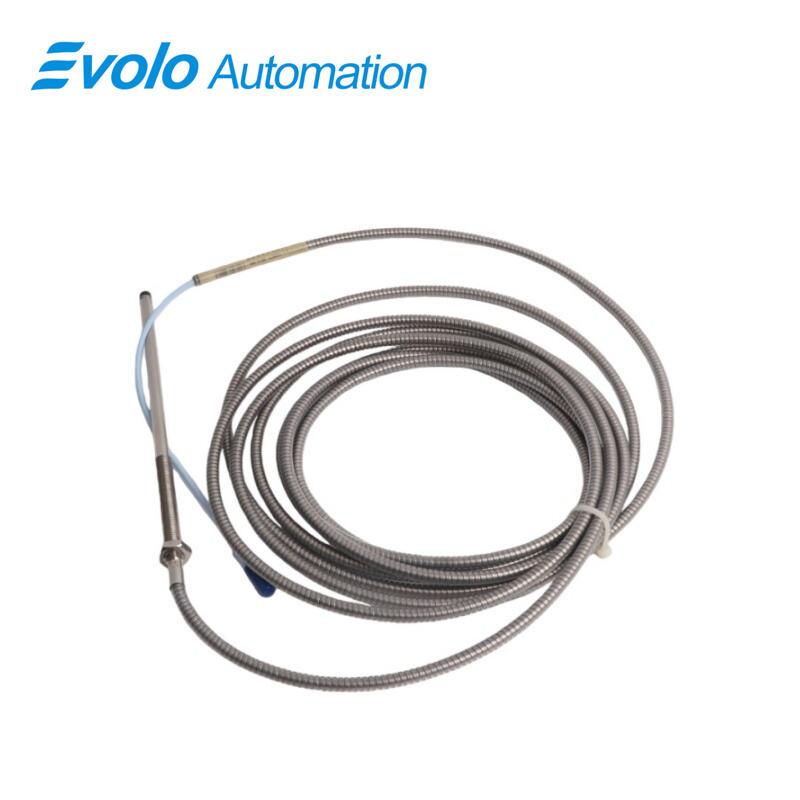

The 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe outputs a voltage directly proportional to the distance between its probe tip and conductive surfaces, enabling precise measurement of static (position) and dynamic (vibration) values. With a 250 mm case length, 150 mm unthreaded length, M10x1 threaded engagement of 15 mm, 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe operates from –52°C to +177°C. Standard miniature coaxial ClickLoc connectors with protector facilitate integration into automated monitoring and control systems. Optional FluidLoc cables prevent fluid leakage, ensuring accurate readings in fluid-film bearing machines and high-speed industrial equipment. Components are backward compatible with 3300 XL 5 mm and 8 mm series, allowing seamless upgrades without bench calibration.
Applications
Monitor rotor vibration on fluid-film bearings
The 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe measures shaft displacement with a 2 mm linear range, providing precise output voltage proportional to tip-to-surface distance for automated vibration monitoring.
Measure shaft position in rotating equipment
Using 50 Ω output resistance and 69.9 pF/m extension cable capacitance, the 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe delivers accurate real-time position signals for PLCs and DCS control loops.
Provide Keyphasor signals for speed measurement
The 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe generates timing pulses for turbines and pumps, leveraging its precise probe tip distance detection to calculate rotational speed.
Integrate into automated monitoring networks
Equipped with a Miniature coaxial ClickLoc connector and 1.0-meter cable, the 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe can connect directly to industrial data acquisition and predictive maintenance systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-temperature operation for industrial automation
The 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe operates between –52°C and +177°C, maintaining output voltage with less than 2 mV change per volt input, ideal for automated plant environments.
Robust probe-cable attachment
Its patented CableLoc design provides 330 N pull strength, ensuring the 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe remains securely attached in high-vibration machinery.
Backward compatibility for 3300 XL systems
The 330104-15-25-10-01-CN 3300 XL 8 mm Proximity Probe is interchangeable with 5 mm and 8 mm 3300 XL series probes, reducing downtime during automated system upgrades.
