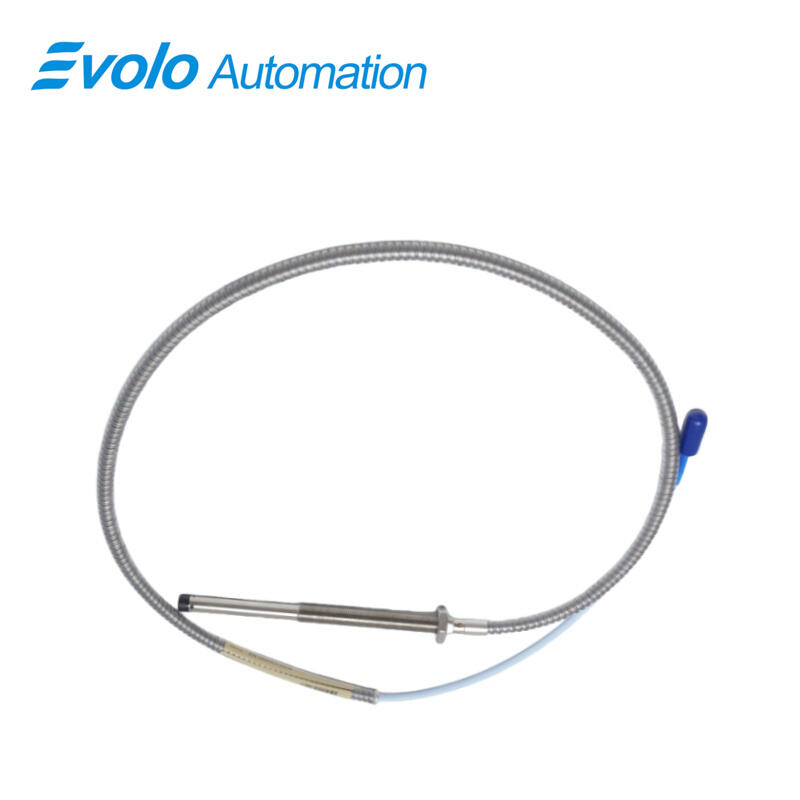

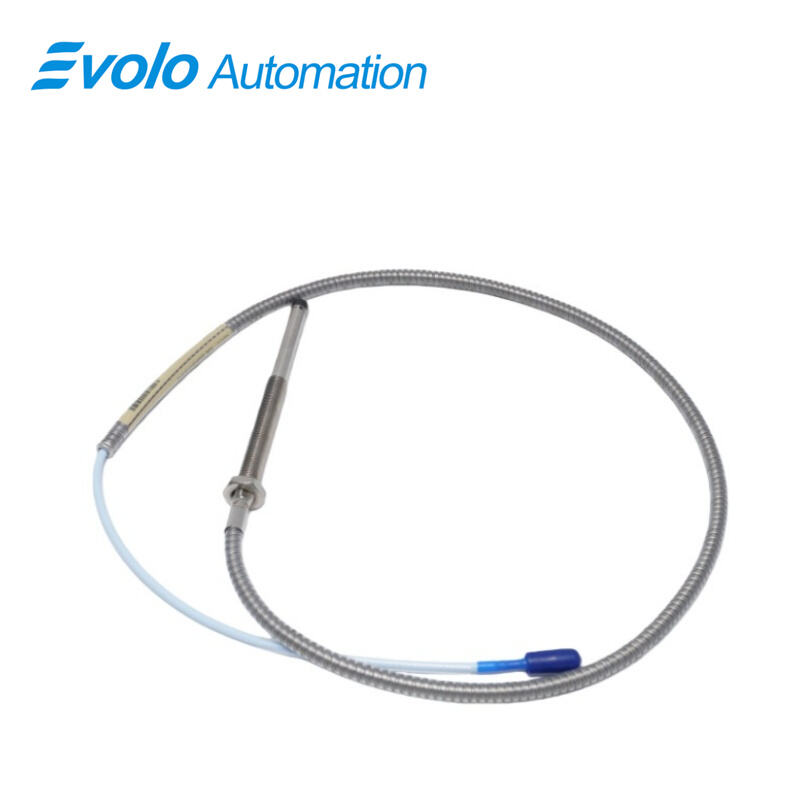

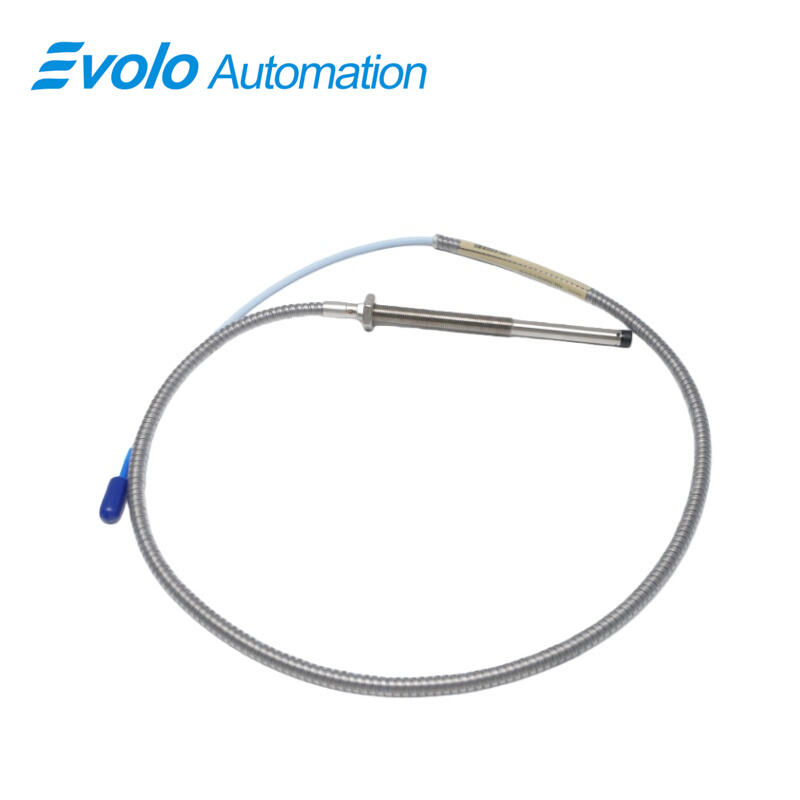

330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-05-13-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between its probe tip and the conductive surface, enabling precise static position and dynamic vibration measurements. With a 2 mm (80 mils) linear range, M10x1 probe thread, and 1.0-meter (3.3 feet) total length, the 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines and automated monitoring systems. Its miniature coaxial ClickLoc connector and standard cable provide secure connections, while the 50 Ω output resistance and less than 2 mV per volt supply sensitivity ensure accurate signal capture. The probe operates from -52°C to +177°C (-62°F to +350°F), supporting harsh industrial environments. The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe is fully compliant with CSA, ATEX, and IECEx approvals and integrates with existing 3300 XL systems without recalibration. Its TipLoc molded probe tip and CableLoc cable attachment provide 330 N (75 lbf) pull strength, while optional FluidLoc cables prevent leakage of oil and other liquids. The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe enables reliable automated speed, Keyphasor, radial, and axial measurements in tight spaces where standard probes cannot fit.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe captures dynamic radial vibration on shafts with diameters as small as 51 mm (2 in), using its 2 mm (80 mils) linear range and 50 Ω output resistance to provide precise signals for automated monitoring of fluid-film bearing machines.

Monitor Axial Position of Small Shafts
Use the 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe to track axial (thrust) position on flat or small targets under tight installation constraints. Its 1.0-meter (3.3 feet) total length and M10x1 thread allow easy installation in restricted spaces.

Keyphasor and Speed Signal Measurement
The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe generates accurate Keyphasor reference and speed signals, utilizing its supply sensitivity of less than 2 mV per volt and miniature coaxial ClickLoc connector for consistent signal integrity in automated systems.

Retrofit Existing 3300 XL Systems
The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe is fully interchangeable with prior 3300 XL 8 mm probes and extension cables, enabling seamless upgrades without recalibration while maintaining the 69.9 pF/m extension cable capacitance for signal accuracy.

Specifications

Competitive Advantage

High Pull Strength Cable Connection
The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe features CableLoc technology, providing 330 N (75 lbf) pull strength to maintain secure probe-to-cable attachment.

Enhanced Probe Tip Bonding
TipLoc molding ensures the 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe tip remains firmly attached, preventing misalignment during automated operation.

Leak Prevention with FluidLoc Option
Optional FluidLoc cables for the 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe reduce the risk of oil or fluid leakage into the system, maintaining clean signals.

Wide Operating Temperature Range
The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe functions from -52°C to +177°C, allowing continuous automated measurement in harsh industrial environments.

Quick Integration into Automation Systems
The 330104-05-13-10-02-05 3300 XL 8 mm Proximity Probe supports CSA, ATEX, and IECEx approvals, enabling rapid deployment in automated monitoring and control setups.
