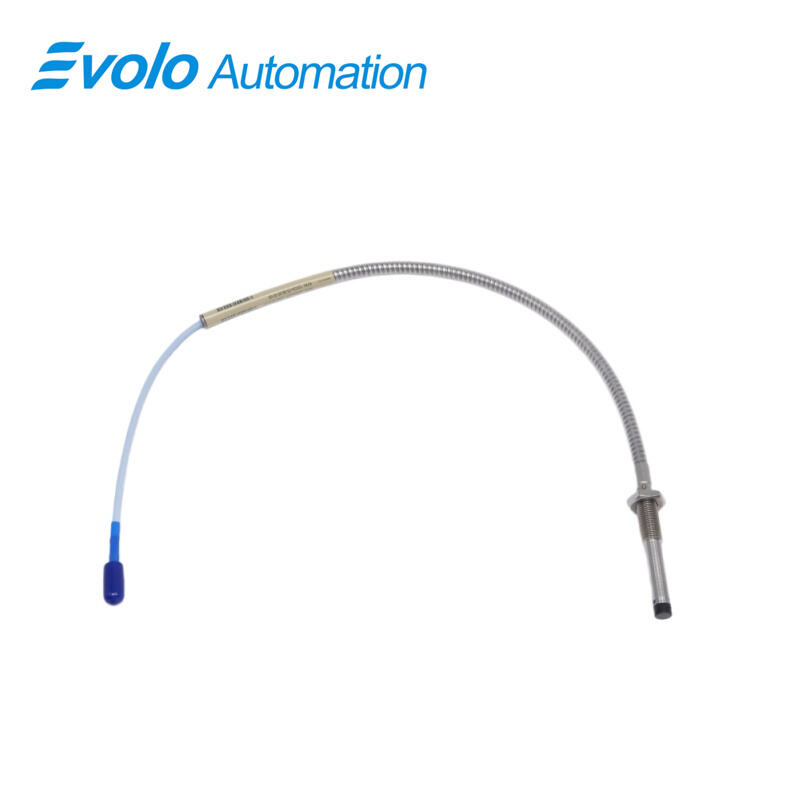

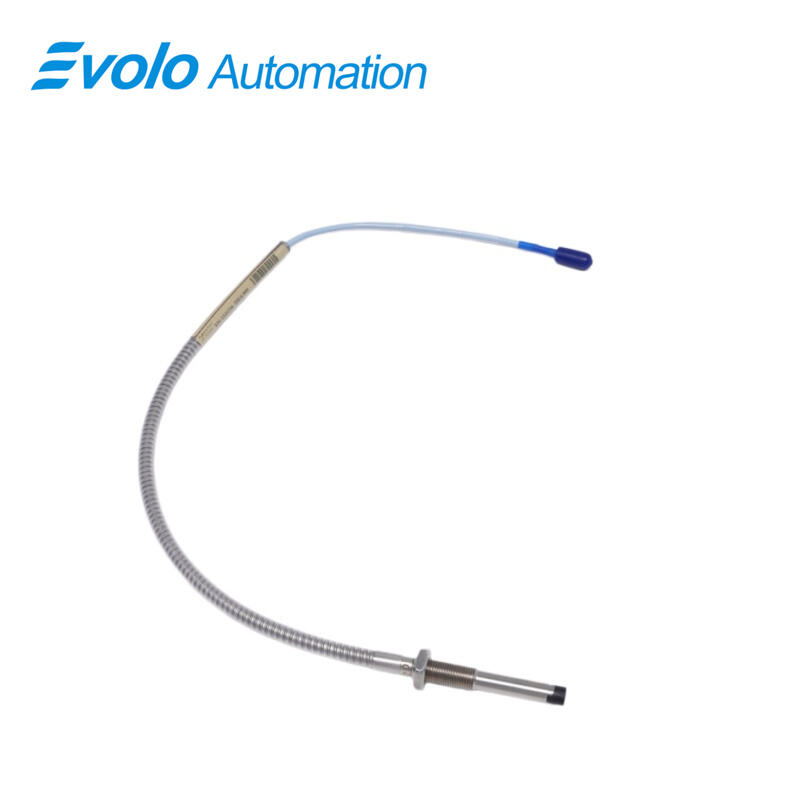

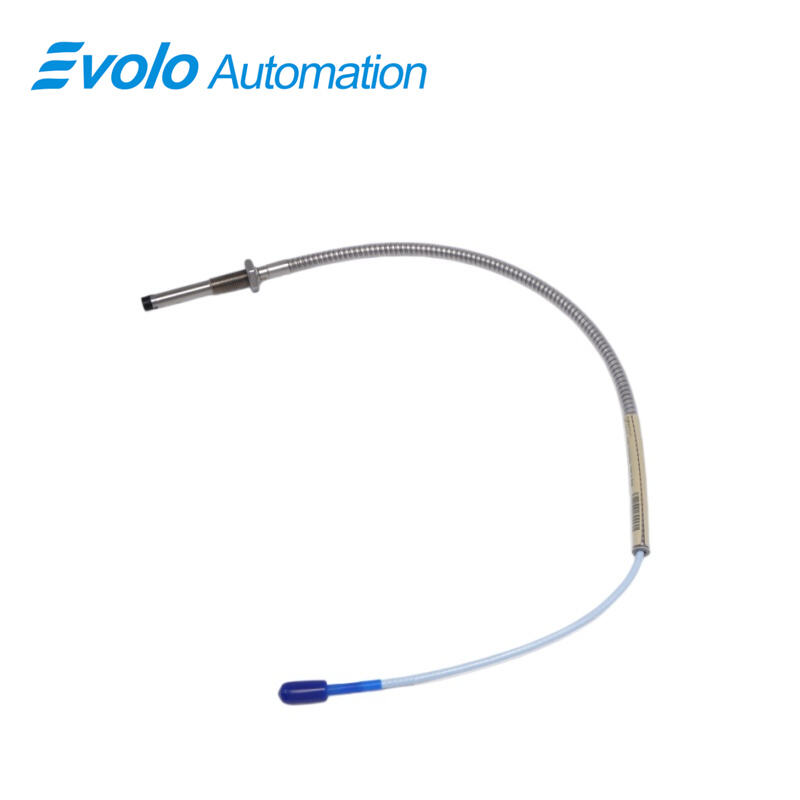

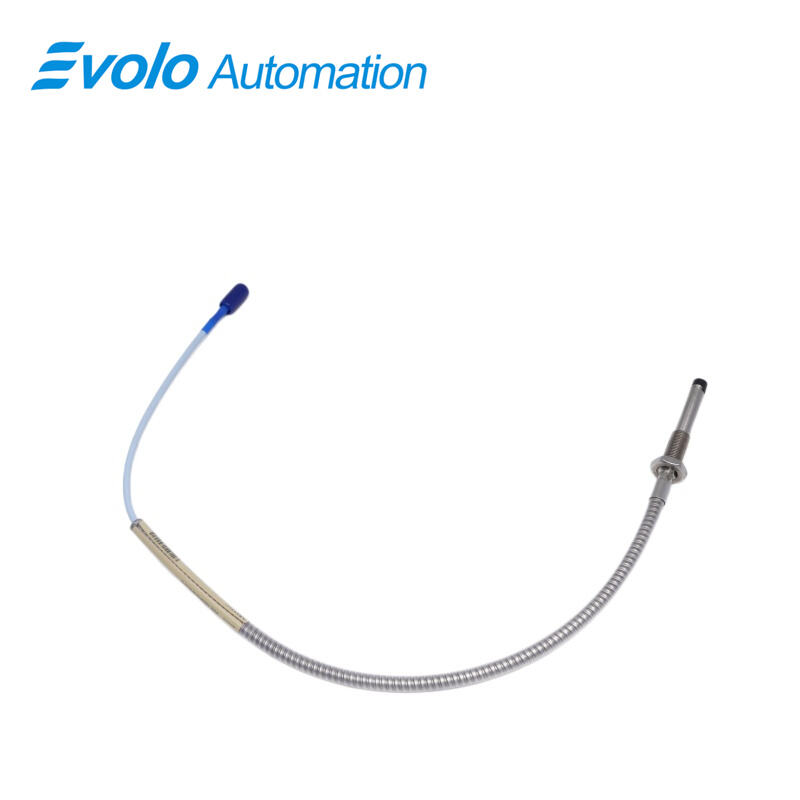

330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-03-06-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes system delivers precise distance measurements between the probe tip and conductive surfaces for both static (position) and dynamic (vibration) monitoring. Featuring an unthreaded length of 30 mm, an overall case length of 60 mm, and total cable length of 0.5 meters, the 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes connect via a Miniature coaxial ClickLoc connector with standard cabling. Designed with an M10x1 thread and 15 mm maximum thread engagement, the 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes maintain a linear range of 2 mm and output resistance of 50 Ω, while supply sensitivity remains under 2 mV per volt. Extension cables exhibit 69.9 pF/m capacitance, supporting field wiring of 0.2–1.5 mm² (16–24 AWG). Operating and storage temperatures range from -52°C to +177°C. Ideal for fluid-film bearing machines, the 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes enable Keyphasor reference and speed measurement applications. The probe’s TipLoc molding and CableLoc design ensure secure probe-to-cable attachment, while optional FluidLoc cables prevent oil ingress. The 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes are fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, ensuring interchangeable deployment across automation and vibration monitoring systems.

Applications

Position Measurement on Fluid-Film Bearings
The 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes measure shaft position in fluid-film bearings with 2 mm linear range. The output voltage directly correlates with probe tip distance, enabling precise monitoring of bearing alignment and movement.

Vibration Monitoring on Rotating Machinery
Using a 0.5 meter total length cable and M10x1 probe thread, the 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes capture dynamic vibration signals, supporting speed and Keyphasor reference measurements. The 50 Ω output resistance ensures accurate signal transmission to control systems.

Speed Measurement and Keyphasor Signal Generation
The miniature coaxial ClickLoc connector and 69.9 pF/m extension cable capacitance allow the 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes to provide Keyphasor and speed reference signals for rotating equipment in automation systems.

Specifications

Competitive Advantage

Robust Mechanical Design
The 30 mm unthreaded length and 60 mm case length, combined with patented TipLoc and CableLoc features, secure 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes under mechanical stress up to 330 N pull.

High Temperature Operation
The 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes operate across a wide range from -52°C to +177°C, enabling measurements in extreme industrial environments without recalibration.

Low Supply Sensitivity and Signal Integrity
With less than 2 mV change per volt input variation and 50 Ω output resistance, the 330104-03-06-05-02-00 3300 XL 8 mm Proximity Probes maintain accurate readings in complex control and monitoring circuits.
