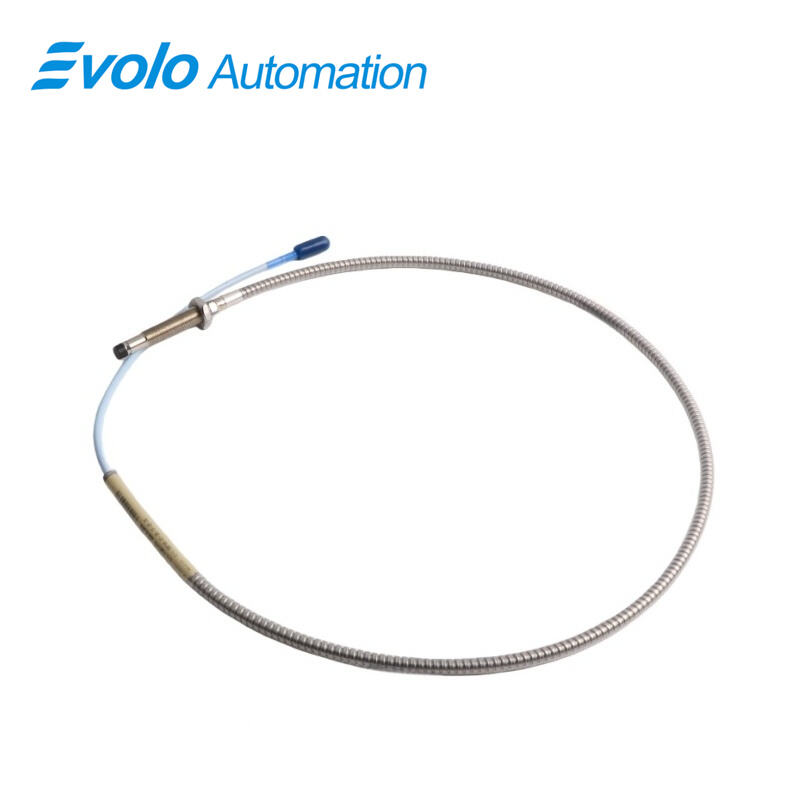

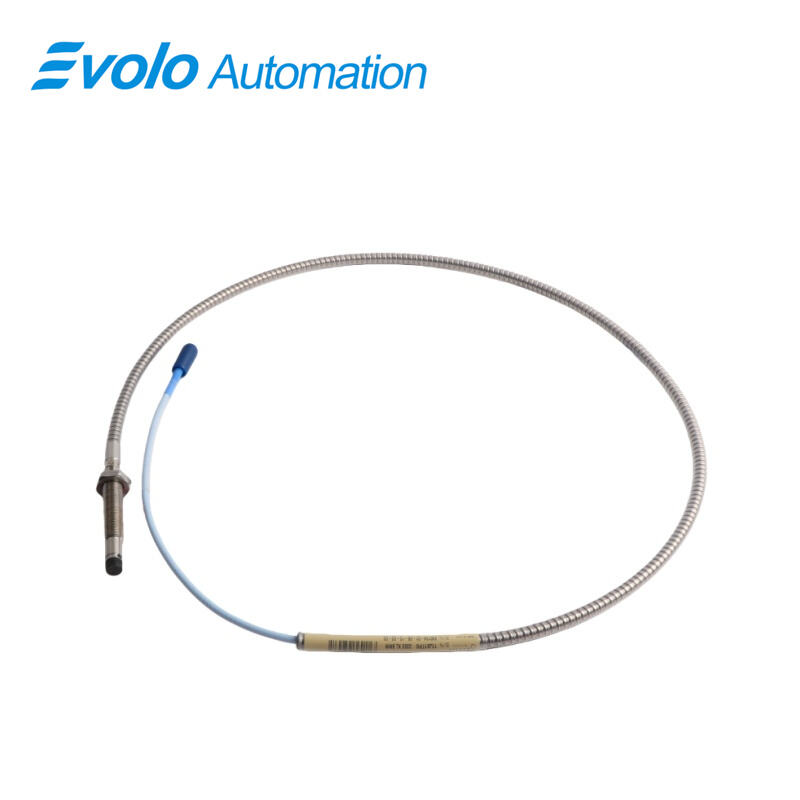

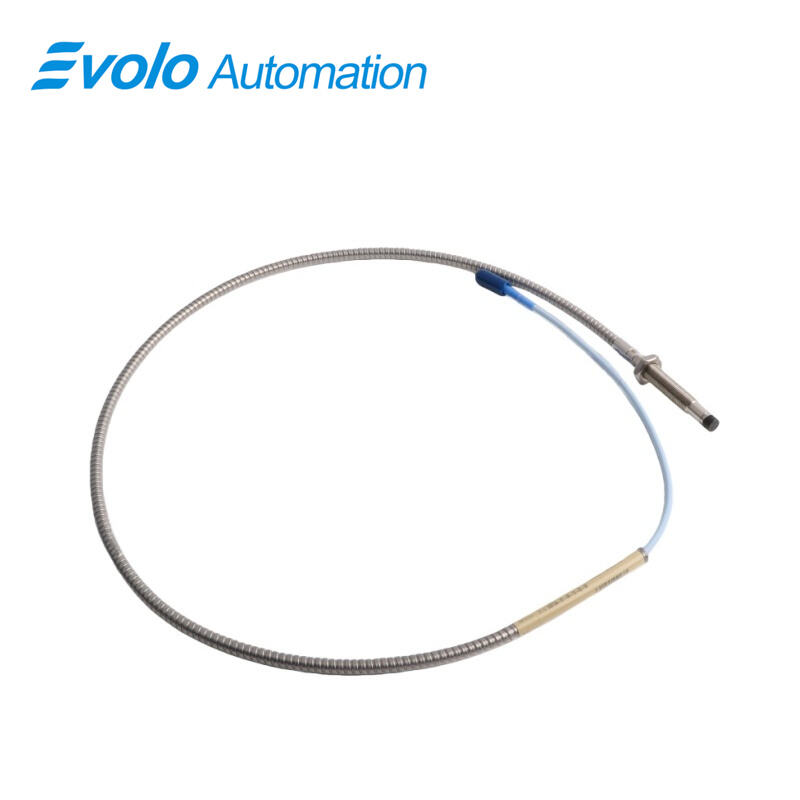

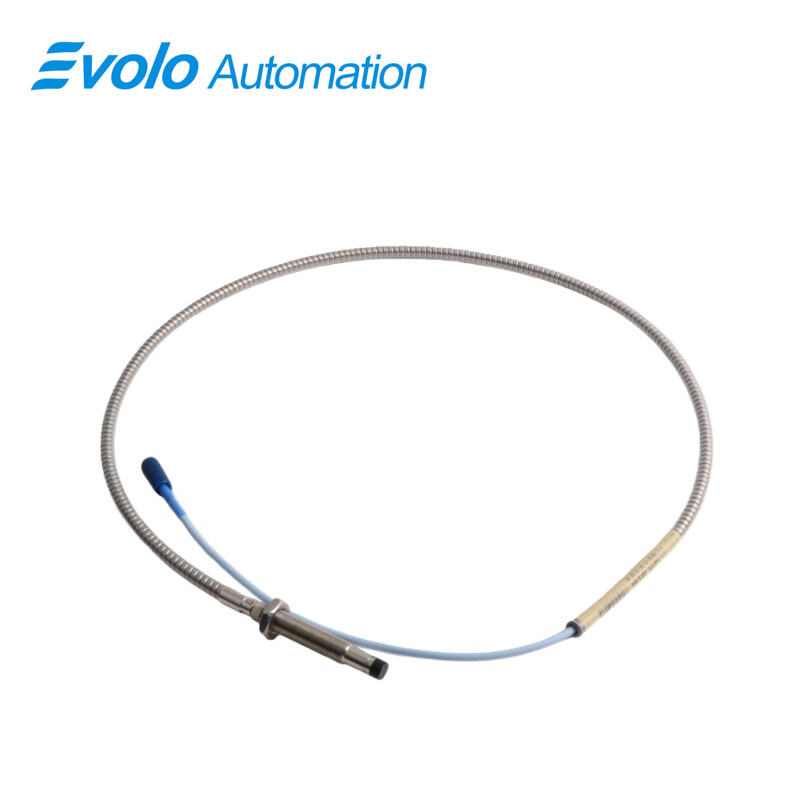

330104-01-06-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-06-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe provides accurate position and vibration measurements for industrial automation. Featuring a 10 mm unthreaded length, 60 mm case length, M10x1 thread, and 15 mm maximum thread engagement, the 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe converts target displacement into a 50 Ω voltage output with less than 2 mV change per volt input. Its 2 mm linear range supports precise shaft position and dynamic vibration tracking. The probe operates from -52°C to +177°C (-62°F to +350°F) and connects via a miniature coaxial ClickLoc connector with 1.0 meter total length and 69.9 pF/m extension cable capacitance. Field wiring supports 0.2–1.5 mm² (16–24 AWG). Designed for Keyphasor reference, rotational speed measurement, and fluid-film bearing monitoring, the 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe integrates directly into automation systems, enabling extended measurement without recalibration. Optional FluidLoc cable prevents oil leakage through the cable interior.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330104-01-06-10-02-00 3300 XL 8 mm probe measures dynamic vibration over a 2 mm linear range, converting shaft movement into a 50 Ω voltage output. It is ideal for monitoring fluid-film bearing machines in automation systems.

Track Shaft Position in Rotating Machinery
With 10 mm unthreaded length, M10x1 thread, 15 mm maximum thread engagement, and 60 mm case length, the 330104-01-06-10-02-00 3300 XL 8 mm probe records shaft displacement for real-time alignment and rotational control.

Generate Keyphasor Reference Signals
The 330104-01-06-10-02-00 3300 XL 8 mm probe outputs accurate phase and speed signals, enabling predictive maintenance and automation control for pumps, turbines, and compressors.

Measure Rotational Speed in High-Temperature Environments
Operating from -52°C to +177°C (-62°F to +350°F), the 330104-01-06-10-02-00 3300 XL 8 mm probe monitors rotational speed in boilers, turbines, and industrial ovens without recalibration.

Install in Confined Spaces with Long Extension
With 1.0 meter total length, miniature coaxial ClickLoc connector, and 69.9 pF/m cable capacitance, the 330104-01-06-10-02-00 3300 XL 8 mm probe can reach tight machinery layouts for automation data collection.

Specifications

Competitive Advantage

Direct Voltage Output for Accurate Measurement
The 330104-01-06-10-02-00 3300 XL 8 mm probe provides a 50 Ω voltage output with less than 2 mV change per volt input, ensuring precise detection over its 2 mm linear range in position and vibration measurement.

Quick Field Installation with Thread and Wiring Options
Featuring M10x1 thread, 15 mm engagement, and field wiring support from 0.2 to 1.5 mm² (16–24 AWG), the 330104-01-06-10-02-00 3300 XL 8 mm probe can be mounted and connected efficiently on-site.

High-Temperature Operation for Industrial Equipment
Operating between -52°C and +177°C (-62°F to +350°F), the 330104-01-06-10-02-00 3300 XL 8 mm probe maintains accurate measurements in extreme temperature environments for turbines and high-temperature rotating machinery.

Flexible Cable Installation with Long Reach
With a 1.0 meter total length, miniature coaxial ClickLoc connector, and 69.9 pF/m cable capacitance, the 330104-01-06-10-02-00 3300 XL 8 mm probe allows precise measurement in confined spaces without recalibration.
