Overview

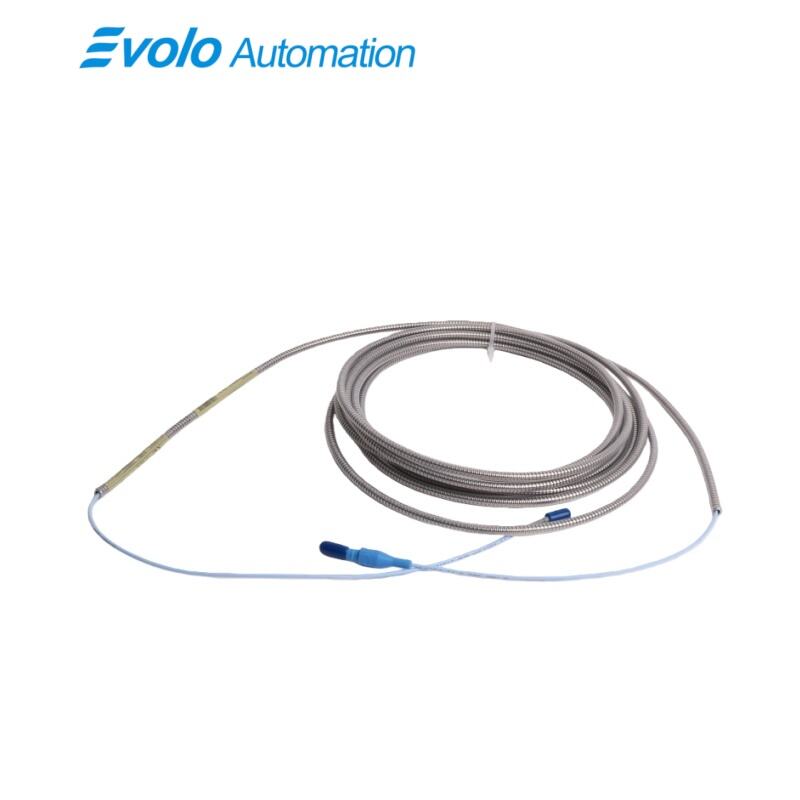

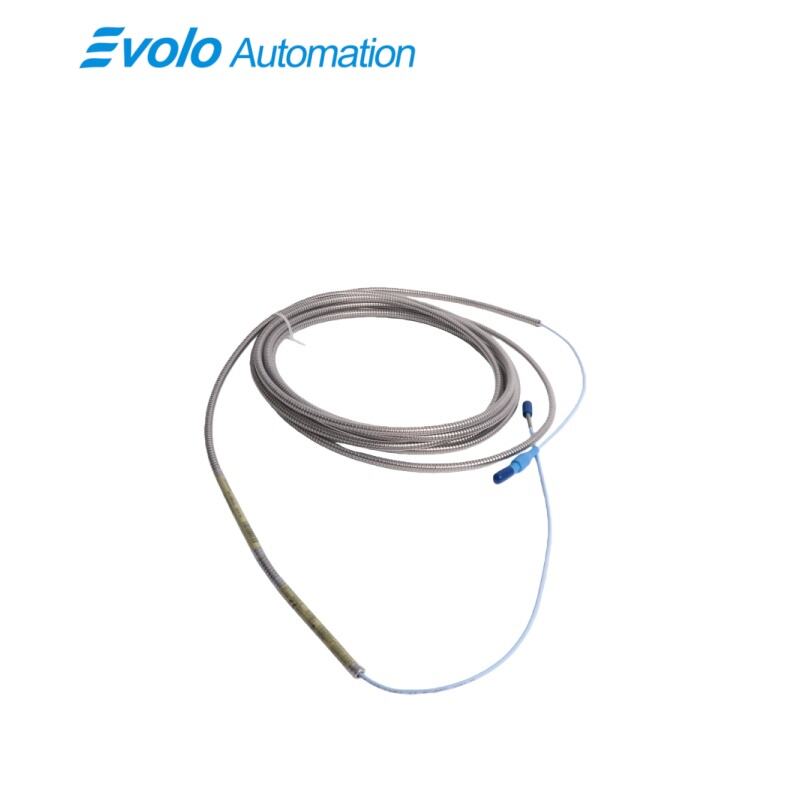

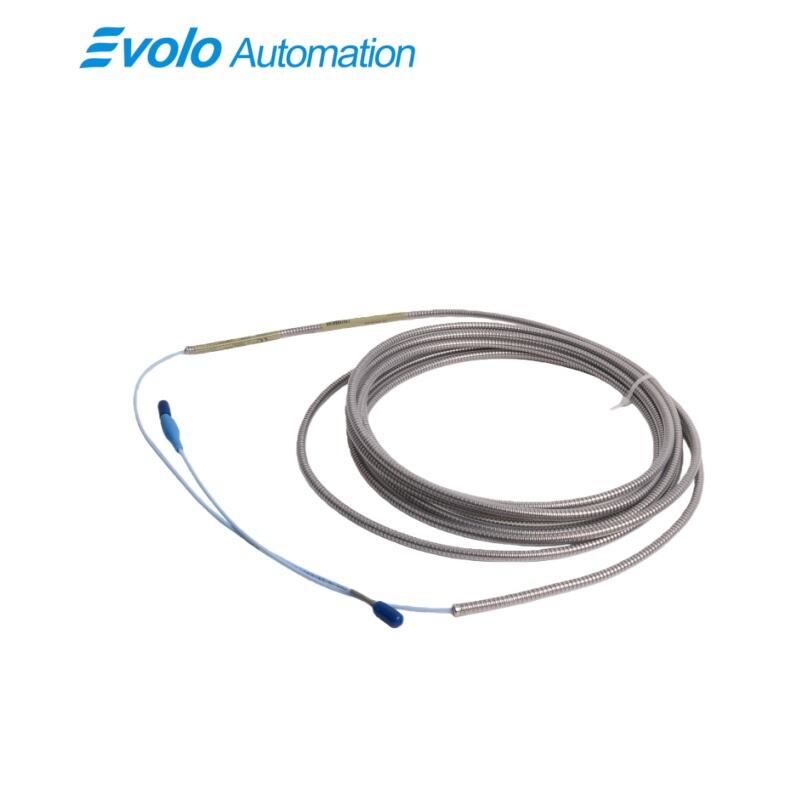

330930-060-04-05 3300 NSv Extension Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330930-060-04-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330930-060-04-05 3300 NSv Extension Cable is a high-reliability signal transmission component engineered for use within advanced machinery condition monitoring and protection systems. As a dedicated 3300 NSv Extension Cable, this model is designed to provide a stable and low-loss electrical connection between NSv proximity probes and associated signal processing or monitoring equipment. Its primary function is to preserve the accuracy, integrity, and consistency of vibration and displacement signals over extended distances in demanding industrial environments.
The 3300 NSv Extension Cable features a 6.0-meter cable length, allowing flexible routing through machinery skids, cable trays, and protective conduits while enabling optimal placement of sensors and monitoring devices. Constructed using 75 Ω coaxial conductors with FEP insulation, the cable demonstrates low typical capacitance of 69.9 pF/m and minimal DC resistance, ensuring minimal signal attenuation and distortion. These electrical characteristics are essential for maintaining system linearity and delivering accurate measurement data for critical rotating machinery.
Key Functions
Applications
The 3300 NSv Extension Cable is used to extend the connection between NSv proximity probes and monitoring or protection modules in rotating machinery systems, enabling accurate transmission of vibration and displacement signals in turbines, compressors, motors, and pumps.
In harsh industrial environments such as oil and gas facilities, power plants, and chemical processing units, the 330930-060-04-05 3300 NSv Extension Cable provides armored mechanical protection and stable electrical performance for long-distance signal routing.
The 3300 NSv Extension Cable supports system upgrades and expansions by allowing flexible equipment layout and reliable signal continuity in machinery protection and predictive maintenance installations.
Official Specifications
Quick Detail
|
Cable Length Option: |
6.0 meters (19.7 feet) |
|
Connector and Cable Option： |
With stainless steel armor, without FEP jacket, with connector protector |
|
ExtensionCable Armor (optional): |
Flexible AISI 302 SST with/without FEP outer jacket. |
|
Agency Approval Option: |
Multiple Approvals |
|
Extension Cable Material: |
75 Ω coaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
28x28x3cm |
|
Weight: |
0.5kg |
Specifications
|
Operating and Storage Temperature: |
-50°C to +180°C (-60°F to+351°F) |
|
Extension cable dc resistance: |
Center conductor: 0.220Ω/m (0.067 Ω/ft) Shield: 0.066 Ω/m (0.020Ω/ft) |
|
Output Resistance: |
45 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.5 pF/ft) typical |
|
Field Wiring: |
0.3 to 1.6 mm2 (16 to 24 AWG) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Power： |
Requires -17.7 Vdc to -25 Vdc without barriers at 11 |
Frequently Asked Questions
What is the model number?
The listed model number is 330930-060-04-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Armored Construction for Enhanced Mechanical Protection
The 3300 NSv Extension Cable features flexible stainless steel armor and connector protection, providing superior resistance to mechanical damage, vibration, and harsh environmental conditions.
2. Optimized Electrical Design for Signal Integrity
With low capacitance, minimal DC resistance, and stable impedance characteristics, the 330930-060-04-05 3300 NSv Extension Cable ensures high-fidelity transmission of sensitive vibration and displacement signals.
3. Wide Temperature Range and Global Compliance
The 3300 NSv Extension Cable operates reliably across extreme temperatures and carries multiple agency approvals, supporting deployment in regulated and hazardous industrial applications worldwide.
