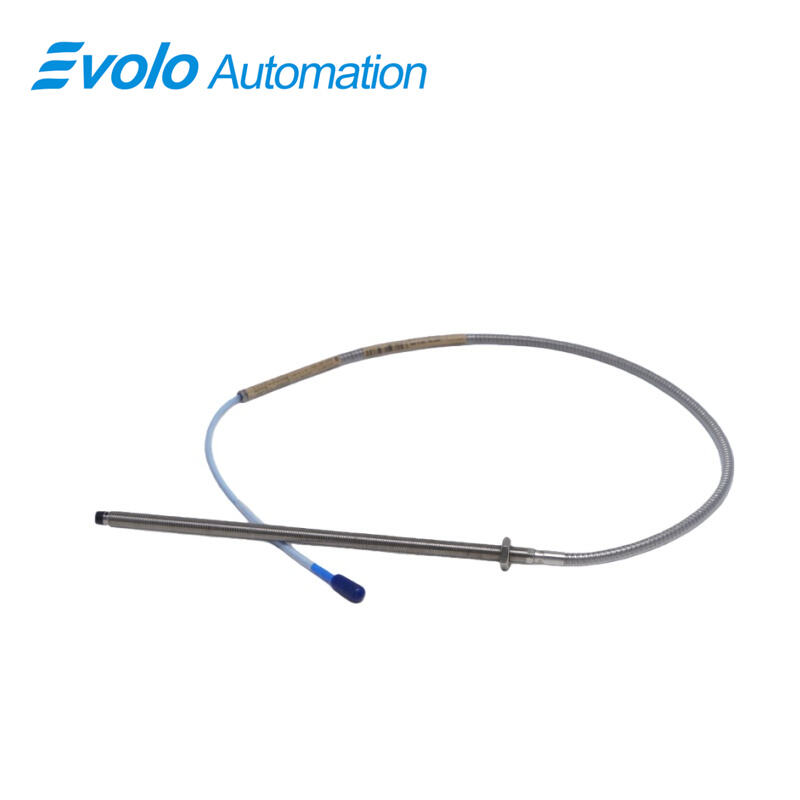

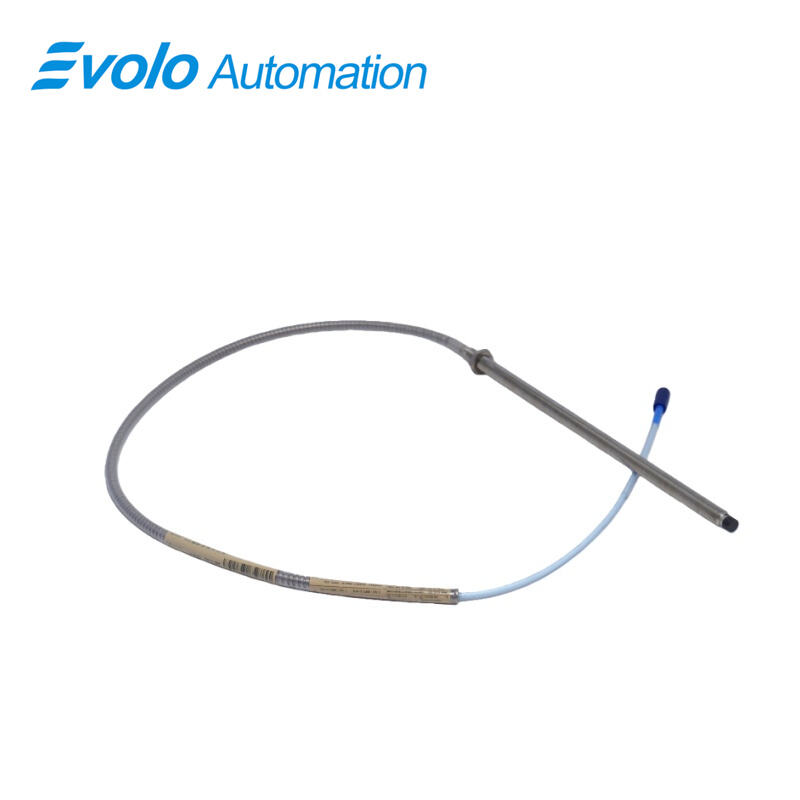

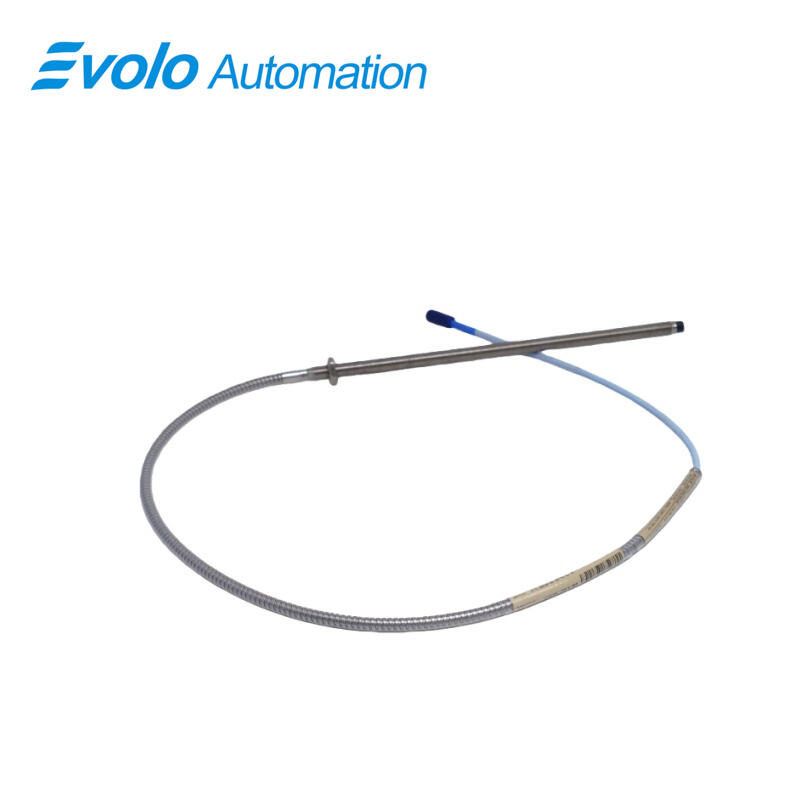

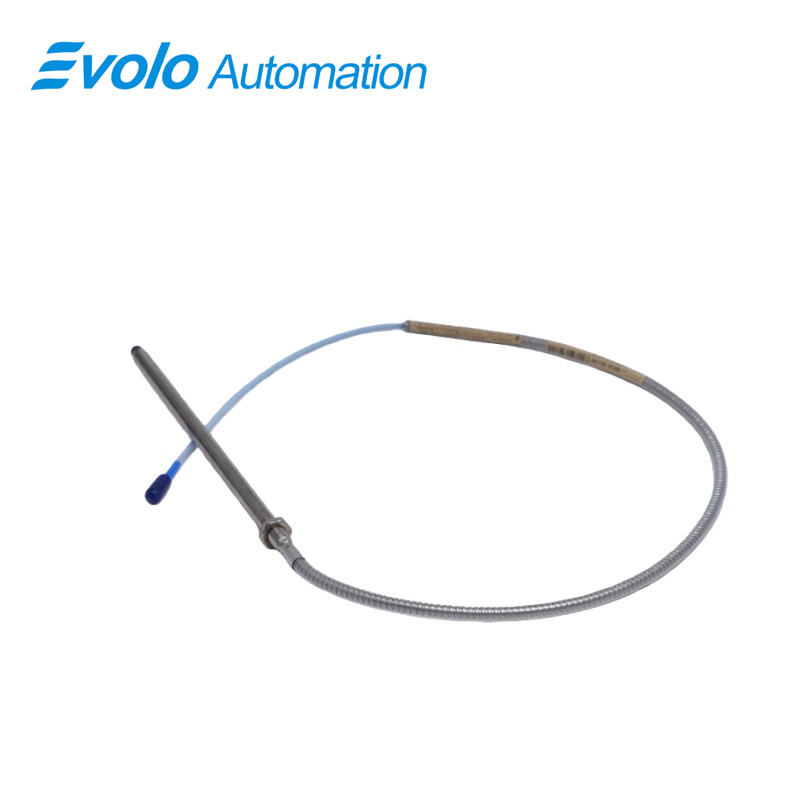

330104-00-25-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-25-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-25-10-02-05 3300 XL 8 mm Proximity Probe delivers precise measurement of position and vibration for industrial automation. Featuring an M10x1 probe case thread with 15 mm maximum thread engagement, it operates from -52°C to +177°C (-62°F to +350°F). The probe outputs a voltage proportional to the target distance, with 50 Ω output resistance and a linear range of 2 mm (80 mils). The system includes a miniature coaxial ClickLoc connector and standard cable, with extension cable capacitance of 69.9 pF/m (21.3 pF/ft). Designed for Keyphasor reference, speed, and fluid-film bearing applications, the 330104-00-25-10-02-05 3300 XL 8 mm supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and maintains less than 2 mV output change per volt input variation. Total probe length reaches 1.0 meter (3.3 feet) with a 250 mm minimum case length. Agency approvals include CSA, ATEX, and IECEx. The 330104-00-25-10-02-05 3300 XL 8 mm Proximity Probe ensures reliable integration in automation systems, providing accurate, interchangeable measurements without recalibration.

Applications

1. Measure Shaft Vibration on Fluid-Film Bearings
The 330104-00-25-10-02-05 3300 XL 8 mm probe measures dynamic vibration with a 2 mm linear range and outputs voltage proportional to shaft movement, enabling precise monitoring of fluid-film bearing performance.

2. Detect Shaft Position in Rotating Machinery
With an M10x1 thread and 15 mm maximum engagement, the 330104-00-25-10-02-05 3300 XL 8 mm probe tracks shaft position in real time for alignment and maintenance tasks.

3. Generate Keyphasor Reference Signals
The 330104-00-25-10-02-05 3300 XL 8 mm provides accurate speed and phase signals for automation control systems, supporting predictive maintenance on pumps, compressors, and turbines.

4. Measure Rotational Speed in High-Temperature Environments
Operating from -52°C to +177°C (-62°F to +350°F), the 330104-00-25-10-02-05 3300 XL 8 mm probe can be used in boilers, turbines, and other high-temperature industrial systems.

5. Integrate with Extension Cables for Flexible Installation
With 1.0 m total length, miniature coaxial ClickLoc connector, and 69.9 pF/m cable capacitance, the 330104-00-25-10-02-05 3300 XL 8 mm probe can be extended to fit confined machinery layouts without recalibration.

Specifications

Competitive Advantage

1. Direct Voltage Output Proportional to Distance
The 330104-00-25-10-02-05 3300 XL 8 mm probe converts target distance into a 50 Ω voltage output with less than 2 mV change per volt input, enabling precise automation measurement.

2. Quick Field Installation
With field wiring support from 0.2 to 1.5 mm² (16–24 AWG) and M10x1 thread, the 330104-00-25-10-02-05 3300 XL 8 mm probe can be mounted and wired on site efficiently.

3. Backward-Compatible with 3300 Series Components
The 330104-00-25-10-02-05 3300 XL 8 mm probe works interchangeably with 5 mm and 8 mm non-XL 3300 probes, reducing inventory complexity and installation errors.

4. Secure Probe-Cable Connection
Patented CableLoc design provides 330 N pull strength to prevent disconnection during vibration measurement, ensuring reliable data collection.

5. Optional FluidLoc Cable for Oil-Protected Environments
The 330104-00-25-10-02-05 3300 XL 8 mm can use FluidLoc cable option to prevent oil leaks through the cable interior, keeping machinery clean and reducing maintenance downtime.
