Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-25-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
250 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x111cm |
|
Weight: |
0.2kg |
Description

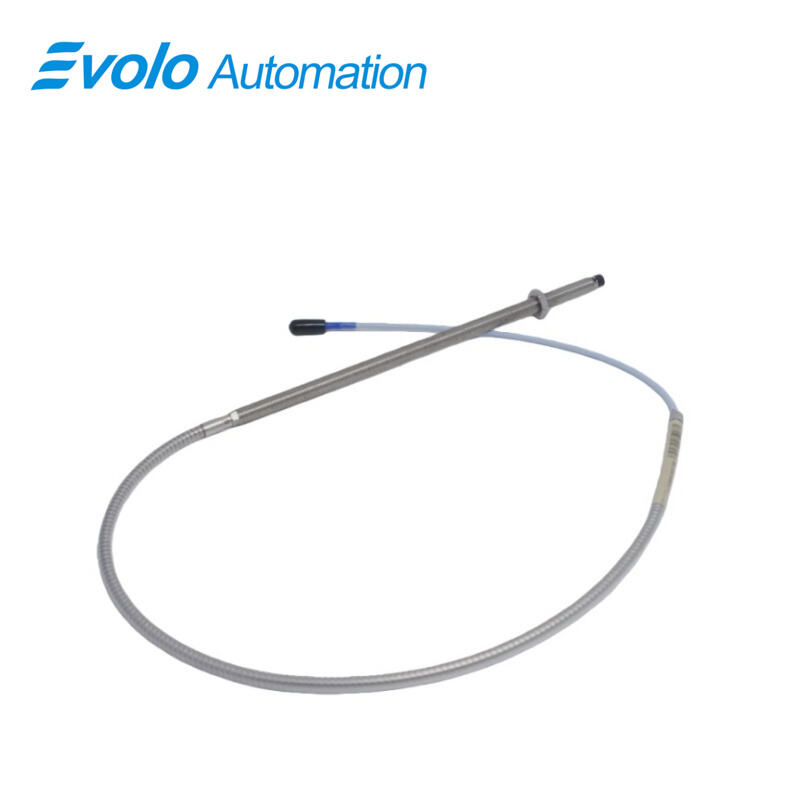

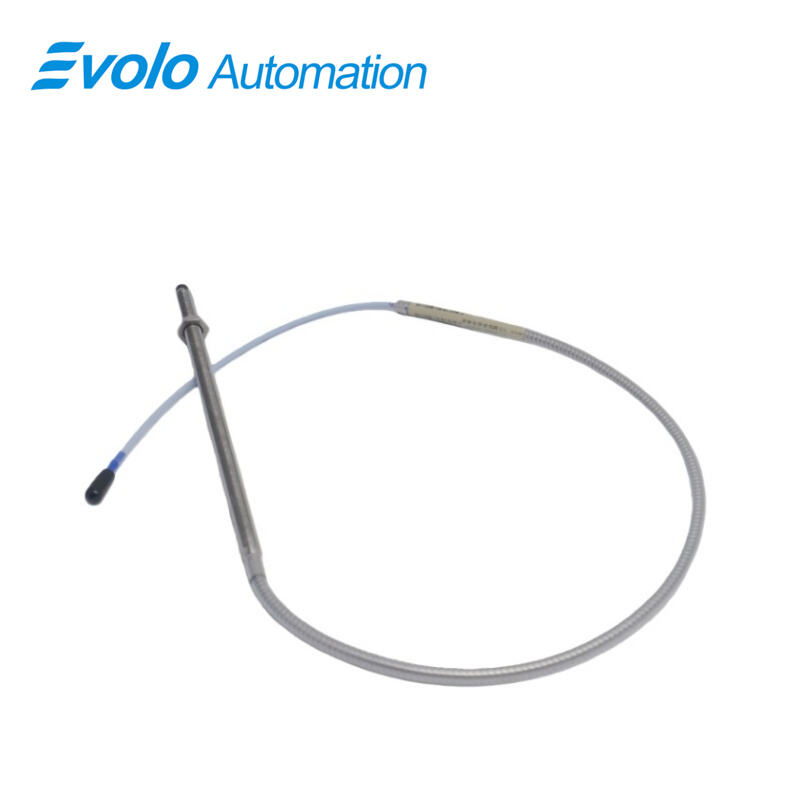

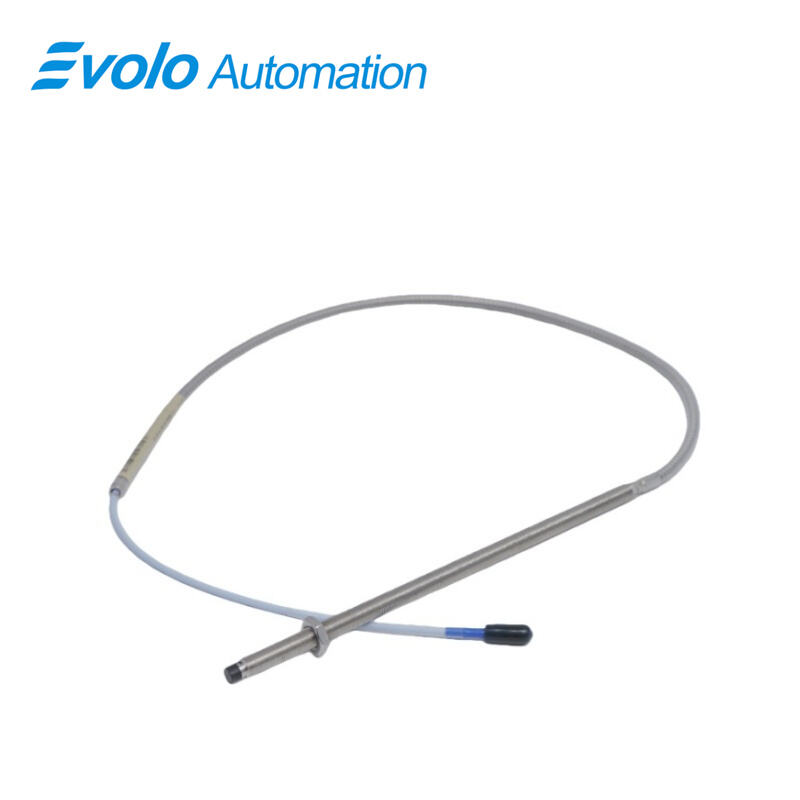

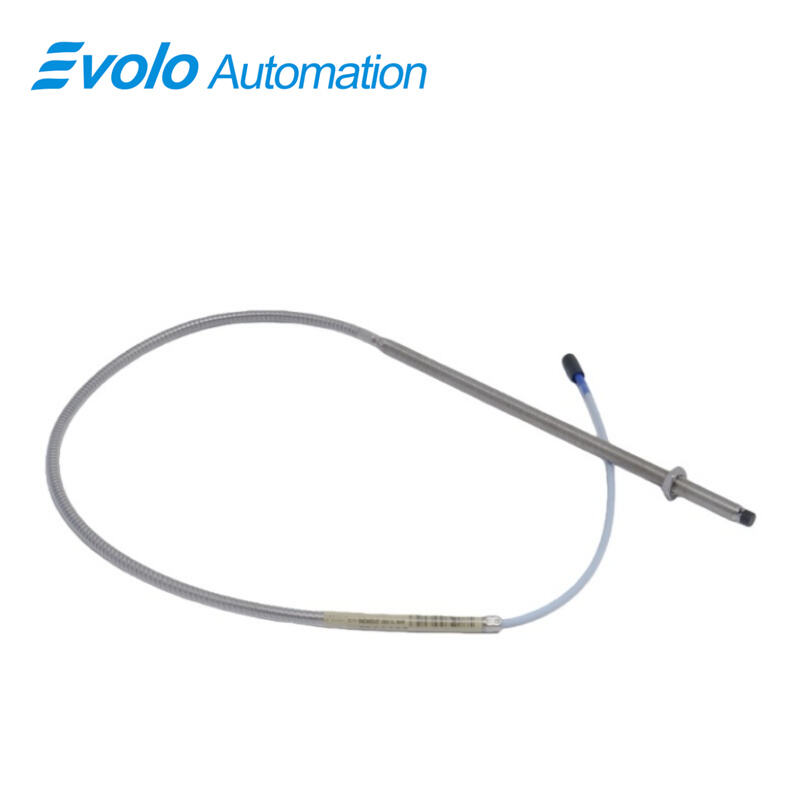

330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe is designed for automated monitoring of machinery displacement and vibration. With a 250 mm overall case length, M10x1 threaded engagement up to 15 mm, and 2 mm linear range, the 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe outputs voltage directly proportional to the gap between probe tip and conductive surfaces. Operating from –52°C to +177°C, and featuring 50 Ω output resistance and 69.9 pF/m extension cable capacitance, the 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe integrates seamlessly with fluid-film bearing systems and Keyphasor speed measurement setups. Standard miniature coaxial ClickLoc connectors enable direct connection to automation systems for real-time monitoring. Optional FluidLoc cables on the 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe prevent fluid leaks, protecting sensors and electronics in automated processes. The probe supports backward compatibility with 3300 XL 5 mm and 8 mm series components, allowing upgrades without recalibration. This ensures precise position and vibration measurements for predictive maintenance, process control, and speed analysis in automated industrial environments.
Applications
Measure rotor vibration on fluid-film bearing machines
The 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe monitors real-time rotor displacement with 2 mm linear range and high-frequency response, helping operators detect abnormal vibration in automated systems.
Detect shaft position in high-speed machinery
Using the probe’s output voltage proportionality, the 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe provides accurate shaft position feedback for PLC or DCS-based automation control.
Keyphasor reference and speed measurement
The 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe integrates with Keyphasor sensors to provide precise speed signals for turbine and pump control systems.
Integration into automated monitoring systems
With ClickLoc connectors and 1-meter standard cable, the 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe can be deployed in automated data acquisition and predictive maintenance setups.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-temperature and low-sensitivity operation
The 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe operates from –52°C to +177°C with less than 2 mV change per volt input, providing reliable readings in extreme industrial environments.
Robust cable and probe design
Patented CableLoc design on the 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe ensures 330 N pull strength, securing the probe in automated systems and reducing mechanical failure risks.
Backward compatibility with 3300 XL series
All 330104-00-25-10-02-00 3300 XL 8 mm Proximity Probe components can replace older 5 mm and 8 mm probes without recalibration, reducing downtime and simplifying automated system upgrades.
