Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-20-10-02-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
200 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x108cm |
|
Weight: |
0.18kg |
Description

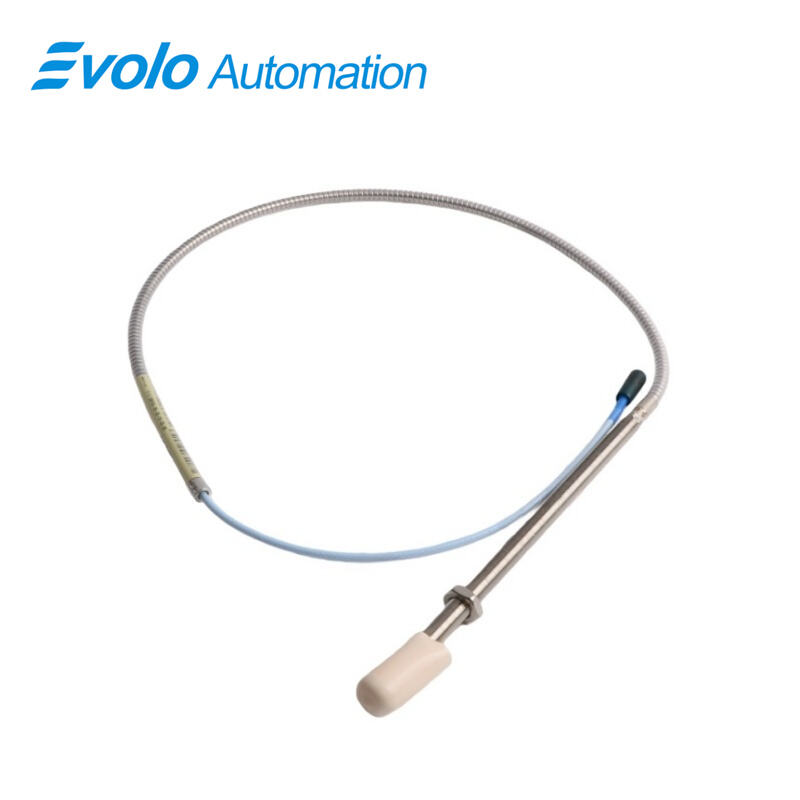

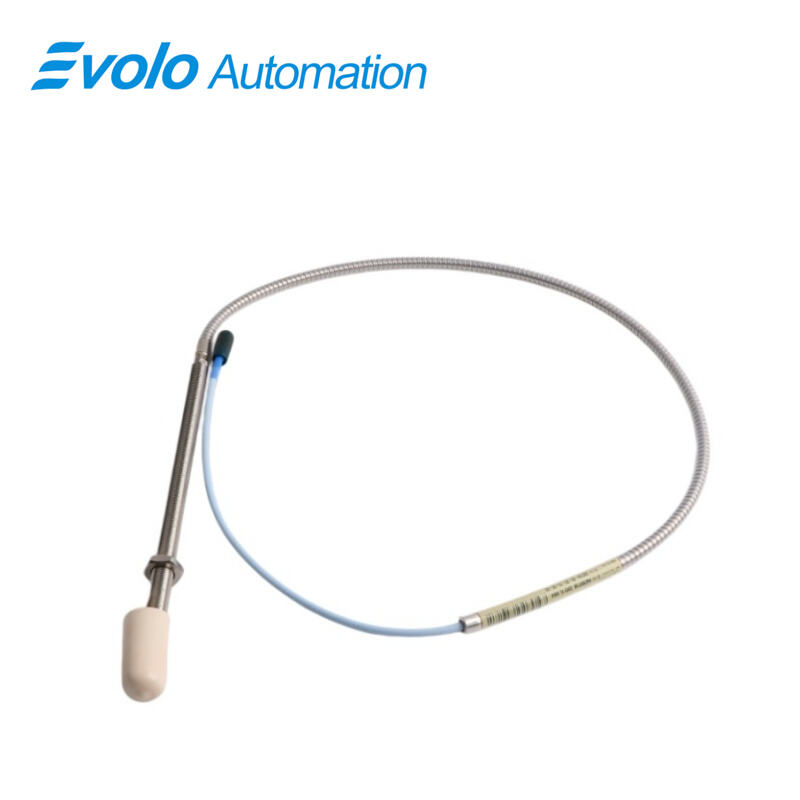

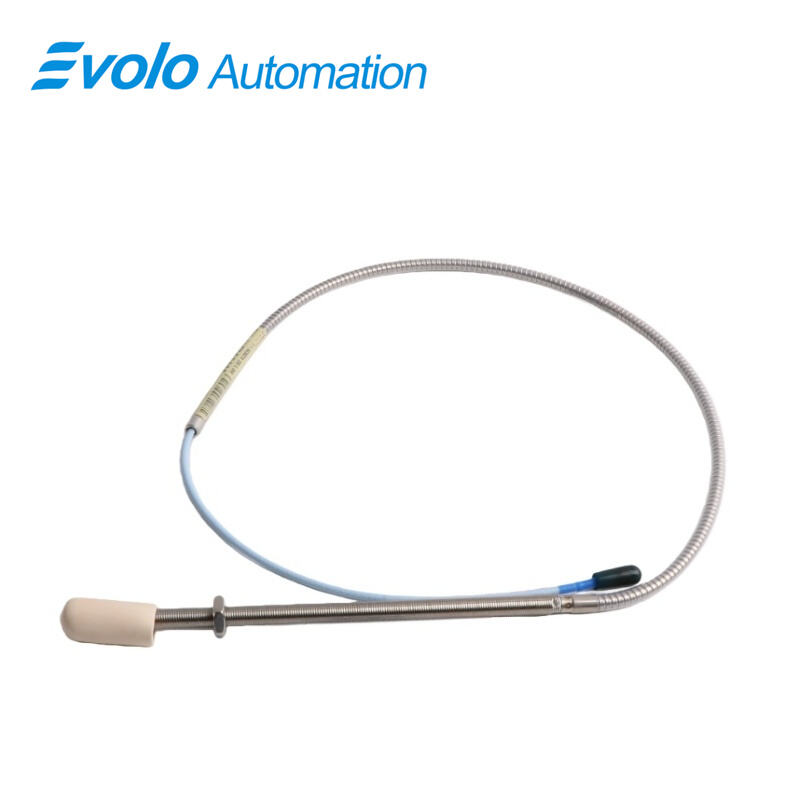

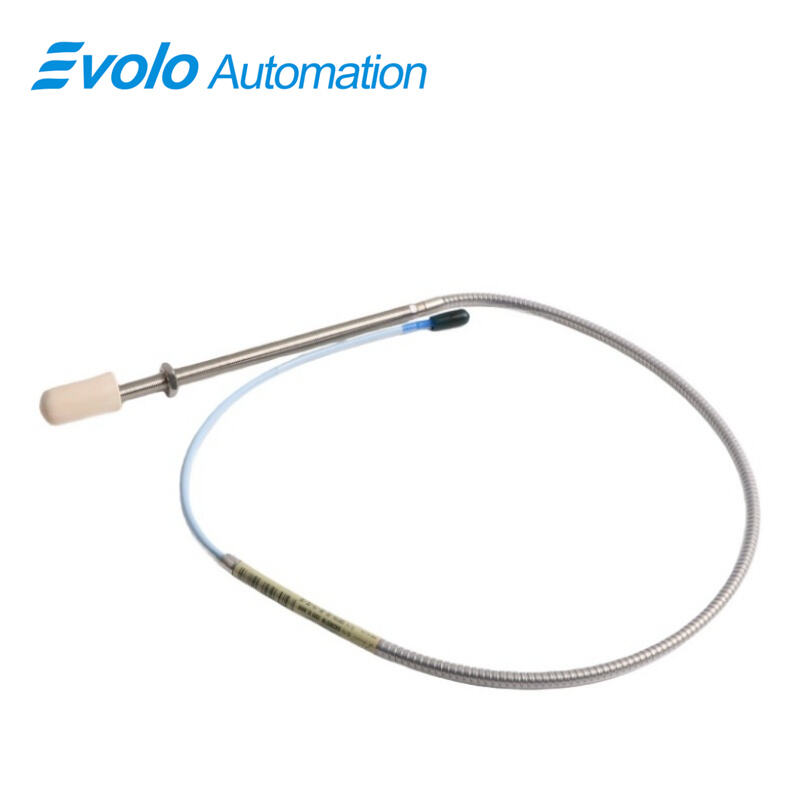

The 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe outputs a voltage proportional to the distance between its tip and the monitored conductive surface, enabling precise measurement of both static position and dynamic vibration. With a 2 mm linear range, less than 2 mV supply sensitivity per volt, and 50 Ω output resistance, the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe ensures accurate signal capture in automated systems. The probe features a 200 mm overall case length, M10x1 thread, and 0 mm unthreaded length, fitting tight mounting spaces. Extension cable capacitance is 69.9 pF/m, supporting 1-meter runs for flexible installation. Rated for –52°C to +177°C, the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe operates in extreme environments and supports CSA, ATEX, and IECEx approvals. Optional FluidLoc cabling prevents fluid ingress. Fully backward compatible with other 3300 XL 5 mm and 8 mm components, the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe allows automated system upgrades without recalibration.
Applications
Vibration Monitoring on Rotors
The 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe measures shaft vibration on turbines, compressors, and pumps. Its 2 mm linear range and 50 Ω output resistance provide precise, real-time vibration signals for automated monitoring systems.
Rotor Position Measurement in Fluid-Film Bearings
Deploy the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe to track rotor displacement. With M10x1 threads and a 200 mm overall case length, it fits tight bearing housings while outputting accurate voltage for automated control loops.
Keyphasor Pulse Generation for Speed and Phase
Use the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe to generate speed and phase reference signals. Its less than 2 mV supply sensitivity per volt ensures repeatable automated timing measurements.
Automated Fault Detection and Condition Monitoring
Connect the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe to predictive maintenance systems. The 69.9 pF/m extension cable capacitance allows 1-meter signal runs, supporting automated detection of imbalance, misalignment, or excessive vibration.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Precise Output Across Supply Variations
The 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe delivers <2 mV voltage change per 1 V input fluctuation, enabling accurate automation readings without recalibration.
Wide Operating Temperature for Harsh Environments
Rated –52°C to +177°C, the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe functions reliably in extreme industrial conditions.
Compact, High-Strength Mounting
With M10x1 threads, 200 mm overall case length, and 15 mm thread engagement, the 330104-00-20-10-02-CN 3300 XL 8 mm Proximity Probe installs securely in confined machinery spaces for reliable automation integration.
