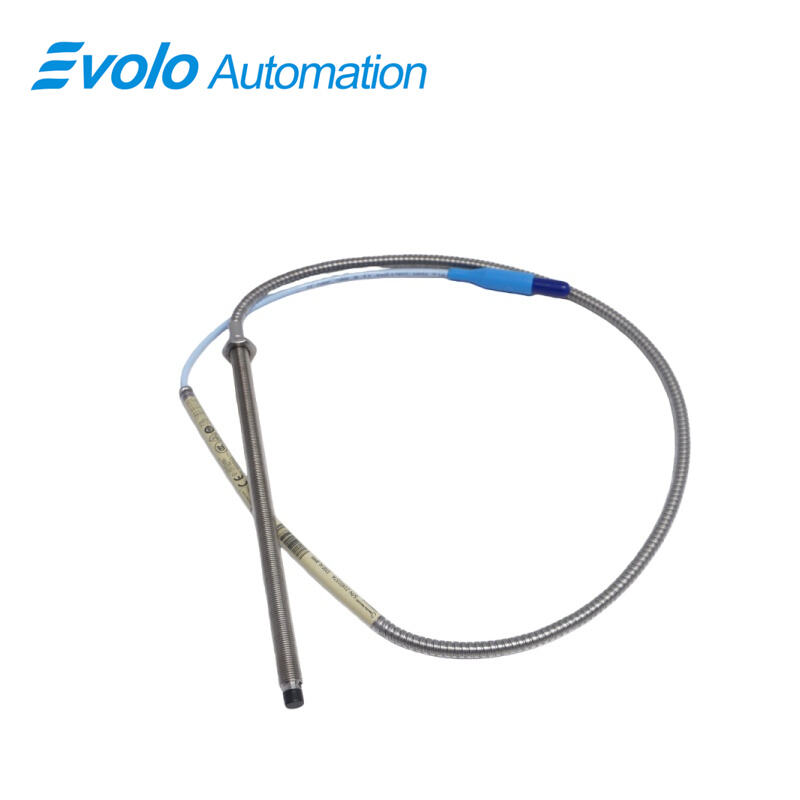

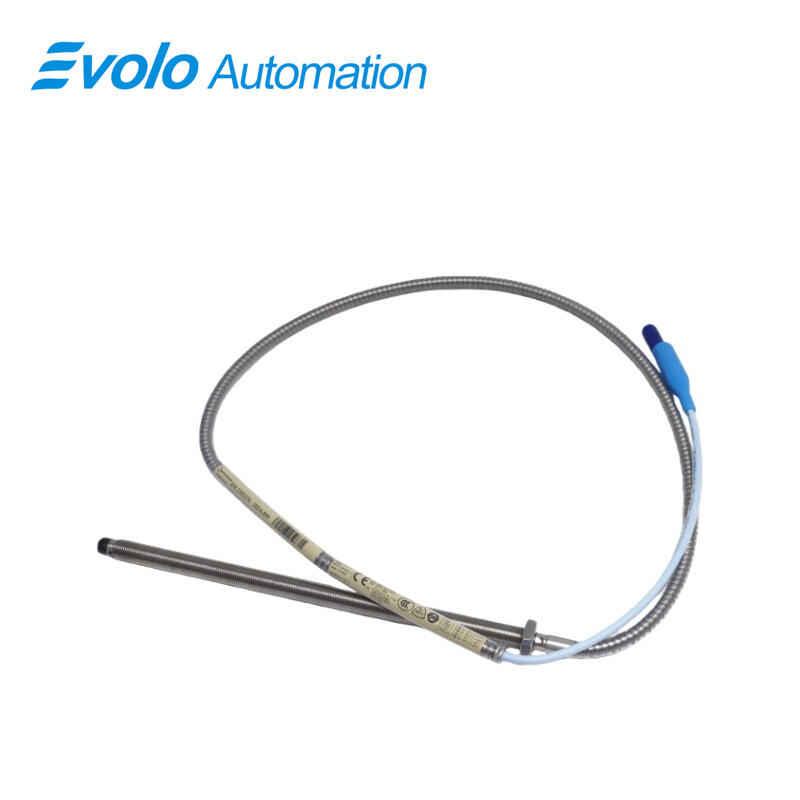

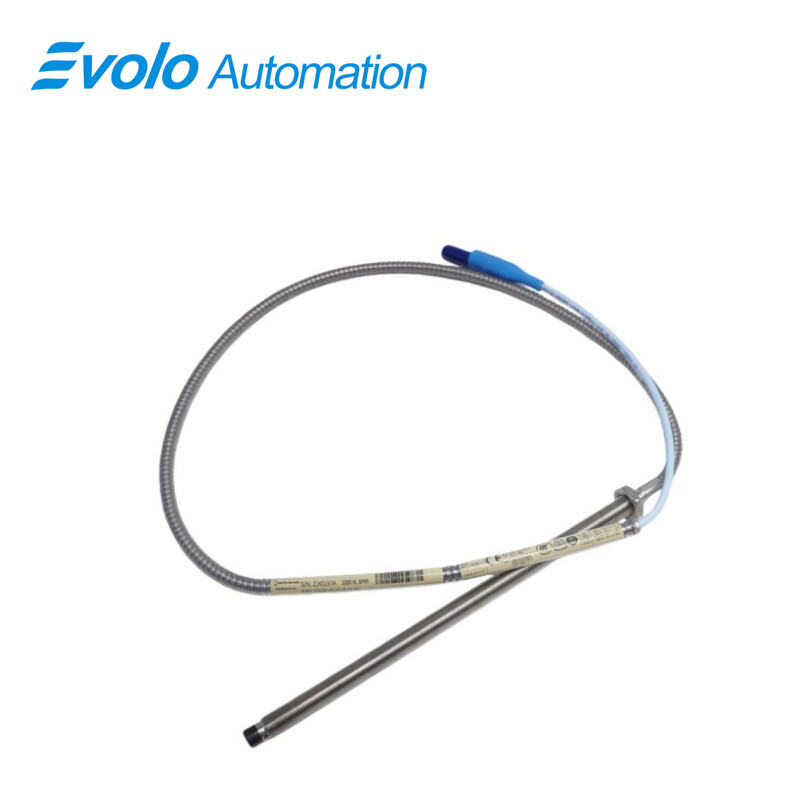

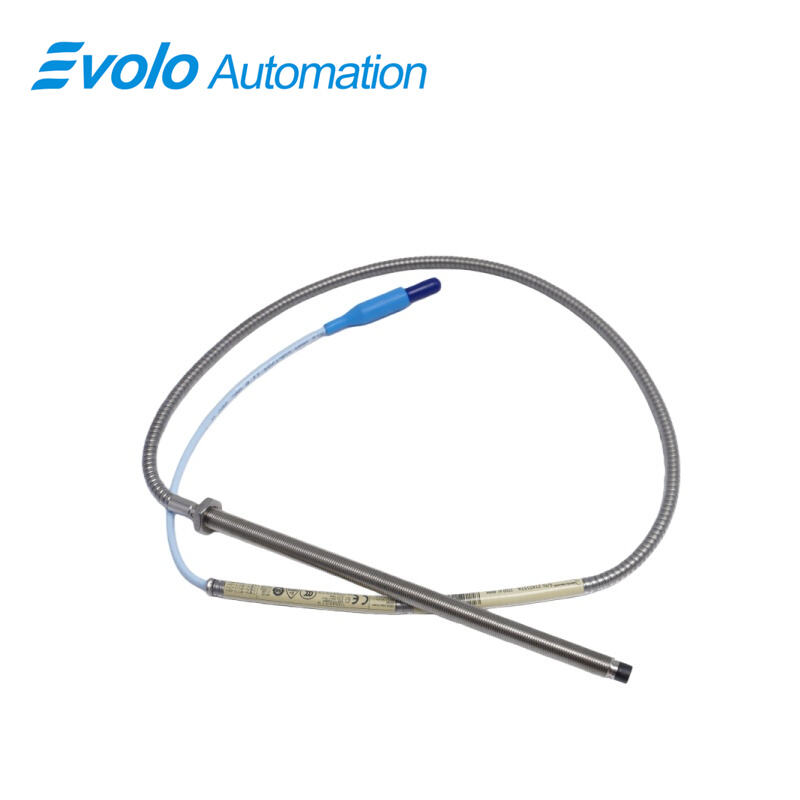

330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-20-10-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe delivers precise voltage output directly proportional to the distance between the probe tip and conductive surfaces. With a 2 mm linear range and less than 2 mV supply sensitivity per volt, the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe measures static positions and dynamic vibrations on fluid-film bearing machines. Its 50 Ω output resistance and 69.9 pF/m cable capacitance ensure accurate signal transmission over the 1.0-meter ClickLoc extension cable. The M10x1 probe thread, 200 mm overall case length, and 0 mm unthreaded length allow the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe to integrate into automated systems with tight mounting spaces. Rated for –52°C to +177°C, it performs in extreme industrial environments. Optional FluidLoc cabling prevents oil or liquid ingress, keeping the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe operational for continuous automated monitoring. Fully backward compatible with other 3300 XL 5 mm and 8 mm components, the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe allows fast replacement and system upgrades without recalibration. This makes it ideal for precise vibration tracking, rotor position measurement, and automated Keyphasor speed detection in industrial control systems.

Applications

Vibration Measurement on Rotating Machinery
Use the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe to monitor shaft vibration amplitudes on pumps, compressors, and turbines, capturing dynamic movement up to 2 mm linear range with ±2 mV sensitivity per volt.

Position Tracking of Rotors
Deploy the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe for rotor position monitoring in automated fluid-film bearings, using the 50 Ω output and 69.9 pF/m cable capacitance for accurate signal transmission over distances up to 1.0 meter.

Keyphasor Reference and Speed Measurement
Integrate the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe to generate Keyphasor pulses for speed calculation and phase reference in turbine control and automation systems.

Specifications

Competitive Advantage

Direct Voltage Output with Minimal Supply Sensitivity
The 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe outputs precise signals with less than 2 mV variation per volt change, ensuring consistent automated measurements.

Robust Temperature Range
Rated for –52°C to +177°C, the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe performs reliably in extreme operational environments without recalibration.

Interchangeable and Backward Compatible
The 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe supports all 3300 XL 5 mm and 8 mm components, allowing quick replacement and system upgrades without disrupting automated processes.

Compact Mounting Design
With a 200 mm overall case length, 0 mm unthreaded length, and M10x1 thread, the 330104-00-20-10-01-CN 3300 XL 8 mm Proximity Probe fits constrained spaces in automation setups, allowing precise installation on crowded machinery.
