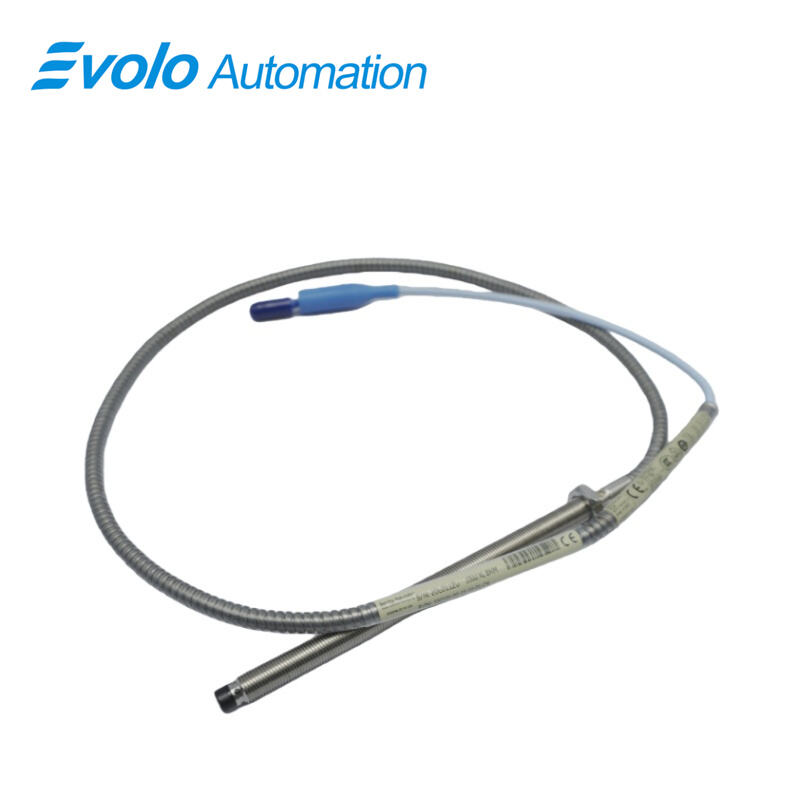

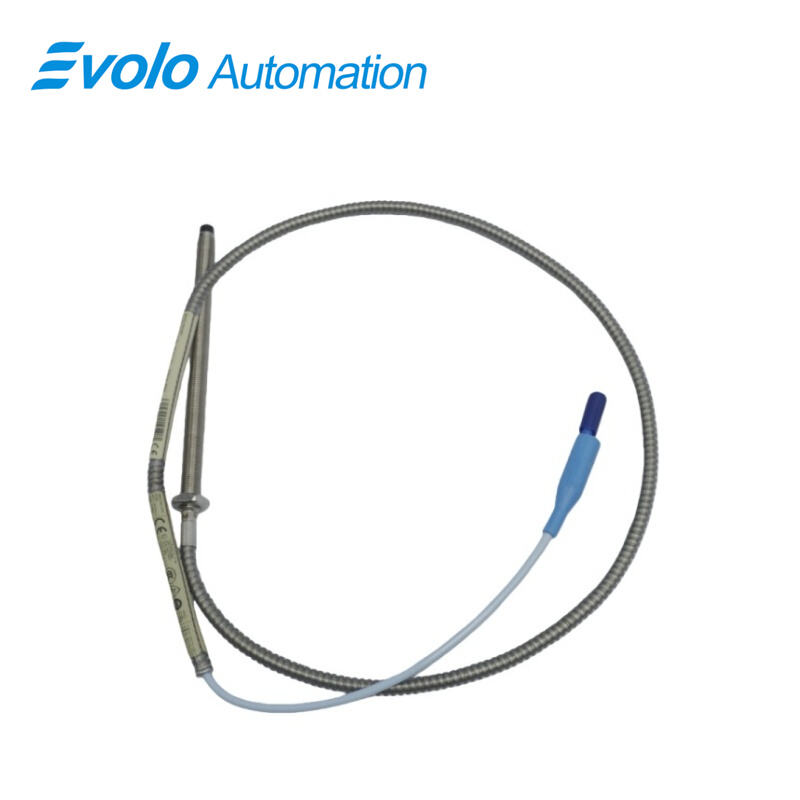

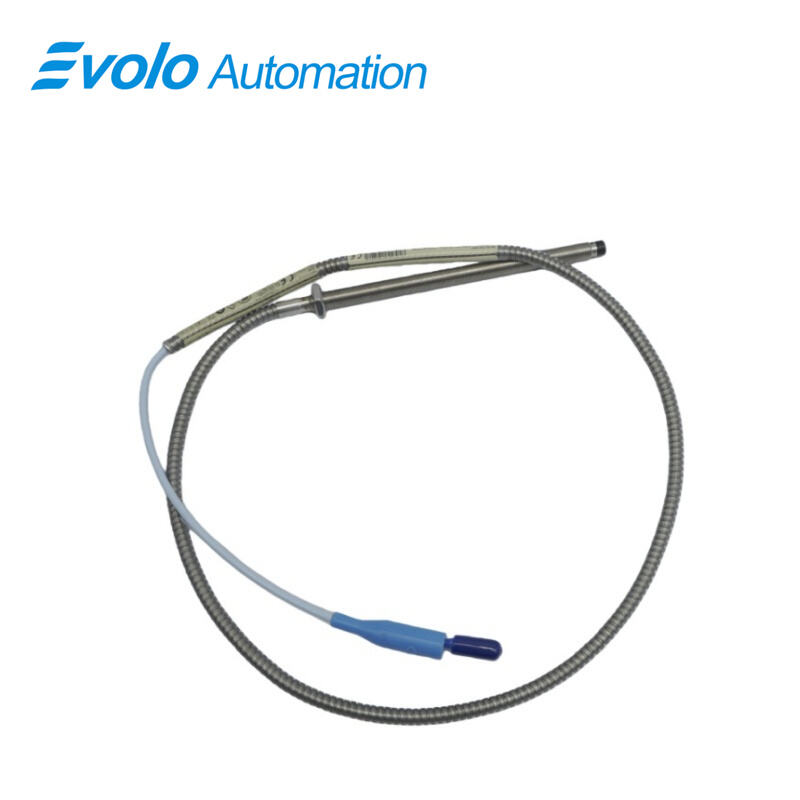

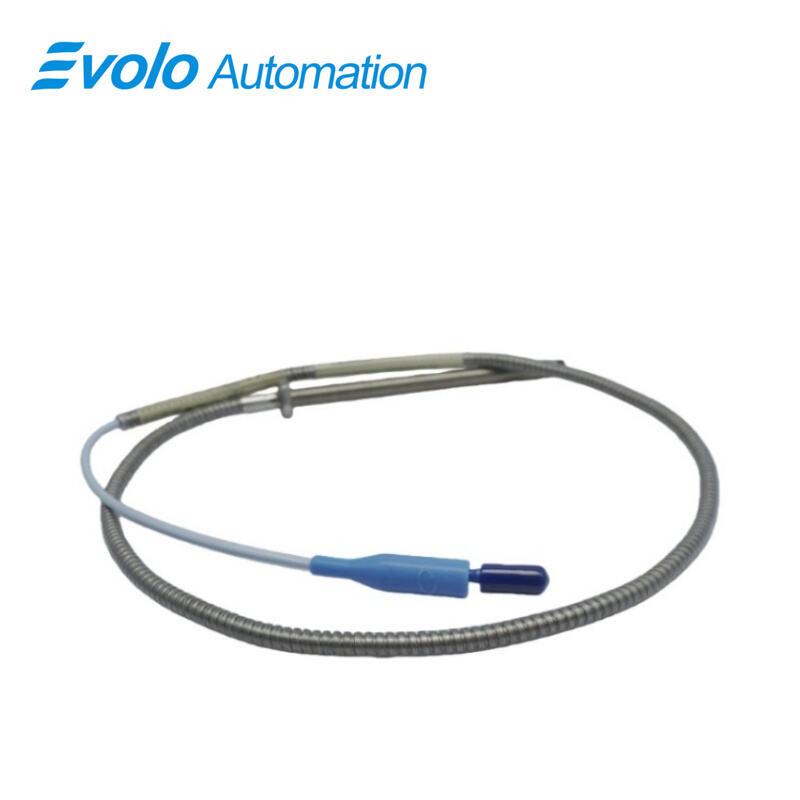

330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-15-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between the probe tip and conductive surfaces. Designed for both static (position) and dynamic (vibration) measurements, the 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe supports fluid-film bearing monitoring, Keyphasor reference, and speed detection in automated machinery. Its M10x1 threaded case with 150 mm overall length and unthreaded length of 0 mm enables precise mounting, while the 2 mm linear range ensures accurate measurement across the operating range. Operating temperatures from –52°C to +177°C, supply sensitivity below 2 mV per volt, and output resistance of 50 Ω allow the 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe to perform in demanding industrial environments. The probe features a miniature coaxial ClickLoc connector with protector and standard cable, supporting field wiring from 16 to 24 AWG. Optional FluidLoc cable prevents oil ingress, ensuring uninterrupted automated monitoring. Compatible with other 3300 series probes and extension cables, the 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe enables seamless integration into existing DCS and PLC-based control systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
Use the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe to measure vibration amplitudes directly on fluid-film bearings. The 2 mm linear range and 50 Ω output resistance allow precise signal capture for automated condition monitoring.

Position Measurement in Rotating Machinery
Integrate the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe to track shaft positions. The probe’s output voltage is proportional to distance, supporting automated control and alignment processes.

Keyphasor Reference for Speed Detection
Deploy the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe to generate Keyphasor signals for rotational speed monitoring. The 1-meter standard length and ClickLoc connector enable quick installation in automated systems.

Extended-Length Monitoring
Use the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe with extension cables up to 9 meters, leveraging its 69.9 pF/m capacitance for remote monitoring in large automated plants.

Specifications

Competitive Advantage

Direct Voltage Output for Automation
The 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe delivers a voltage output proportional to the measured gap, allowing direct integration into PLC or DCS systems without additional signal conversion.

High-Temperature Operation
Operating from –52°C to +177°C, the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe supports high-temperature industrial automation environments without requiring protective housings.

Quick Installation with ClickLoc Connector
The miniature coaxial ClickLoc connector with protector on the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe ensures rapid connection and reliable field wiring from 16 to 24 AWG.

Robust Pull Strength and Fluid Protection
The patented CableLoc design provides 330 N pull strength, while optional FluidLoc cables prevent oil ingress, ensuring the 330104-00-15-10-01-05 3300 XL 8 mm Proximity probe operates continuously in automated machinery.
