Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-05-05-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
50 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x58cm |
|
Weight: |
0.08kg |
Description

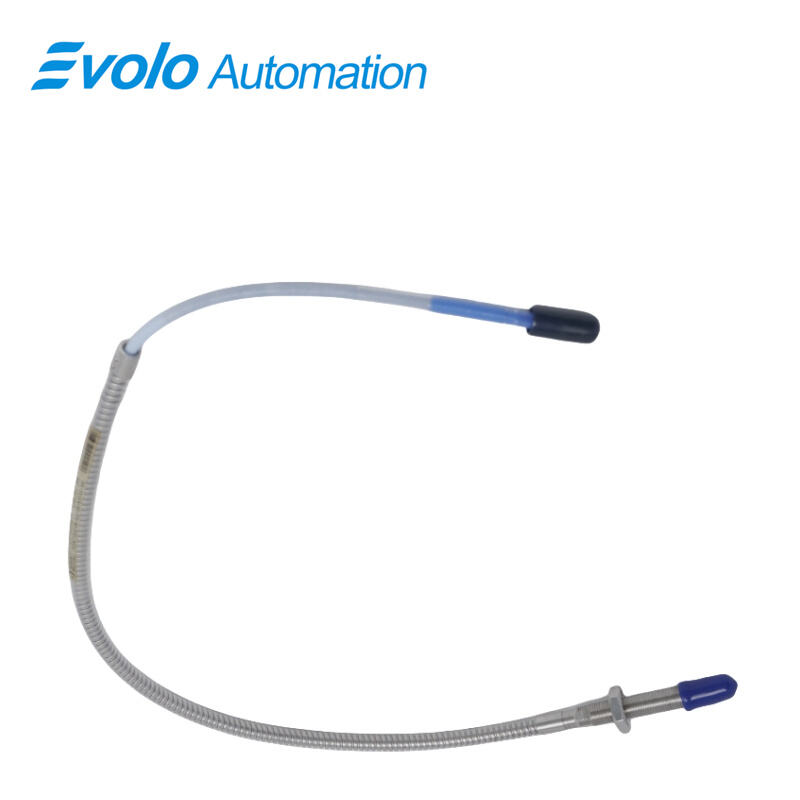

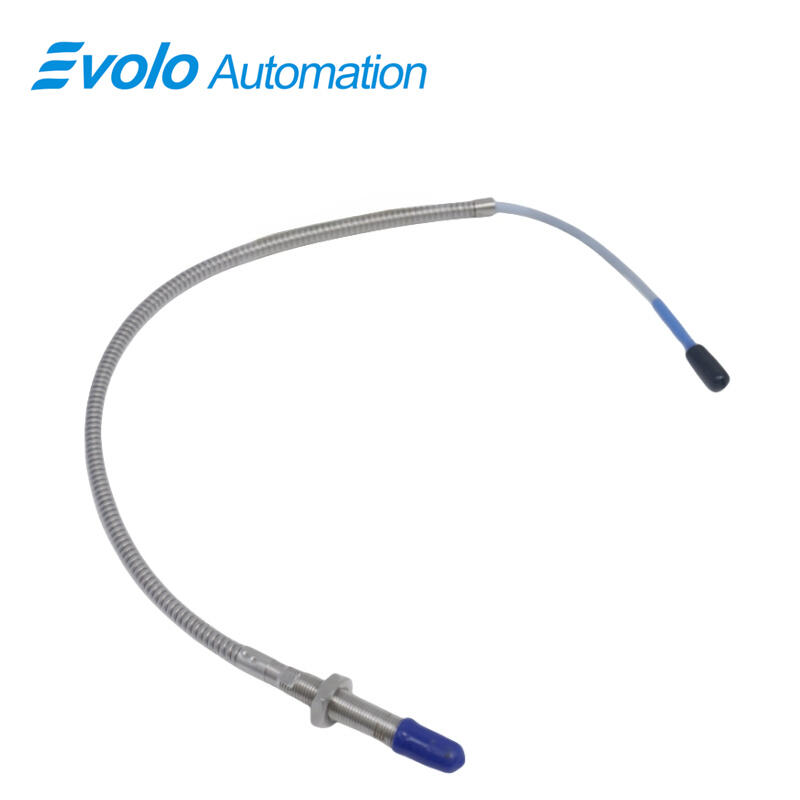

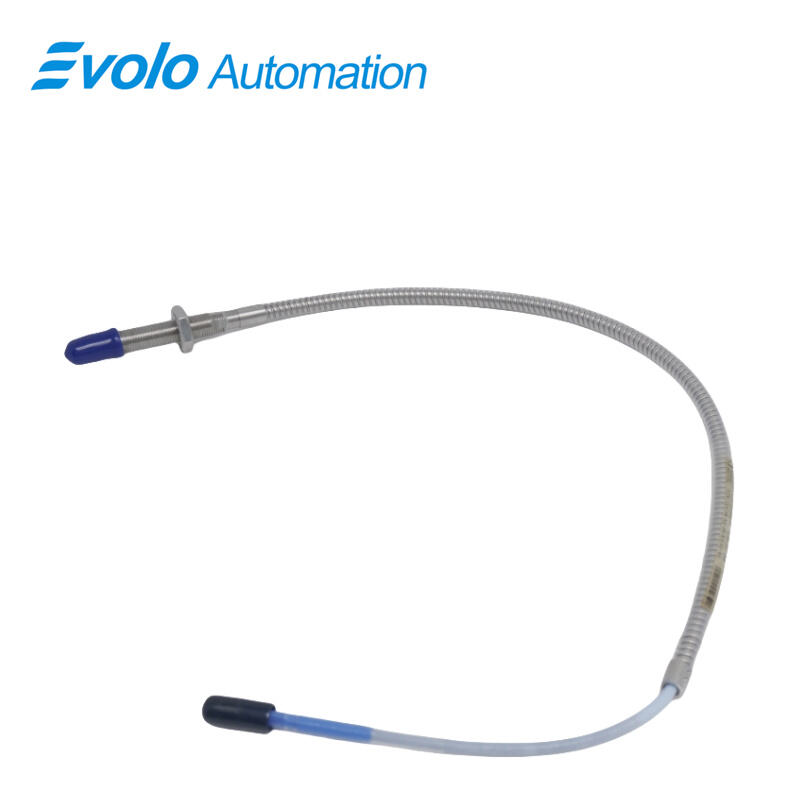

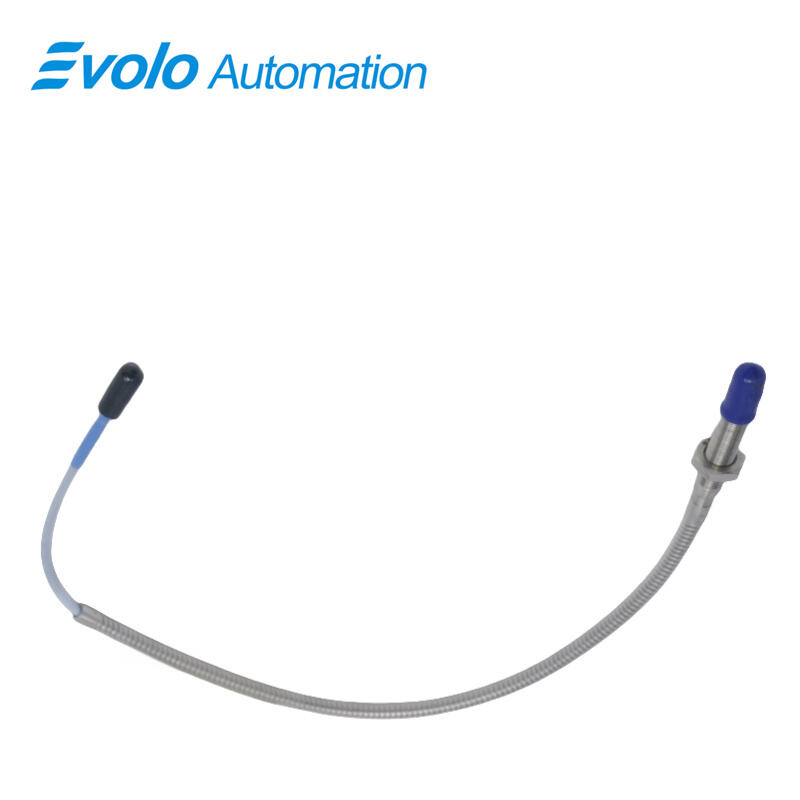

The 330104-00-05-05-02-00 3300 XL 8 mm Proximity Probe measures shaft position and vibration in automated machinery. With a 0.5 meter total length, 50 mm overall case, and M10x1 thread, the 330104-00-05-05-02-00 fits tight industrial mounting spaces. Its 2 mm linear range and 50 Ω output deliver accurate distance readings between the probe tip and conductive surfaces. Operating from -52°C to +177°C, the 330104-00-05-05-02-00 supports field wiring from 0.2 to 1.5 mm² and connects via a miniature coaxial ClickLoc connector with standard cable. The probe enables real-time monitoring of Keyphasor signals, machine speed, and vibration on fluid-film bearings, integrating directly into automation control systems for industrial process monitoring.
Applications
Application Measure Shaft Position in Motors and Turbines
The 330104-00-05-05-02-00 probe detects shaft displacement in motors and turbines. Its 2 mm linear range and 50 Ω output provide precise measurement of distance between the probe tip and conductive surfaces. The M10x1 thread and 50 mm case allow secure mounting in industrial automation systems.
Application Monitor Vibration in Pumps and Compressors
Operating from -52°C to +177°C, the 330104-00-05-05-02-00 captures dynamic vibration signals in pumps and compressors. The 0.5 meter total cable with 69.9 pF/m capacitance and miniature coaxial ClickLoc connector delivers reliable signals to automation controllers.
Application Capture Keyphasor and Speed Signals
The 330104-00-05-05-02-00 probe records Keyphasor signals and machine speed. Field wiring supports 0.2–1.5 mm² conductors, enabling integration with industrial control systems for real-time monitoring of rotating equipment.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive Advantage Wide Operating Temperature
The 330104-00-05-05-02-00 operates from -52°C to +177°C, allowing installation on high-temperature turbines or cold outdoor equipment.
Competitive Advantage Quick Mounting and Connection
The M10x1 thread, 50 mm case, and ClickLoc connector of the 330104-00-05-05-02-00 allow fast probe installation and secure attachment to automation control systems.
Competitive Advantage Accurate Signal Measurement
With a 2 mm linear range, 50 Ω output, and 69.9 pF/m cable capacitance, the 330104-00-05-05-02-00 delivers precise distance and vibration readings for automated machinery monitoring.
