Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-04-50-11-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
40 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
33x33x3cm |
|
Weight: |
0.58kg |
Description

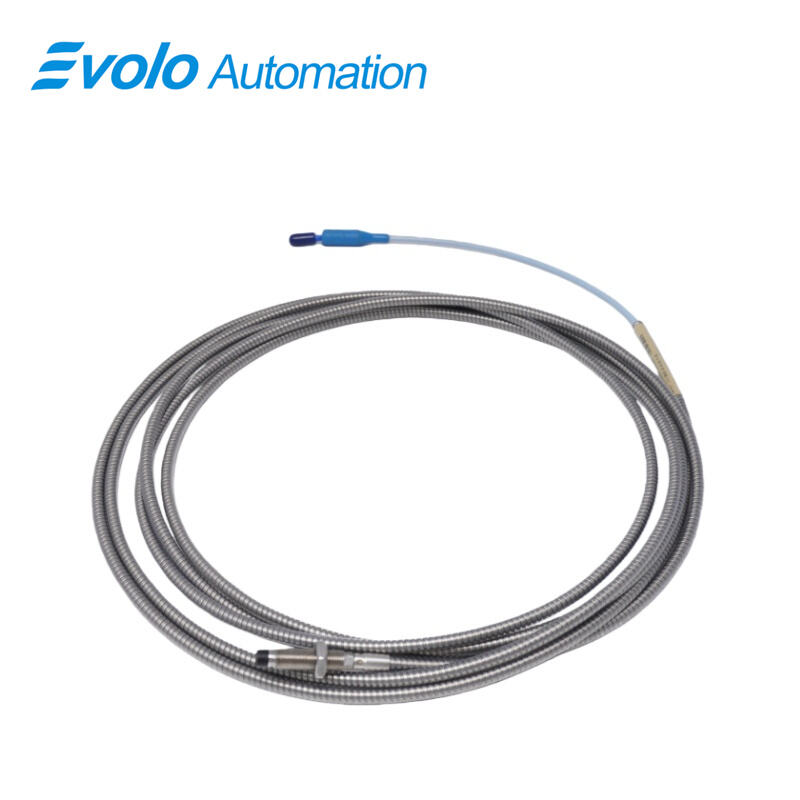

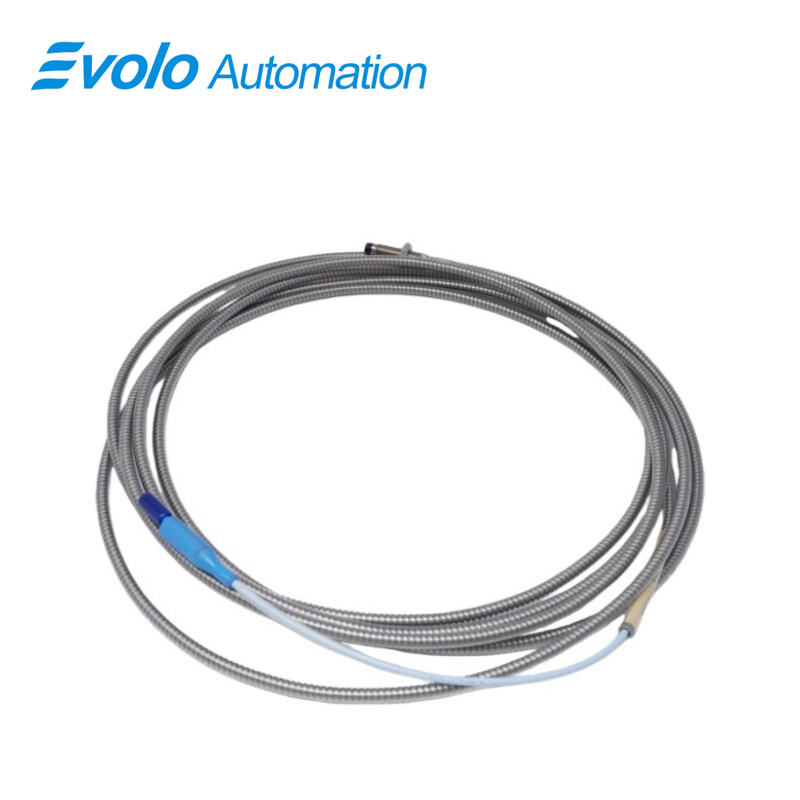

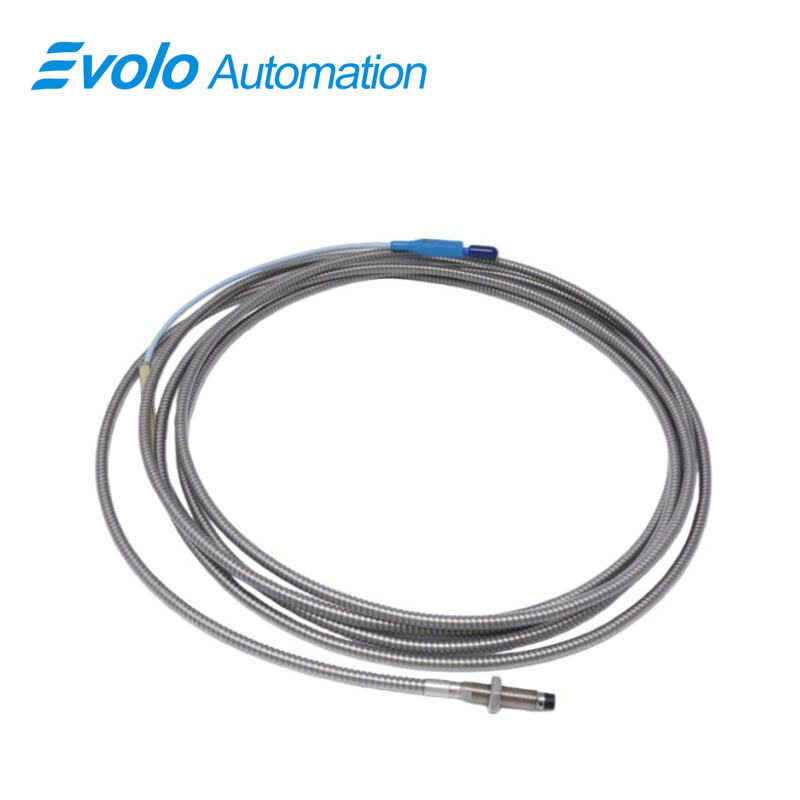

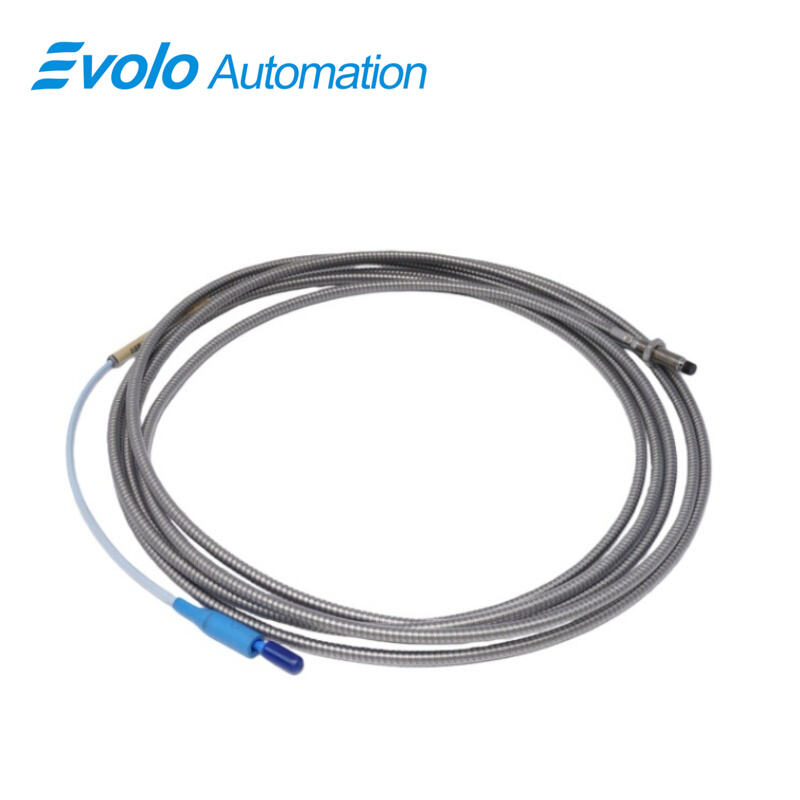

The 330104-00-04-50-11-00 3300 XL 8 mm Proximity Probe provides accurate position and vibration measurement in automated machinery. With a 5.0 meter total length, 40 mm overall case, and M10x1 thread, the 330104-00-04-50-11-00 fits industrial mounting for fluid-film bearing machines and rotating equipment. Its 2 mm linear range and 50 Ω output enable precise detection of shaft displacement and Keyphasor signals. Operating from -52°C to +177°C, the 330104-00-04-50-11-00 supports long extension with 69.9 pF/m cable capacitance and field wiring of 0.2–1.5 mm². The miniature coaxial ClickLoc connector with FluidLoc cable enhances automated system integration, ensuring secure probe connection and reliable vibration or speed measurements.
Applications
Application Measure Shaft Position in Turbines and Motors
The 330104-00-04-50-11-00 probe captures shaft displacement in turbines and motors. Its 2 mm linear range and 50 Ω output allow precise signal measurement, while the M10x1 thread and 40 mm overall case length provide secure mounting in industrial automation setups.
Application Monitor Vibration in Pumps and Compressors
Operating from -52°C to +177°C, the 330104-00-04-50-11-00 records dynamic vibration signals in pumps and compressors. The 5.0 meter total cable length with 69.9 pF/m capacitance and miniature coaxial ClickLoc connector ensures accurate signal delivery to automation controllers.
Application Capture Keyphasor and Speed Signals
The 330104-00-04-50-11-00 3300 XL probe detects Keyphasor signals and machine speed. Field wiring supports 0.2–1.5 mm² conductors, enabling integration with industrial automation systems for real-time monitoring and control.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive Advantage Wide Temperature Range Installation
The 330104-00-04-50-11-00 functions from -52°C to +177°C, allowing installation on high-temperature turbines or cold outdoor equipment without performance loss.
Competitive Advantage Long Extension Capability
With a 5.0 meter cable and FluidLoc design, the 330104-00-04-50-11-00 allows remote probe placement while preventing oil or liquid leakage through the cable interior.
Competitive Advantage Quick and Secure Mounting
The M10x1 thread, maximum 15 mm engagement, and 40 mm case of the 330104-00-04-50-11-00 provide fast installation. The ClickLoc connector ensures secure attachment to automation control systems.
