Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-04-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
40 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
113x1.8x1.5cm |
|
Weight: |
0.12kg |
Description

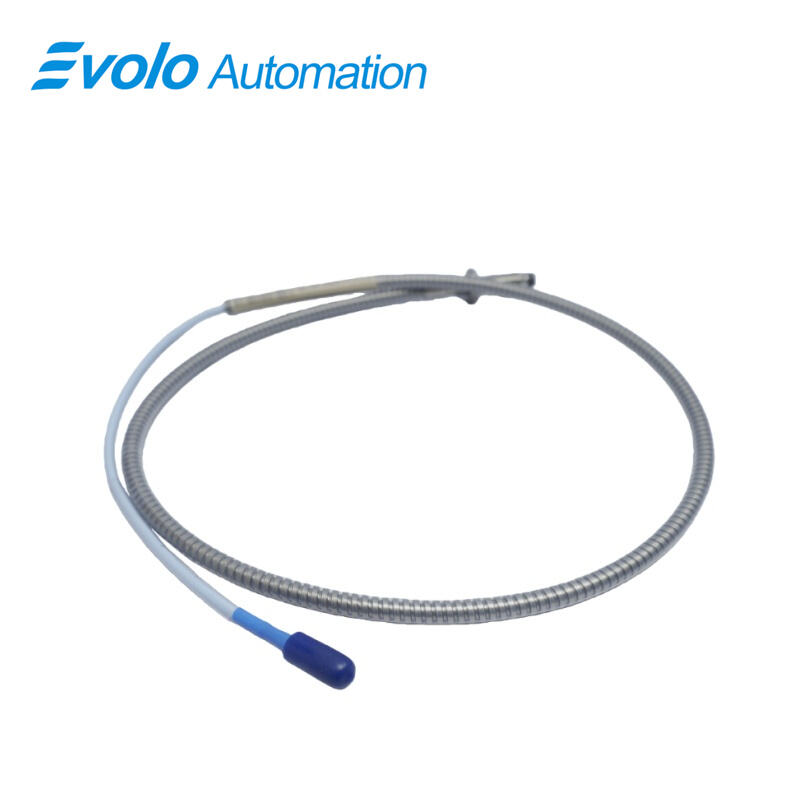

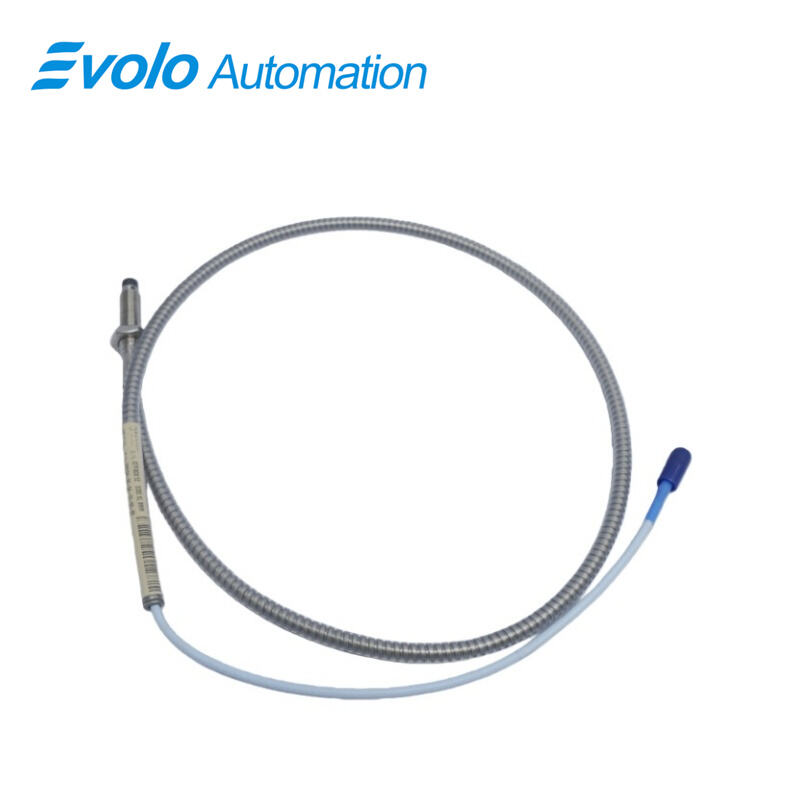

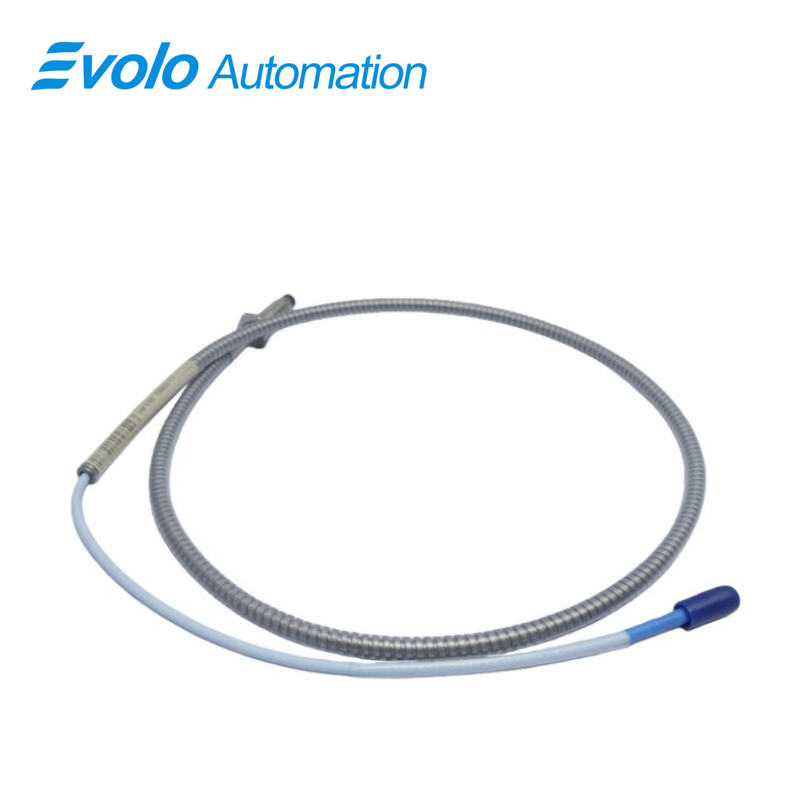

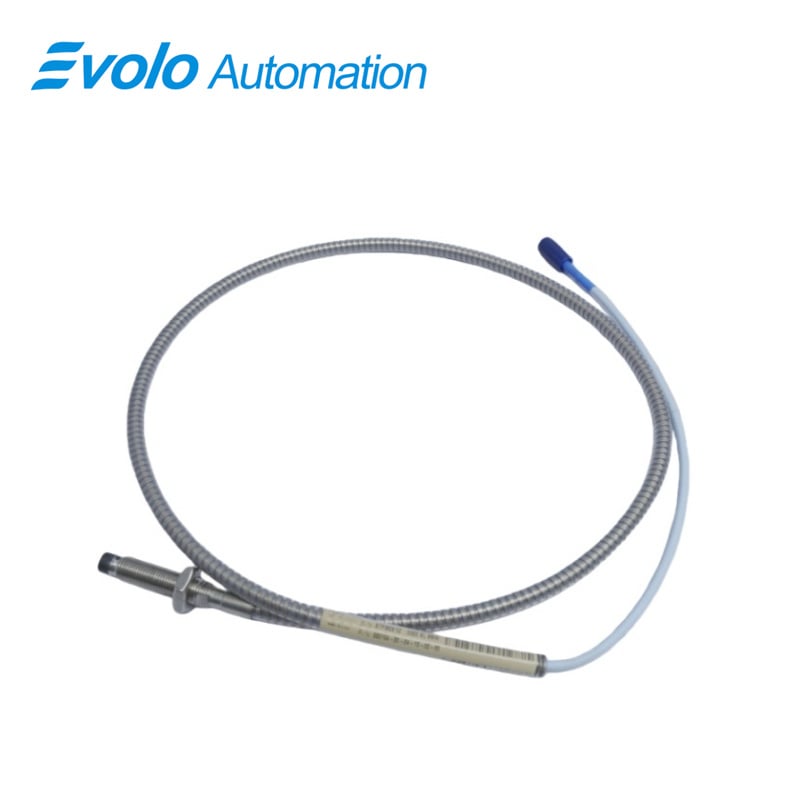

The 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe delivers output voltage proportional to the distance between the probe tip and conductive surfaces, measuring both static positions and dynamic vibrations. With a linear range of 2 mm and output resistance of 50 Ω, the 330104-00-04-10-02-00 3300 XL 8 mm probe supports automated monitoring of fluid-film bearing machines and rotor shafts. The 1.0-meter total length and miniature coaxial ClickLoc connector enable seamless integration into industrial automation systems, while field wiring support from 0.2–1.5 mm² ensures flexible installation. Operating temperatures from -52°C to +177°C allow the 330104-00-04-10-02-00 3300 XL 8 mm probe to perform reliably in harsh environments. Its M10x1 probe thread and maximum engagement of 15 mm facilitate secure mounting, while extension cable capacitance of 69.9 pF/m ensures accurate signal transmission over long runs. Optional FluidLoc cable prevents fluid ingress, enhancing automation reliability. The 330104-00-04-10-02-00 3300 XL 8 mm system supports automated vibration, position, and Keyphasor speed measurements in industrial machinery, enabling precise, real-time control and monitoring without manual intervention.
Applications
Monitor Rotor Shaft Vibration with 330104-00-04-10-02-00
The 330104-00-04-10-02-00 probes measure vibration on fluid-film bearing shafts. With a linear range of 2 mm and output resistance of 50 Ω, they provide precise input for automated monitoring systems.
Track Bearing Position in Real Time
Using the 330104-00-04-10-02-00, automated systems can detect deviations in bearing positions. Its extension cable capacitance of 69.9 pF/m ensures accurate signals over 1.0-meter cable runs.
Generate Keyphasor Speed Signals
The 330104-00-04-10-02-00 provides Keyphasor reference output for rotational speed measurement. The M10x1 probe thread with 15 mm engagement secures the probe in automated machines.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Reliable Integration in Automation Systems
The 330104-00-04-10-02-00 comes with a Miniature coaxial ClickLoc connector and standard field wiring (0.2–1.5 mm²), enabling quick setup in automated monitoring networks.
Long-Distance Signal Accuracy
With output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m, the 330104-00-04-10-02-00 ensures stable readings across longer cable runs in industrial automation environments.
Fluid Protection for Harsh Conditions
Optional FluidLoc cable prevents oil and liquid intrusion, allowing the 330104-00-04-10-02-00 to maintain accurate measurements in liquid-exposed automated equipment.
Secure Mounting and Low Maintenance
The M10x1 probe thread with maximum engagement of 15 mm guarantees the 330104-00-04-10-02-00 stays firmly installed, reducing intervention frequency in automated systems.
