Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-10-14-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
100 mm |
|
Overall Case Length Option(Minimum case length): |
140 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20.4x22.2x3.7cm |
|
Weight: |
0.15 kg |
Description

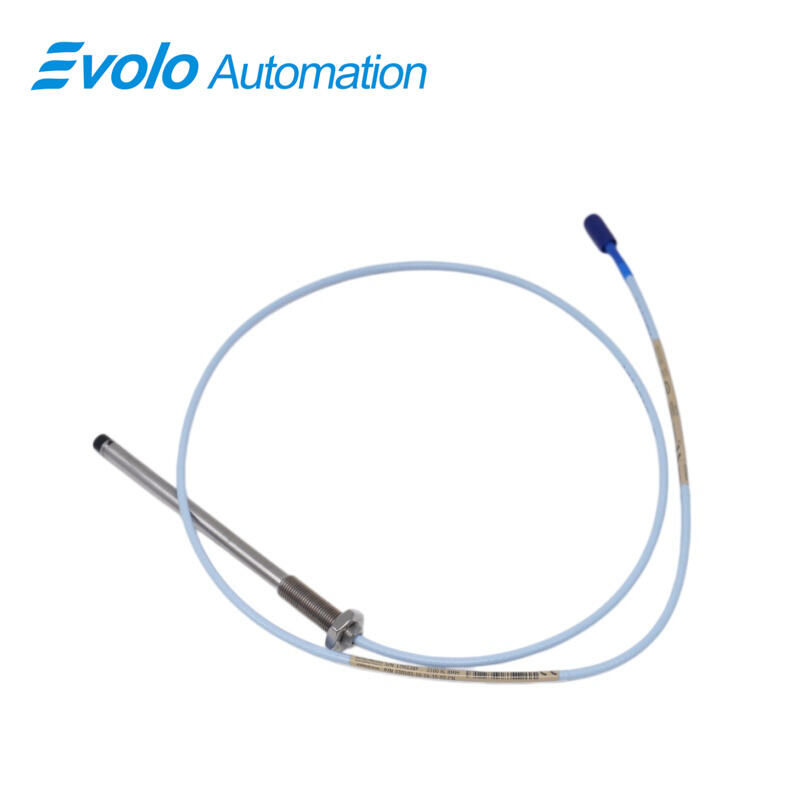

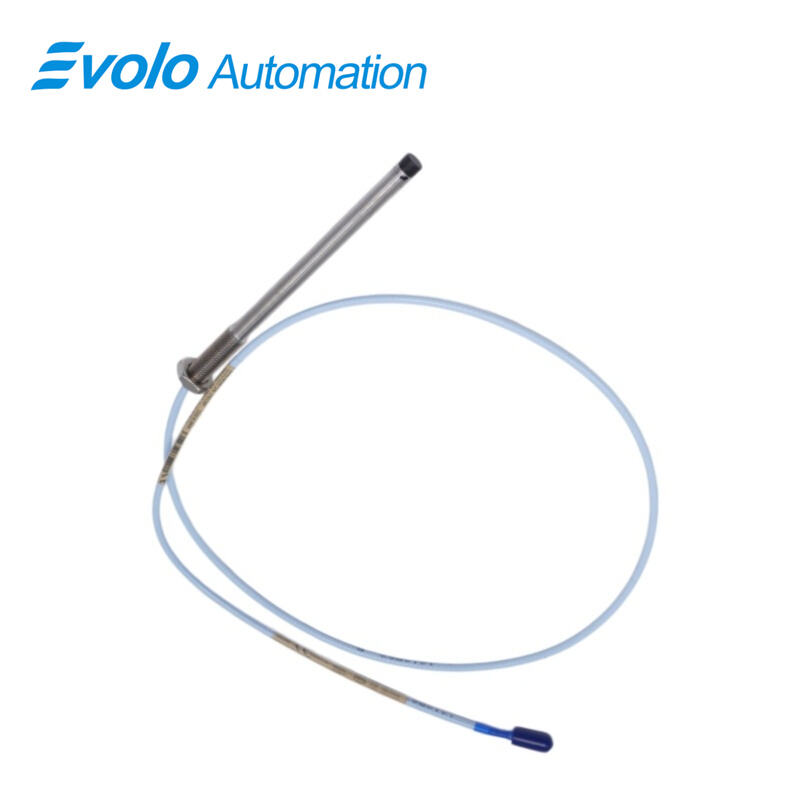

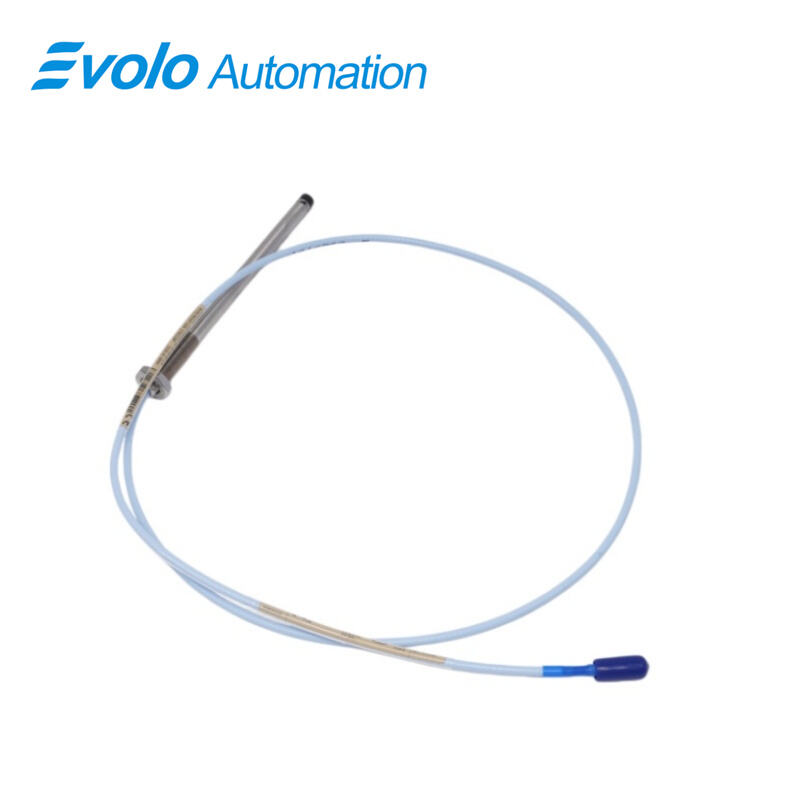

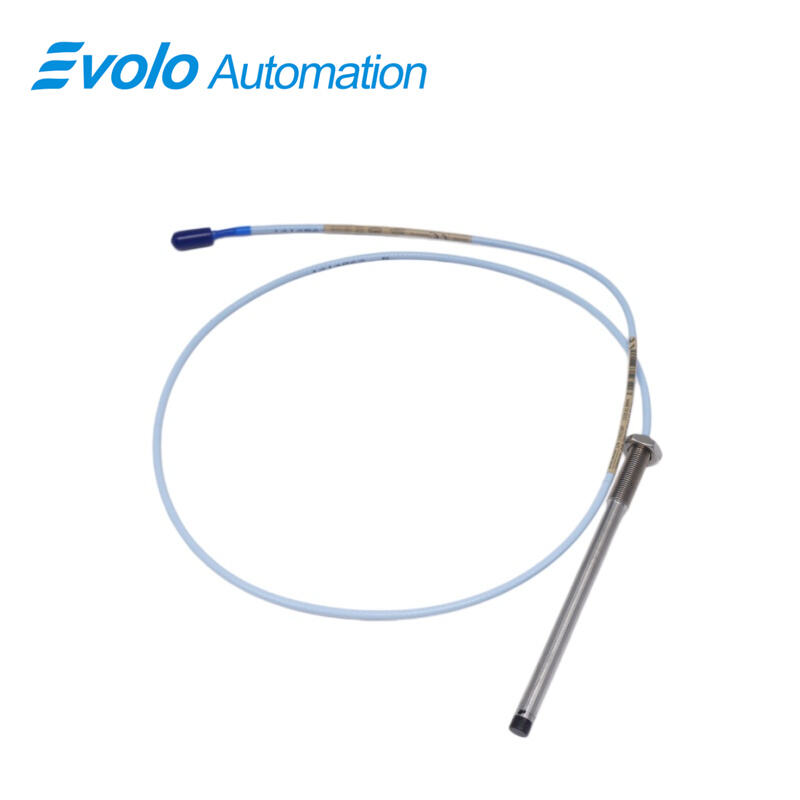

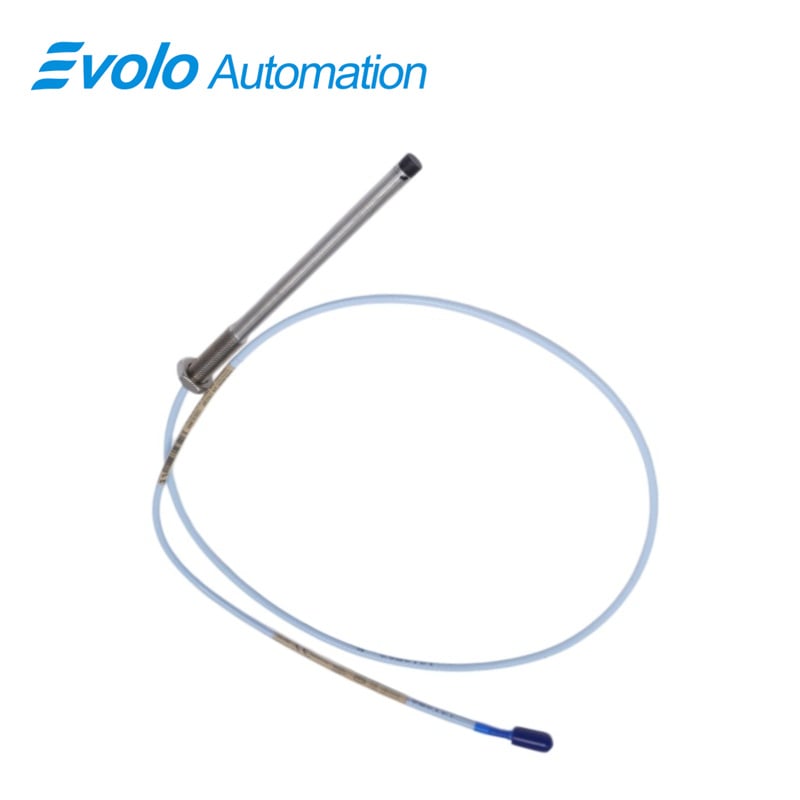

The 330103-10-14-10-02-05 3300 XL 8 mm Proximity Probe delivers precise position and vibration measurement for industrial automation. With a total length of 1.0 meter, unthreaded length of 100 mm, and M10x1 case thread, the 330103-10-14-10-02-05 probe fits standard industrial mounting. Operating from -52°C to +177°C, the 330103-10-14-10-02-05 provides a 2 mm linear range and 50 Ω output resistance for accurate signal capture. Its miniature coaxial ClickLoc connector and 69.9 pF/m cable capacitance allow integration with automation systems, while field wiring supports 0.2–1.5 mm² conductors. Certified with CSA, ATEX, and IECEx, the 330103-10-14-10-02-05 3300 XL probe meets industrial automation requirements in process control, speed measurement, and machinery monitoring.
Applications
Application: Monitor Rotating Machinery Position
The 330103-10-14-10-02-05 probe measures shaft position in turbines and motors. Its 2 mm linear range and 50 Ω output allow precise detection of shaft displacement, while the M10x1 thread and 1.0 meter total length enable secure mounting in tight industrial spaces.
Application: Detect Vibration in Pumps and Compressors
With operating temperatures from -52°C to +177°C, the 330103-10-14-10-02-05 captures dynamic vibration signals in pumps and compressors. The miniature coaxial ClickLoc connector and 69.9 pF/m cable capacitance maintain signal clarity for automated monitoring systems.
Application: Measure Speed in Rotating Equipment
The 330103-10-14-10-02-05 is ideal for keyphasor and speed measurement applications. Its supply sensitivity of less than 2 mV per volt change and 0.2–1.5 mm² field wiring allow integration into industrial automation controllers for real-time speed analysis.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive Advantage: Wide Temperature Operation
The 330103-10-14-10-02-05 functions from -52°C to +177°C, enabling installation in extreme environments, including hot turbines and cold outdoor machinery.
Competitive Advantage: Accurate Linear Output
With a 2 mm linear range and 50 Ω output, the 330103-10-14-10-02-05 delivers precise measurement signals, reducing errors in automated monitoring and control.
Competitive Advantage: Quick Industrial Installation
The M10x1 thread and maximum 15 mm engagement of the 330103-10-14-10-02-05 allow fast probe mounting. Its 1.0 meter cable with ClickLoc connector simplifies connection to automation systems.
