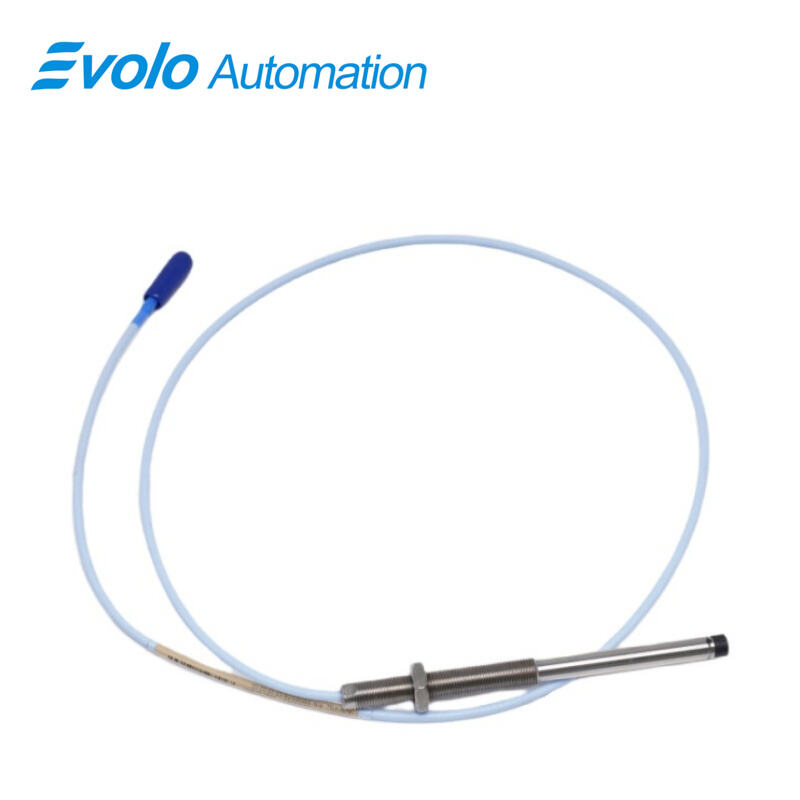

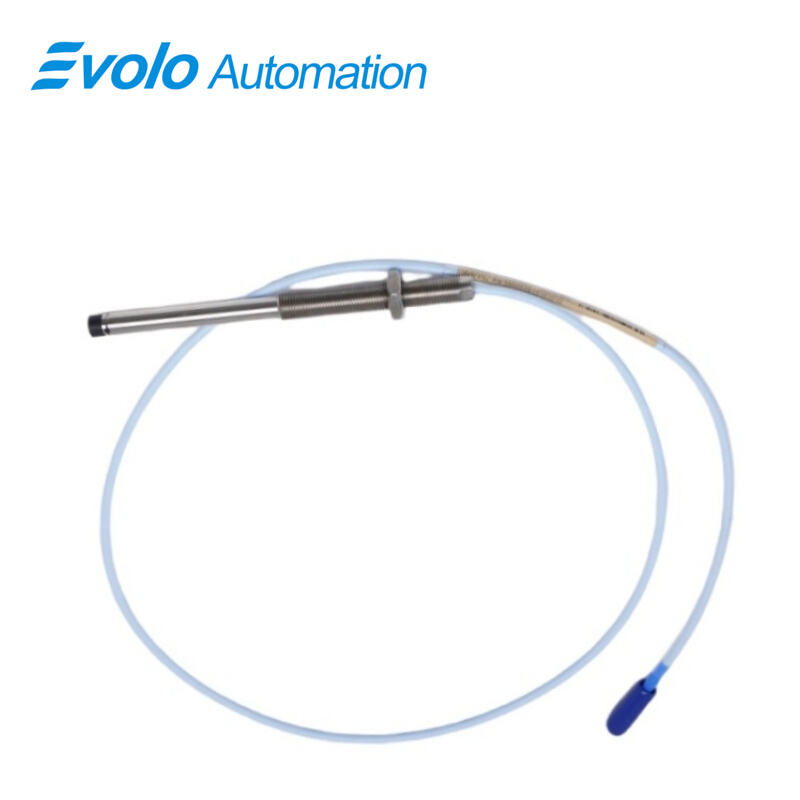

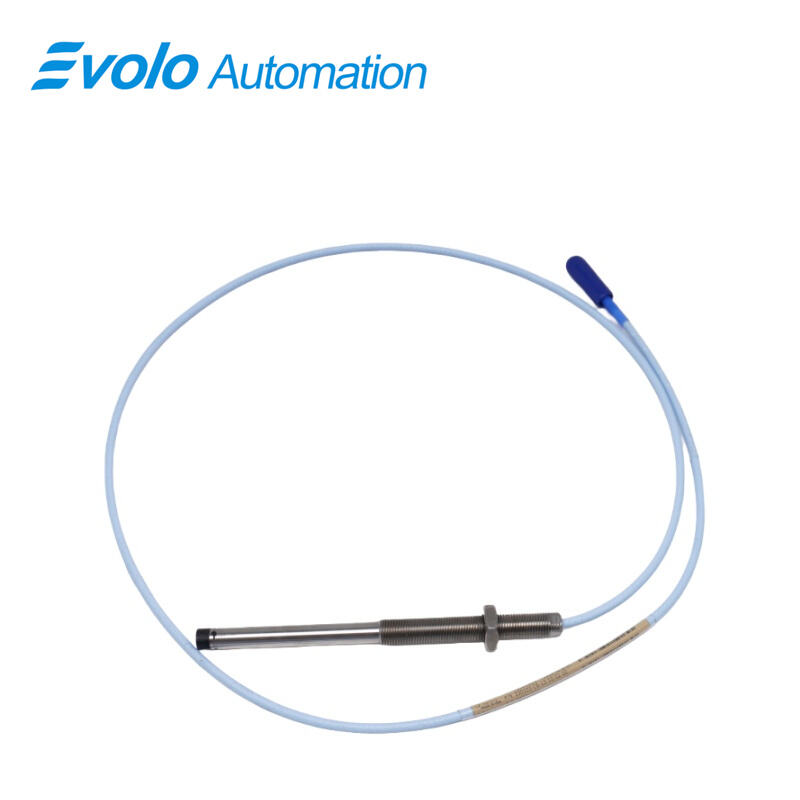

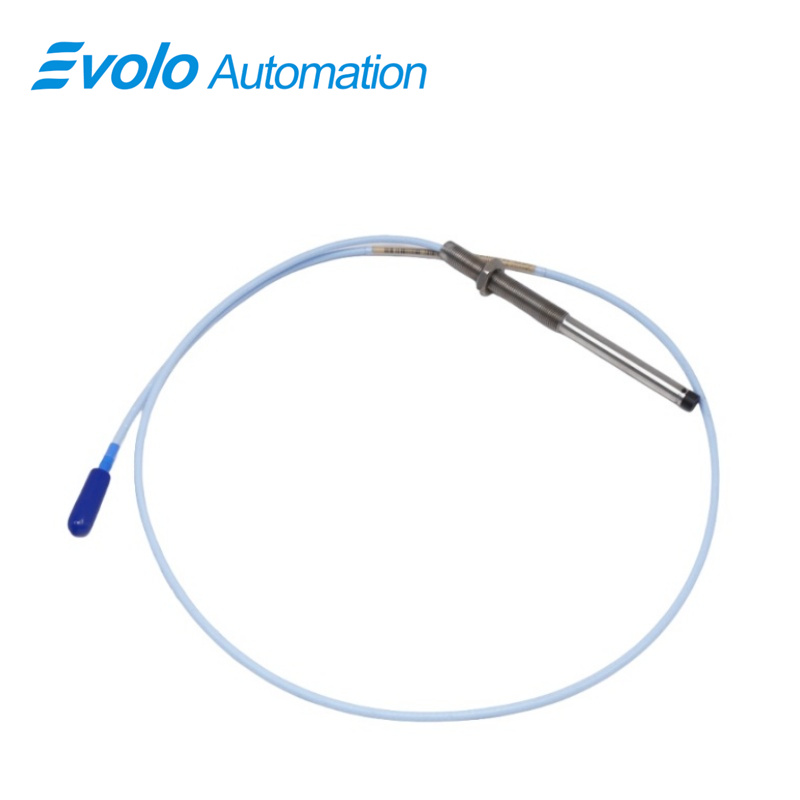

330103-06-13-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-06-13-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-06-13-10-02-00 is a 3300 XL 8 mm Proximity Probe designed for automation shaft vibration and position measurement. 330103-06-13-10-02-00 features M10x1 thread with 60 mm minimum unthreaded length and 130 mm case length, allowing deep installation in turbine and compressor bearing housings. Maximum thread engagement is 15 mm.

330103-06-13-10-02-00 uses a 1.0 meter miniature coaxial ClickLoc cable for direct connection to monitoring modules. Output resistance is 50 Ω and cable capacitance is 69.9 pF/m, providing defined electrical transmission. Linear measurement range is 2 mm (80 mils), converting shaft gap change into proportional voltage output. Supply sensitivity remains below 2 mV per volt change.

Operating temperature spans from −52°C to +177°C, enabling 330103-06-13-10-02-00 to function in high temperature turbine casings and outdoor compressor stations. 330103-06-13-10-02-00 supports radial vibration monitoring, axial displacement tracking, Keyphasor reference, and rotational speed measurement within industrial automation systems.

Applications

Position Probe at 60 mm Depth to Capture Radial Shaft Motion

330103-06-13-10-02-00 uses a 60 mm unthreaded section and 130 mm case length to reach rotating shafts inside thick bearing brackets. With M10x1 thread and maximum 15 mm engagement, 330103-06-13-10-02-00 can be fixed at a defined depth. Inside the 2 mm linear range, 330103-06-13-10-02-00 converts radial shaft displacement into proportional voltage for automation monitoring racks.

Route 1.0 Meter ClickLoc Cable to Monitoring Module

The 1.0 meter miniature coaxial cable of 330103-06-13-10-02-00 allows direct routing from machine housing to control cabinet. With 69.9 pF/m capacitance, total cable capacitance remains predictable over the full length. The 50 Ω output resistance of 330103-06-13-10-02-00 matches standard proximity inputs using 0.2–1.5 mm² wiring.

Track Axial Thrust Movement Within 2 mm Span

330103-06-13-10-02-00 measures axial displacement in turbines and compressors. When shaft movement approaches the 2 mm (80 mils) limit, 330103-06-13-10-02-00 produces measurable voltage variation, allowing control systems to trigger alarm or shutdown logic.

Operate in −52°C to +177°C Equipment Zones

With a temperature range covering 229°C span, 330103-06-13-10-02-00 functions in outdoor pump stations at −52°C and steam turbine casings at +177°C. This range allows 330103-06-13-10-02-00 to serve multiple installation areas without additional cooling or heating devices.

Specifications

Competitive Advantage

Limit Output Change to Less Than 2 mV per Volt Supply Shift

If supply voltage changes by 1 V, 330103-06-13-10-02-00 output changes less than 2 mV. This quantified electrical response helps maintain calculated displacement values within defined tolerance during power fluctuation.

Provide Defined Electrical Interface with 50 Ω Output

The fixed 50 Ω impedance of 330103-06-13-10-02-00 reduces signal reflection along the 1.0 meter cable. Combined with 69.9 pF/m capacitance, 330103-06-13-10-02-00 maintains measurable and repeatable signal transmission to automation racks.

Enable Deep Mechanical Installation with 130 mm Case Body

The extended 130 mm case and 60 mm smooth section allow 330103-06-13-10-02-00 to reach shaft surfaces inside heavy industrial equipment where shorter probes cannot be positioned correctly.
