Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-02-10-05-01-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
20 mm |
|
Overall Case Length Option(Minimum case length): |
100 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
68x1.8x1.5cm |
|
Weight: |
0.08kg |
Description

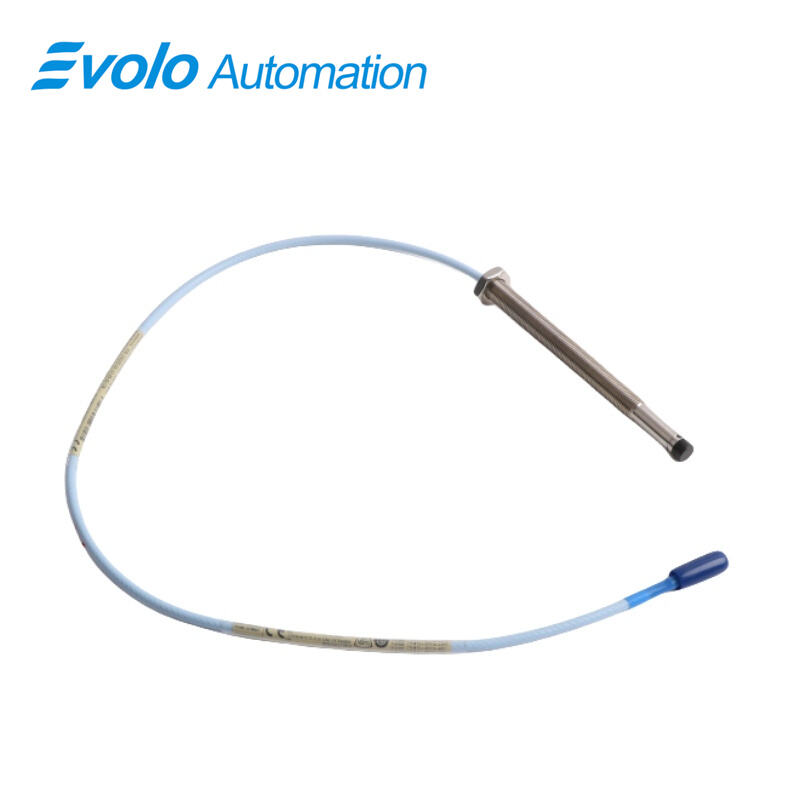

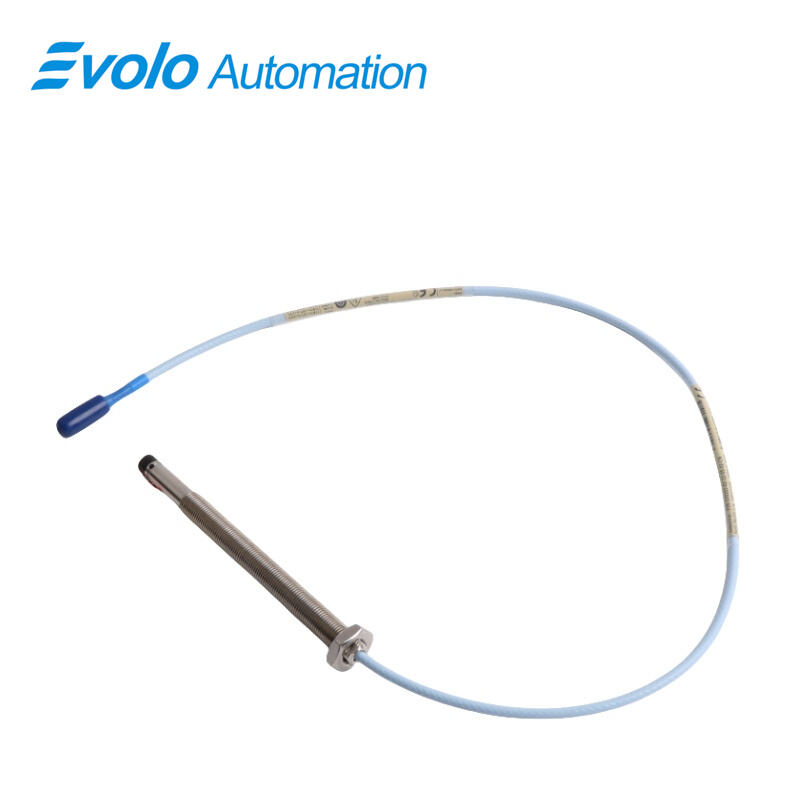

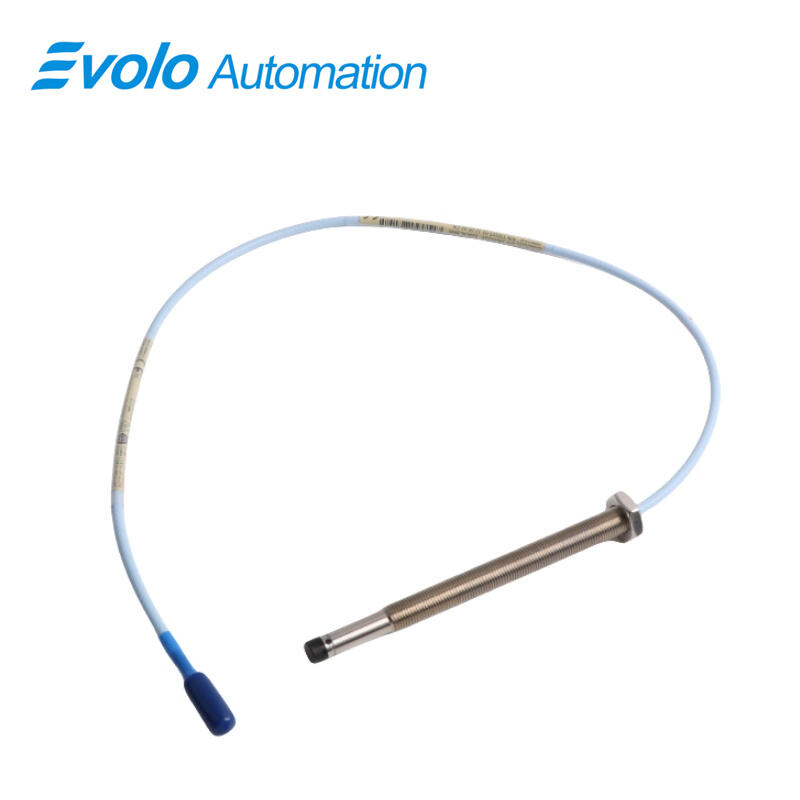

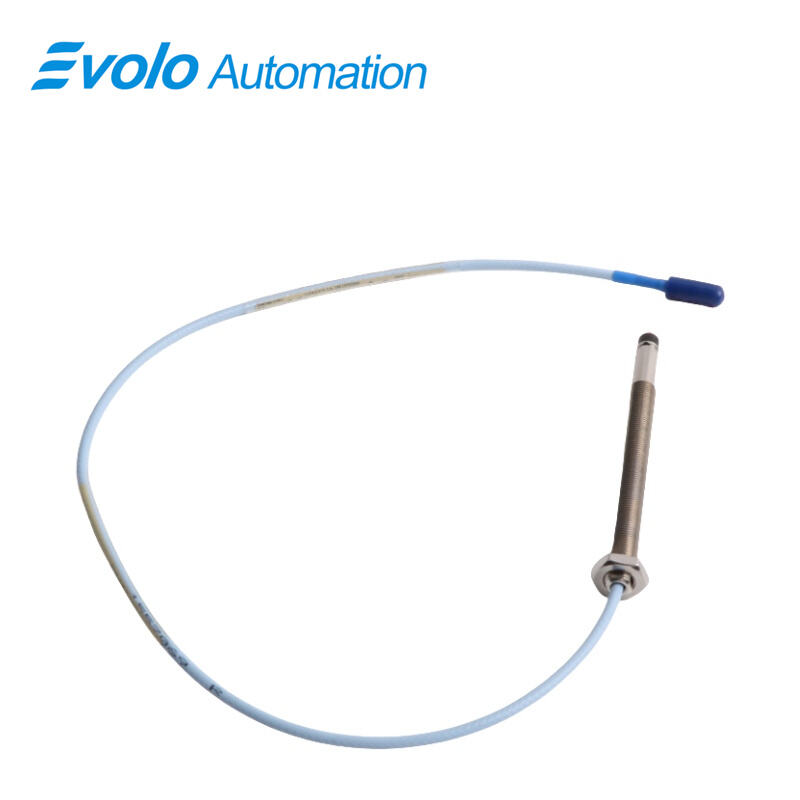

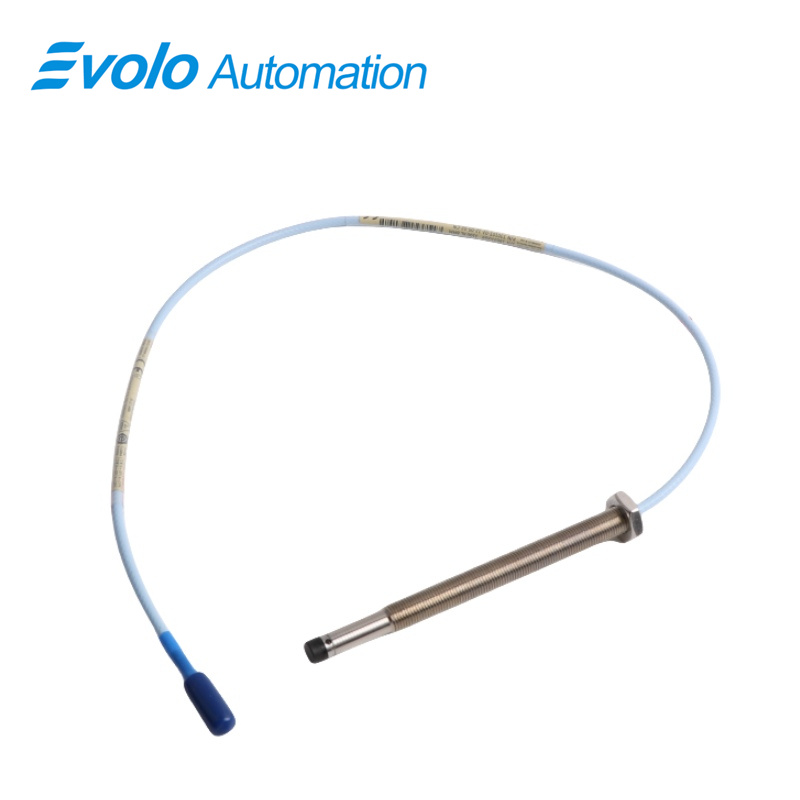

The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe delivers precise measurements of radial and axial vibration as well as static position on fluid-film bearing machinery. The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe features an M10x1 threaded stainless steel case, 20 mm unthreaded length, 100 mm overall case length, and 5-meter miniature coaxial ClickLoc cable with connector protector. Its 2 mm linear range and 50 Ω output resistance provide reliable automated feedback, while supply sensitivity is under 2 mV per volt. Operating and storage temperatures span -52°C to +177°C, and field wiring supports 0.2–1.5 mm². The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe uses patented TipLoc and CableLoc designs for secure tip attachment and 330 N pull strength. Optional FluidLoc cables prevent fluid leakage, ensuring precise signal transmission. Fully compatible with previous 5 mm and 8 mm 3300 series probes, the 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe simplifies automated monitoring, speed measurement, and Keyphasor signal generation in industrial machinery.
Applications
Radial Vibration Measurement
The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe measures radial vibration on shafts in turbines and compressors, using its 2 mm linear range for precise automated feedback.
Axial Position Monitoring
The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe detects axial displacement on flat targets, leveraging its 20 mm unthreaded tip and 100 mm case length for small installation spaces.
Tachometer Signal Output
The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe provides 50 Ω signals for automated speed measurement and zero-speed detection in industrial systems.
Keyphasor Signal Generation
The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe produces Keyphasor reference signals for rotor phase tracking and synchronization in automated monitoring setups.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Direct Replacement for 3300 Series
The 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe works with existing extension cables and Proximitor sensors, reducing replacement time and simplifying upgrades.
Secure Probe Tip Attachment
Patented TipLoc of the 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe bonds the PPS tip to the stainless steel body, ensuring consistent signal output in automated monitoring.
High Pull Strength
CableLoc design provides 330 N pull strength on the 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe, securing the cable and preventing signal loss.
Fluid Containment
Optional FluidLoc cables for the 330103-02-10-05-01-05 3300 XL 8 mm Proximity Probe prevent oil or coolant leakage through the cable, maintaining accurate signal transmission.
