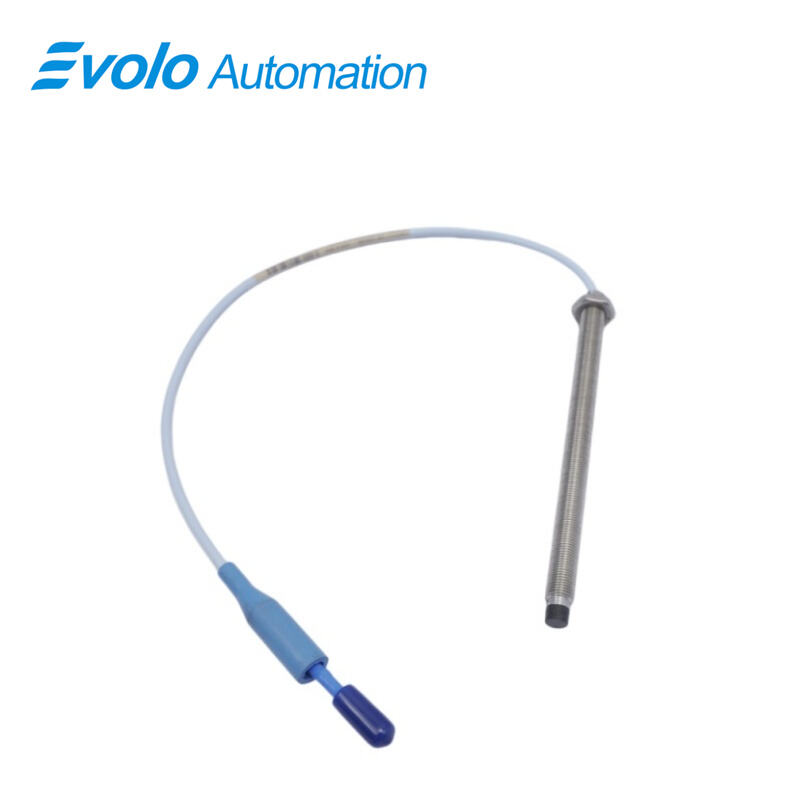

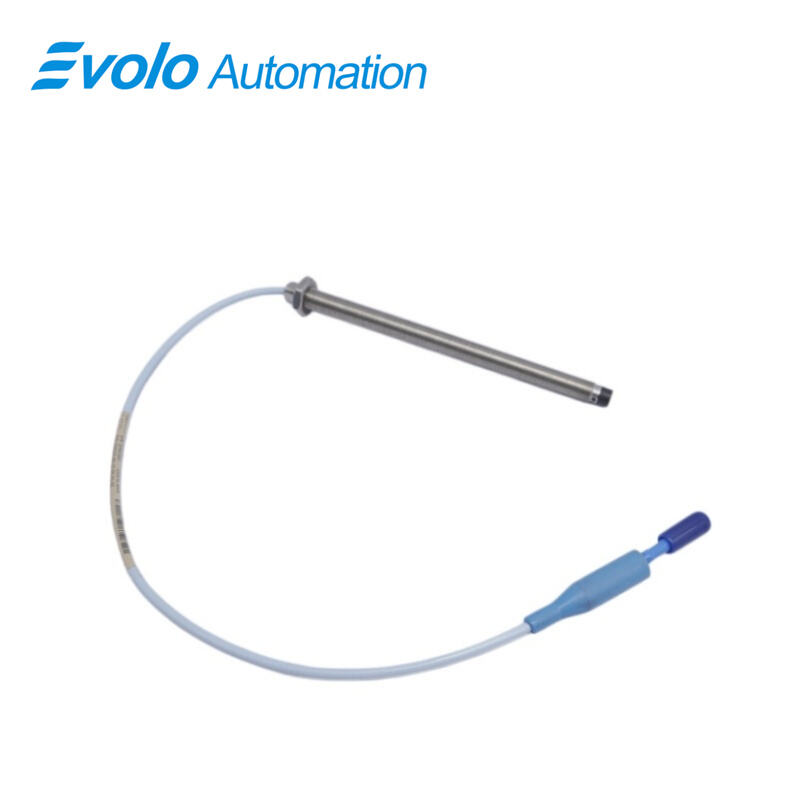

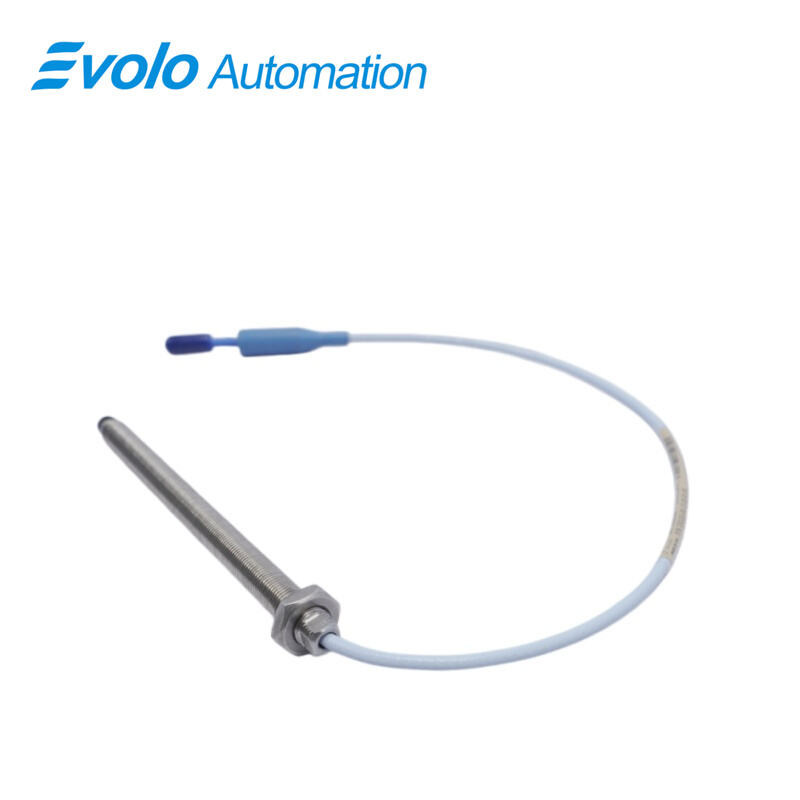

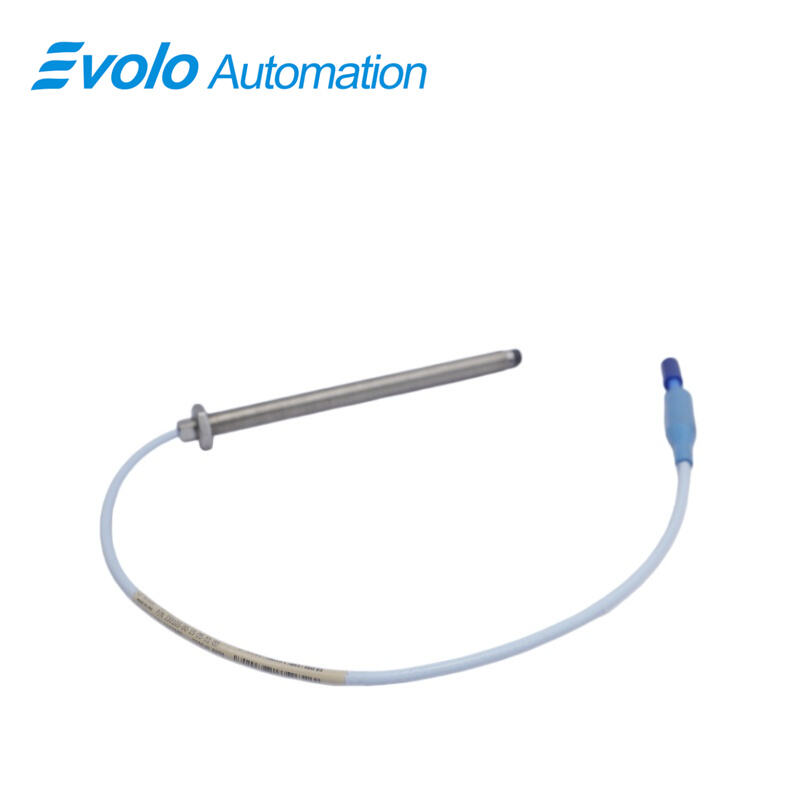

330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-15-05-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes deliver voltage output directly proportional to the distance between the probe tip and conductive surfaces, enabling precise position and vibration measurements in automated machinery. The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes feature a 150 mm overall case length, M10x1 thread with 15 mm maximum engagement, and 0.5 m total cable with Miniature Coaxial ClickLoc connector and protector. Operating from -52°C to +177°C, the 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes maintain less than 2 mV change per volt input variation. Output resistance is 50 Ω, extension cable capacitance 69.9 pF/m, and field wiring supports 0.2–1.5 mm² conductors. With a 2 mm linear range, the 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes capture Keyphasor signals, shaft speed, and bearing clearance in turbines, pumps, and fluid-film bearings. Patented TipLoc and CableLoc designs provide 330 N pull strength, and optional FluidLoc cables prevent oil or liquid leakage, ensuring secure integration into industrial automation systems.

Applications

Measure Shaft Position in Turbines
The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes output voltage proportional to the distance from the rotor surface. With a 2 mm linear range and 50 Ω output resistance, the 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes provide precise shaft position monitoring for automated turbine systems.

Capture Vibration in Pumps and Compressors
Equipped with a 0.5 m (1.6 ft) total cable and Miniature Coaxial ClickLoc connector with protector, the 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes record dynamic vibration signals to support real-time monitoring of automated pumps and compressors.

Generate Keyphasor Reference and Speed Signals
The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes detect shaft rotations and produce Keyphasor pulses. Extension cable capacitance of 69.9 pF/m ensures accurate signal capture over long distances in industrial automation systems.

Monitor Bearing Clearance in Fluid-Film Bearings
The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes, with M10x1 thread and 15 mm maximum engagement, measure bearing clearance directly, supporting automated control and preventive maintenance.

Specifications

Competitive Advantage

Secure Probe Tip and Cable Connection
Patented TipLoc and CableLoc designs provide 330 N pull strength. The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes maintain secure probe tip and cable connections in high-vibration automated systems.

Operate Across Extreme Temperatures
Operating from -52°C to +177°C (-62°F to +350°F), the 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes maintain voltage output variation under 2 mV per 1 V input change, ensuring accurate measurements in both cold and hot environments.

Prevent Oil and Liquid Leakage
Optional FluidLoc cables prevent fluids from entering the probe. The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes maintain clean 50 Ω signal transmission while protecting pumps and bearing housings from contamination.

Interchangeable with 5 mm and 8 mm 3300 Series Probes
The 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes replace standard 5 mm and 8 mm 3300 series components without recalibration. Field wiring from 0.2–1.5 mm² and 0.5 m cable length allow rapid maintenance and reduced downtime.

Deliver Accurate Voltage for Automated Monitoring
With less than 2 mV change per 1 V input variation, the 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes provide reliable distance measurements over the 2 mm linear range, supporting automated diagnostics, Keyphasor generation, and speed control.
