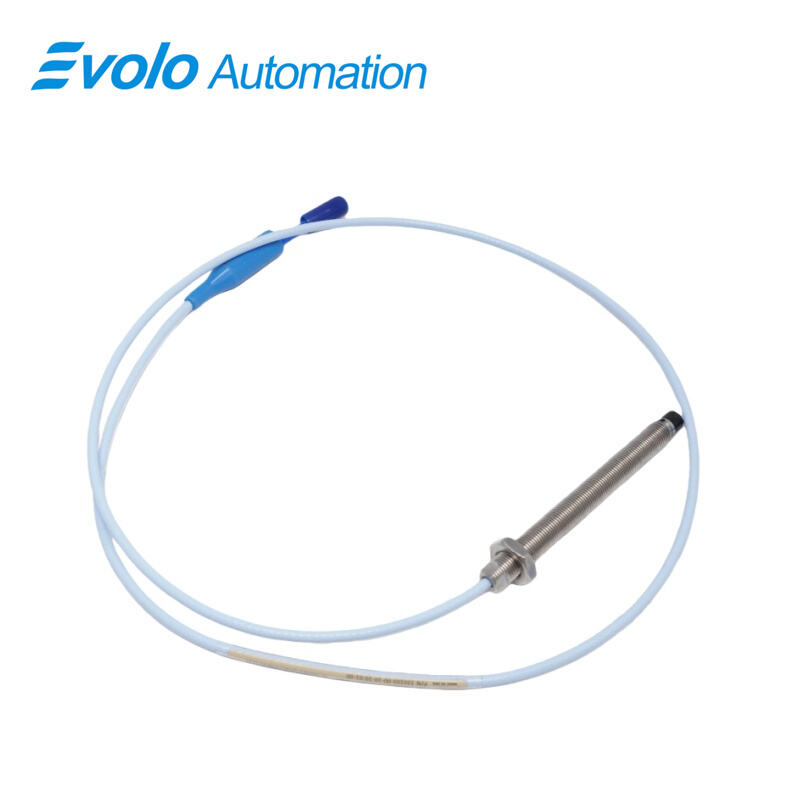

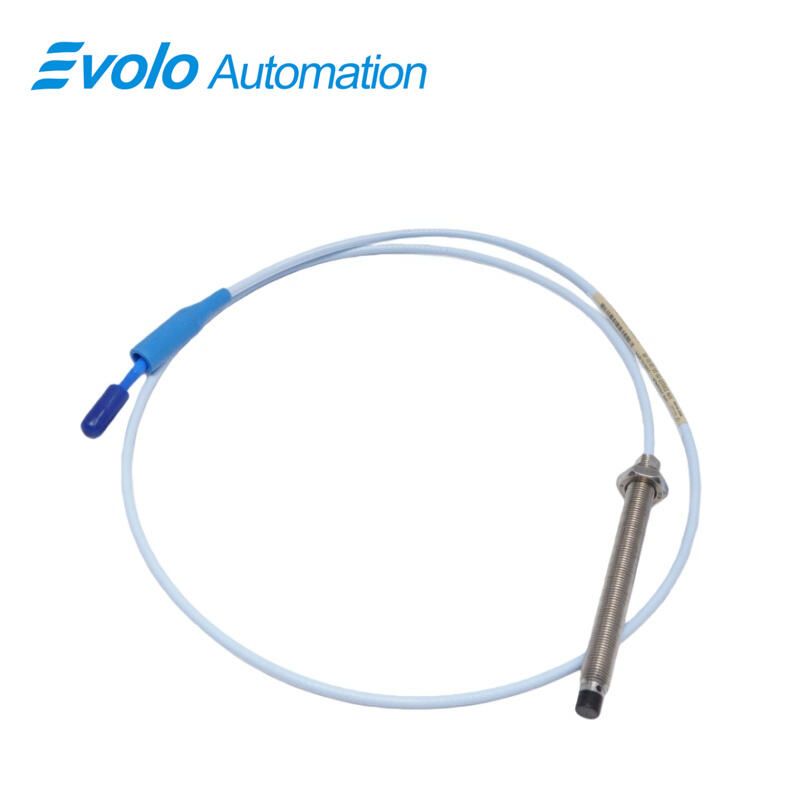

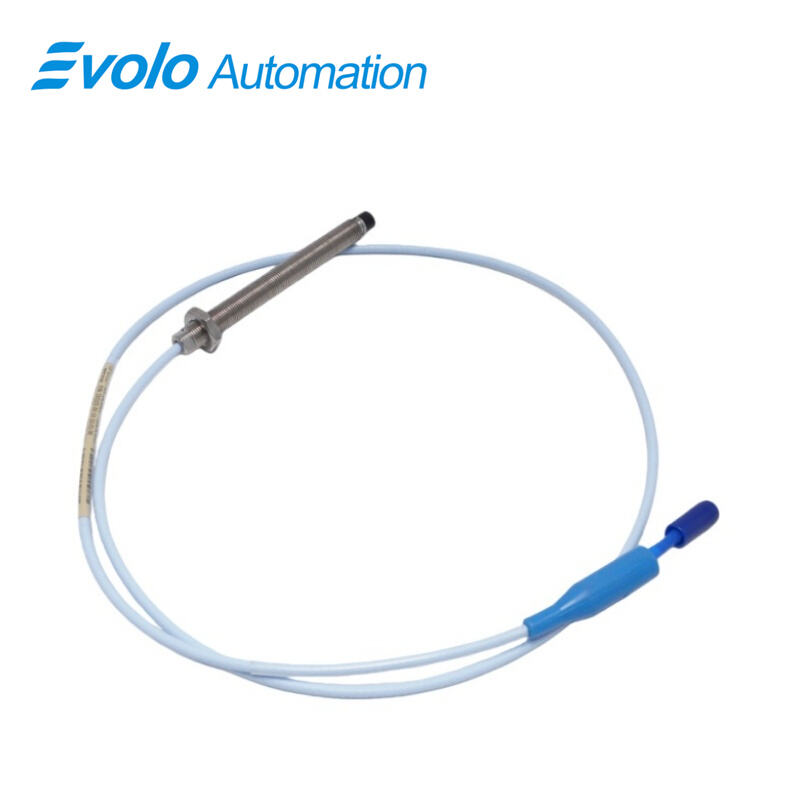

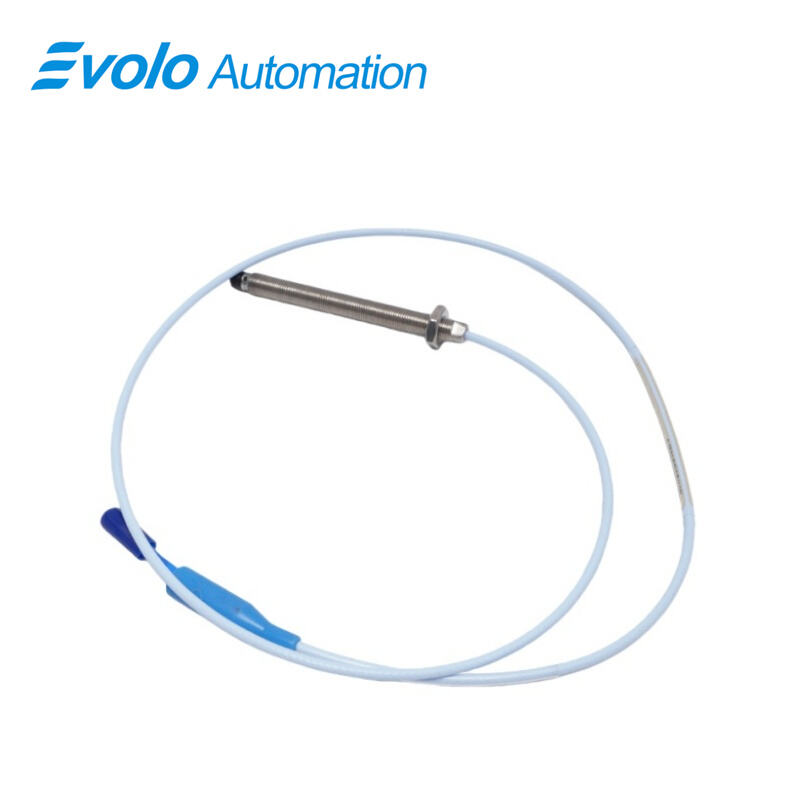

330103-00-10-10-01-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-10-10-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-10-10-01-CN 3300 XL 8 mm Proximity Probe provides precise measurement of both static position and dynamic vibration, with output voltage directly proportional to the distance between the probe tip and the target surface. Featuring a 2 mm linear range, M10x1 probe thread, and 1.0-meter miniature coaxial ClickLoc connector with protector, the 330103-00-10-10-01-CN 3300 XL 8 mm probe integrates seamlessly with automated monitoring systems for fluid-film bearings and rotating machinery. Operating from -52°C to +177°C and with output resistance of 50 Ω, the probe delivers consistent signals to PLC, DCS, and SCADA systems. Extension cable capacitance of 69.9 pF/m allows reliable remote installation. The 330103-00-10-10-01-CN 3300 XL 8 mm probe supports Keyphasor reference and speed measurements, while optional FluidLoc cable prevents leaks in oil-lubricated machines. Patented TipLoc molding enhances the bond between probe tip and body, and CableLoc design provides 330 N pull strength for secure cable attachment. Fully backward compatible with other 3300 series components, the 330103-00-10-10-01-CN 3300 XL 8 mm probe allows automated systems to upgrade without reconfiguring hardware.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330103-00-10-10-01-CN 3300 XL 8 mm probe measures real-time vibration of bearings with a linear range of 2 mm and output resistance of 50 Ω. Using the 330103-00-10-10-01-CN 3300 XL 8 mm, automation systems can detect misalignment, imbalance, or wear in rotating machinery.

Rotor Position Measurement
Deploy the 330103-00-10-10-01-CN 3300 XL 8 mm probe to capture static position data with precise output voltage proportional to shaft displacement. Its M10x1 thread and miniature coaxial ClickLoc connector allow integration with automated turbines and compressors.

Keyphasor Signal Generation
Use the 330103-00-10-10-01-CN 3300 XL 8 mm probe to generate Keyphasor pulses for speed reference in rotating equipment. Extension cables up to 5 meters support remote measurement in automated monitoring setups.

Specifications

Competitive Advantage

High Pull Strength Connection for Automation
The 330103-00-10-10-01-CN 3300 XL 8 mm probe features CableLoc design with 330 N pull strength, ensuring secure connection during automated operations and reducing signal loss.

Robust Probe Tip Bonding
The 330103-00-10-10-01-CN 3300 XL 8 mm probe’s patented TipLoc method provides consistent voltage output under vibration, supporting high-precision automated monitoring.

Backward Compatibility and Interchangeability
The 330103-00-10-10-01-CN 3300 XL 8 mm probe integrates with existing 3300 series probes and extension cables, reducing setup time for automated measurement systems.

Signal Accuracy Under Supply Variations
Less than 2 mV change per volt input and 50 Ω output resistance in the 330103-00-10-10-01-CN 3300 XL 8 mm probe ensures reliable feedback for automation loops, enabling precise control in SCADA and DCS applications.
