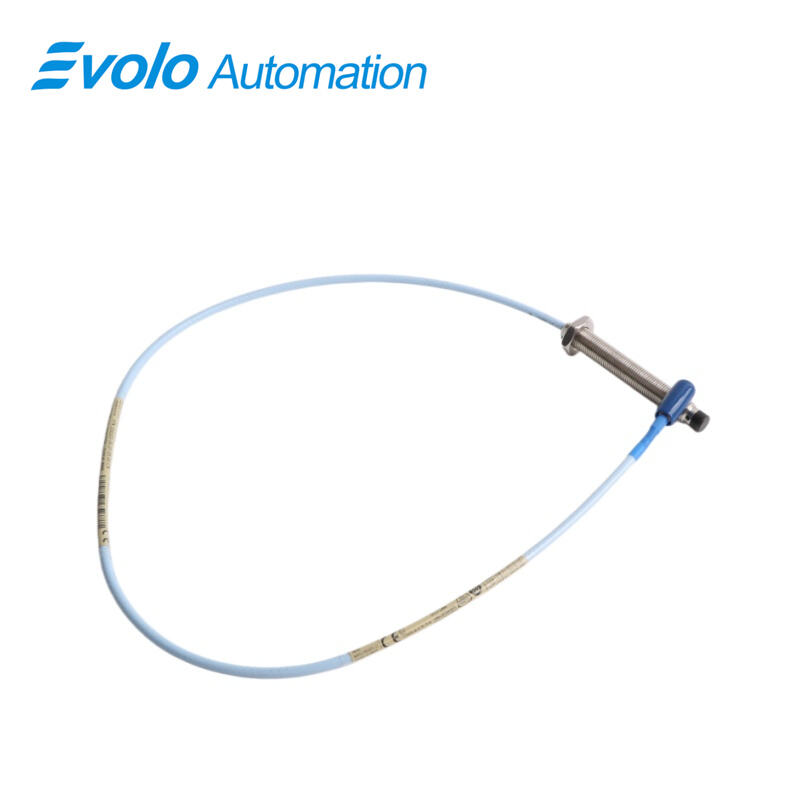

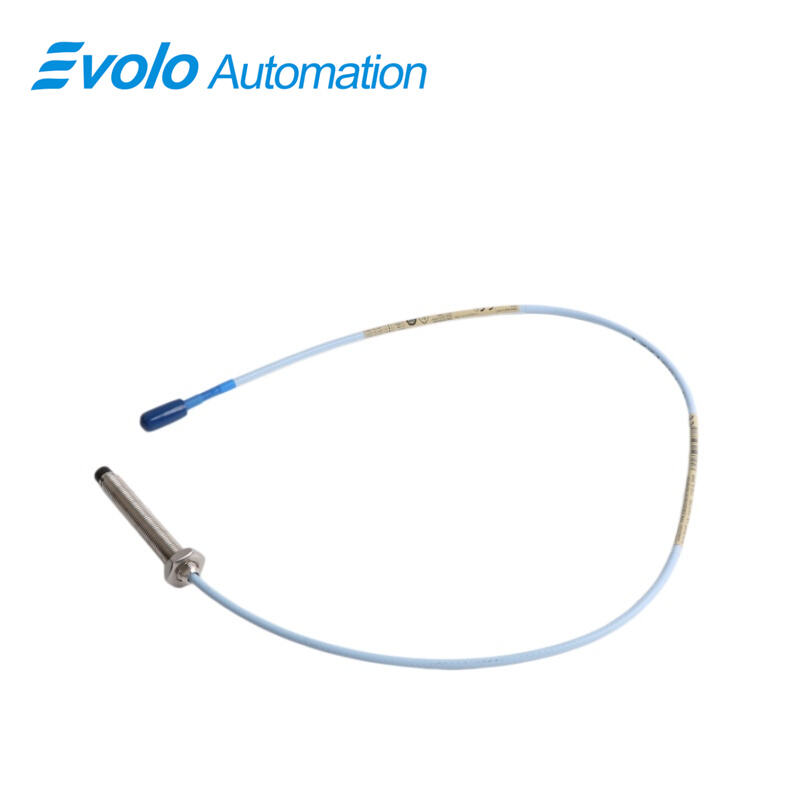

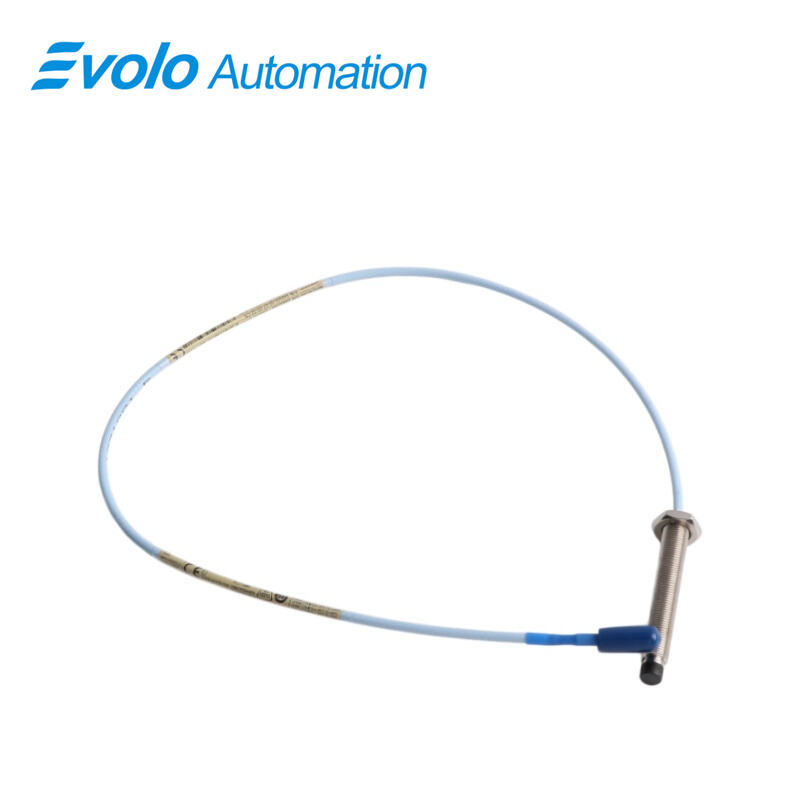

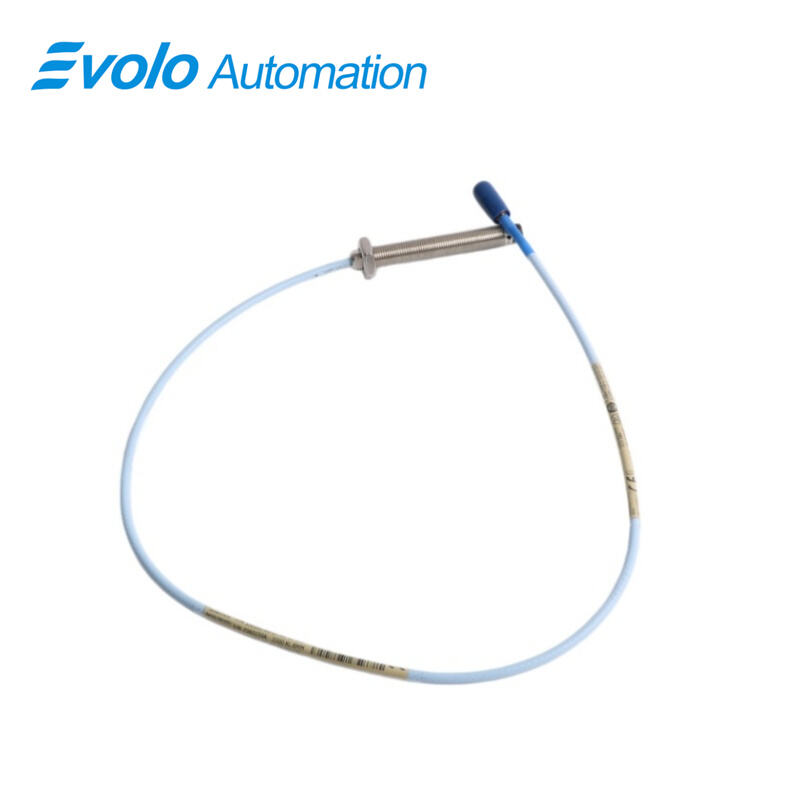

330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-07-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe delivers precise distance measurement between the probe tip and conductive surfaces, supporting both static position and dynamic vibration detection. With a total length of 0.5 meter and an M10x1 probe case thread engaging up to 15 mm, the 330103-00-07-05-02-CN 3300 XL 8 mm operates across -52°C to +177°C and maintains output resistance at 50 Ω. Its linear range of 2 mm ensures accurate measurement for Keyphasor and speed monitoring in automated systems. The probe uses a miniature coaxial ClickLoc connector and standard cable with typical capacitance of 69.9 pF/m, compatible with 0.2–1.5 mm² field wiring. CSA, ATEX, and IECEx approvals make the 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe suitable for industrial automation environments. Advanced TipLoc and CableLoc designs strengthen probe-cable connection, while optional FluidLoc cables prevent fluid leaks. The 330103-00-07-05-02-CN 3300 XL 8 mm fully integrates with 3300 series components, enabling interchangeability without bench calibration, ideal for automated vibration and position monitoring in fluid-film bearing machinery.

Applications

Static Position Measurement on Fluid-Film Bearings
The 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe measures shaft displacement with a linear range of 2 mm (80 mils), producing an output directly proportional to probe tip distance. Operating between -52°C and +177°C, the 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe supports high-temperature bearing monitoring, ensuring position changes are captured within less than 2 mV variation per volt of supply change.

Vibration Monitoring in Rotating Machinery
Using the 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe, vibration amplitude can be measured accurately due to its 50 Ω output resistance and miniature coaxial ClickLoc connector. The 0.5-meter cable length and 69.9 pF/m capacitance ensure minimal signal loss for dynamic monitoring in pumps, turbines, and compressors.

Keyphasor Signal Generation for Speed Detection
The 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe delivers precise Keyphasor signals with its M10x1 probe case thread and 15 mm maximum thread engagement. These specifications allow secure mounting for automated speed control and phase reference measurement in high-speed rotating machinery.

Oil and Fluid Level Monitoring in Automated Systems
Equipped with optional FluidLoc cabling, the 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe prevents fluid leaks through the 0.5-meter extension cable, enabling automated real-time monitoring of lubricants and cooling fluids while maintaining signal integrity.

Specifications

Competitive Advantage

Direct Voltage Output Linked to Precise Displacement
The 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe generates voltage changes less than 2 mV per volt supply variation across a 2 mm linear range, providing high-precision feedback for automated positioning and vibration control.

Robust Probe-Cable Connection with High Pull Strength
TipLoc and CableLoc designs in the 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe provide 330 N (75 lbf) pull strength, reducing probe detachment risk during automated operation.

Interchangeable with 3300 Series Components
The 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe can replace other 5 mm or 8 mm 3300 probes and extension cables without bench calibration. Its standard 0.5-meter length and 69.9 pF/m cable capacitance allow immediate integration into existing automated measurement systems.

Certified for Hazardous Industrial Environments
CSA, ATEX, and IECEx approvals let the 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe operate safely in explosive or flammable environments, supporting continuous automated processes.

High-Temperature Operation Range for Industrial Automation
The 330103-00-07-05-02-CN 3300 XL 8 mm Proximity Probe operates reliably from -52°C to +177°C, ensuring accurate static and dynamic measurements in high-temperature machines, turbines, or fluid-film bearing applications.
