31000-28-10-00-020-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	31000-28-10-00-020-03-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

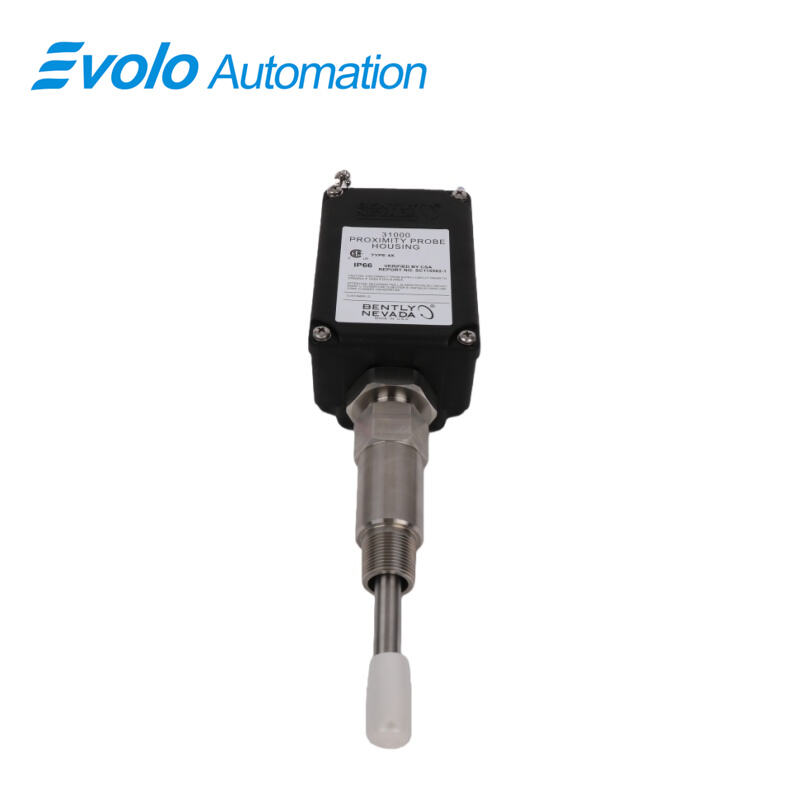

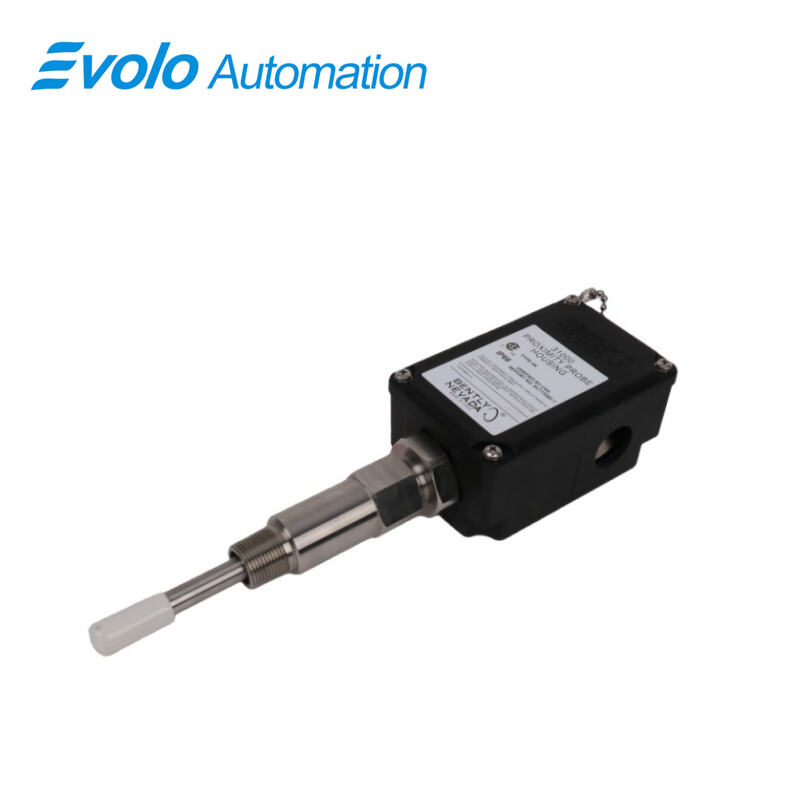

The 31000-28-10-00-020-03-02 Proximity Probe Housing Assembly is designed for precise and reliable integration of 3300 XL 8 mm Proximity Probes into industrial automation systems. Engineered for radially mounted transducers, it facilitates vibration and Keyphasor measurements while enabling external access to the probe and its extension cable. This feature allows real-time gap adjustments and probe replacement without disassembling machinery, significantly reducing downtime.

Constructed from high-strength Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers, the housing ensures excellent corrosion and thermal resistance, even in aggressive industrial environments. The AISI 303 and 304 stainless steel components, including the outer sleeve, retaining chain, and exterior screws, provide additional mechanical robustness. The assembly is certified Type 4X by CSA, features a neoprene O-ring for superior sealing, and supports a probe penetration of 2.0 in with a cable length of 1.0 m (39 in). The housing withstands two 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and 115°C (239°F), ensuring consistent protection under extreme operating conditions.

Fully compliant with API 670 standards, the 31000-28-10-00-020-03-02 housing is suitable for intrinsically safe applications when paired with approved transducer systems and I.S. barriers. It supports long-term automation operations by providing reliable mechanical protection, environmental sealing, and ease of maintenance.

Applications

1. Vibration Monitoring in Rotating Machinery
Provides secure housing for proximity probes on turbines, compressors, and pumps, enabling accurate vibration data collection with minimal signal loss.

2. Keyphasor Signal Acquisition
Ensures reliable alignment of probes for phase reference measurements in high-speed rotating equipment.

3. Gap Adjustment Without Machine Disassembly
External access allows technicians to fine-tune probe gaps or replace probes without halting production, improving maintenance efficiency by up to 30%.

4. Harsh Industrial Environment Deployment
Corrosion-resistant PPS and stainless steel components enable operation in petrochemical, power generation, and refining facilities with temperatures ranging from -39°C to 115°C.

5. Intrinsically Safe Hazardous Area Applications
Compatible with approved I.S. barriers, allowing safe use in hazardous locations without compromising probe performance.

Specifications

Competitive Advantage

1. Robust Material Construction
Glass-reinforced PPS with conductive fibers and stainless steel components offer superior durability and resistance to mechanical stress, corrosion, and temperature fluctuations.

2. Maintenance Efficiency
External accessibility for probes and extension cables reduces downtime, enabling rapid gap adjustments and replacements without full machine disassembly.

3. High Impact Resistance
Certified to withstand repeated 4 Joule impacts at extreme temperatures, ensuring mechanical reliability in challenging industrial environments.

4. API 670 Compliance
Meets stringent mechanical and performance standards for externally mounted proximity probes, guaranteeing precise and repeatable measurements.

5. Hazardous Area Safety
Type 4X CSA rating and I.S. barrier compatibility allow deployment in intrinsically safe areas, supporting safe and uninterrupted operation in potentially explosive atmospheres.
