330103-00-06-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

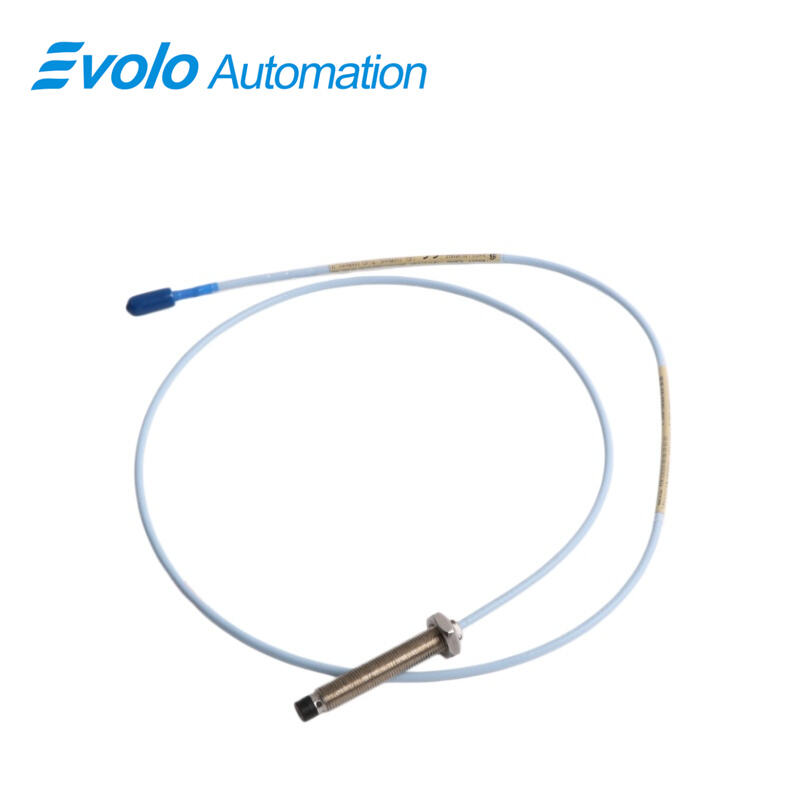

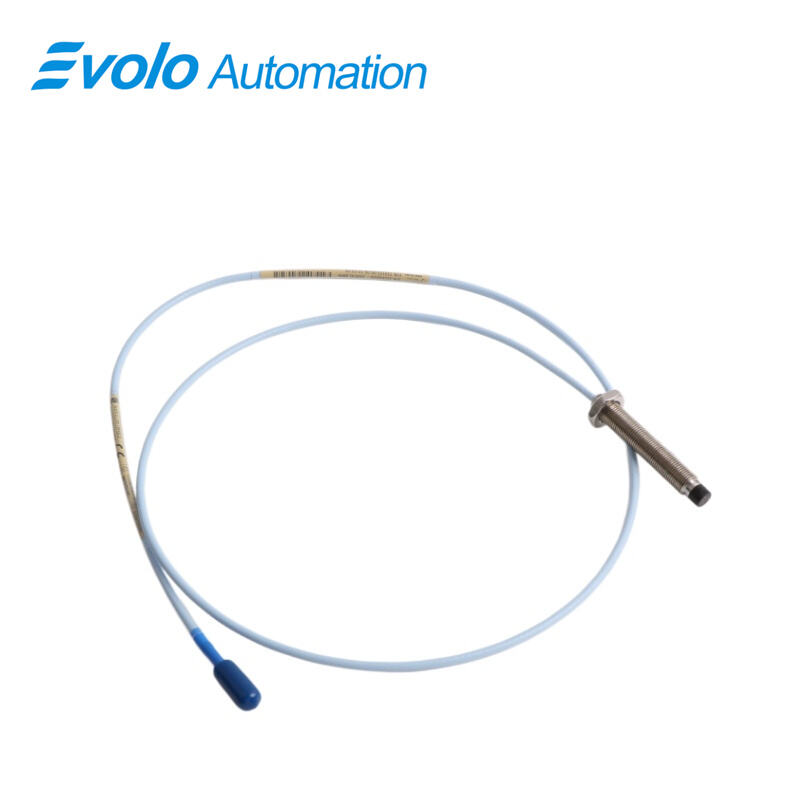

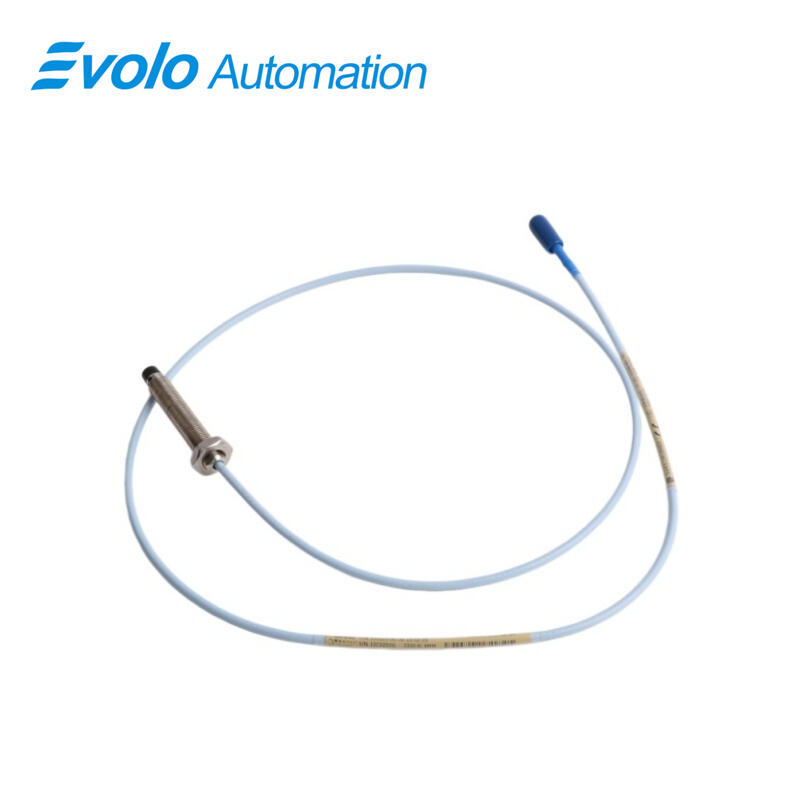

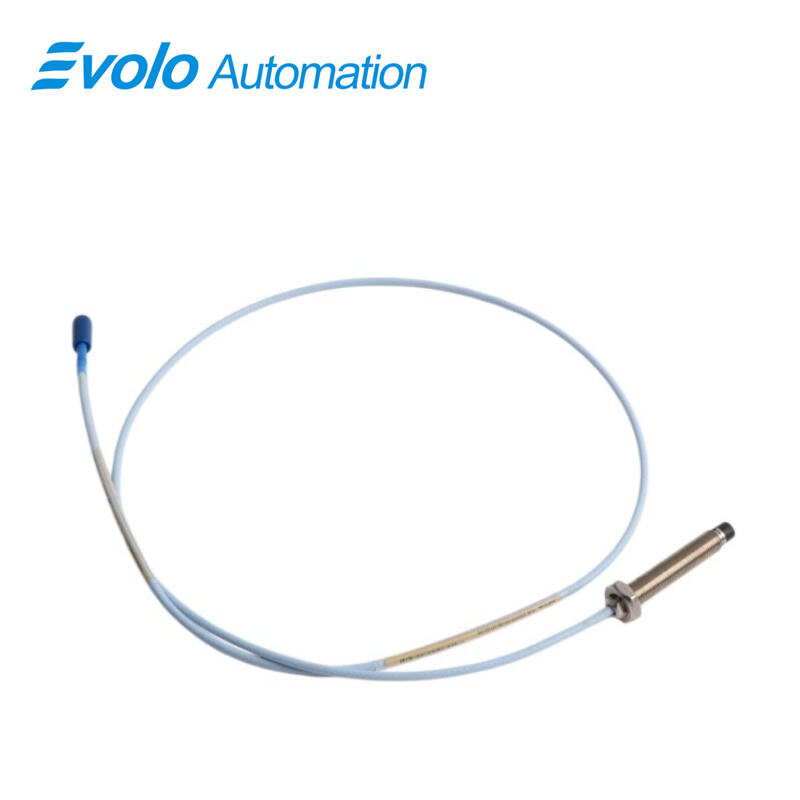

The 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe converts the distance between its 8 mm probe tip and conductive surfaces into a precise voltage signal, capturing both static position and dynamic vibration. Rated for -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm probe includes M10x1 thread with 15 mm engagement, 50 Ω output resistance, 2 mm linear range, and 60 mm case length. Its 1.0 m total cable uses a miniature coaxial ClickLoc connector and 69.9 pF/m capacitance to transmit accurate signals for automated shaft vibration, rotor alignment, and Keyphasor monitoring. The 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe also supports quick installation, while all 3300 XL 8 mm probes and extension cables can be swapped with Proximitor sensors, reducing maintenance and setup time in industrial automation systems.

Applications

Measure Shaft Vibration in Turbines
The 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe captures micrometer-level vibration signals. Its 2 mm linear range and 50 Ω output resistance deliver precise shaft vibration readings for automated turbine and compressor monitoring.

Track Rotor Position in High-Speed Motors
Install the 3300 XL 8 mm probe to monitor rotor alignment. The 15 mm thread engagement and 69.9 pF/m cable capacitance maintain accurate voltage output over 1.0 m cable for automated position control.

Generate Keyphasor Signals for Speed Measurement
The 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe outputs Keyphasor reference pulses with less than 2 mV/V supply sensitivity, enabling real-time speed measurement and synchronization in automated machinery.

Measure Axial Shaft Movement in Confined Spaces
Use 3300 XL 8 mm probes to measure axial displacement. The 60 mm case length and 1.0 m cable allow installation in tight spaces while maintaining accurate signal output for automated monitoring.

Specifications

Competitive Advantage

High-Temperature Operation with Minimal Voltage Drift
The 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C with less than 2 mV/V supply sensitivity. The 3300 XL 8 mm probe delivers reliable readings in high-temperature industrial environments for automated shaft and rotor monitoring.

Quick Installation Using ClickLoc Connector
The miniature coaxial ClickLoc connector and M10x1 thread on the 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe allow secure installation in under one minute. The 3300 XL 8 mm probe’s 15 mm engagement ensures firm attachment for automated machinery.

Strong Probe-to-Cable Bond with CableLoc Design
The 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe incorporates CableLoc with 330 N pull strength. The 3300 XL 8 mm probe maintains cable attachment under high-vibration conditions, reducing signal interruptions in automation systems.

FluidLoc Cable Prevents Oil Leakage
Optional FluidLoc cable on the 330103-00-06-10-02-05 3300 XL 8 mm Proximity Probe prevents oil ingress along the 1.0 m cable. The 3300 XL 8 mm probe ensures clean signal transmission for Keyphasor, shaft vibration, and rotor position monitoring.
