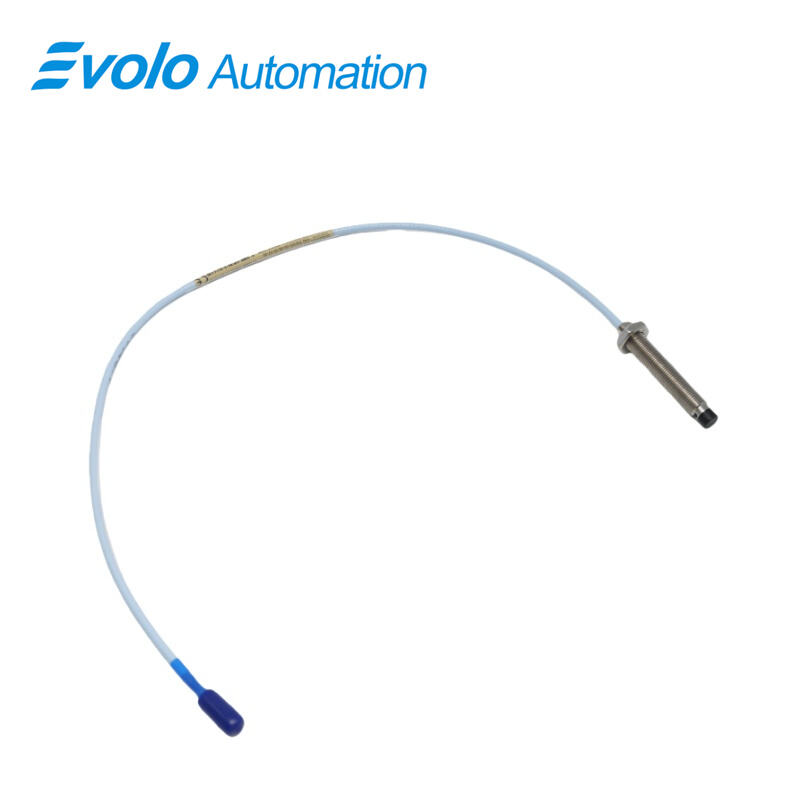

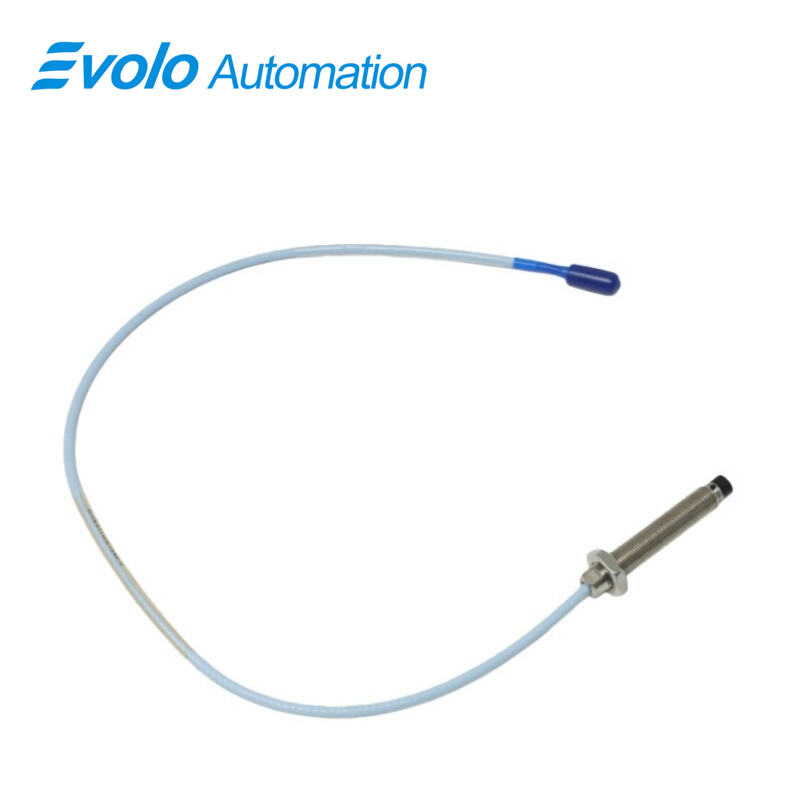

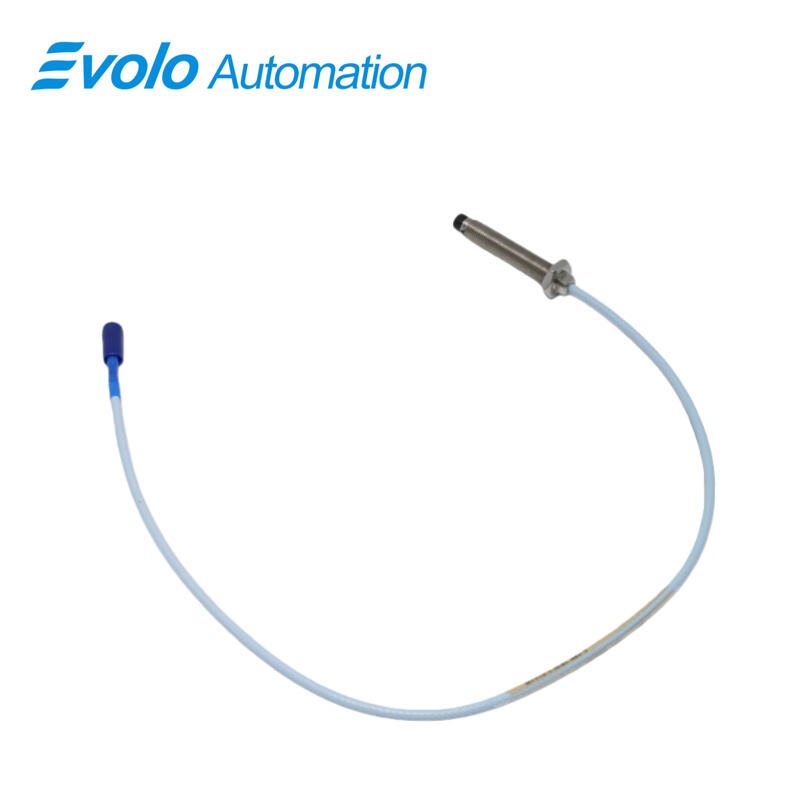

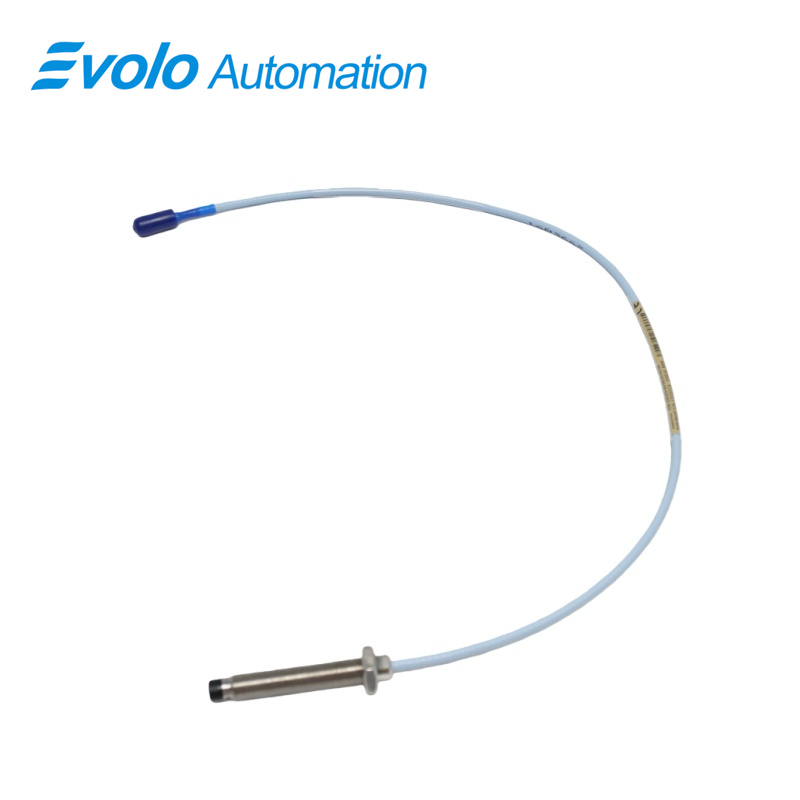

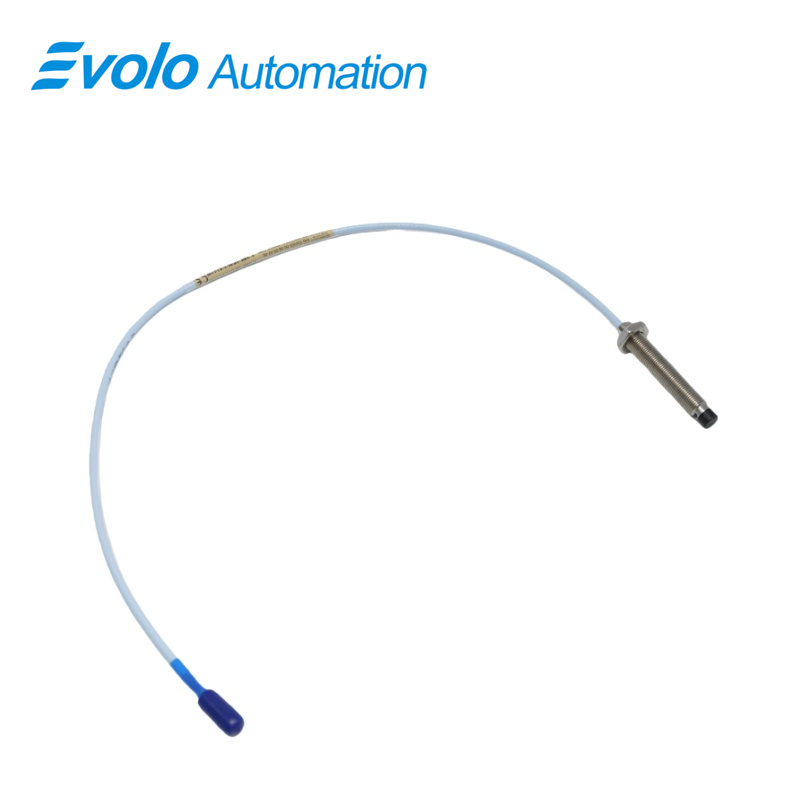

330103-00-06-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-06-05-02-00 is a 3300 XL 8 mm Proximity Probe designed for automated machinery monitoring where compact installation and precise displacement measurement are required. 330103-00-06-05-02-00 converts the distance between the probe tip and a conductive surface into a proportional voltage signal, supporting both static (position) and dynamic (vibration) measurements. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, 330103-00-06-05-02-00 delivers accurate data to automation and protection systems.

The M10x1 threaded case with 15 mm maximum thread engagement allows 330103-00-06-05-02-00 to be installed close to shafts or bearings in tight spaces. The 0.5-meter total probe length ensures 330103-00-06-05-02-00 connects efficiently to monitoring racks in automated systems. Equipped with a miniature coaxial ClickLoc connector and standard cable, 330103-00-06-05-02-00 ensures reliable signal transmission. Rated for operation from -52°C to +177°C, 330103-00-06-05-02-00 is ideal for motors, pumps, and compressors in industrial automation requiring continuous position and vibration monitoring.

Applications

Vibration monitoring in compact machinery
330103-00-06-05-02-00 is installed near shafts of small turbines, compressors, and pumps to convert vibration displacement into a proportional voltage signal within a 2 mm linear range. The 50 Ω output resistance allows 330103-00-06-05-02-00 to deliver accurate vibration data to automated monitoring systems.

Axial position tracking in tight spaces
With a 0.5-meter total length, 330103-00-06-05-02-00 can be installed close to bearings or shafts where space is limited. The M10x1 threaded case and 15 mm maximum thread engagement enable 330103-00-06-05-02-00 to provide precise axial displacement measurement for automated control.

Speed and phase reference for automation control
The 69.9 pF/m extension cable capacitance ensures 330103-00-06-05-02-00 provides repeatable waveform signals for speed detection and phase reference in automated machinery control systems.

Condition monitoring in automated motors and pumps
Equipped with a miniature coaxial ClickLoc connector and standard cable, 330103-00-06-05-02-00 supports continuous position and vibration data acquisition for automated alarms and control logic in industrial machinery.

Specifications

Competitive Advantage

Direct installation in compact housings
The 60 mm minimum case length of 330103-00-06-05-02-00 allows direct placement near shafts and bearings without additional adapters.

Consistent signal output for automation systems
With a 2 mm linear range and 50 Ω output resistance, 330103-00-06-05-02-00 delivers predictable voltage signals for accurate alarm threshold and control setup.

Wide temperature operation
Rated from -52°C to +177°C, 330103-00-06-05-02-00 operates effectively during cold start and high-temperature operation, maintaining accurate measurements.

Secure electrical connection under vibration
The miniature coaxial ClickLoc connector allows 330103-00-06-05-02-00 to maintain reliable electrical contact even during continuous vibration in automated industrial equipment.
