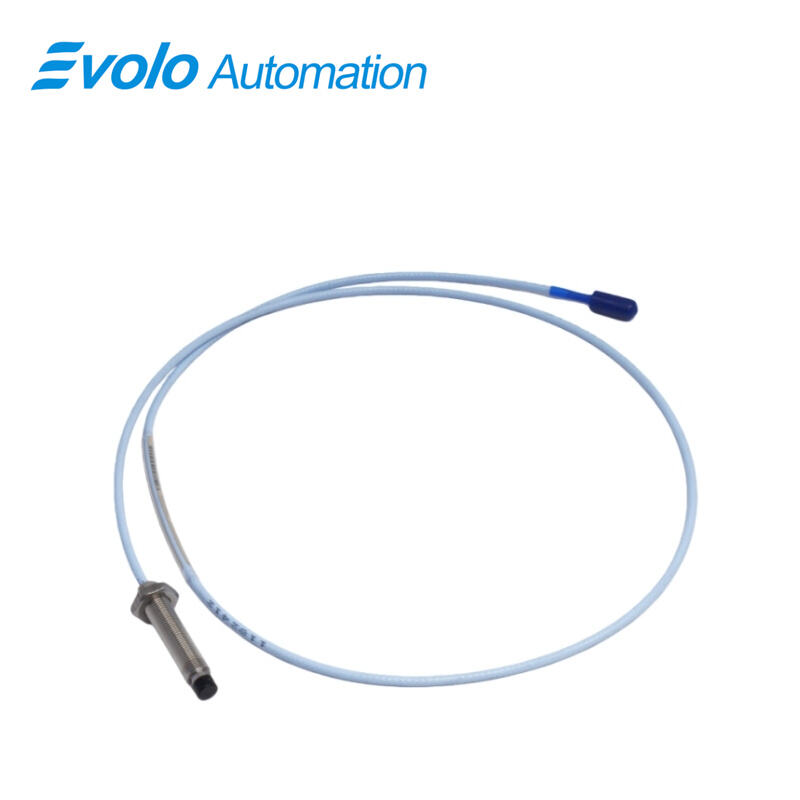

330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe delivers precise output voltage proportional to the distance between the probe tip and conductive surfaces, enabling accurate measurement of static positions and dynamic vibrations. Designed for automation applications, the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe measures vibration and shaft position on fluid-film bearing machinery while providing Keyphasor reference and speed signals for automated control systems. The probe features a 2 mm (80 mils) linear range, M10x1 threaded case with 15 mm maximum engagement, and a 1.0-meter FluidLoc cable with miniature ClickLoc connector and protector, allowing secure, leak-free installation in harsh industrial environments. Operating from -52°C to +177°C (-62°F to +350°F) and with less than 2 mV supply sensitivity, the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe maintains accurate readings across wide temperatures. Its 50 Ω output resistance and 69.9 pF/m extension cable capacitance support precise signal transmission to automated monitoring systems. This probe integrates patented TipLoc molding for strong probe-tip bonding and CableLoc design for 330 N (75 lbf) pull strength, ensuring reliable probe connection in tight installations. The 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe is fully compatible with other 3300 XL 8 mm system components for quick replacement and automated plant integration.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe captures vibration data with its 2 mm (80 mils) linear range and less than 2 mV supply sensitivity. Install it near the bearing surface to provide real-time automated monitoring of shaft movement.

Track Rotational Speed with Keyphasor Signals
Using the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe, measure Keyphasor reference signals for automated speed calculations. Its 50 Ω output resistance and 69.9 pF/m extension cable capacitance ensure accurate signal transmission for machine control systems.

Position Monitoring in Tight Installations
The compact M10x1 threaded case and 1.0-meter FluidLoc cable allow the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe to fit into constrained spaces while maintaining precise distance measurements for automated positioning applications.

Specifications

Competitive Advantage

Prevent Signal Loss in Harsh Environments
Patented TipLoc molding and CableLoc design provide 330 N pull strength, keeping the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe firmly connected and preventing oil or dust intrusion, ensuring consistent automated readings.

Quick Integration with Existing Systems
The 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe is backward compatible with 3300 XL 8 mm system components, enabling fast replacement or upgrades without additional calibration in automation systems.

Extend Monitoring Reach with Reliable Cables
With a 1.0-meter FluidLoc cable and miniature ClickLoc connector, the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe maintains signal integrity over moderate distances, supporting efficient automated data acquisition.

Operate Across Wide Temperature Ranges
Operating from -52°C to +177°C, the 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe performs in extreme industrial environments, allowing automated monitoring without shutdowns or signal errors.
