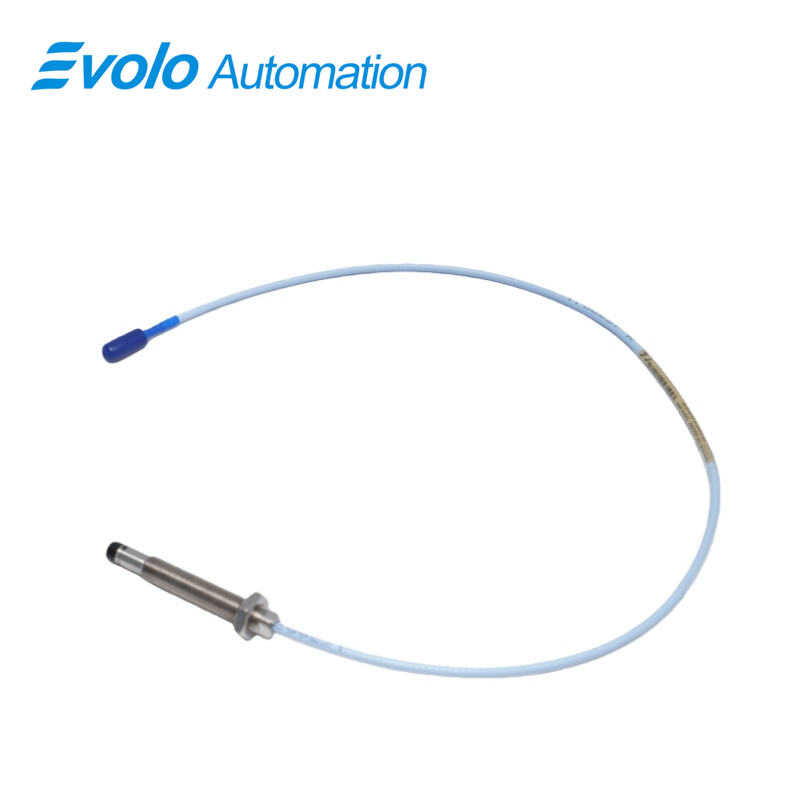

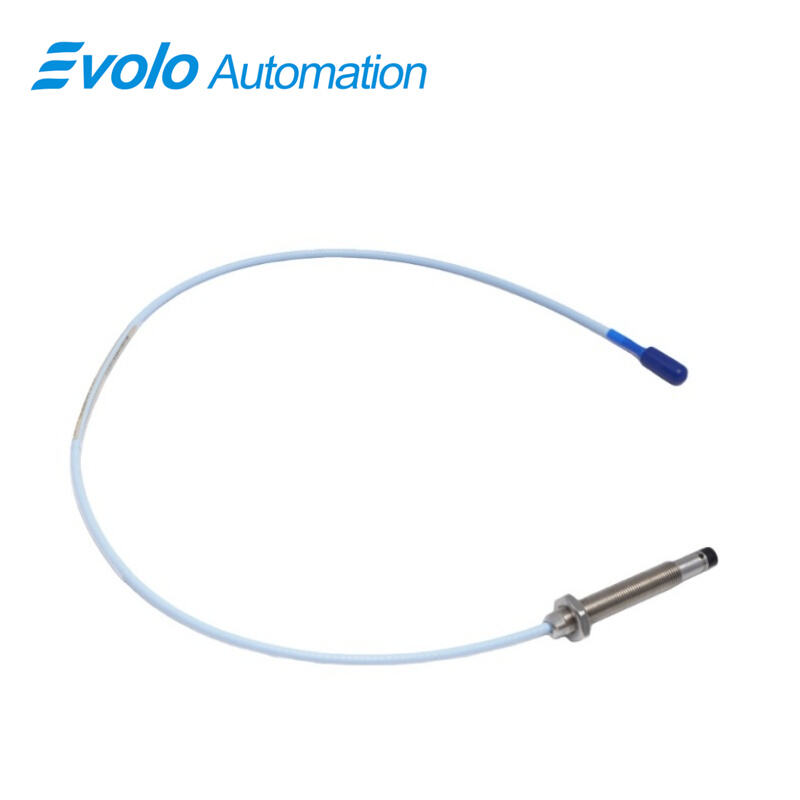

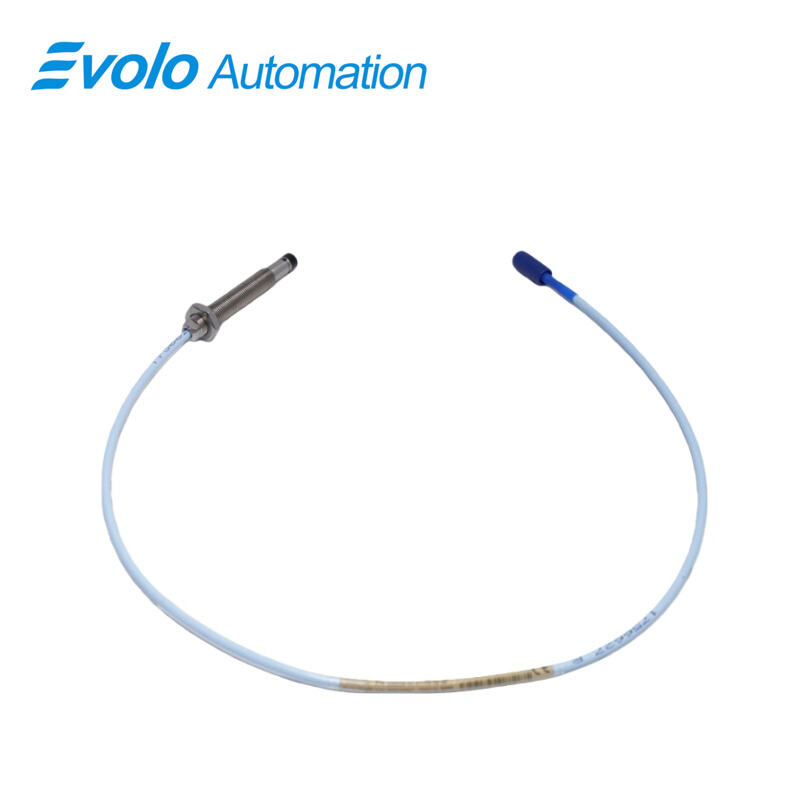

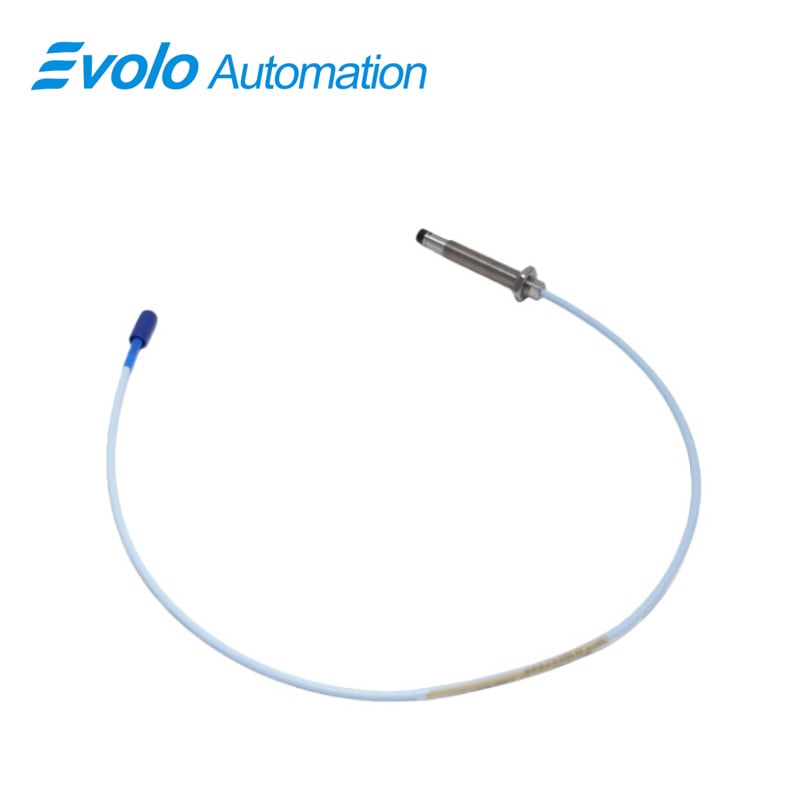

330103-01-07-50-02-00 3300 XL 8 mm Proximity Probe
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-01-07-50-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330103-01-07-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current proximity probe designed for advanced industrial automation and rotating machinery monitoring. As a core component of the 3300 XL proximity probe system, this 8 mm proximity probe converts the distance between the probe tip and a conductive target into a stable, linear output signal, enabling accurate vibration monitoring and shaft position measurement in critical automation environments.
With an M10x1 threaded probe case, a minimum case length of 70 mm, and a 5.0-meter standard cable, the 3300 XL 8 mm proximity probe offers flexible installation in confined mechanical spaces while maintaining excellent mechanical stability. The probe operates reliably across an extended temperature range from -52°C to +177°C, ensuring consistent performance in harsh industrial automation conditions such as turbines, compressors, and pumps.
Engineered for low output resistance and minimal supply sensitivity, this 3300 XL proximity probe delivers high signal integrity and noise immunity for automation control systems. Its miniature coaxial ClickLoc connector ensures secure connections, while the optimized extension cable capacitance supports accurate dynamic vibration monitoring. Designed for seamless interchangeability within the 3300 XL series, the 3300 XL 8 mm proximity probe enhances automation system reliability, reduces maintenance complexity, and supports long-term machinery protection strategies.
Key Functions
Applications
In industrial automation systems, the 330103-01-07-50-02-00 3300 XL 8 mm Proximity Probe is widely used for vibration monitoring, shaft position measurement, and speed reference detection on rotating machinery supported by fluid-film bearings. Typical applications include steam turbines, gas compressors, generators, and large centrifugal pumps. By continuously monitoring displacement and vibration signals, this proximity probe enables automation platforms to detect imbalance, misalignment, and mechanical wear at an early stage, supporting predictive maintenance and reducing unplanned downtime in critical production processes.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
10 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x68cm |
|
Weight: |
0.06kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Frequently Asked Questions
What is the model number?
The listed model number is 330103-01-07-50-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
The 3300 XL 8 mm Proximity Probe stands out in automation applications due to its wide linear range, excellent temperature stability, and full compliance with API 670 mechanical and performance requirements. Its backward compatibility and interchangeable design eliminate the need for individual calibration, significantly simplifying installation and inventory management. Combined with robust TipLoc and CableLoc technologies, this proximity probe delivers superior mechanical durability and long-term measurement accuracy, making it a reliable choice for high-end automation and machinery protection systems.
