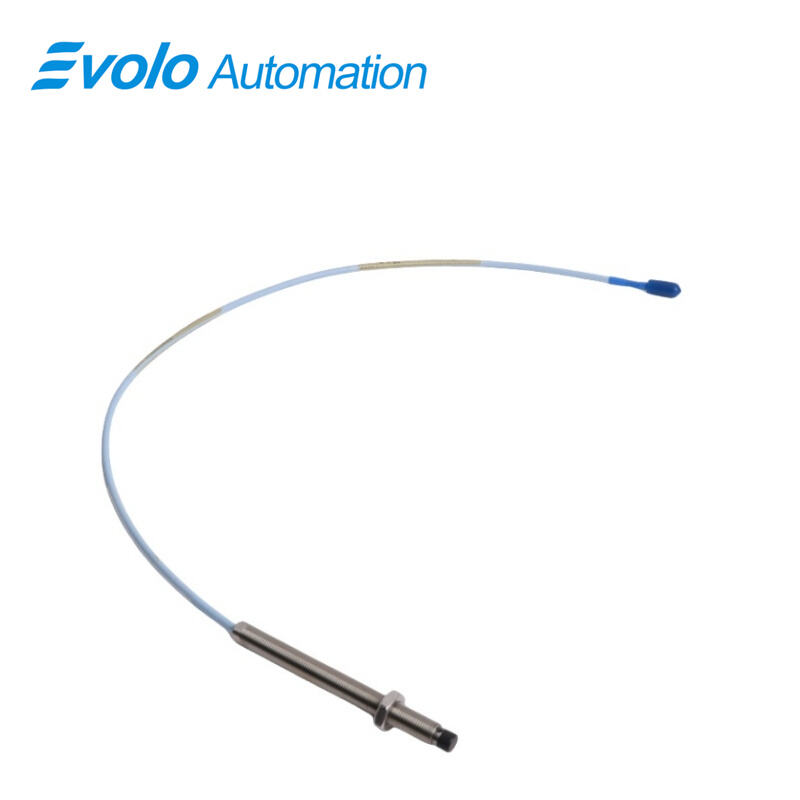

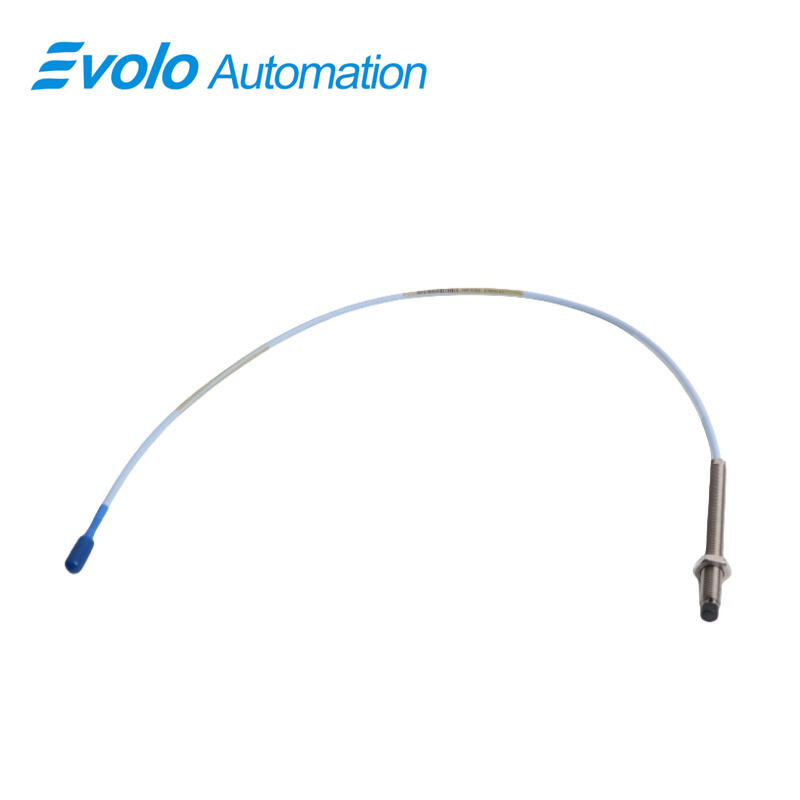

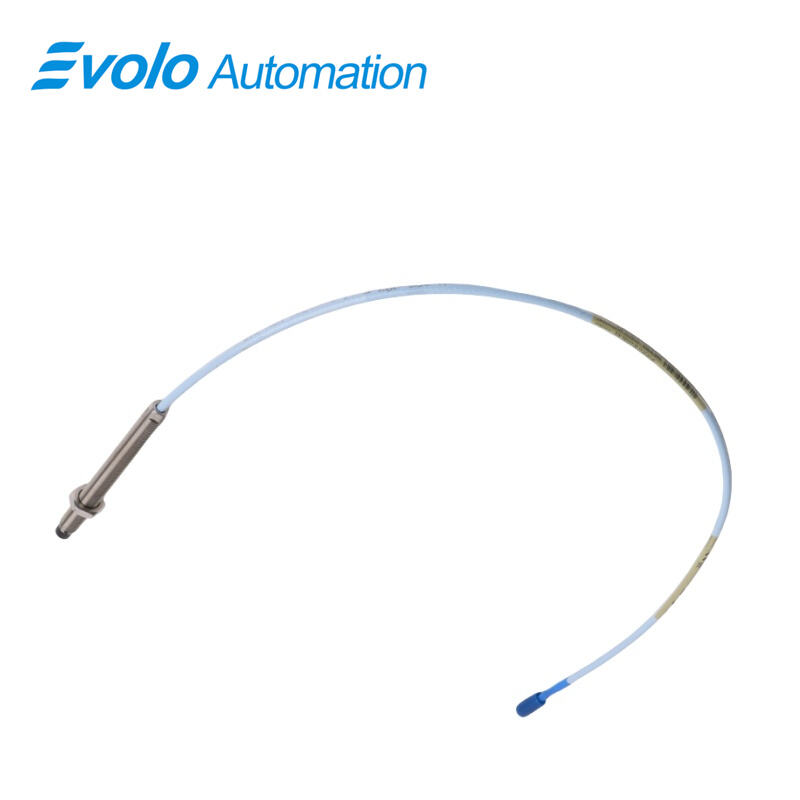

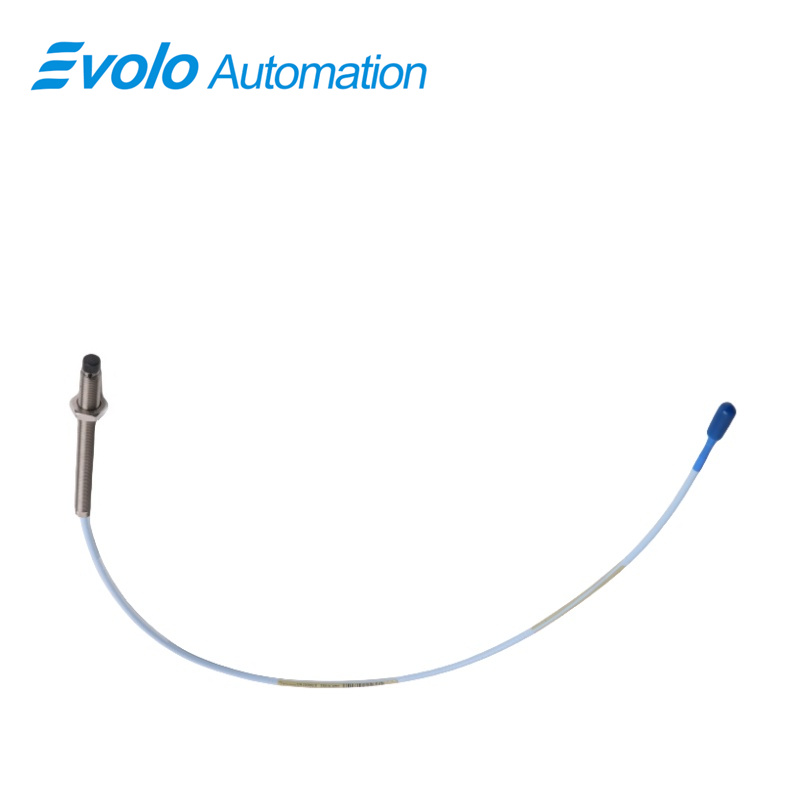

330103-00-05-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-05-10-02-00 is a 3300 XL 8 mm Proximity Probe designed for automation systems that require direct measurement of shaft position and vibration. 330103-00-05-10-02-00 converts the distance between the probe tip and a conductive surface into a proportional voltage signal, allowing control and monitoring systems to process both static position data and dynamic vibration data. With a linear range of 2 mm and an output resistance of 50 Ω, 330103-00-05-10-02-00 provides clear displacement signals for automated machinery protection and monitoring.

The probe body of 330103-00-05-10-02-00 features an M10x1 threaded case with a minimum case length of 50 mm and a maximum thread engagement of 15 mm, supporting precise installation near bearings and rotating shafts. A total probe length of 1.0 meter allows 330103-00-05-10-02-00 to connect directly to automation racks without excess cable routing. The miniature coaxial ClickLoc connector with standard cable ensures secure electrical connection, while typical extension cable capacitance of 69.9 pF/m supports predictable signal behavior.

Rated for operating temperatures from -52°C to +177°C, 330103-00-05-10-02-00 is applied in automated motors, pumps, and compressors where vibration and position data are required for control logic and alarm functions.

Applications

Shaft vibration monitoring in automated rotating machines
330103-00-05-10-02-00 is installed near motor, pump, and compressor shafts to convert vibration displacement into voltage output within a 2 mm linear range. The 50 Ω output resistance allows 330103-00-05-10-02-00 to transmit clean signals to automated monitoring and protection racks.

Axial shaft position tracking for bearing systems
By maintaining supply sensitivity below 2 mV per volt, 330103-00-05-10-02-00 supports accurate axial movement measurement in bearing housings. The M10x1 threaded probe body and 15 mm maximum thread engagement allow 330103-00-05-10-02-00 to be positioned close to the shaft surface.

Speed and phase reference input for automation control
The controlled extension cable capacitance of 69.9 pF/m enables 330103-00-05-10-02-00 to deliver consistent waveform signals used for speed detection and phase reference in automated machinery control systems.

Condition monitoring in general industrial automation
With a 1.0 meter probe length and standard cable, 330103-00-05-10-02-00 is applied in automated production equipment where vibration and position data are required for alarm and shutdown logic.

Specifications

Competitive Advantage

Direct mounting in deeper bearing housings
The 50 mm minimum case length allows 330103-00-05-10-02-00 to reach measurement points inside deeper bearing housings without extension adapters.

Predictable signal output for automation inputs
With a 2 mm linear range and 50 Ω output resistance, 330103-00-05-10-02-00 delivers voltage response that simplifies scaling and alarm threshold setup in automation systems.

Operation across wide temperature limits
Rated from -52°C to +177°C, 330103-00-05-10-02-00 supports automated equipment during cold start and high-temperature operation.

Secure electrical connection under continuous vibration
The miniature coaxial ClickLoc connector allows 330103-00-05-10-02-00 to remain electrically connected during continuous machine vibration in automated environments.
