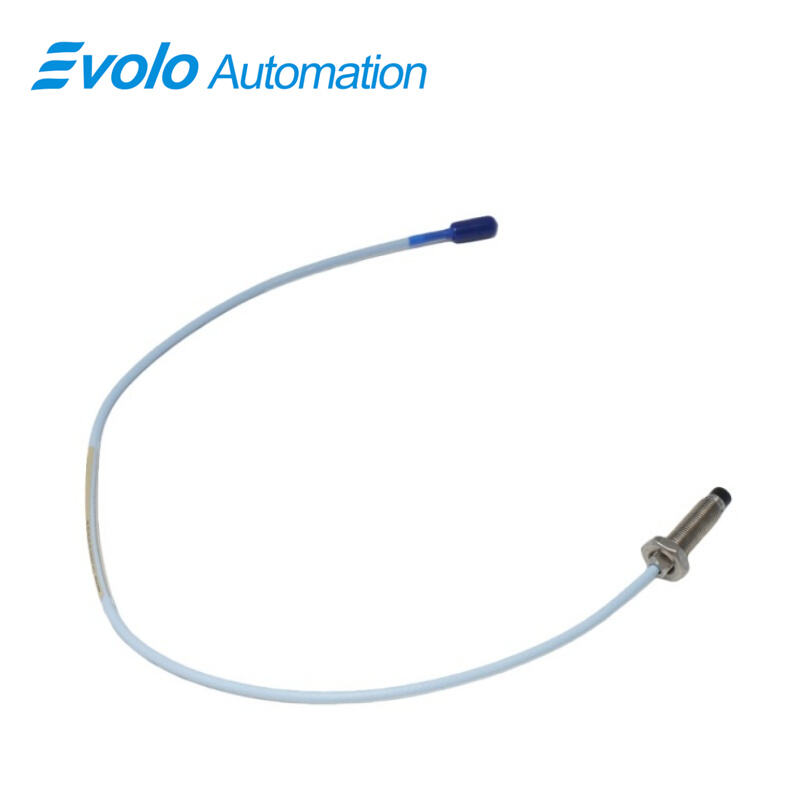

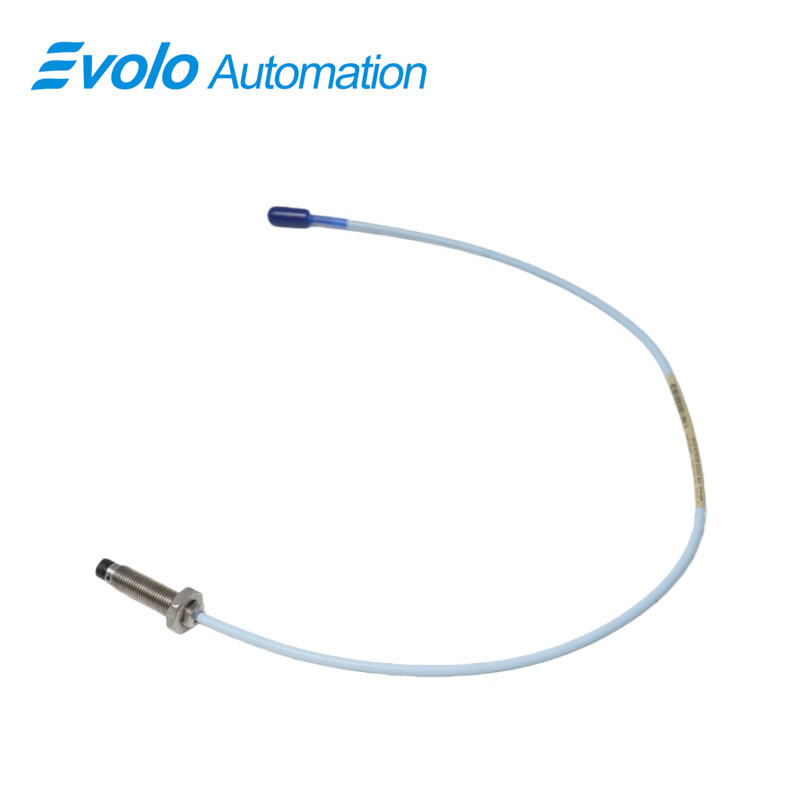

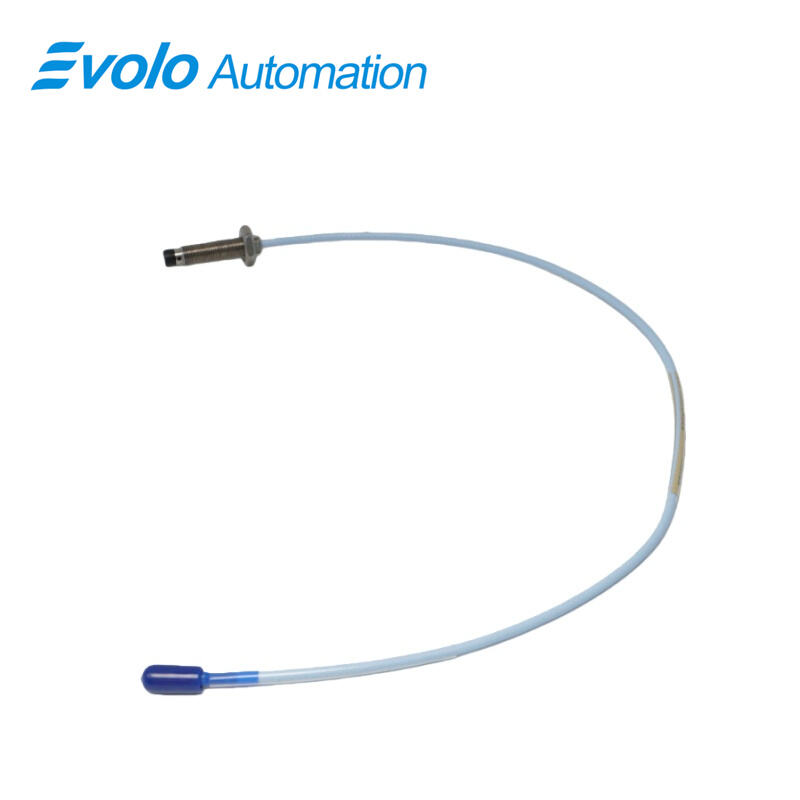

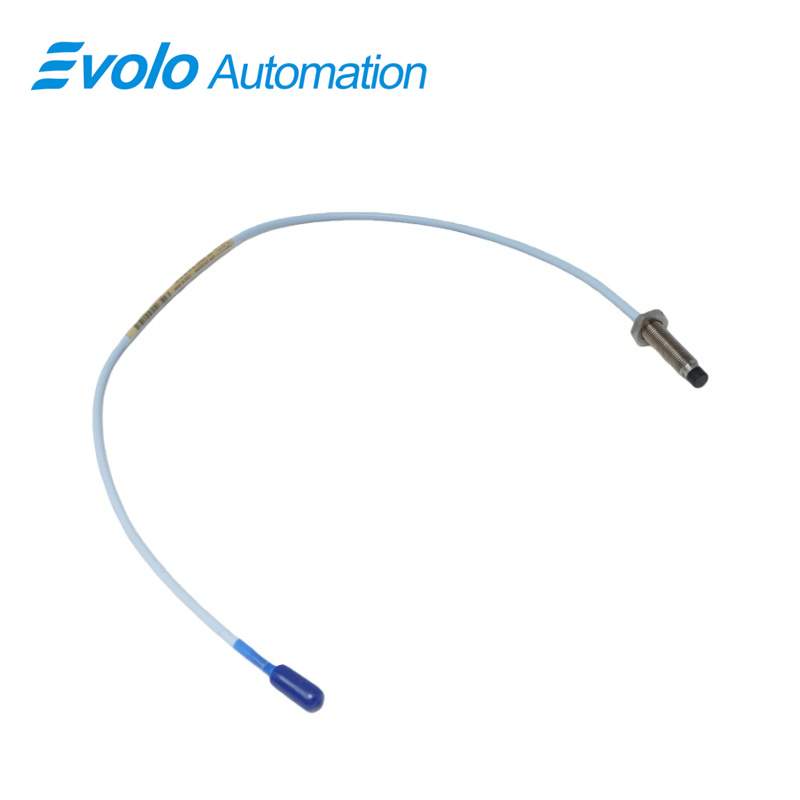

330103-00-04-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-04-05-02-00 3300 XL 8 mm Proximity Probe is designed for automated vibration and position measurement in rotating machinery where space, temperature range, and signal control are critical. The 330103-00-04-05-02-00 uses eddy current sensing to generate an output voltage directly proportional to the distance between the probe tip and a conductive target, supporting both static position tracking and dynamic vibration monitoring in automation systems.

With a defined linear range of 2 mm (80 mils), the 330103-00-04-05-02-00 enables control systems to capture precise shaft movement data for pumps, compressors, and motors using fluid-film bearings. The probe features an M10x1 thread with up to 15 mm thread engagement and a compact 40 mm minimum case length, allowing installation in confined bearing housings. A 0.5 meter standard cable with a miniature coaxial ClickLoc connector supports direct routing to monitoring racks or PLC input modules.

The 330103-00-04-05-02-00 operates across a temperature range of -52°C to +177°C, making it suitable for high-heat industrial environments. With less than 2 mV/V supply sensitivity, 50 Ω output resistance, and typical extension cable capacitance of 69.9 pF/m, the 330103-00-04-05-02-00 delivers predictable electrical behavior for automated machinery protection and condition monitoring systems.

Applications

Shaft vibration measurement on fluid film bearing machines
The 330103-00-04-05-02-00 is used to measure dynamic shaft vibration within a 2 mm linear range, allowing automation systems to track real-time shaft motion on compressors, pumps, and turbines equipped with fluid film bearings. The 50 Ω output resistance and low supply sensitivity below 2 mV/V support clean signal transmission to monitoring racks.

Axial position monitoring for rotating equipment
The 330103-00-04-05-02-00 supports axial position measurement by converting probe-to-target distance into proportional voltage output. With an M10x1 mounting thread and 15 mm maximum thread engagement, the 330103-00-04-05-02-00 can be installed directly into thrust bearing housings for automated position control.

Compact installation in limited mounting spaces
With a minimum case length of 40 mm and unthreaded length of 0 mm, the 330103-00-04-05-02-00 is suitable for machinery where installation depth is restricted. The 0.5 m cable length allows direct routing to nearby automation cabinets without excess cable management.

High-temperature machinery condition monitoring
The 330103-00-04-05-02-00 operates from -52°C to +177°C, enabling continuous monitoring of rotating equipment in high-heat industrial environments such as refineries, power generation units, and process automation systems.

Specifications

Competitive Advantage

Defined 2 mm linear measurement range for control accuracy
The 330103-00-04-05-02-00 provides a fixed 2 mm (80 mils) linear range, allowing automation systems to calculate shaft movement without signal scaling uncertainty, supporting consistent vibration and position interpretation.

Low electrical sensitivity for stable power supply variation
With supply sensitivity below 2 mV per volt, the 330103-00-04-05-02-00 limits output fluctuation caused by power input changes, supporting predictable signal behavior in distributed automation networks.

Compact metric thread design for global equipment integration
The M10x1 probe thread and 40 mm minimum case length allow the 330103-00-04-05-02-00 to fit metric machinery designs commonly used in international automation projects and OEM equipment.

Controlled signal transmission over short cable runs
The standard cable on the 330103-00-04-05-02-00 features typical capacitance of 69.9 pF/m, supporting accurate signal delivery over short distances commonly found in cabinet-mounted monitoring systems.

Wide temperature operating range for industrial automation
By supporting operation up to +177°C, the 330103-00-04-05-02-00 can remain installed close to heat-generating components, reducing the need for remote mounting or additional thermal protection hardware.
