Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-50-10-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
5.0 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x113cm |
|
Weight: |
0.14kg |
Description

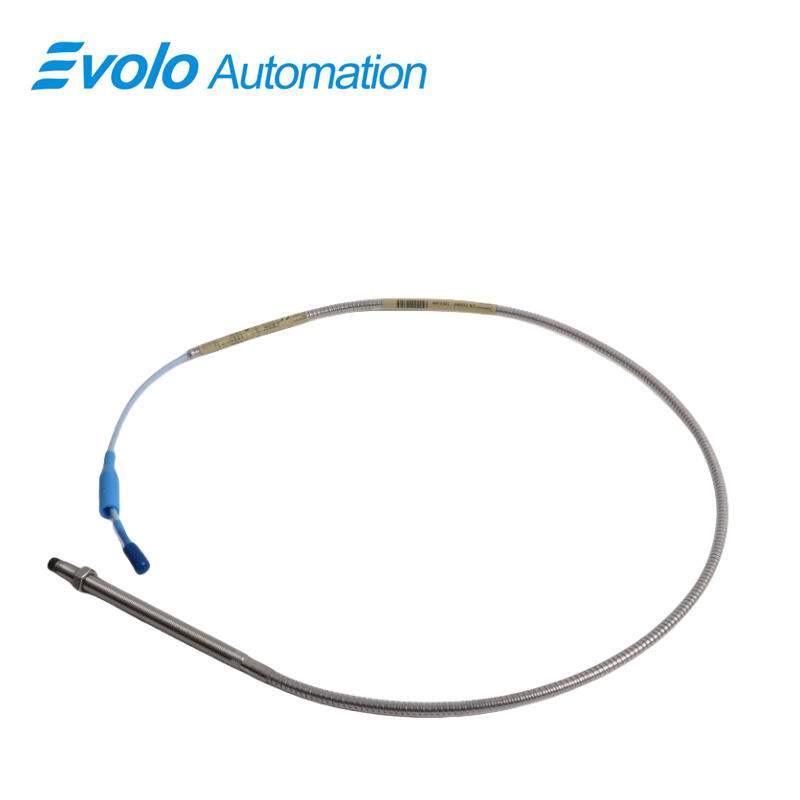

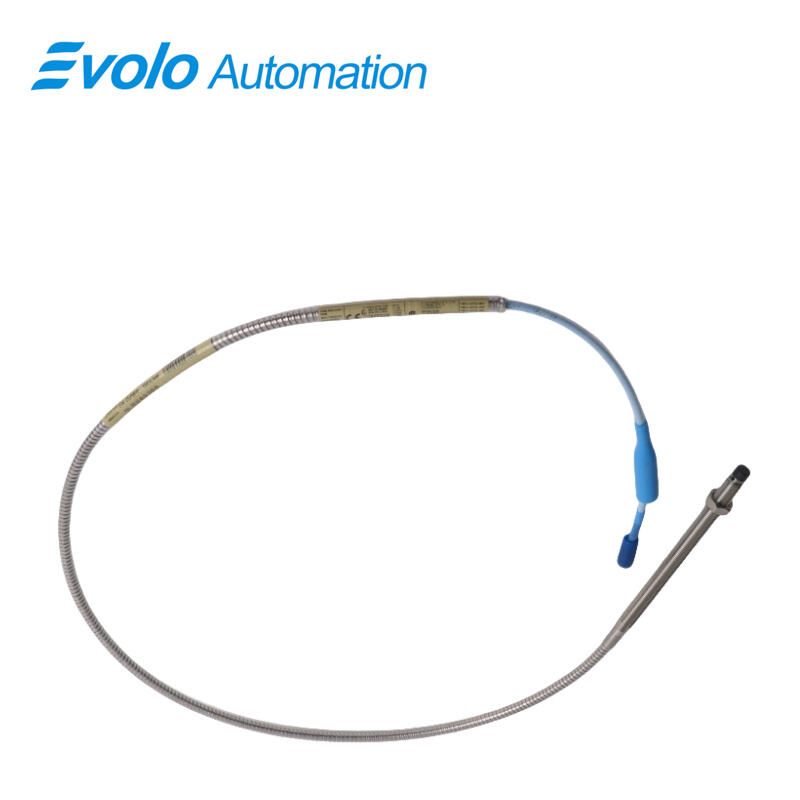

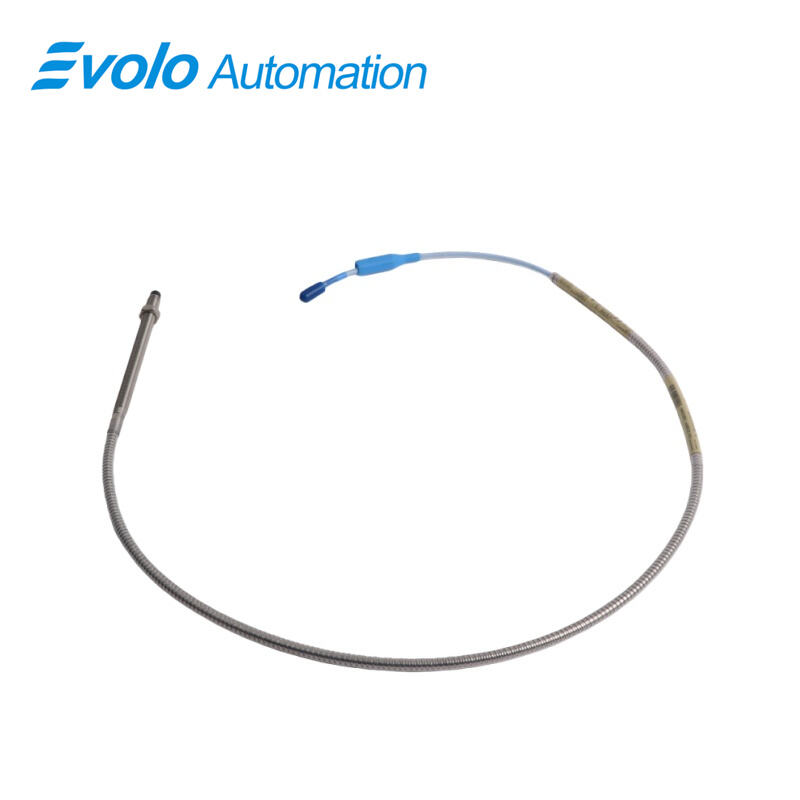

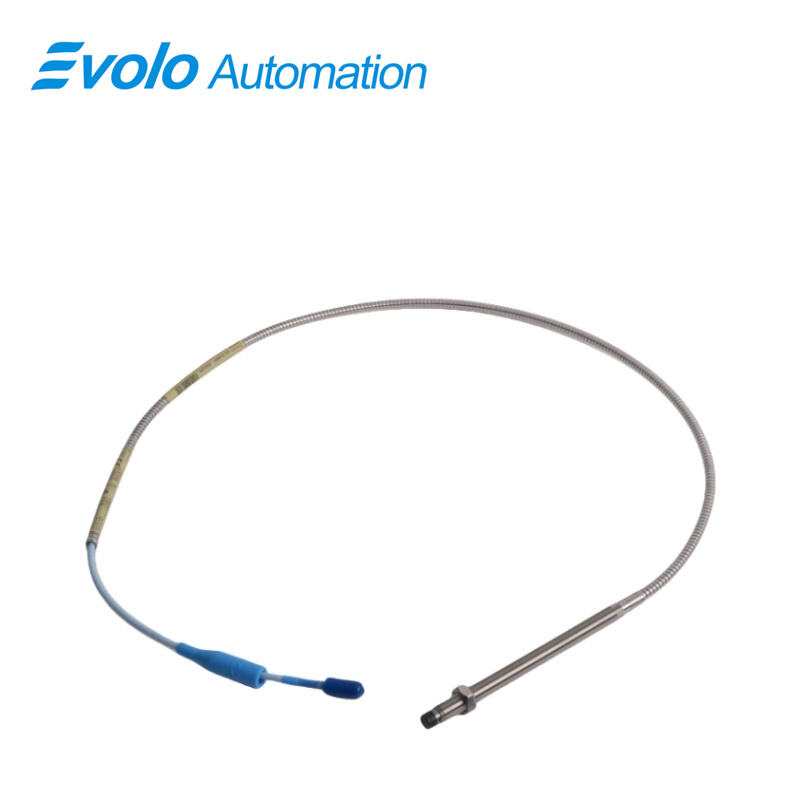

The 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe delivers non-contact position and vibration measurements on fluid-film bearings with a 2 mm linear range and 50 Ω output resistance. Its 1.0-meter standard cable and 3/8-24 UNF thread enable secure mounting, while the ClickLoc connector with protector ensures reliable connections in automated systems. Operating from -52°C to +177°C, the 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe integrates seamlessly with 3300 extension cables (capacitance 69.9 pF/m) and Proximitor sensors for Keyphasor signals and speed monitoring. Patented TipLoc and CableLoc designs provide 330 N pull strength, and optional FluidLoc cables prevent oil leakage, supporting continuous automated measurement in tight machinery spaces.
Applications
Measure Shaft Vibration on Fluid-Film Bearings
The 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe provides a 2 mm linear range and 50 Ω output resistance, converting shaft displacement into precise electrical signals for vibration monitoring on pumps, compressors, and turbines. Its 1.0-meter standard cable allows flexible installation in automated machinery.
Track Rotational Speed Using Keyphasor Signals
By connecting the 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe to a Proximitor sensor, phase reference signals are generated for automated speed calculations. The M10x1 thread ensures secure mounting during high-speed rotation.
Measure Axial Shaft Position
The 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe converts axial shaft displacement into analog voltage signals, supporting automated feedback for machinery control systems in centrifugal pumps or fans.
Enable Remote Installation with Extension Cables
The 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe is compatible with 3300 series extension cables up to 5 meters (capacitance 69.9 pF/m), allowing installation in confined or remote spaces without signal loss.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Operate in Extreme Temperatures
Rated from -52°C to +177°C, the 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe maintains accurate automated measurements in high-heat or low-temperature environments.
Secure Probe and Cable Attachment
TipLoc and CableLoc designs provide 330 N pull strength, ensuring the 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe remains firmly connected during vibration and automated operation.
Prevent Oil Leakage in Machinery
Optional FluidLoc cables on the 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe prevent oil from escaping through the cable interior, preserving automated monitoring accuracy.
Direct Integration with 3300 Proximitor Systems
The 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe works seamlessly with 3300 extension cables and Proximitor sensors, enabling automated measurement of vibration, position, and Keyphasor signals without manual calibration.
Compact Design for Tight Installation Spaces
With a 1.0-meter cable and 3/8-24 UNF thread, the 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe fits into confined machinery areas, allowing flexible placement in automated systems.
