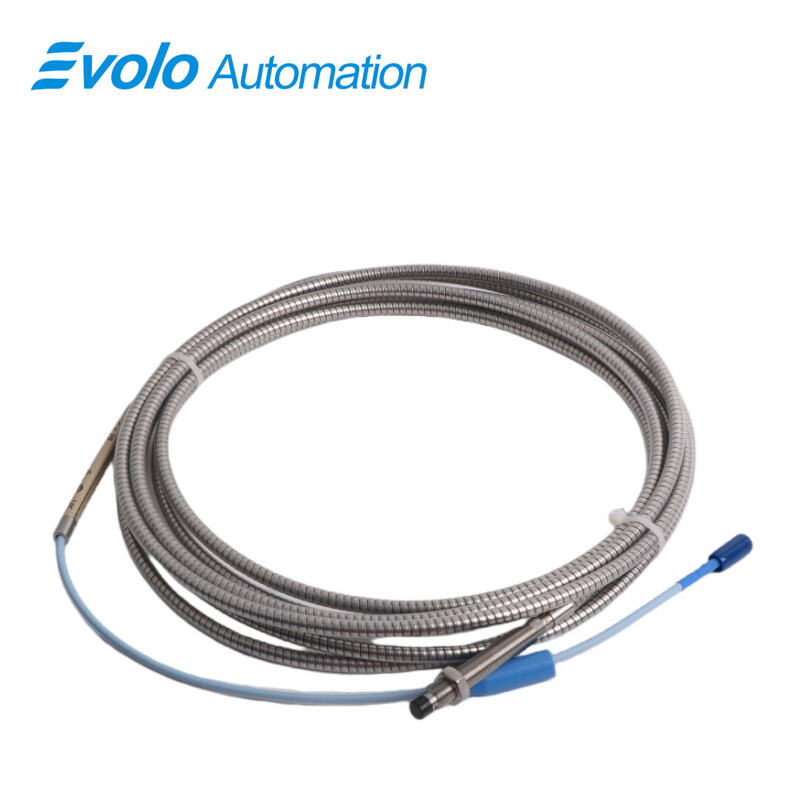

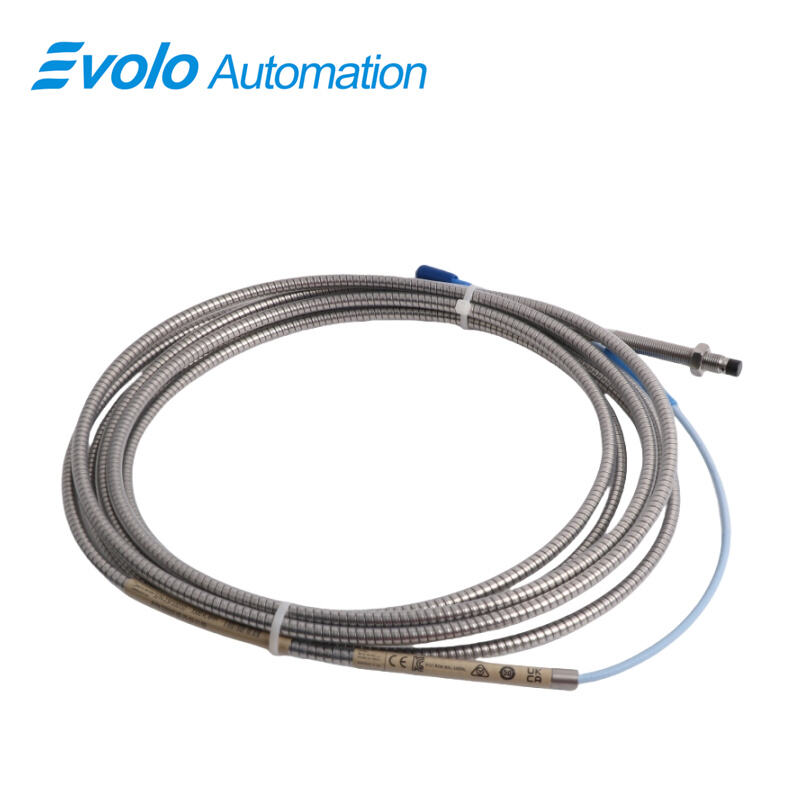

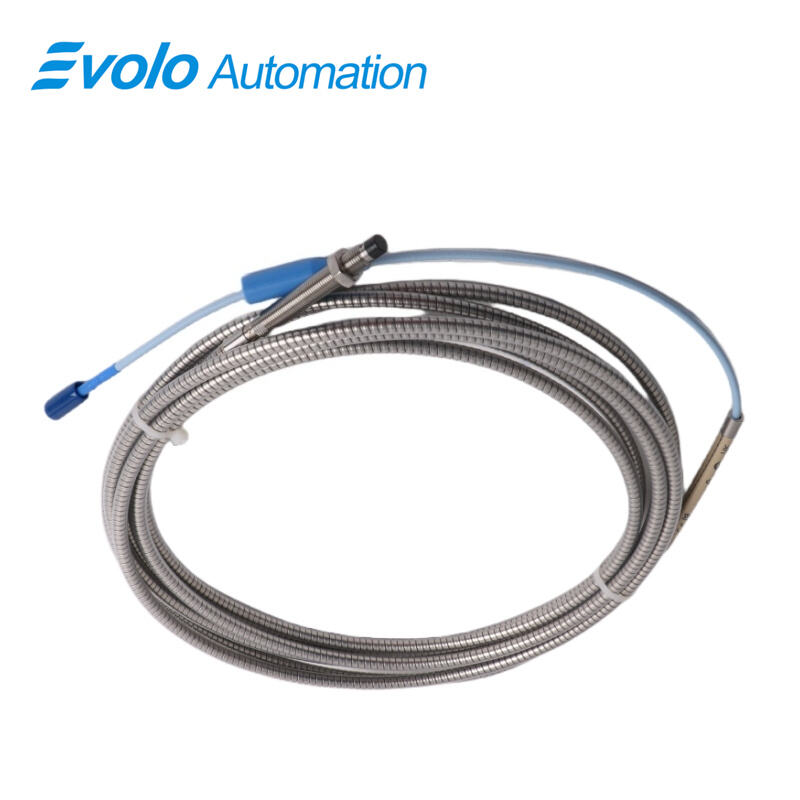

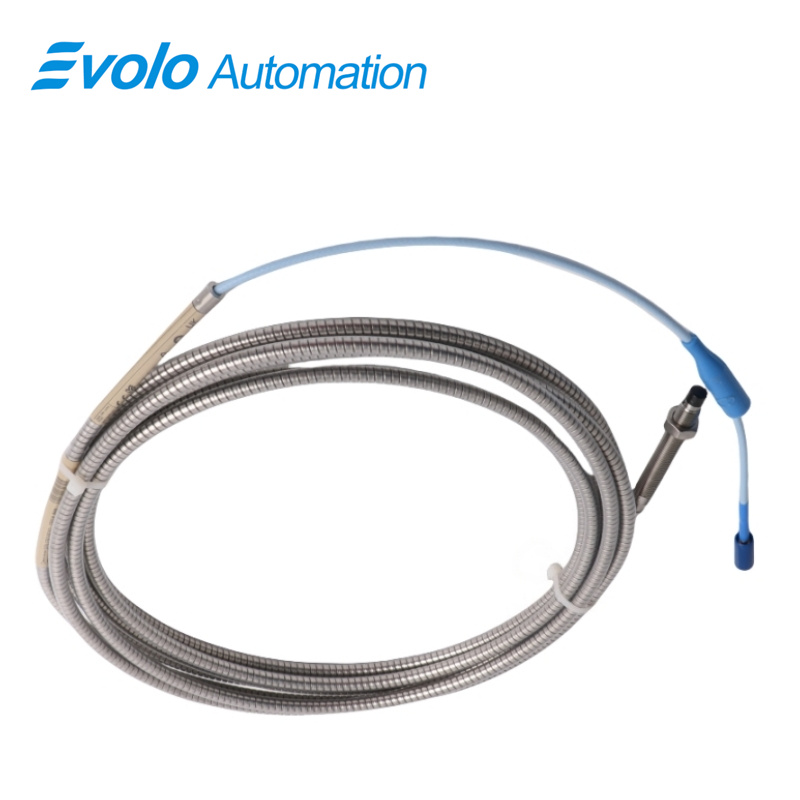

330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-24-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe is designed for automated displacement and vibration measurement in rotating machinery systems. The 330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe converts the distance between the probe tip and a conductive target into a proportional voltage signal, supporting direct input to PLC, DCS, and condition monitoring systems. With a linear range of 2 mm (80 mils), the 330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe supports precise shaft position and vibration data acquisition in compressors, turbines, pumps, and motors.

The 330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe features a compact 2.4 in case length and a 3/8-24 UNF threaded housing for installation in restricted mounting locations. A 1.0 meter standard cable with a miniature coaxial ClickLoc connector enables secure signal transmission with typical capacitance of 69.9 pF/m. Operating from -52°C to +177°C, the 330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe supports automated monitoring in high-temperature bearing housings. Low supply sensitivity below 2 mV/V and a 50 Ω output resistance help maintain signal accuracy in multi-channel automation architectures.

Applications

Shaft vibration monitoring in turbine automation systems
The 330102-00-24-10-02-00 measures dynamic shaft vibration within a 2 mm linear range, allowing automation systems to detect vibration amplitude changes in steam and gas turbines using fluid-film bearings. The controlled 50 Ω output of 330102-00-24-10-02-00 supports stable signal transmission to protection monitors.

Axial shaft position measurement for thrust bearing protection
Using its defined probe geometry and 1.0 meter total length, 330102-00-24-10-02-00 tracks axial displacement of rotating shafts to prevent thrust bearing contact during load changes. The wide operating temperature range of 330102-00-24-10-02-00 allows installation near high-temperature bearing housings.

Radial displacement detection in compressors and pumps
The 330102-00-24-10-02-00 detects radial shaft movement in centrifugal compressors and pumps, supporting automated shutdown logic when displacement exceeds configured limits. The typical extension cable capacitance of 69.9 pF/m allows predictable signal scaling when 330102-00-24-10-02-00 is used with longer cable runs.

Speed and phase reference input for machinery protection systems
Installed in proximity reference applications, 330102-00-24-10-02-00 provides repeatable signal output for speed calculation and phase reference functions. Low supply sensitivity below 2 mV/V allows 330102-00-24-10-02-00 to maintain consistent output during power variation.

Specifications

Competitive Advantage

Wide temperature operation for hot bearing zones
The 330102-00-24-10-02-00 operates from -52°C to +177°C, enabling direct installation near turbine bearings, compressor casings, and high-temperature process equipment without relocating sensors.

Defined electrical output for long cable installations
With a 50 Ω output resistance and controlled cable capacitance of 69.9 pF/m, 330102-00-24-10-02-00 delivers predictable signal behavior across different automation cabinet distances.

Compact threaded probe design for precise mounting
The 3/8-24 UNF thread and maximum engagement length of 0.563 inches allow 330102-00-24-10-02-00 to be mounted accurately in limited mechanical space while maintaining correct probe gap.

Low supply sensitivity to reduce measurement deviation
Supply sensitivity below 2 mV per volt allows 330102-00-24-10-02-00 to reduce output fluctuation caused by power changes in industrial control systems.
