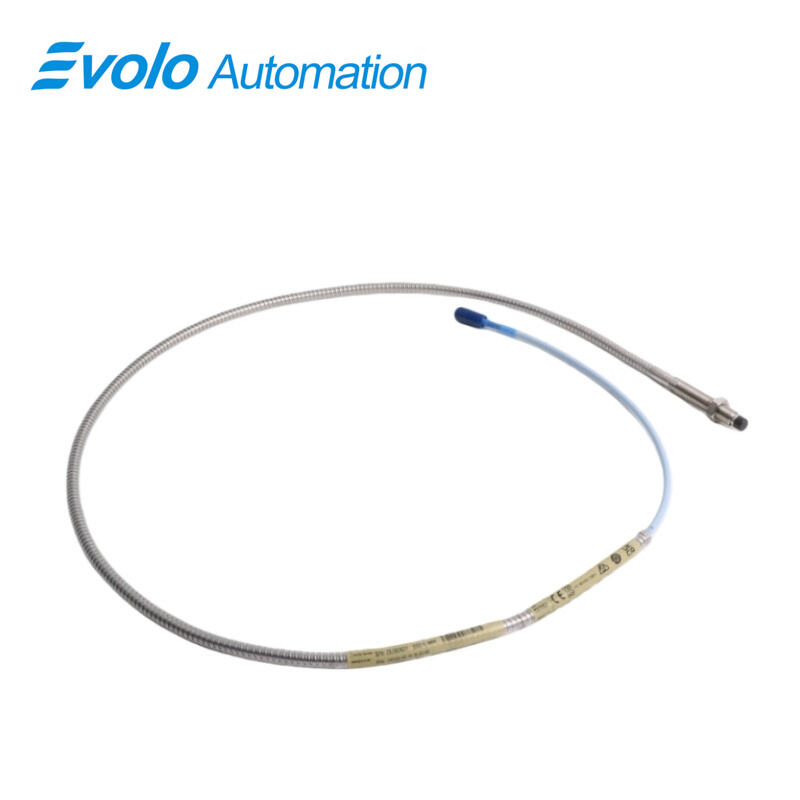

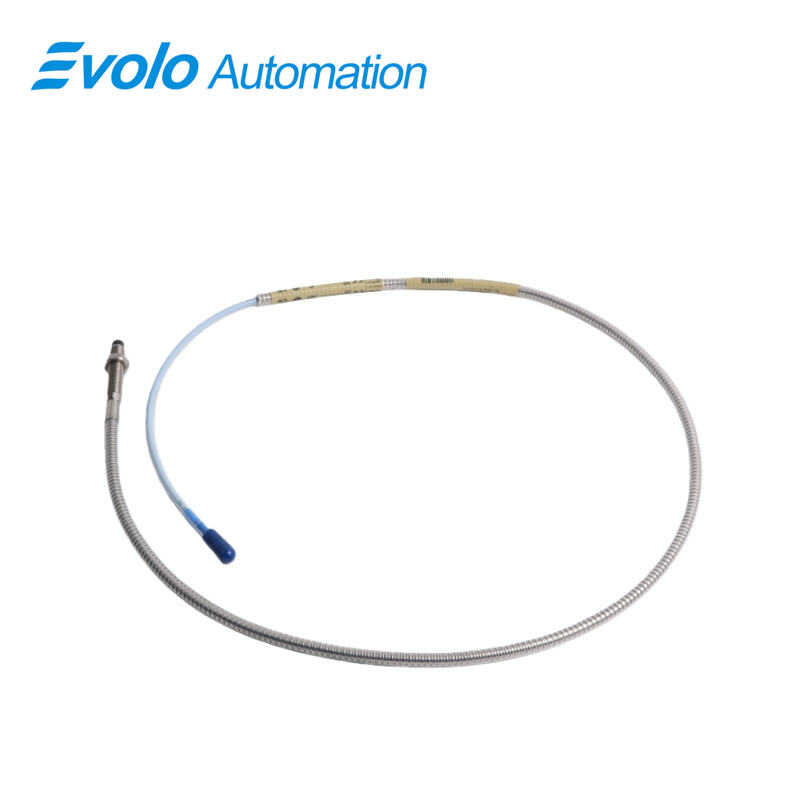

330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-20-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe provides precise vibration and position measurement for fluid-film bearing machines, enabling Keyphasor reference and speed monitoring in automated systems. This 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe features a 2.0-inch case, 5.0-meter (16.4 feet) miniature coaxial ClickLoc cable, 3/8-24 UNF thread, and linear range of 2 mm (80 mils) with 50 Ω output resistance. Supply sensitivity is less than 2 mV per volt, and field wiring supports 0.2 to 1.5 mm² (16 to 24 AWG). Patented TipLoc molding secures the probe tip, while CableLoc design provides 330 N (75 lb) pull strength for durable connections. Optional FluidLoc cable prevents oil leakage into the interior. The 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe complies with API 670 standards, allows direct integration into existing 3300 series systems, and ensures automated monitoring in tight installation spaces.

Applications

Install Probes in Tight Machine Spaces
The 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe with a 2.0-inch case and 3/8-24 UNF thread allows installation in compressors and fluid-film bearing machines where space is limited. Its 5.0-meter (16.4 feet) cable enables flexible routing.

Measure Radial Vibration on Shafts
Paired with the 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe, operators can monitor radial vibration on shafts, using its 2 mm (80 mils) linear range and 50 Ω output resistance for precise automated measurements.

Capture Axial (Thrust) Position
The 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe supports axial displacement measurement with high accuracy. Supply sensitivity of less than 2 mV per volt ensures reliable readings for vibration and position monitoring systems.

Transmit Keyphasor and Speed Signals
The 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe reliably transmits Keyphasor reference and tachometer signals through its miniature coaxial ClickLoc connector, enabling integration into automated control and monitoring systems.

Upgrade Existing 3300 Series Systems
Technicians can connect the 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe to legacy 3300 series probes and extension cables, allowing stepwise upgrades without replacing monitoring infrastructure.

Specifications

Competitive Advantage

Protect Probe in Harsh Industrial Environments
The 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C (-62°F to +350°F), making it suitable for high-temperature or cold machinery environments.

Secure Probe and Cable Connections Quickly
Patented TipLoc molding and CableLoc design on the 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe provide 330 N (75 lb) pull strength, allowing installers to lock probe and cable together efficiently.

Prevent Fluid Leakage Into Cable
Optional FluidLoc cable for the 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe prevents oil and other liquids from entering the cable interior, ensuring clean signal transmission.

Measure Small Targets Accurately
With a 2 mm linear range and 50 Ω output resistance, the 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probe captures both radial vibration and axial position on compact shafts and flat targets.
