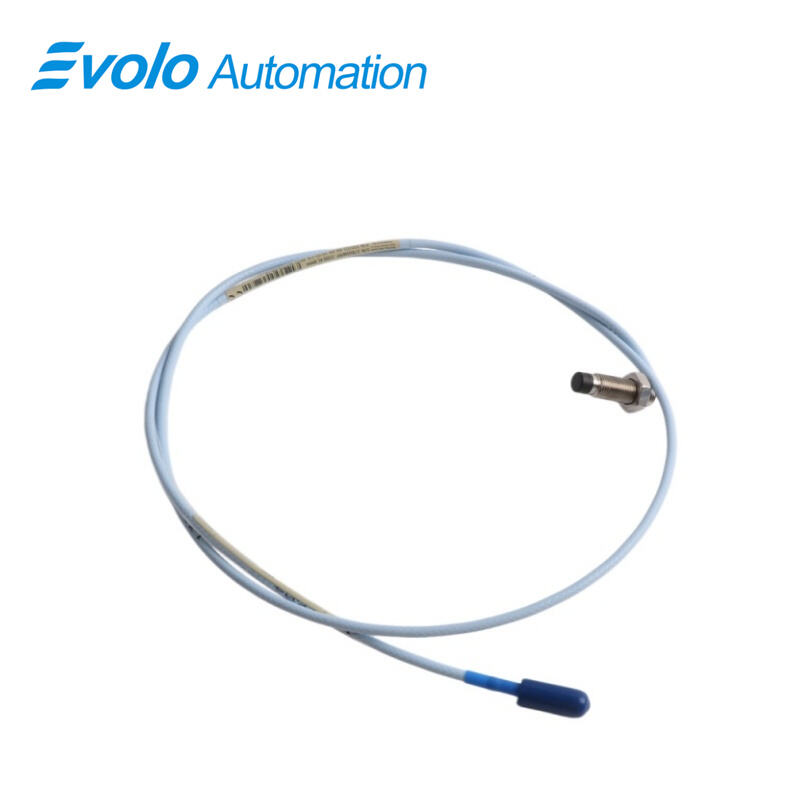

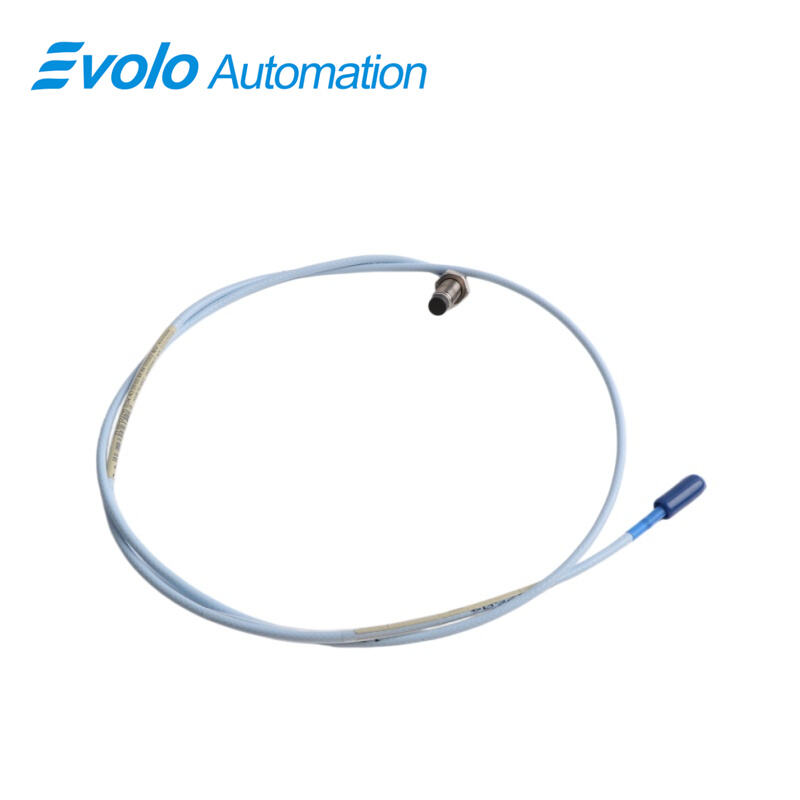

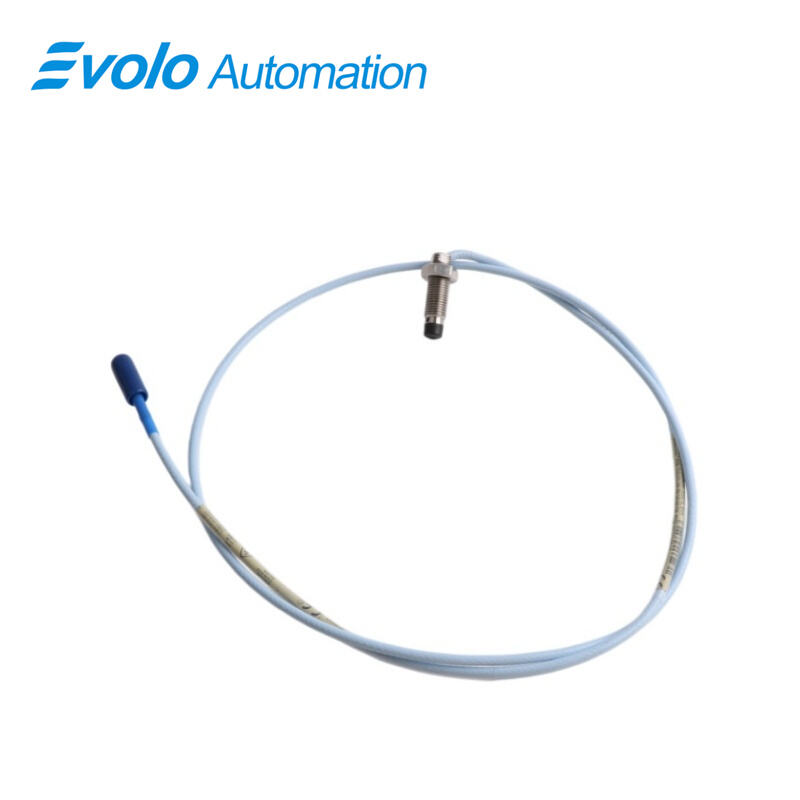

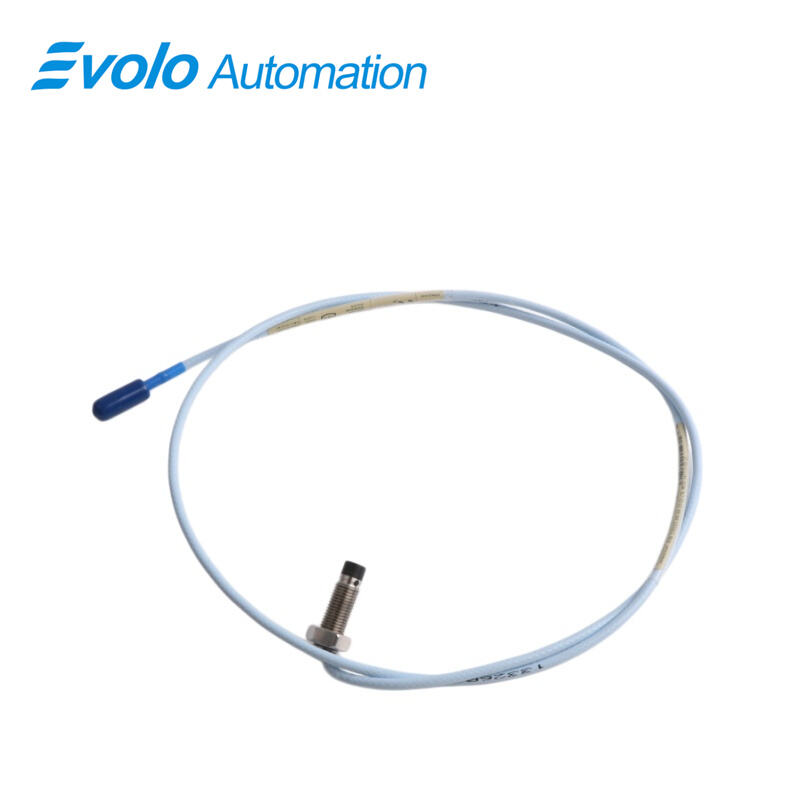

330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-XX-XX-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe provides output voltage proportional to the distance between its 8 mm tip and conductive surfaces, measuring both static position and dynamic vibration. Operating from -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm probe features a 3/8-24 UNF thread with 0.563 in maximum engagement, 50 Ω output resistance, and 2 mm linear range. Its miniature coaxial ClickLoc connector and standard cable with 69.9 pF/m capacitance enable precise signal transmission over 1.0 m total length. The 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe supports Keyphasor reference, shaft vibration, and rotor position monitoring in automated machinery. Optional FluidLoc cables prevent oil or fluid leakage, and all 3300 XL 8 mm components interchange with extension cables and Proximitor sensors, reducing maintenance time while maintaining accurate automation measurements.

Applications

Measure Shaft Vibration in Turbines and Pumps
Use the 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe to capture shaft vibration signals. Its 2 mm linear range and 50 Ω output resistance provide precise measurements for predictive maintenance in automated turbines, compressors, and pumps.

Track Rotor Position in High-Speed Motors
Install the 3300 XL 8 mm probe to monitor rotor position. The 0.563 in thread engagement and 69.9 pF/m cable capacitance maintain accurate voltage signals for automation controllers, enabling precise displacement monitoring.

Generate Keyphasor Pulses for Speed Control
The 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe produces Keyphasor reference pulses with less than 2 mV/V supply sensitivity, supporting speed measurement and synchronization in automated machinery.

Monitor Axial Shaft Movement in Turbines
Use 3300 XL 8 mm probes to detect axial shaft displacement. The 1.0 m total length and high-temperature range ensure accurate automation data even in extreme operating conditions.

Specifications

Competitive Advantage

High-Temperature Output with Minimal Voltage Drift
The 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe operates reliably from -52°C to +177°C with less than 2 mV/V supply sensitivity, keeping measurement signals accurate in automated systems.

Quick Installation with ClickLoc Connector
The miniature coaxial ClickLoc connector and 3/8-24 UNF thread on the 3300 XL 8 mm probe enable fast, secure installation, reducing maintenance downtime in automation lines.

Strong Probe-to-Cable Bond with CableLoc Design
The 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe features CableLoc design with 330 N pull strength, preventing cable detachment during vibration monitoring in automated machinery.

Optional FluidLoc Cable to Prevent Fluid Leaks
Select 3300 XL 8 mm probes with FluidLoc cable to prevent oil or liquid leaks, maintaining clean signal paths for automation controllers.
