330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-XX-XX-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

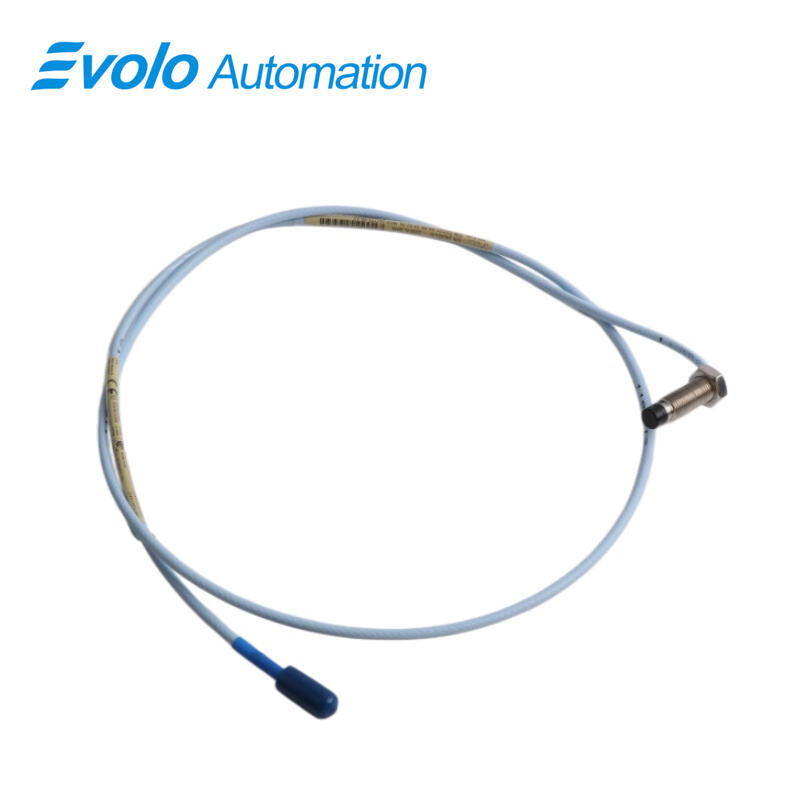

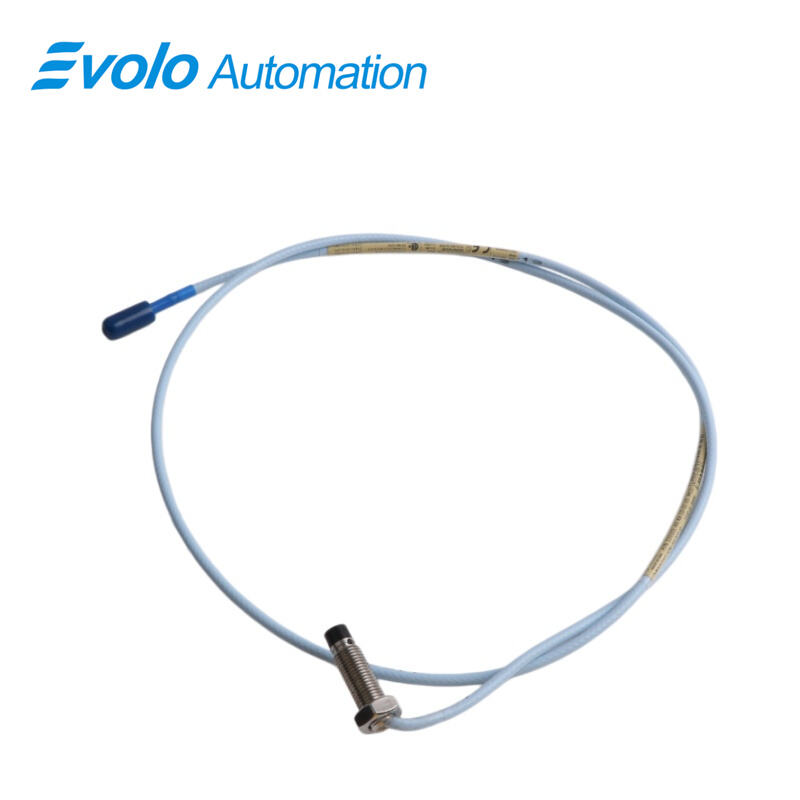

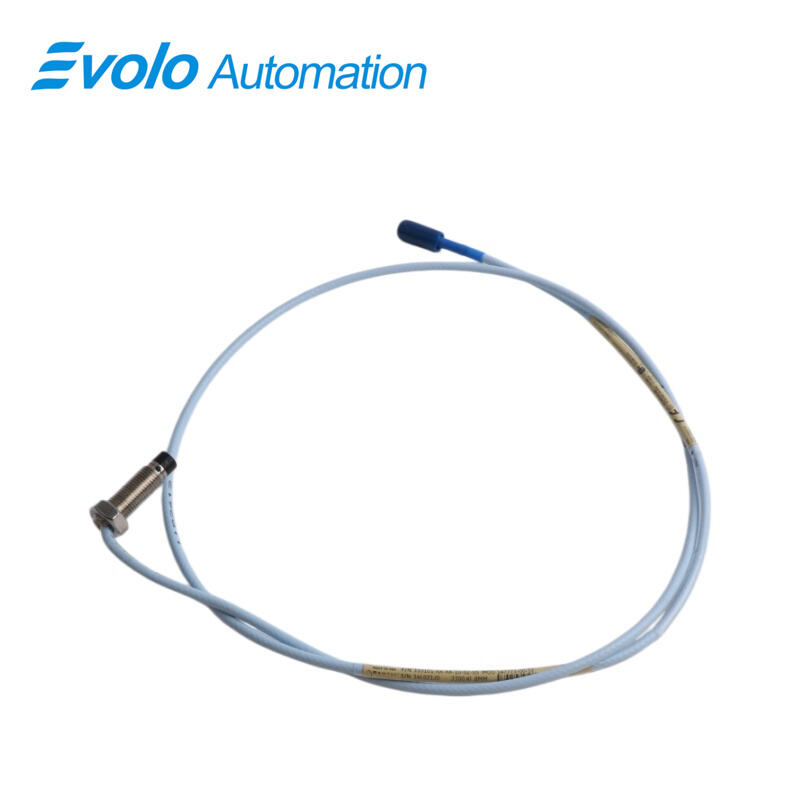

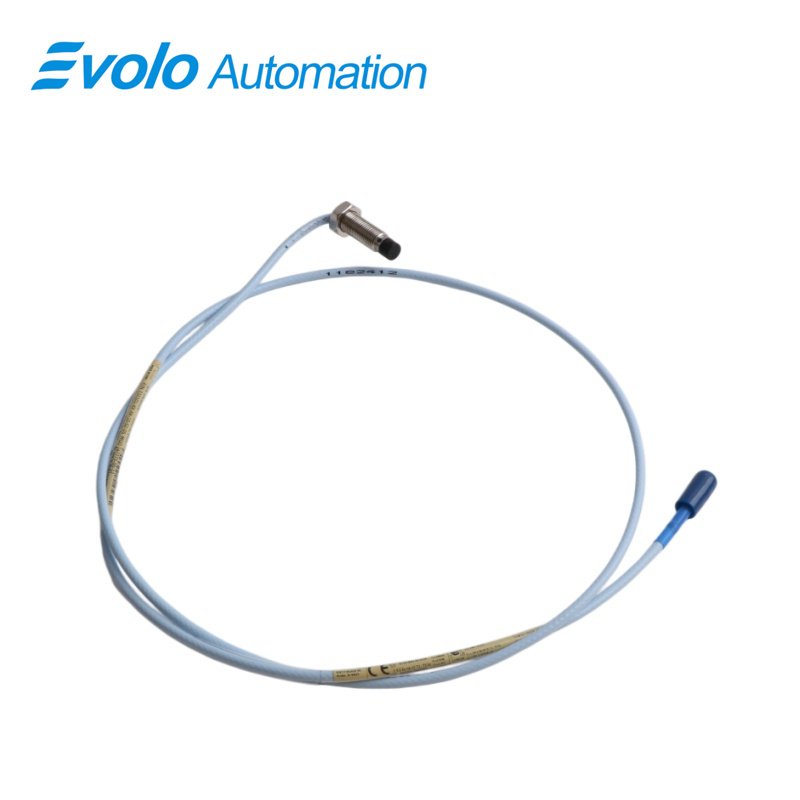

The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe delivers precise output voltage proportional to the distance between its 8 mm probe tip and conductive surfaces, supporting both static position and dynamic vibration measurements. Designed for industrial automation, 330101-XX-XX-10-02-05 operate from -52°C to +177°C (-62°F to +350°F) and feature a 3/8-24 UNF thread with 0.563 in maximum engagement. The system includes a miniature coaxial ClickLoc connector, standard cable with 69.9 pF/m capacitance, and 50 Ω output resistance. Linear range is 2 mm (80 mils) with supply sensitivity under 2 mV/V. 330101-XX-XX-10-02-05 are ideal for Keyphasor, speed, and vibration monitoring in fluid-film bearing machines. All 330101-XX-XX-10-02-05 components comply with CSA, ATEX, and IECEx approvals and fully interchange with extension cables and Proximitor sensors. Optional FluidLoc cable prevents oil leakage, ensuring automation reliability without bench calibration.

Applications

Measure Shaft Vibration in Fluid-Film Bearings
The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe captures vibration in shafts by producing an output voltage proportional to shaft displacement. With a 2 mm (80 mils) linear range and 50 Ω output resistance, the 3300 XL 8 mm ensures precise monitoring of turbines, compressors, and pumps in automation systems. Its -52°C to +177°C (-62°F to +350°F) temperature range supports extreme operational conditions without signal drift.

Track Rotor Position in High-Speed Machines
Install 3300 XL 8 mm probes to track rotor position with high accuracy. The 0.563 in maximum thread engagement and miniature coaxial ClickLoc connector allow repeatable installation, while the 69.9 pF/m cable capacitance maintains consistent signal over distances. The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe translates micrometer-scale movements into measurable output voltage for automation controllers.

Detect Keyphasor Signals for Speed Monitoring
The 3300 XL 8 mm probe generates Keyphasor pulses with less than 2 mV/V supply sensitivity, ensuring precise speed measurement in high-speed rotating equipment. The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe linear range of 2 mm enables accurate detection of angular position and timing for automated machinery.

Measure Axial Movement in Turbine Shafts
Use the 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe to detect axial shaft displacement. Its 50 Ω output resistance and extension cable capacitance of 69.9 pF/m support signal integrity over long cable runs in automation systems. Operating up to 177°C, the 3300 XL 8 mm performs under extreme temperature fluctuations, enabling precise shaft monitoring without recalibration.

Specifications

Competitive Advantage

High-Temperature Operation Without Output Drift
The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe maintains output voltage with less than 2 mV/V change across -52°C to +177°C (-62°F to +350°F), ensuring measurement accuracy in harsh industrial automation environments.

Quick Probe Installation with ClickLoc Connector
With a miniature coaxial ClickLoc connector and 3/8-24 UNF thread, the 3300 XL 8 mm probe installs securely in under a minute. The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe allows automation teams to reduce downtime during maintenance or replacement.

Strong Probe-to-Cable Bond with CableLoc Design
The 3300 XL 8 mm features CableLoc with 330 N pull strength, providing reliable attachment between probe and cable. The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe prevents accidental disconnection in dynamic industrial operations.

Optional FluidLoc Cable to Prevent Fluid Leaks
Select 3300 XL 8 mm probes with FluidLoc cable to block oil or fluid from entering the probe housing. The 330101-XX-XX-10-02-05 3300 XL 8 mm Proximity Probe reduces contamination risks in automated lubrication or hydraulic systems.
