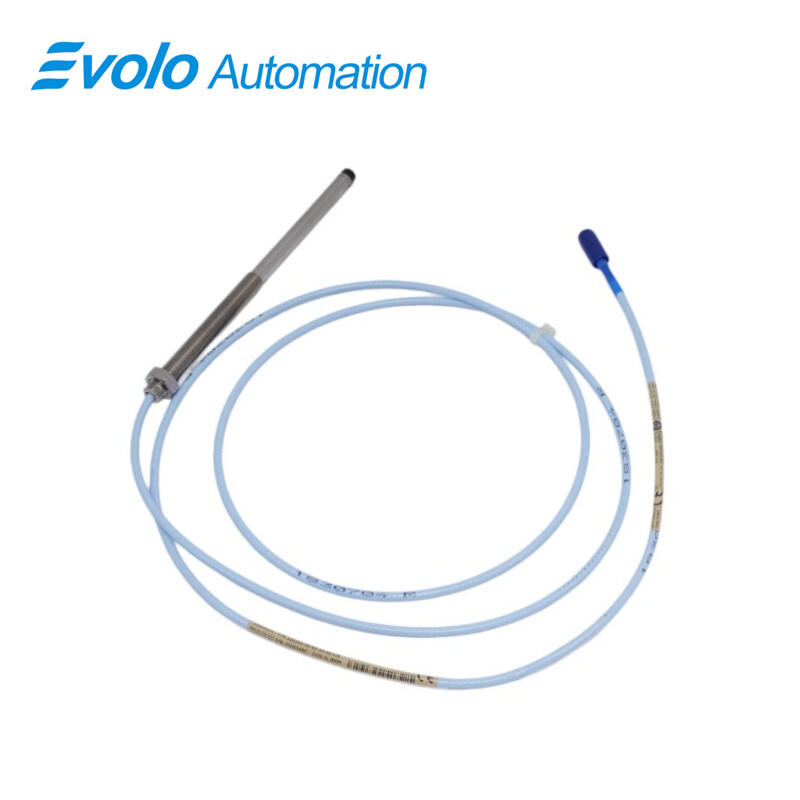

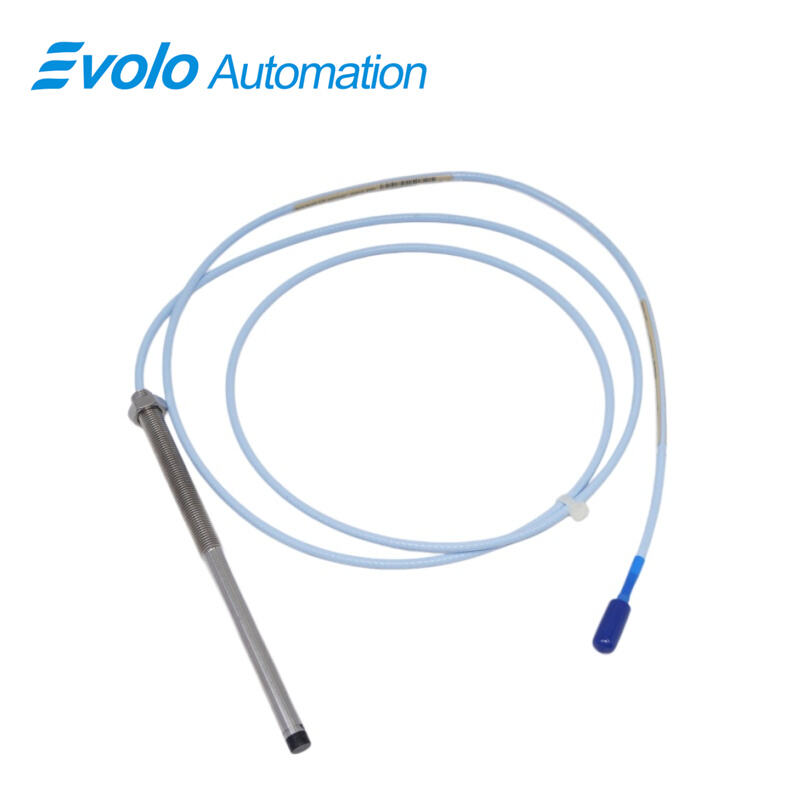

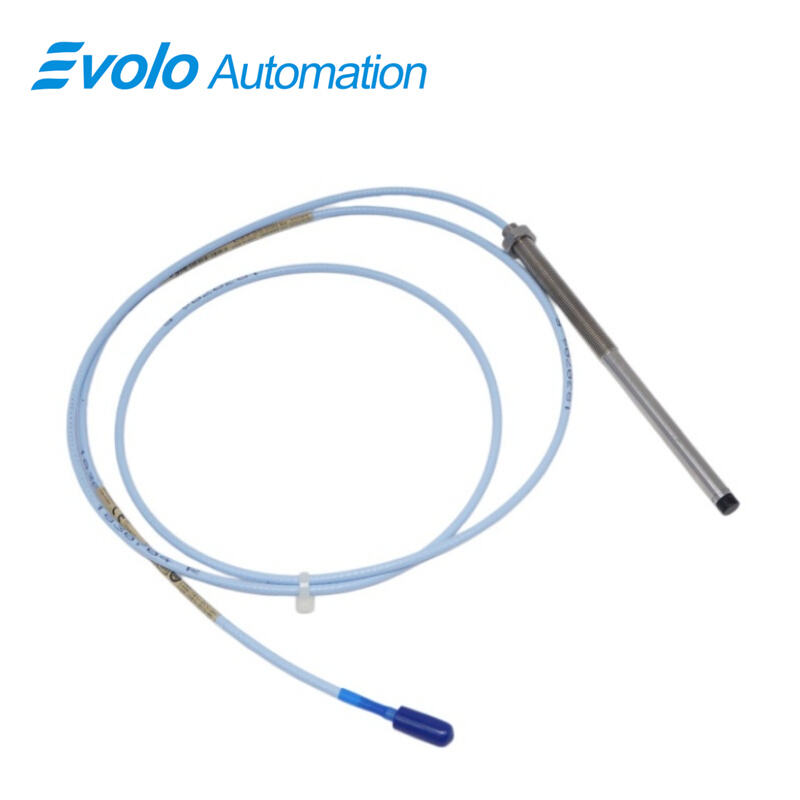

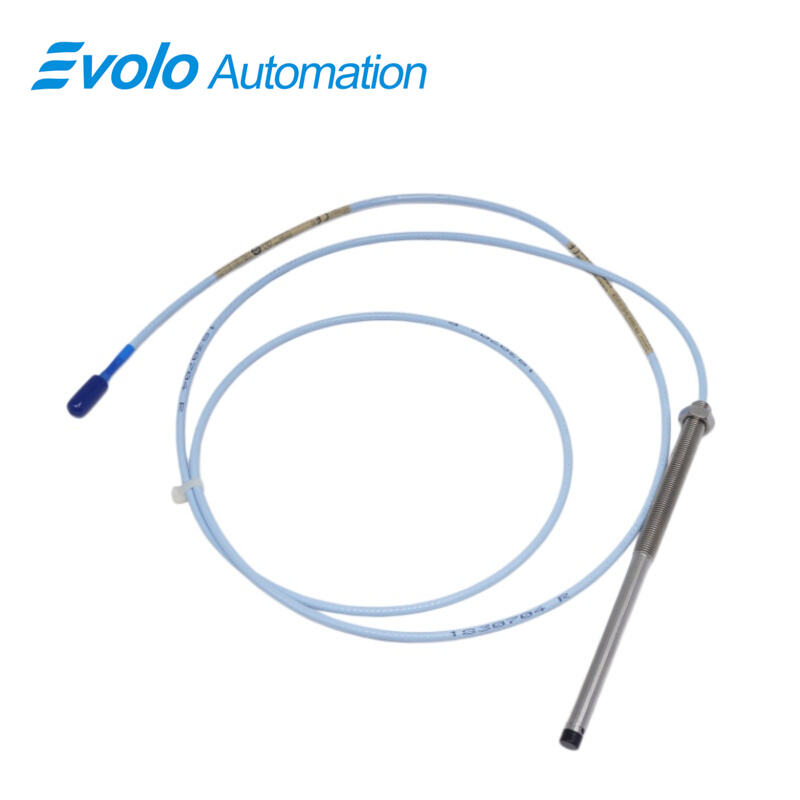

330101-30-63-15-02-CN 3300 XL 8 mm Proximity Probes , China 330101-30-63-15-02-CN 3300 XL 8 mm Proximity Probes Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-63-15-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Unthreaded Length Option(Minimum unthreaded length):	3.0 in
Overall Case Length Option(Minimum case length):	6.3 in
Total Length Option:	1.5 meter (4.9 feet)
Connector and Cable-Type Option:	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option:	CSA, ATEX, IECEx Approvals
Probe Case Thread:	3/8-24 UNF thread
Maximum Length of Thread Engagement:	0.563 in
Dimension:	22x20x2cm
Weight:	0.12kg

Description

The 330101-30-63-15-02-CN 3300 XL 8 mm Proximity Probe is designed for automated monitoring in high-temperature and hazardous areas with CSA, ATEX, and IECEx certifications. Its 3.0 in unthreaded tip and 6.3 in case length allow precise positioning inside deep bearing housings, while the 1.5 meter cable with 69.9 pF/m capacitance transmits clear signals to automation controllers.

The 330101-30-63-15-02-CN converts radial and axial shaft movements into proportional voltage within a 2 mm (80 mils) range. Its 3/8-24 UNF thread with 0.563 in engagement ensures secure mounting, and supply sensitivity under 2 mV/V maintains consistent outputs despite voltage fluctuations. The 330101-30-63-15-02-CN enables Keyphasor pulse generation, rotational speed tracking, and continuous vibration measurement for turbines, pumps, and compressors in automated industrial systems.

Applications

Monitor Radial Vibration in Deep Bearings

The 330101-30-63-15-02-CN has a 6.3 in case and 3.0 in unthreaded tip, allowing placement deep within fluid-film bearings. Its 2 mm (80 mils) linear range converts radial shaft motion into voltage signals for automated vibration tracking in turbines, pumps, and compressors.

Measure Axial Shaft Movement

Equipped with a 3/8-24 UNF thread and 0.563 in engagement, the 330101-30-63-15-02-CN captures axial displacement. The 50 Ω output reliably transmits shaft position data to automation systems.

Generate Rotor Phase Signals

The 330101-30-63-15-02-CN produces Keyphasor pulses by detecting once-per-turn features on shafts, enabling rotor phase and orbit analysis. Supply sensitivity under 2 mV/V ensures accurate pulse output during minor voltage fluctuations.

Track Speed in High-Temperature Equipment

Operating from –52°C to +177°C, the 330101-30-63-15-02-CN measures rotational speed in turbines and compressors. Its 1.5 meter cable with 69.9 pF/m capacitance delivers precise signals to automation controllers.

Specifications

Operating and Storage Temperature:	-52°C to +177°C (-62°F to +350°F)
Supply Sensitivity:	Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance:	50 Ω
Extension Cable Capacitance:	69.9 pF/m (21.3 pF/ft) typical
Field Wiring:	0.2 to 1.5 mm2 (16 to 24 AWG)
Linear Range:	2 mm (80 mils)

Competitive Advantage

Mount Directly in Deep Housings

The 3.0 in unthreaded tip and 6.3 in case allow the 330101-30-63-15-02-CN to reach deep bearing locations without extension parts.

Operate in Extreme Temperatures

The 330101-30-63-15-02-CN functions between –52°C and +177°C, supporting continuous automated monitoring in harsh environments.

Maintain Consistent Voltage Output

With supply sensitivity below 2 mV/V, the 330101-30-63-15-02-CN provides reliable signals despite voltage variations in automation systems.

Transmit Accurate High-Frequency Signals

The 50 Ω output and 69.9 pF/m cable capacitance of the 330101-30-63-15-02-CN ensure precise delivery of vibration and shaft position data to controllers.
