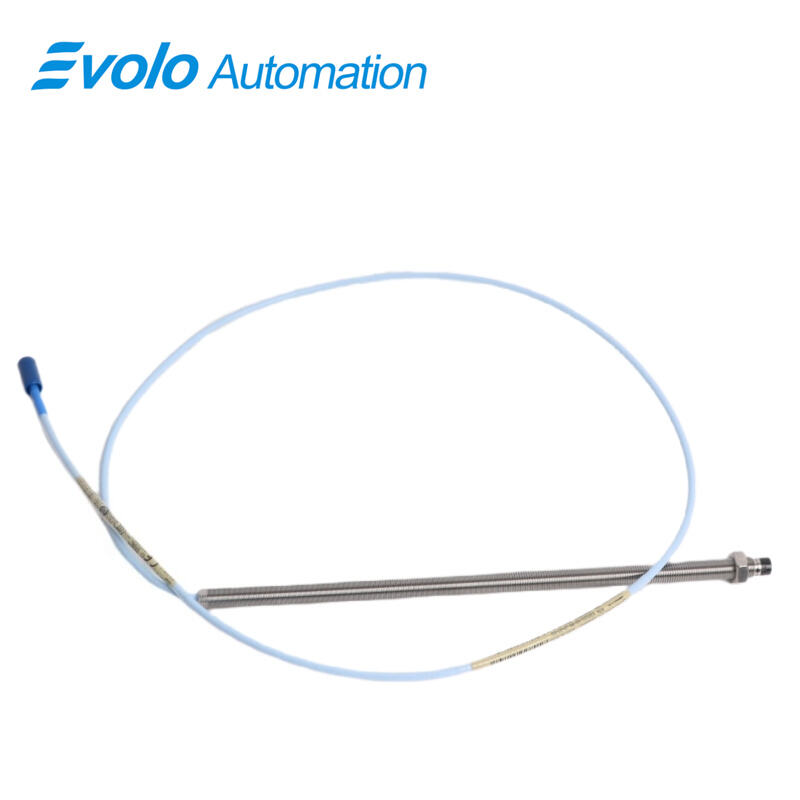

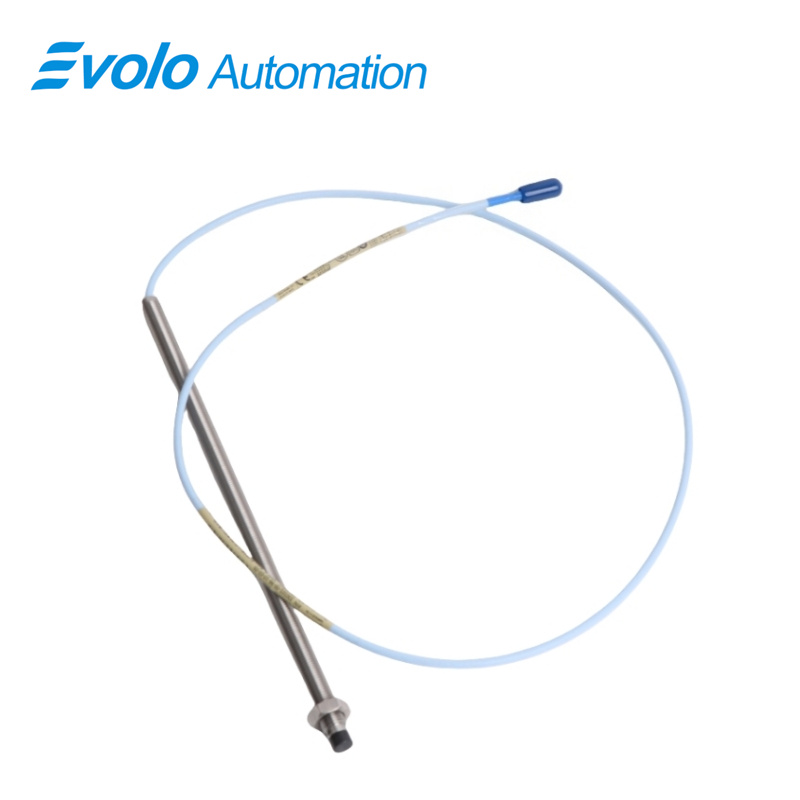

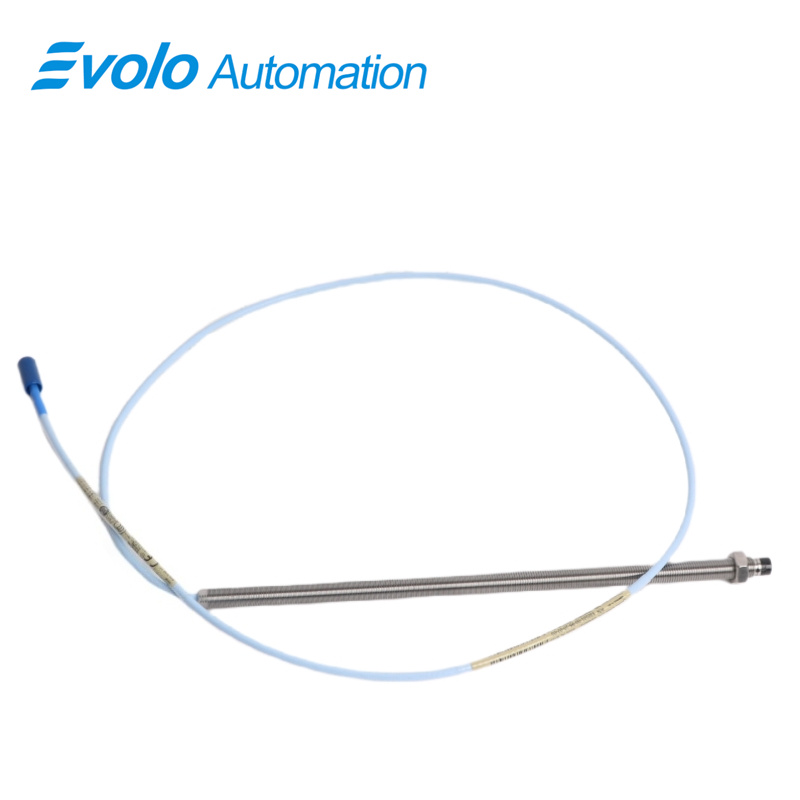

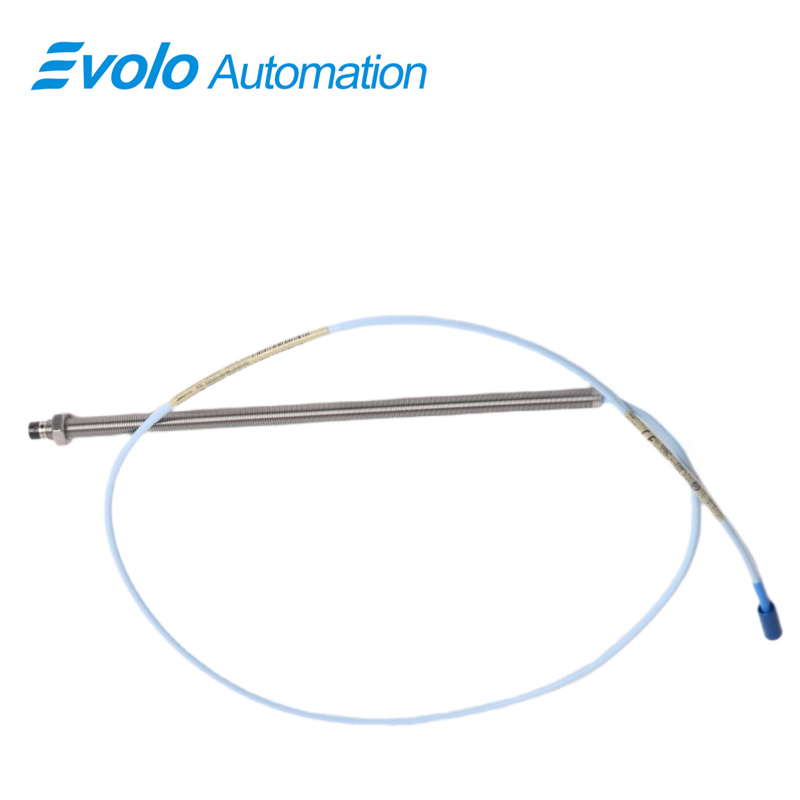

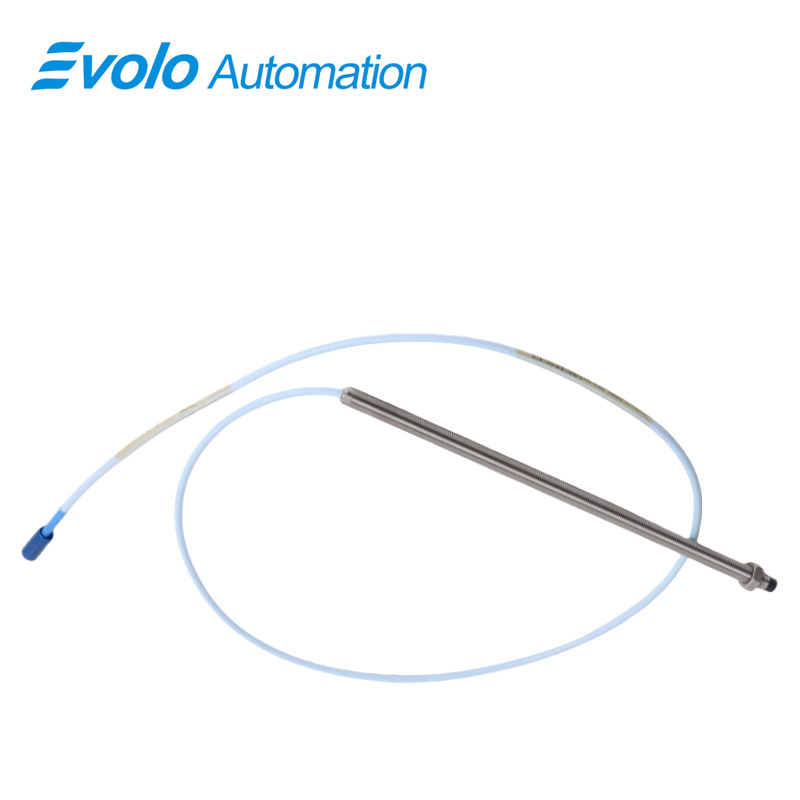

330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-96-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between the probe tip and the measured conductive surface. Designed for automation systems, this probe measures both static shaft positions and dynamic vibrations. With a 2 mm linear range, 50 Ω output resistance, and operating temperature from -52°C to +177°C, the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe supports real-time position monitoring, vibration analysis, and Keyphasor reference signals. The 1-meter standard length, 3/8-24 UNF threaded case, and ClickLoc miniature connector enable secure installation in tight spaces. Extension cable capacitance is 69.9 pF/m, and field wiring supports 16–24 AWG conductors. Optional FluidLoc cables prevent oil ingress, ensuring continuous operation in lubricated machinery. Fully compliant with CSA, ATEX, and IECEx approvals, the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe is interchangeable with other 3300 XL and non-XL series components, allowing integration into existing automated monitoring setups without recalibration. Its CableLoc design provides 330 N pull strength, securing the probe and extension cable for high-vibration industrial applications.

Applications

Shaft Position Monitoring in Fluid-Film Bearing Machines
The 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe measures shaft axial and radial position within a 2 mm linear range, converting displacement into proportional voltage signals. With a 50 Ω output resistance and low supply sensitivity below 2 mV/V, the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe enables continuous position feedback for automated protection systems in turbines, compressors, and large motors.

Vibration Signal Acquisition for Rotating Equipment
Using an operating frequency range suitable for dynamic motion, the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe captures shaft vibration data for real-time vibration trending. The extension cable capacitance of 69.9 pF/m supports accurate signal transmission to monitoring racks in automated condition monitoring platforms.

Speed and Phase Reference Input for Control Systems
Installed with a 3/8-24 UNF threaded case and a 1.0 m cable, the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe provides repeatable reference pulses for speed measurement and phase comparison, supporting closed-loop control logic in automation systems.

Specifications

Competitive Advantage

Operation in Wide Temperature Automation Environments
The 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C, allowing deployment in high-temperature bearing housings and outdoor installations without additional thermal protection hardware.

Secure Mechanical Installation in Limited Mounting Space
With a maximum thread engagement of 0.563 in and an overall case length of 9.6 in, the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe supports deep mounting requirements while maintaining precise probe tip positioning.

Certified Use in Hazardous Automation Areas
CSA, ATEX, and IECEx approvals allow the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe to be installed in explosive or hazardous zones, reducing external barrier requirements in automated monitoring systems.

High Cable Retention Under Machine Vibration
The ClickLoc connector and CableLoc design provide up to 330 N pull strength, ensuring the 330101-00-96-10-02-CN 3300 XL 8 mm Proximity Probe remains connected during continuous vibration and high-speed rotation conditions.
