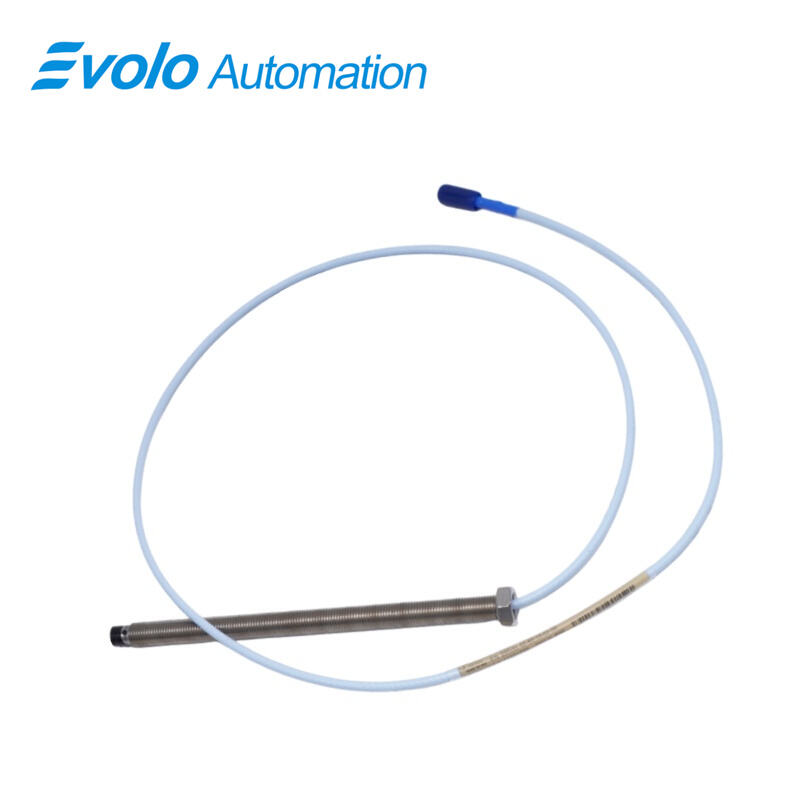

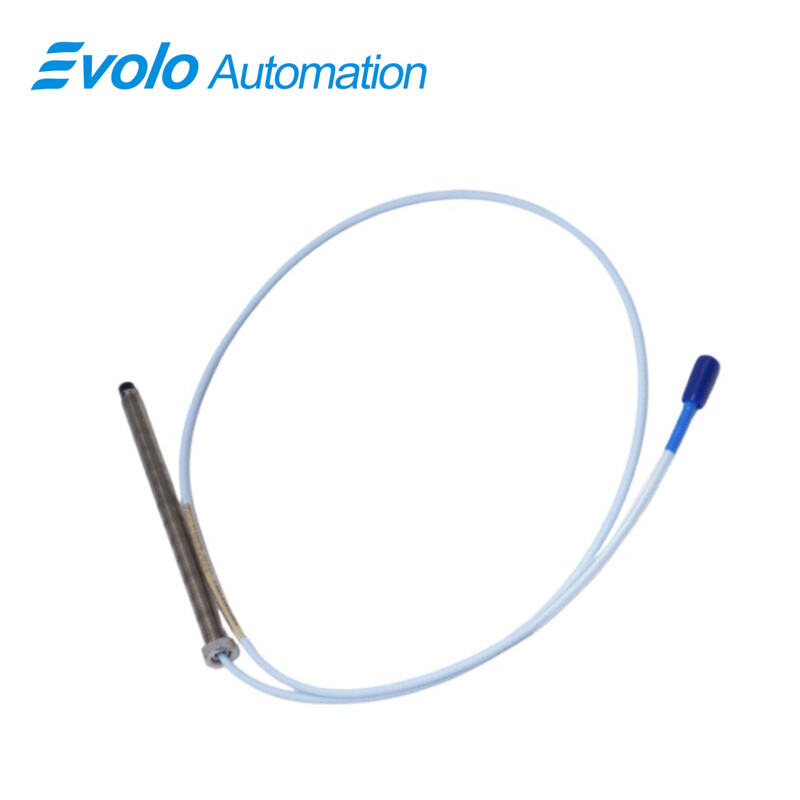

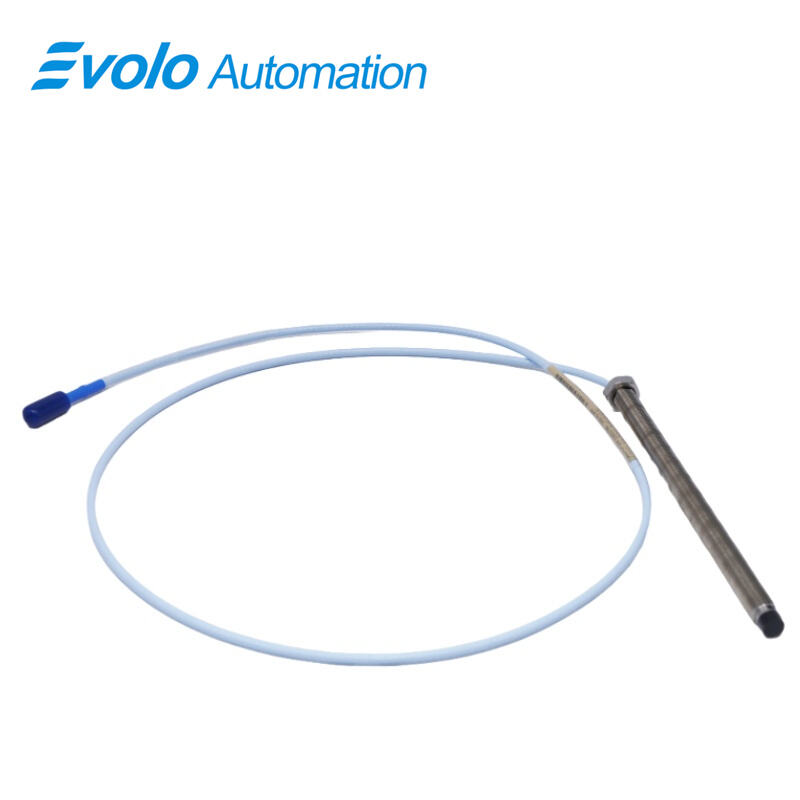

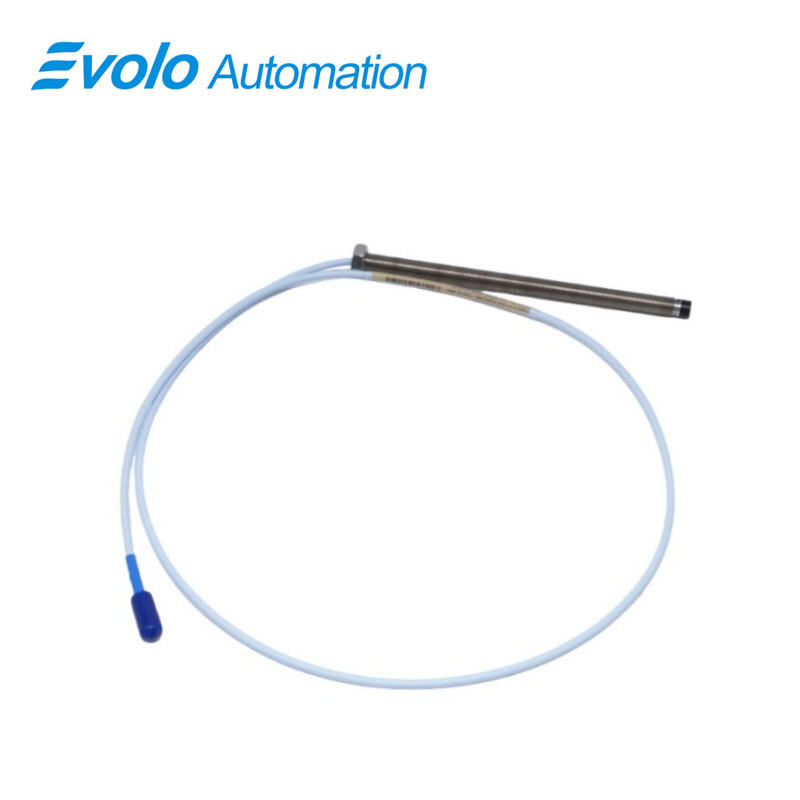

330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-60-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe provides an AC voltage output proportional to the distance between the probe tip and conductive surfaces, allowing precise measurement of both static positions and dynamic vibrations. With a 2 mm linear range and 50 Ω output resistance, the 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe delivers accurate signal transmission over its 1-meter standard cable. Its miniature coaxial ClickLoc connector with protector enables fast, secure installation in automated systems, while the 3/8-24 UNF thread with 0.563 in engagement ensures consistent mounting. The extension cable’s 69.9 pF/m capacitance and 0.2–1.5 mm² field wiring support reliable integration with Proximitor sensors and PLC or DCS platforms. Operating from -52°C to +177°C, the 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe is suitable for vibration and position monitoring on fluid-film bearings, generating Keyphasor signals, and feeding real-time data into automated condition monitoring systems. Optional FluidLoc cables prevent oil or liquid ingress, maintaining signal integrity during machine operation. Each 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe combines patented TipLoc and CableLoc designs, providing 330 N pull strength to secure probe and cable connections in automated industrial environments.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe measures dynamic vibration signals with a 2 mm linear range and 10 Hz–10 kHz frequency response, feeding real-time data to automated condition monitoring systems to detect misalignment, imbalance, or bearing wear.

Position Tracking in Rotating Machinery
Using its AC voltage output and 50 Ω output resistance, the 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe tracks shaft position and displacement, providing critical feedback for PLC and DCS-based automation loops.

Keyphasor Signal Generation
The 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe delivers precise Keyphasor timing signals for speed and phase reference applications in turbines and compressors, ensuring synchronized data collection for automated performance monitoring.

Integration with Automated Systems
With its miniature coaxial ClickLoc connector, 1-meter standard cable, and 0.2–1.5 mm² field wiring compatibility, the 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe can be directly interfaced with Proximitor sensors and industrial control systems for automated machinery monitoring.

Specifications

Competitive Advantage

Extended Operating Temperature Range
The 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe functions reliably from -52°C to +177°C, enabling use in extreme industrial automation environments without the need for additional protective equipment.

High Mechanical Pull Strength
Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring the 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe maintains secure mounting and cable attachment in high-vibration automated machinery.

Short Linear Range with High Accuracy
With a 2 mm linear range and less than 2 mV change in output per volt input variation, the 330101-00-60-10-01-00 3300 XL 8 mm Proximity Probe ensures precise distance measurements suitable for automated feedback and control loops.
