Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-36-10-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
3.6 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
112.3x1.5x1.5cm |
|
Weight: |
0.08kg |
Description

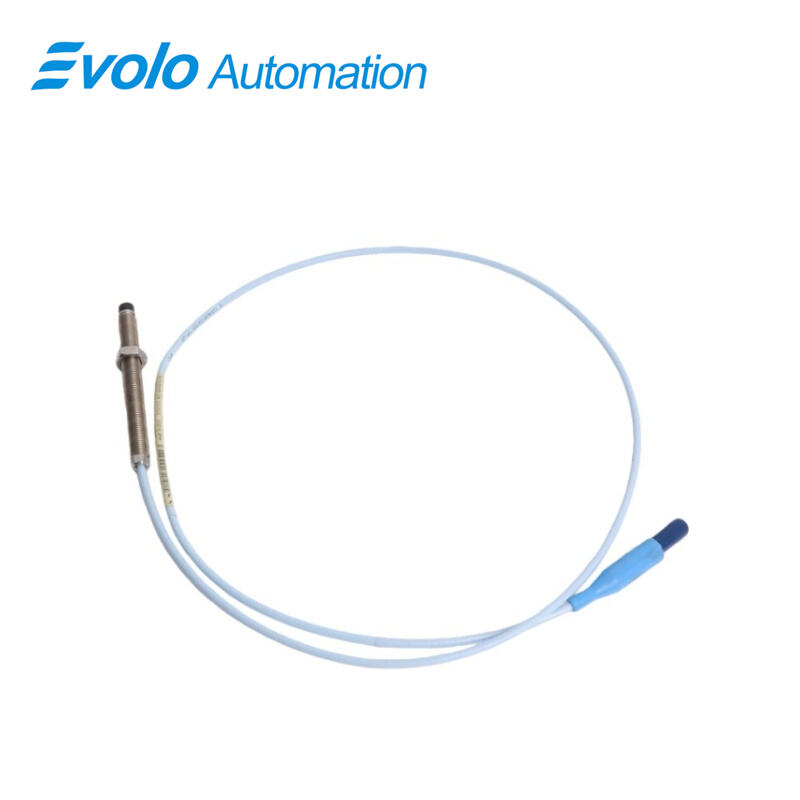

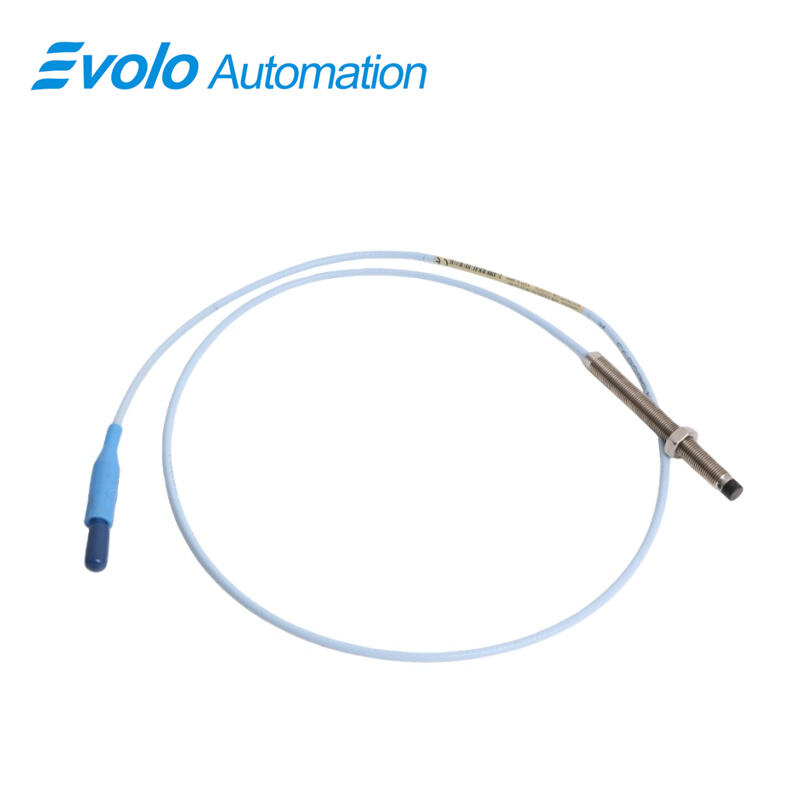

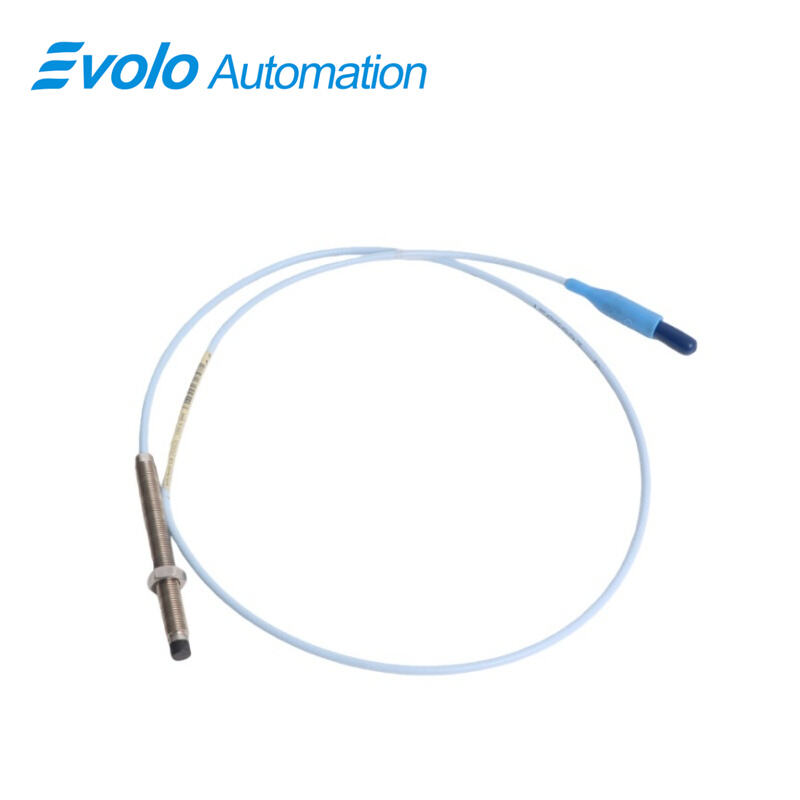

The 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe provides precise distance measurement between the probe tip and conductive surfaces, capturing both static (position) and dynamic (vibration) signals. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe supports fluid-film bearing monitoring, rotor position tracking, and Keyphasor pulse generation. The probe features a 3/8-24 UNF threaded case, miniature ClickLoc connector with protector, and 1-meter standard cable, compatible with field wiring 0.2–1.5 mm² (16–24 AWG). Operating temperatures range from -52°C to +177°C (-62°F to +350°F). Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil or liquid ingress. The 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe is fully interchangeable with other 3300 series probes and Proximitor sensors, enabling rapid integration in automated systems without bench calibration.
Applications
Vibration Monitoring on Industrial Bearings
Use the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe to track rotor vibrations in fluid-film bearings, measuring displacements up to 2 mm.
Rotor Position Feedback
Measure rotor shaft position in high-speed machinery with the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe, using its 50 Ω output for automated control systems.
Keyphasor Signal Generation
Generate accurate Keyphasor pulses with the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe, supporting synchronization in turbines and motors.
API 670-Compliant Automation Systems
Install the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe in systems requiring linear range and mechanical configuration compliance per API 670 standards.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe and Cable Attachment
The 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe features CableLoc design with 330 N pull strength, preventing cable dislodgement during high-speed operation.
Fluid Protection Option
Optional FluidLoc cable for the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe prevents oil and liquid ingress, protecting measurements in automated machinery.
Rapid Component Interchange
Fully compatible with 3300 series probes and Proximitor sensors, the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe reduces downtime by eliminating bench calibration.
Compact Industrial Installation
With a 3.6-inch case, ClickLoc connector with protector, and 1-meter cable, the 330101-00-36-10-01-00 3300 XL 8 mm Proximity Probe fits tight installation spaces while maintaining precise measurement output.
