Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-32-05-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
3.2 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.8x1.6x122cm |
|
Weight: |
0.08kg |
Description

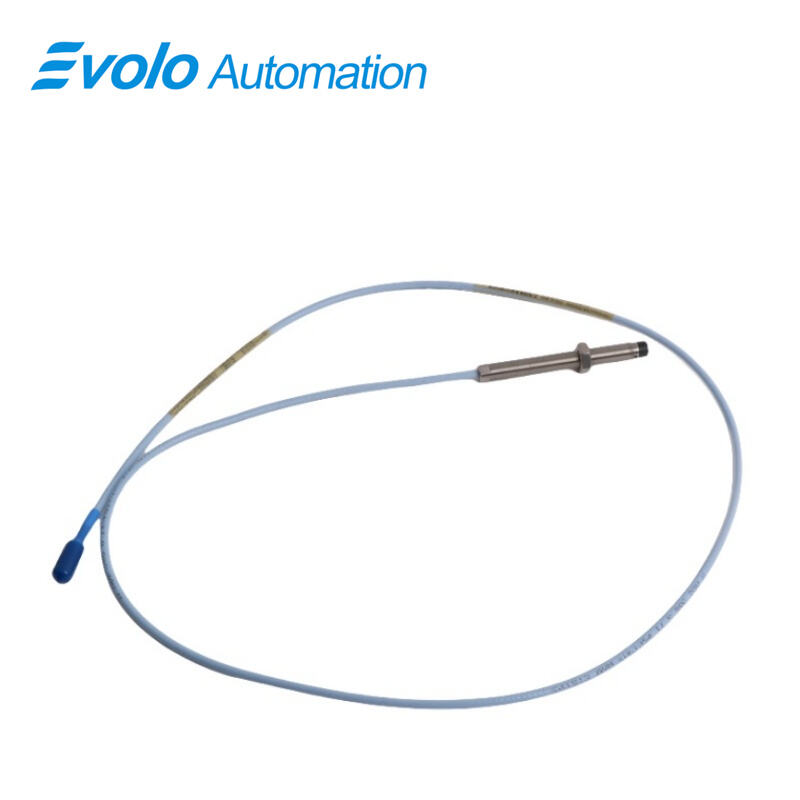

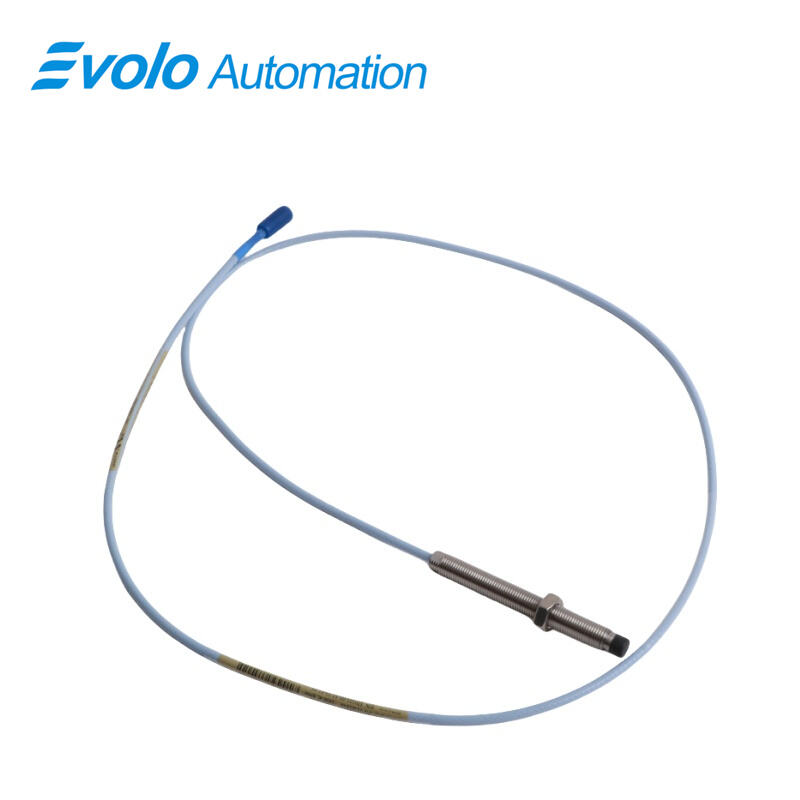

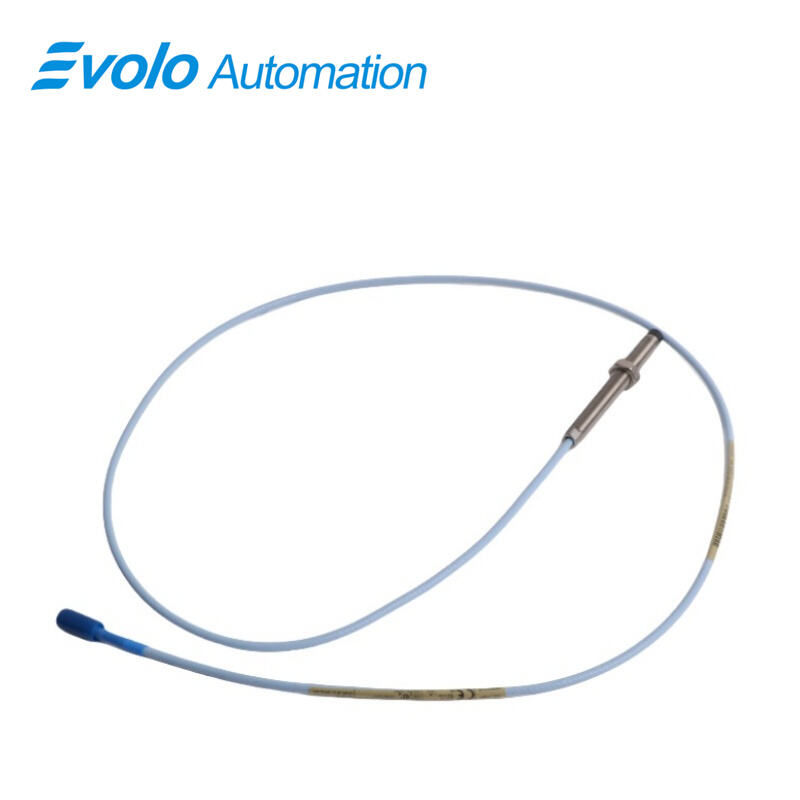

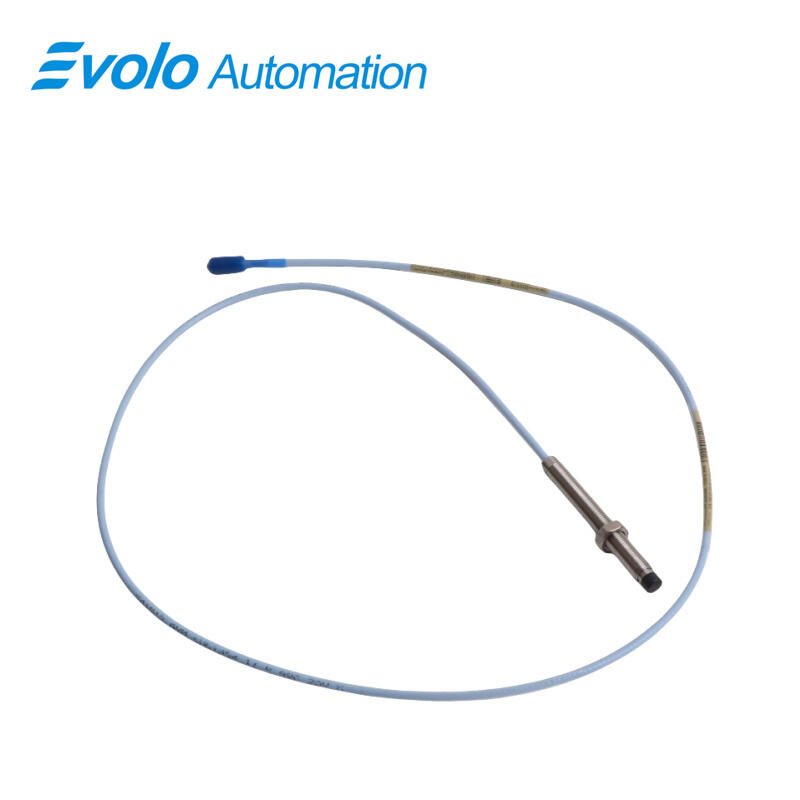

The 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe provides precise measurement of distance between the probe tip and conductive surfaces, supporting both static position and dynamic vibration detection. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, it delivers accurate readings for fluid-film bearing machines and rotor monitoring. The probe features a 3/8-24 UNF threaded case, ClickLoc miniature coaxial connector, and 0.5-meter standard cable with 69.9 pF/m capacitance. Operating temperature ranges from -52°C to +177°C (-62°F to +350°F) while field wiring supports 0.2–1.5 mm² (16–24 AWG). The 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe is fully interchangeable with 3300 series extension cables and Proximitor sensors, enabling fast installation without bench calibration. Patented TipLoc and CableLoc designs provide 330 N pull strength to secure probe and cable, while the optional FluidLoc cable prevents oil ingress during high-speed rotation. The 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe ensures reliable Keyphasor pulse generation, speed measurement, and API 670-compliant mechanical configuration in industrial automation systems.
Applications
Vibration Measurement on Bearings
Use the 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe to monitor rotor vibration in fluid-film bearing machines, detecting small displacements up to 2 mm (80 mils) in high-speed industrial motors.
Position Detection for Rotors
Install the 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe to measure rotor shaft position accurately, leveraging the 50 Ω output and high-frequency response for real-time automation feedback.
Keyphasor Pulse Generation
Integrate the 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe with speed measurement systems to provide precise Keyphasor pulses, supporting synchronization in turbine and generator control.
API 670-Compliant Systems
Deploy the 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe in systems requiring mechanical configuration and linear range compliance per API 670 standards, ensuring automated monitoring meets industrial requirements.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Pull Strength Probe Attachment
The 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe features a patented CableLoc design providing 330 N (75 lbf) pull strength, preventing cable dislodgement during high-speed operation.
Fluid Containment Option
Optional FluidLoc cable in the 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe prevents oil and liquids from entering the probe cable interior, protecting sensitive components during automated machine operation.
Quick Interchangeability
The 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe allows seamless interchange with 3300 series extension cables and Proximitor sensors, eliminating the need for bench calibration and reducing downtime in automated systems.
Compact and Robust Design
The 0.5-meter cable, miniature ClickLoc connector, and 3/8-24 UNF threaded case of the 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probe facilitate tight installation spaces in automation machinery while maintaining high measurement accuracy.
