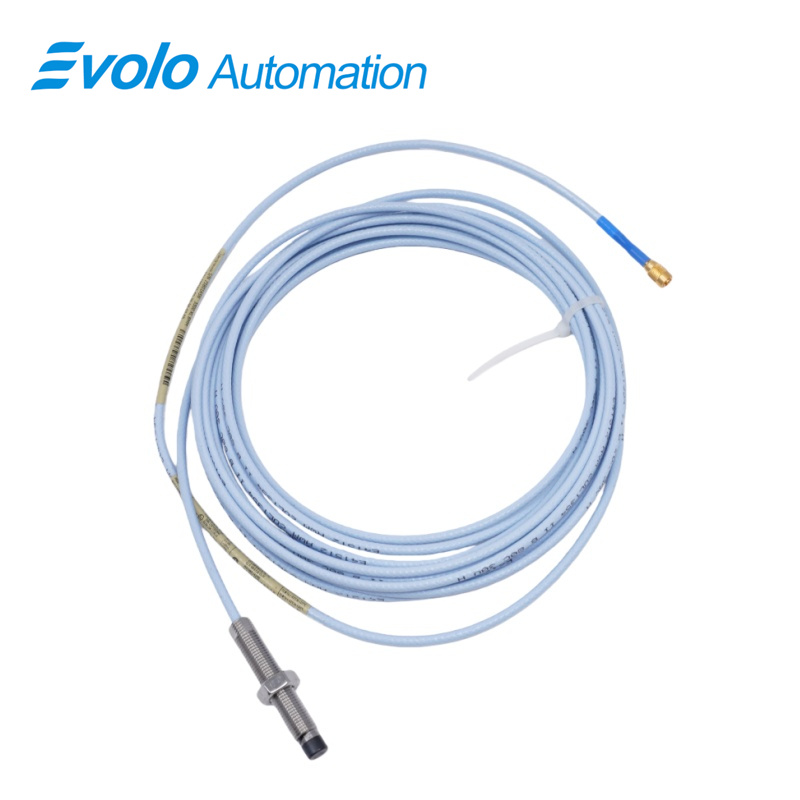

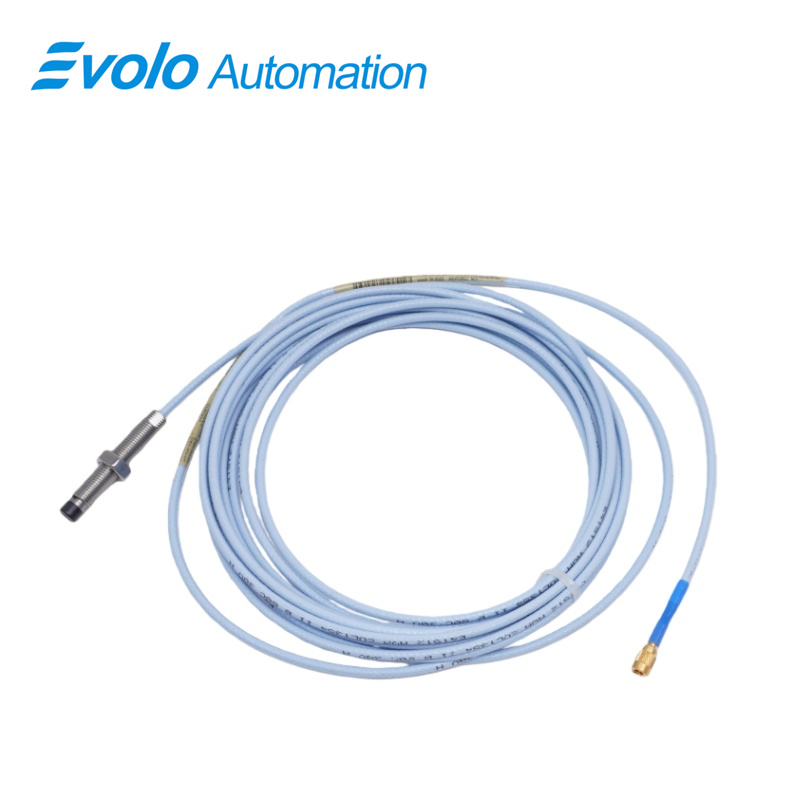

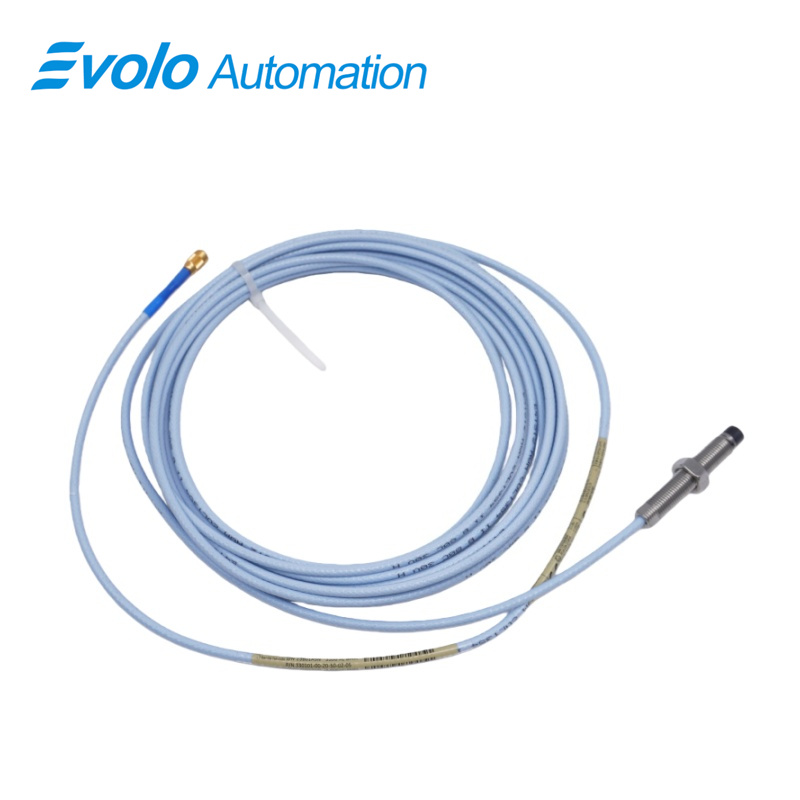

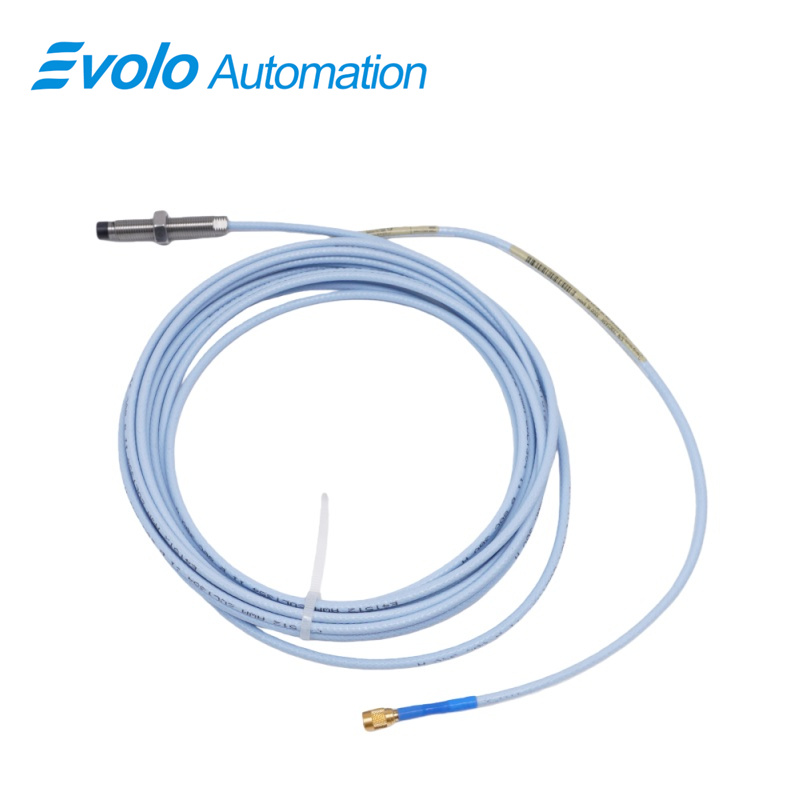

330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-50-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between the probe tip and conductive surfaces, measuring both position and vibration. With a 2 mm linear range (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe supports precise automated monitoring. Its 5-meter ClickLoc cable allows flexible field wiring from 0.2 to 1.5 mm² (16–24 AWG). Operating from -52°C to +177°C and CSA, ATEX, IECEx approved, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, speed measurements, and Keyphasor reference signals. Patented TipLoc and CableLoc ensure the probe tip and cable remain secured under 330 N pull, while optional FluidLoc prevents fluid leakage into the cable interior. Backward compatible with non-XL 3300 series probes and Proximitor sensors, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe eliminates bench calibration, enabling seamless integration into automated systems. This probe combines precise sensing, rugged construction, and long cable connectivity to optimize real-time machine monitoring.

Applications

Position Measurement on Fluid-Film Bearings
The 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe accurately measures shaft position with a linear range of 2 mm (80 mils) and output resistance of 50 Ω, providing real-time position monitoring for automated bearing systems.

Vibration Monitoring on Rotating Machinery
Equipped with a frequency response up to 10 kHz and a 5-meter ClickLoc extension cable, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe detects shaft vibrations and transmits precise signals for automated vibration analysis.

Speed Measurement and Keyphasor Reference
Using field wiring options of 0.2–1.5 mm² (16–24 AWG) and extension cable capacitance of 69.9 pF/m, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe generates Keyphasor signals for automated speed monitoring and rotor synchronization.

Specifications

Competitive Advantage

High Pull Strength for Secure Installation
The 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe incorporates CableLoc design providing 330 N pull strength, ensuring automated systems maintain continuous probe attachment under operational stress.

Extended Operating Temperature
Operating from -52°C to +177°C, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe supports extreme industrial environments, allowing reliable integration into automated control systems.

Plug-and-Play ClickLoc Connector
The miniature coaxial ClickLoc connector on the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe simplifies installation and reduces downtime, enabling immediate integration into automated monitoring networks.

High-Fidelity Signal Transmission
With a supply sensitivity of less than 2 mV per volt change and extension cable capacitance of 69.9 pF/m, the 330101-00-20-50-02-CN 3300 XL 8 mm Proximity Probe delivers precise output for automated data acquisition and control.
